Free JN0-231 Practice Test Questions and Answers (2026)

The configure exclusive command is used to enter configuration mode while simultaneously placing an exclusive lock on the candidate configuration database. This lock prevents any other user from making changes or committing a configuration until the user who issued the command either commits their changes or exits configuration mode. This directly addresses the scenario's requirement to prevent other users from modifying or discarding your in-progress edits.

A. configure master: This is not a valid Junos OS command. The term 'master' refers to the primary configuration database, but this command does not exist to access it in this manner.

B. cli privileged: This is not a valid Junos OS command. User access levels and permissions in Junos are determined by the user's configured login class, not by a specific command.

D. configure: This command enters a shared configuration mode. In this mode, multiple users can edit the candidate configuration simultaneously, which does not prevent others from modifying or overwriting your changes.

Juniper Networks TechLibrary

CLI User Guide

"Enter Configuration Mode" section: This official guide details the different commands for entering configuration mode. It explicitly states

"To enter configuration mode and lock the candidate configuration for as long as you remain in configuration mode

use the configure exclusive command... you prevent other users from committing changes."

URL: https://www.juniper.net/documentation/enUS/junos/topics/task/configuration/junos-os-cli-configuration-mode-entering.html

Juniper Networks TechLibrary

CLI User Guide

"Locking and Unlocking the Configuration" section: This section further clarifies the behavior of configuration locks. "When one user edits the configuration

another user can also edit the configuration. If the first user commits the configuration

the changes made by the second user are not lost... To prevent this

you can lock the configuration."

URL: https://www.juniper.net/documentation/enUS/junos/topics/task/configuration/junos-os-configuration-locking-and-unlocking.html

The Encapsulating Security Payload (ESP) protocol is a core component of the IPsec suite designed to provide confidentiality for data. It achieves this by encrypting the IP packet's payload. In addition to encryption, ESP can also optionally provide data origin authentication, connectionless integrity, and anti-replay services. The primary function that distinguishes ESP from other IPsec protocols like Authentication Header (AH) is its ability to encrypt the data, thus ensuring it remains confidential during transit across the network.

B. IKE: Internet Key Exchange (IKE) is a control plane protocol used to negotiate security associations (SAs) and cryptographic keys; it does not encrypt the actual data payload.

C. AH: The Authentication Header (AH) protocol provides authentication and integrity for the entire IP packet but does not offer any encryption or confidentiality for the payload.

D. TCP: The Transmission Control Protocol (TCP) is a transport layer protocol responsible for reliable data delivery and is not part of the IPsec suite for security functions.

1. Juniper Networks Documentation: "IPsec Overview". This document states

"Encapsulating Security Payload (ESP)—Provides confidentiality

data origin authentication

connectionless integrity

an anti-replay service

and limited traffic flow confidentiality by encrypting the payload."

URL: https://www.juniper.net/documentation/us/en/software/junos/vpn-ipsec/topics/concept/ipsec-overview.html

2. Internet Engineering Task Force (IETF) RFC 4303: "IP Encapsulating Security Payload (ESP)". The abstract and introduction (Section 1) define ESP's primary role: "ESP is used to provide confidentiality

data origin authentication

connectionless integrity

an anti-replay service...".

URL: https://datatracker.ietf.org/doc/html/rfc4303

3. University of California

Berkeley - CS 161 Courseware: "Lecture 18: Network Security II". The lecture notes clearly differentiate the protocols: "ESP (Encapsulating Security Payload) provides confidentiality and integrity... AH (Authentication Header) provides integrity only."

URL: https://inst.eecs.berkeley.edu/~cs161/fa17/assets/lectures/18-netsec2.pdf (Page 21)

A Juniper zone-based security policy is fundamentally defined by its context and its resulting action. The zone context (C), specified by the from-zone and to-zone statements, is a mandatory component that defines the scope and direction of traffic the policy inspects. An action (D), such as permit or deny configured in the then clause, is also mandatory, as it dictates the final disposition of the matched traffic. A policy is incomplete and non-functional without both a defined zone context and a specified action.

A. a source port: This is an optional match criterion within a policy. A policy can be valid without specifying a source port, for instance, by matching on an application like junos-icmp.

B. a destination port: Similar to the source port, this is an optional match criterion. A policy can match traffic based on addresses or protocols alone, without specifying a destination port.

1. Juniper Networks TechLibrary

"Security Policies Overview": "Security policies are rules that control traffic flow from one zone to another zone... A policy consists of a set of match criteria and a set of actions." This establishes that the zone context (from-zone

to-zone) and the action are fundamental components.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-policy-overview.html

2. Juniper Networks TechLibrary

"Understanding Security Policies": "Each policy must include criteria for matching a connection and actions to be taken when a match occurs." This explicitly states that match criteria and actions are required. The context for the policy is always the from-zone and to-zone.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-policy-understanding.html

3. Juniper Networks TechLibrary

Configuration Hierarchy for security policies: The configuration structure [edit security policies from-zone to-zone policy then ] demonstrates that the zone context (from-zone

to-zone) and the action (then) are mandatory structural elements of any policy.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/ref/statement/security-edit-policies.html

Juniper Connected Security is a framework designed to provide threat-aware networking by integrating security services across all points of connection. A core component of this framework is the Juniper Advanced Threat Prevention (ATP) Cloud, which specifically provides protection against unknown, or "zero-day," threats using machine learning and sandboxing. This service integrates with SRX Series firewalls to enable real-time, inline blocking of malware once it is identified. These two capabilities—detecting previously unseen threats and actively blocking them in the data path—are central services of the Juniper Connected Security architecture.

B. IPsec VPNs: While Juniper devices support IPsec VPNs, this is a standard network security feature, not a unique service defining the advanced, threat-centric Connected Security framework itself.

C. Layer 2 VPN tunnels: This is a network transport technology. The Connected Security framework secures the traffic within such tunnels but does not provide the tunnel service as its primary function.

1. Juniper Networks

"Juniper Connected Security" Solution Brief

Page 2. This document explicitly states that the framework helps to "Stop advanced malware

including ransomware and zero-day threats" and "Block malicious activities inline."

URL: https://www.juniper.net/content/dam/juniper/en/us/local/pdf/solutionbriefs/3520031-en.pdf

2. Juniper Networks

"Juniper Advanced Threat Prevention Cloud" Data Sheet

Page 1. This data sheet describes the service's ability to protect against "‘zero-day’ malware and other sophisticated threats" and its integration with SRX firewalls for "inline blocking."

URL: https://www.juniper.net/content/dam/juniper/en/us/local/pdf/datasheets/1000633-en.pdf

Functional zones are special, system-defined zones in Junos OS for traffic destined for or originating from the device itself, not for transit traffic passing through it. The management functional zone is specifically created for out-of-band management access. Because functional zones are not intended for transit traffic, they cannot be referenced in security policies that control traffic between standard security zones. Junos OS automatically creates functional zones; they are not user-defined.

A. Functional zones must have a user-defined name.

Incorrect. Functional zones are system-defined with reserved names (e.g., management, null) and are not created or named by the user.

C. Multiple types of functional zones can be defined by the user.

Incorrect. Users define security zones by assigning interfaces to them; functional zones are built-in and cannot be created by the user.

1. Juniper Networks TechLibrary

"Understanding Functional Zones": "Junos OS defines two functional zones: the management zone and the null zone. You do not configure functional zones; Junos OS automatically creates them... The management zone is a built-in zone that is used for out-of-band management of the device."

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-zone-functional-understanding.html

2. Juniper Networks TechLibrary

"Understanding Security Zones": "A zone cannot be a functional zone. Functional zones cannot be used in security policies to control transit traffic."

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-zone-understanding.html

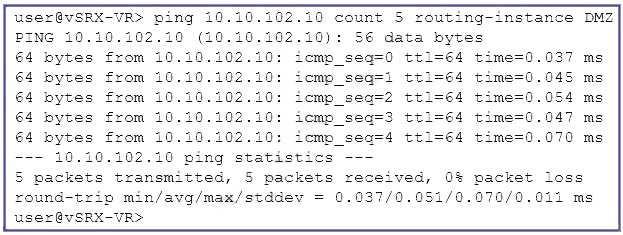

In Junos OS, particularly on SRX Series devices, host inbound traffic (traffic destined for the device's Routing Engine) is controlled at the zone and logical interface level. A security zone is a collection of one or more logical interfaces. To permit or deny services like SSH, ping, or SNMP to the device itself, you configure host-inbound-traffic options within a specific security zone. This configuration specifies which system services and protocols are allowed on the logical interfaces assigned to that zone. Therefore, both the zone and the logical interface are fundamental components in this configuration.

C. physical interface: Configuration elements like IP addresses, zone membership, and firewall filters are applied to logical interfaces (e.g., ge-0/0/0.0), not directly to the parent physical interface (e.g., ge-0/0/0).

D. routing instance: A routing instance provides routing and forwarding table separation. While host traffic can exist within an instance, the instance itself is not the component where traffic permissions are directly configured; that is still done on zones/interfaces within it.

1. Juniper Networks Documentation - Understanding Host Inbound Traffic: "You configure host-inbound traffic on a per-zone basis. In the host-inbound-traffic statement

you specify the services and protocols that are allowed for host-inbound traffic on the interfaces in a zone." This directly connects zones and interfaces to the configuration.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-host-inbound-traffic-understanding.html

2. Juniper Networks Documentation - [Example] Configuring Zones: "This example shows how to configure security zones and assign interfaces to them... set security zones security-zone trust interfaces ge-0/0/1.0". This shows the assignment of a logical interface (ge-0/0/1.0) to a zone.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/example/security-zone-configuring-cli.html

3. Juniper Networks Documentation - Interfaces Fundamentals: "Junos OS distinguishes between physical and logical interfaces. A physical interface is a physical port on the device... A logical interface is a configurable sub-unit of a physical interface." This clarifies the distinction between physical and logical interfaces.

URL: https://www.juniper.net/documentation/us/en/software/junos/interfaces-fundamentals/topics/concept/interfaces-fundamentals-logical-and-physical-interfaces-overview.html

Juniper SRX Series screen options provide stateless packet filtering to protect against network-level threats before they are processed by security policies. Screens are specifically designed to mitigate reconnaissance and Denial-of-Service (DoS) attacks. The ICMP flood screen protects against DoS attacks by monitoring the rate of ICMP packets and taking action when a threshold is exceeded. The IP spoofing screen prevents an attacker from using a false source IP address by validating that a packet's source address is logical for the interface on which it was received.

C. zero-day outbreaks: Protection against unknown or zero-day exploits is a function of advanced security services like Intrusion Prevention Systems (IPS) or Juniper Advanced Threat Prevention (ATP), not screens.

D. malicious e-mail attachments: Detecting malicious attachments requires deep content inspection at the application layer, which is handled by Unified Threat Management (UTM) anti-virus features, not network-level screens.

1. Juniper Networks TechLibrary

"Understanding Screen Options": This document explicitly lists and describes the available screen protections on SRX Series devices. It details protections against DoS attacks (including ICMP Flood) and IP-based attacks (including IP Spoofing).

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-screen-ids-understanding.html

2. Juniper Networks TechLibrary

"Example: Configuring Screen Options to Prevent DoS Attacks": This guide provides a configuration example for mitigating DoS attacks

specifically mentioning the icmp flood screen option.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/example/security-screen-dos-attack-configuring.html

3. Juniper Networks TechLibrary

"Security Policies with UTM": This documentation describes the UTM features

including the anti-virus feature which scans traffic for malware in protocols like SMTP

IMAP

and POP3

demonstrating this is separate from screen functions.

URL: https://www.juniper.net/documentation/us/en/software/junos/utm/topics/concept/utm-security-policy-overview.html

In a factory-default configuration, a Juniper SRX Series device running Junos OS is pre-configured to log system messages locally. The [system syslog] stanza in the default configuration directs messages of certain facilities and severities to a file on the device's local storage. The primary file for general system messages, kernel messages, and process notifications is named messages. This ensures that essential diagnostic information is captured on the device itself without requiring any initial user configuration for external logging systems.

A. Junos Space Log Director: This is an external, centralized logging platform. Sending logs to it requires explicit configuration on the SRX device and is not part of the factory-default setup.

B. Junos Space Security Director: Similar to Log Director, this is a management platform. While it can process logs, it is not a default log destination and requires specific configuration.

C. to a local syslog server on the management network: This implies sending logs over the network to a separate server. The factory-default configuration logs to a local file on the device, not to an external server.

1. Juniper Networks TechLibrary - System Log Messages Configuration Guide: "By default

the system log daemon (syslogd) on a Juniper Networks device logs messages to the file /var/log/messages..." This guide details the default logging behavior.

Source: Juniper Networks

"System Log Messages Configuration Guide"

Section: "Understanding System Logging for Junos OS".

URL: https://www.juniper.net/documentation/us/en/software/junos/system-basics/topics/concept/system-log-messages-overview.html

2. Juniper Networks TechLibrary - Default Junos OS Configuration File: The documentation for the default configuration file shows the [system syslog] stanza

which explicitly defines the messages file as a log destination.

Source: Juniper Networks

"Understanding the Default Junos OS Configuration File".

URL: https://www.juniper.net/documentation/us/en/software/junos/system-basics/topics/concept/junos-os-default-configuration-file-understanding.html (Refer to the sample default configuration section).

On Juniper SRX Series devices, Network Address Translation (NAT) types are processed with a specific order of precedence to resolve conflicts when a packet matches multiple NAT rules. Static NAT has the highest precedence because it creates a specific, bi-directional, one-to-one mapping. If a packet's destination address matches both a static NAT rule and a destination NAT rule, the static NAT rule will be applied. This ensures that specific, statically defined translations are always honored over more general, pool-based destination translations.

A. Destination NAT takes precedence over static NAT. This is incorrect. Juniper's NAT processing hierarchy explicitly gives static NAT higher precedence than destination NAT.

B. Source NAT is processed before security policy lookup. This is incorrect. In the Junos packet flow, source NAT is processed after the security policy lookup, just before the packet egresses the device.

C. Static NAT is processed after forwarding lookup. This is incorrect. Static NAT (and destination NAT) is processed before the forwarding (route) lookup so that the routing decision is based on the translated destination address.

1. Juniper Networks TechLibrary

NAT Overview: "For packets entering the security device

NAT rule lookup for static NAT and destination NAT is done before the route lookup... Static NAT has a higher priority than destination NAT."

URL: https://www.juniper.net/documentation/us/en/software/junos/nat/topics/concept/nat-overview.html (See the "NAT Processing" section).

2. Juniper Networks TechLibrary

Understanding NAT Packet Flow: This document provides a detailed diagram and explanation of the packet processing order. It shows that Static NAT and Destination NAT occur in the "Flow lookup/create session" phase

which is before the "Route lookup" and "Policy lookup". Source NAT occurs later

after the policy check.

URL: https://www.juniper.net/documentation/us/en/software/junos/nat/topics/concept/nat-packet-flow-understanding.html (Refer to the packet flow diagram and description).

For the first packet of a new session (first path processing) on a Juniper SRX Series device, the processing order is critical for security and efficiency. The packet is first subjected to stateless screen protections applied to the ingress interface. These screens check for anomalies and potential attacks before consuming further resources. Next, the device identifies the ingress security zone based on the interface the packet arrived on. Finally, after a route lookup determines the egress zone, the device evaluates stateful security policies to decide whether to permit or deny the creation of a session between the source and destination zones.

A. security policies –> screens –> zones: Incorrect. Screens are stateless and applied first, before zone identification and stateful policy evaluation.

B. screens –> security policies –> zones: Incorrect. The security zone must be identified before a zone-based security policy can be evaluated.

D. security policies –> zones –> screens: Incorrect. This order is fundamentally wrong; screens are the initial check, not the final one.

1. Juniper Networks TechLibrary

"Flow-Based and Packet-Based Processing": This official documentation details the packet processing sequence. In the "First Packet Processing" section

it shows that screens are applied at the ingress interface before the packet is associated with a zone

and policy lookup occurs after the from-zone and to-zone are known.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-flow-based-processing-understanding.html

Specific Section: See the diagram and description under "First Packet Processing".

2. Juniper Networks TechLibrary

"Understanding Session Creation": This document reinforces the flow

stating

"When a packet arrives at the device

the device checks it against existing sessions... If no session exists... the device performs a series of checks on it... These checks include... applying security screens... determining the zone the packet is coming from... [and] applying the security policy for that context."

URL: https://www.juniper.net/documentation/us/en/software/junos/flow-packet-processing/topics/concept/session-understanding.html

Specific Section: "Session Creation" details the sequence of events for a new flow.

The Juniper ATP C&C (Command and Control) cloud feed provides a dynamic list of known active C&C servers. These servers are fundamental to botnet operations, acting as the central point for controlling infected machines. They are also frequently used as distribution points for malware downloads. SRX Series Firewalls leverage this specific feed to identify and block traffic to and from these malicious servers, thereby disrupting botnet communications and preventing malware infections from these known sources.

A. infected host cloud feed: This feed identifies already compromised hosts within the protected network, not the external servers that are the source of the threats.

B. Geo IP feed: This feed is used for creating policies based on the geographical location of an IP address, not for identifying specific threat types like botnet servers.

D. blocklist feed: This is a generic term. The C&C feed is a specific type of blocklist provided by Juniper ATP, making "C&C cloud feed" the more precise and accurate answer.

1. Juniper Networks TechLibrary

"Understanding Juniper ATP Cloud Feeds": This official documentation explicitly defines the C&C feed: "The Command and Control (C&C) feed is a list of known active C&C servers. SRX Series devices can use this feed to take action against traffic to and from these malicious servers." It also defines the Infected Host feed as a list of clients on your network that are infected.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/juniper-atp-cloud-feeds-understanding.html

2. Juniper Networks TechLibrary

"Security Intelligence Overview": This document describes how SRX Series devices use various threat intelligence feeds. It details the C&C feed's role in blocking communication with botnet command and control servers.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-intelligence/topics/concept/security-intelligence-overview.html

Static NAT establishes a permanent, one-to-one mapping between a specific private IP address and a specific public IP address. This configuration is required when an internal device, such as a server, must be accessible from the public network using a consistent, dedicated public IP address. The mapping is bidirectional, allowing connections to be initiated from either the internal or external network. This directly addresses the scenario's need for one-to-one mappings for a set of servers.

A. source NAT with PAT: This is a many-to-one mapping, translating multiple private IPs to a single public IP using different ports. It is unsuitable for providing dedicated public IPs to servers.

B. destination NAT: While static NAT uses a destination NAT component for inbound traffic, "static NAT" is the more precise term describing the complete, persistent, one-to-one mapping required by the scenario.

C. NAT-T: NAT Traversal (NAT-T) is a method used to allow IPsec VPN traffic to pass through a NAT device; it is not a type of address mapping configuration.

1. Juniper Networks TechLibrary

"Static NAT Overview": "Static NAT provides a one-to-one mapping of a local address to a global address. Because the mapping is static

static NAT allows external devices to initiate connections to internal hosts..." Juniper Networks

"Static NAT Overview

" Junos OS Documentation

2. Juniper Networks TechLibrary

"Source NAT Overview": "Source NAT translates the source IP address of packets that leave a private network... Source NAT is most often used to translate private source IP addresses to public IP addresses." (This describes outbound

typically many-to-one translation). Juniper Networks

"Source NAT Overview

" Junos OS Documentation

3. Juniper Networks TechLibrary

"Understanding NAT Traversal for IPsec": "NAT-T is a method for getting around the IP address translation problems encountered when IPsec traffic passes through a NAT device..." Juniper Networks

"Understanding NAT Traversal for IPsec

" Junos OS Documentation

The question's notation (address/mask) for a wildcard match is unconventional for Junos. The only logical interpretation that yields two correct answers, as requested, is to treat the octets in the mask set to 255 as fixed and the octet set to 0 as a wildcard.

Given the base address 192.168.0.12 and the mask 255.255.0.255, the matching pattern requires the first octet to be 192, the second to be 168, and the fourth to be 12. The third octet can be any value. The resulting pattern is 192.168.X.12. Both 192.168.1.12 and 192.168.22.12 fit this pattern.

A. 192.168.1.21: The fourth octet (21) does not match the required value of 12 from the base address.

B. 192.168.0.1: The fourth octet (1) does not match the required value of 12 from the base address.

1. Juniper Networks TechLibrary - Junos OS Security Configuration Guide

"Understanding Wildcard Addresses": This official documentation clarifies the standard behavior of wildcard addresses in Junos OS. It states

"In a wildcard address

address bits are set to 0 to indicate a match and to 1 to indicate a 'don't care' bit." This shows that the question uses a non-standard

inverted logic for its mask. To achieve the result intended by the question (192.168.X.12)

the correct Junos wildcard mask would be 0.0.255.0.

URL: https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/concept/security-wildcard-address-understanding.html

By default, all SRX Series devices are equipped with two built-in concurrent user licenses for the Juniper Secure Connect VPN application. This allows for a baseline level of remote access functionality out of the box. To support more than two simultaneous remote access VPN users, an administrator must purchase and install additional subscription-based licenses. These licenses are available in various tiers and are managed through the Juniper Agile Licensing (JAL) portal.

A. 3: This is incorrect. The default license count is explicitly stated as two, not three.

B. 4: This is incorrect. While licenses can be purchased to exceed this number, the default is not four.

D. 5: This is incorrect. The default number of included licenses is two, not five.

1. Juniper Networks TechLibrary

"Licenses for Juniper Secure Connect": "By default

SRX Series devices are enabled with two concurrent user licenses for Juniper Secure Connect. You must purchase license to use more than two concurrent users."

URL: https://www.juniper.net/documentation/us/en/software/junos/vpn-ipsec/topics/concept/juniper-secure-connect-licenses.html

2. Juniper Networks TechLibrary

"Juniper Secure Connect Overview": This document also confirms the default licensing. "By default

SRX Series devices are enabled with two concurrent user licenses for Juniper Secure Connect."

URL: https://www.juniper.net/documentation/us/en/software/junos/vpn-ipsec/topics/concept/juniper-secure-connect-overview.html

On a Juniper SRX Series device, the security policy lookup process follows a strict hierarchical order. For any given traffic session, the device first evaluates the zone-based policies that are specific to the source and destination zone pair. If a matching policy is found within the zone context, it is applied, and the evaluation process stops. Only if no matching zone-based policy is found does the device proceed to evaluate the global policies. This ensures that specific rules for traffic between zones take precedence over more general, global rules.

B. The most restrictive policy is applied regardless of the policy level. This is incorrect. The SRX device applies the first matching policy it encounters in its lookup sequence, not the most restrictive one.

C. A global policy is always evaluated first. This is incorrect. Global policies are evaluated only after the device has checked for and failed to find a matching zone-based policy.

D. The first policy rule is applied regardless of the policy level. This statement is imprecise. The evaluation is structured by policy level (zone-based, then global), not just the order of rules in the configuration.

Juniper Networks TechLibrary

Security Policies Overview: "For a given session

the SRX Series device checks for a matching security policy in the following order: 1. Zone-based policies: Policies that are specific to a pair of zones. 2. Global policies: Policies that apply to all zones." Juniper Networks TechLibrary - Security Policies Overview

Juniper Networks TechLibrary

Understanding Unified Security Policies: This document details the integration of various security features into a single policy structure

which adheres to the fundamental zone-then-global lookup order. Juniper Networks TechLibrary - Understanding Unified Security Policies

Interface-based source NAT is the most appropriate and efficient solution for a Juniper SRX Series device when only a single public IP address is available from the ISP. This configuration method instructs the SRX to use the IP address of its egress (external-facing) interface as the source address for all translated traffic originating from the internal network. This method implicitly uses Port Address Translation (PAT) to allow multiple internal hosts to share the single public IP address simultaneously by mapping each session to a unique port number. It is the standard and simplest configuration for this common scenario.

A. pool-based NAT with PAT: While a pool could be configured with a single IP, "interface-based" NAT is the more direct and specific Juniper feature designed for using the egress interface's IP address.

B. pool-based NAT with address shifting: This is a form of static NAT that requires a one-to-one mapping between private and public IP addresses, making it unsuitable for sharing a single IP among many hosts.

D. pool-based NAT without PAT: Without PAT, a single public IP could only be used by one internal host at a time, as there would be no mechanism to differentiate between concurrent sessions.

1. Juniper Networks TechLibrary

"Understanding Source NAT." This document explicitly describes the two types of source NAT: interface source NAT and source NAT with an address pool. It states

"With interface source NAT

the IP address of the egress interface is used as the source address for the translated traffic." This directly matches the scenario in the question.

URL: https://www.juniper.net/documentation/us/en/software/junos/nat/topics/concept/nat-source-understanding.html

2. Juniper Networks TechLibrary

"Example: Configuring Source NAT (Interface)." This configuration example demonstrates the exact use case. The overview states

"In this example

you configure source NAT to use the IP address of the egress interface as the translation address."

URL: https://www.juniper.net/documentation/us/en/software/junos/nat/topics/example/nat-source-interface-configuring.html

3. Juniper Networks TechLibrary

"Source NAT Rule Configuration Overview." This guide details the source-nat stanza

showing the distinct interface and pool options

reinforcing that "interface" is the specific choice when using the egress interface's IP.

URL: https://www.juniper.net/documentation/us/en/software/junos/nat/topics/topic-map/security-source-nat-rules.html (See the section on Rule Action).

Global NAT address persistence is a feature configured on a source NAT pool. When enabled, it ensures that the Junos device assigns the same translated IP address from the pool for all sessions originating from a specific internal host's IP address. This creates a consistent, or "sticky," mapping between an internal IP and its translated external IP, which is maintained for as long as at least one active session for that host exists.

B: This statement describes the default behavior when address persistence is not enabled. Without persistence, a different IP from the pool can be used for different sessions.

C: The "address-persistence" feature, as defined and configured in Junos OS, applies specifically to source NAT pools, not destination NAT pools.

D: This option is incorrect because it refers to a destination NAT pool and describes non-persistent behavior, which is contrary to the purpose of the feature.

1. Juniper Networks TechLibrary

"Understanding NAT Address Persistence": "Address persistence enables the device to use the same mapped IP address for all sessions from a particular internal IP address... With address persistence enabled for a source NAT pool

for a given original source IP address

the same translated source IP address is allocated for all sessions."

URL: https://www.juniper.net/documentation/us/en/software/junos/nat/topics/concept/nat-address-persistence-understanding.html

2. Juniper Networks TechLibrary

"address-persistence (Security Source NAT)": This configuration guide shows that address-persistence is a statement configured under the [edit security nat source pool pool-name] hierarchy.

URL: https://www.juniper.net/documentation/us/en/software/junos/nat/topics/ref/statement/security-edit-address-persistence.html

The Internet Key Exchange (IKE) protocol establishes a security association (SA) in two distinct phases. The IKE SA, also known as the Phase 1 SA, is created during the first phase of negotiations. Its purpose is to provide a secure, authenticated channel for the subsequent Phase 2 negotiations. A key characteristic of this IKE SA is that it is bidirectional, meaning a single SA handles control traffic in both directions between the two IPsec peers. This is in contrast to IPsec SAs (Phase 2), which are unidirectional.

B: IKE security associations are bidirectional. It is the IPsec SAs, established in Phase 2 to protect data traffic, that are unidirectional.

C: This describes the creation of IPsec SAs. The IKE SA must be established first, during Phase 1, to protect these Phase 2 negotiations.

1. Juniper Networks TechLibrary

"Understanding IKE and IPsec SAs": "The IKE SA is a bidirectional SA that is used for the IKE protocol... In IKEv1

IKE SAs are established in Phase 1." This document explicitly states that IKE SAs are established in Phase 1 and are bidirectional.

URL: https://www.juniper.net/documentation/us/en/software/junos/vpn-ipsec/topics/concept/ipsec-understanding-ike-ipsec-sas.html

2. Juniper Networks TechLibrary

"IPsec Overview": "IKE creates a secure channel for the peers to communicate by negotiating SAs in two phases... Phase 1—The peers establish a secure channel. They authenticate each other and negotiate the way to encrypt further communication... The outcome of a successful Phase 1 exchange is an IKE SA." This confirms the IKE SA is the outcome of Phase 1.

URL: https://www.juniper.net/documentation/us/en/software/junos/vpn-ipsec/topics/concept/ipsec-overview.html

Dead Peer Detection (DPD) is a method used by IKE peers to determine if a peer is unresponsive. The interval parameter specifies the time in seconds between sending DPD probes to the peer. According to the official Juniper Networks documentation for the dead-peer-detection configuration statement, the default interval for sending these probes is 10 seconds. This value ensures a balance between timely detection of a dead peer and minimizing unnecessary network traffic.

A. 20 seconds: This is a valid configurable value within the allowed range (2-60 seconds), but it is not the default setting.

B. 5 seconds: This is the default value for the DPD threshold (the number of unanswered probes before a peer is declared dead), not the interval.

D. 40 seconds: This is a valid configurable value within the allowed range, but it is not the default setting.

1. Juniper Networks TechLibrary

dead-peer-detection (Security IKE): This official documentation page explicitly states the default value for the DPD interval.

URL: https://www.juniper.net/documentation/us/en/software/junos/vpn-ipsec/topics/ref/statement/security-edit-dead-peer-detection.html

Quote: Under the interval option description

it states: "Interval at which DPD requests are sent to the peer. Range: 2 through 60 seconds. Default: 10 seconds."

By default, Juniper SRX Series devices operate in flow mode. This is the standard mode for a stateful firewall, where the device inspects traffic based on connection states or "flows." The first packet of a new session is checked against the security policy, and if permitted, a session is created in the session table. Subsequent packets belonging to that session are processed quickly based on the existing state.

Additionally, SRX Series devices, running the Junos OS, fully support stateless firewall filters. These filters evaluate each packet individually against a set of rules without considering connection state. They are commonly used to protect the Routing Engine (RE) or to filter traffic at the interface level before it undergoes flow-based processing.

C: Packet mode is a non-default operational mode that disables stateful firewalling, causing the SRX to function more like a traditional stateless router.

D: SRX devices inherently support stateless firewall filters as a fundamental feature of the Junos operating system.

1. Juniper Networks TechLibrary

"Flow-Based and Packet-Based Processing." This document explicitly states

"By default

SRX Series devices operate in flow mode." It details how flow mode enables stateful security features

which is the primary function of an SRX device.

URL: https://www.juniper.net/documentation/us/en/software/junos/flow-packet-processing/topics/concept/flow-based-packet-based-processing-understanding.html

2. Juniper Networks TechLibrary

"Firewall Filters Overview." This guide describes the functionality of stateless firewall filters on Junos devices

including the SRX Series. It confirms that these filters are available to "filter data packets that are transiting the device" and to "protect the Routing Engine from malicious traffic."

URL: https://www.juniper.net/documentation/us/en/software/junos/firewall-filters/topics/concept/firewall-filter-overview.html
