Bidirectional Forwarding Detection (BFD) is a lightweight detection protocol designed to find faults in the path between two forwarding engines. Its primary contribution to high availability is its ability to detect failures very quickly (in milliseconds). When BFD detects a link or node failure, it immediately notifies associated routing protocols (like OSPF or BGP). This rapid notification allows the routing protocol to bypass its own slower, timer-based failure detection mechanisms and begin reconverging on an alternate path almost instantly, significantly reducing traffic loss and network downtime.

B. BFD is a failure detection protocol; it has no role in IP address assignment, which is handled by DHCP or static configuration.

C. Path selection based on metrics is the core function of a routing protocol (e.g., OSPF cost), not BFD, which only reports on path liveness.

D. BFD adds configuration complexity to enable rapid failure detection; it does not inherently decrease administrative overhead in link management.

1. Juniper Networks TechLibrary. (2023). Understanding BFD for Routing Protocols. "BFD provides a low-overhead

short-duration method of detecting failures in the path between adjacent forwarding engines... Failure detection timers for BFD are short

so they provide fast failure detection. BFD failure detection timers can be adjusted to be faster or slower."

2. IETF. (2010). RFC 5880: Bidirectional Forwarding Detection (BFD). Section 1

Abstract. "This document describes a protocol that is intended to detect faults in the path between two forwarding engines... Its purpose is to provide low-overhead

short-duration detection of failures..." (DOI: https://doi.org/10.17487/RFC5880)

In OSPF on multi-access networks, a Designated Router (DR) is elected to reduce the number of required adjacencies. A Backup Designated Router (BDR) is also elected at the same time. The BDR establishes full adjacencies with all other routers on the segment, just like the DR, and receives all Link-State Advertisements (LSAs). It acts as a hot standby. If the DR fails, the BDR immediately and without a new election process takes over the role of the DR, minimizing downtime and ensuring the stability of OSPF adjacencies on the segment.

B. All routers in an OSPF area synchronize their databases; this is not a unique function of the BDR, although it participates.

C. All OSPF routers are responsible for detecting failures on their directly connected links, not just the BDR.

D. OSPF's use of the SPF algorithm prevents routing loops. The DR/BDR mechanism is for efficiency and scalability, not loop prevention.

1. Juniper Networks TechLibrary. (2023). Junos OS Routing Protocols Configuration Guide. "OSPF Designated Router Election

" Section: Overview of the OSPF Designated Router. "The backup designated router takes over if the designated router fails. The backup designated router minimizes the transition time if the designated router fails."

2. Moy

J. (1998). OSPF Version 2 (RFC 2328). Internet Engineering Task Force. Section 7.4

"The Backup Designated Router." "The Backup Designated Router also establishes adjacencies with all routers on the network. It is promoted to Designated Router when the current Designated Router fails."

VLAN tagging, typically using the IEEE 802.1Q standard, inserts a tag into the Ethernet frame header. This tag contains a VLAN ID, which allows a switch to identify the VLAN to which the frame belongs. The primary advantage of this on a trunk port is that a single physical link can carry traffic for multiple VLANs simultaneously, with each frame's tag identifying its specific VLAN. This tagging mechanism also ensures that traffic from different VLANs remains logically separate and isolated from each other while traversing the shared trunk link.

A. VLAN tagging is specifically for tagged traffic. Untagged traffic is handled by the native VLAN and is not transferred across different VLANs by the tagging mechanism.

B. Tagging adds a 4-byte header to each frame, which introduces a small amount of overhead. It does not increase the physical link's bandwidth.

1. Juniper Networks Documentation. (2023). Understanding VLANs. Junos OS for EX Series Switches. "To allow traffic from multiple VLANs to traverse a single link

you must use trunk ports. Trunk ports can carry traffic for multiple VLANs... To distinguish which traffic belongs to which VLAN

the switch uses VLAN tags."

2. Juniper Networks Documentation. (2023). Trunk Ports. Junos OS. "Trunk ports multiplex traffic from several VLANs over a single physical connection... To distinguish which traffic belongs to which VLAN

the switch uses VLAN tags." This implies both carrying multiple VLANs (D) and keeping them distinct (C).

Martian addresses are IP addresses from reserved or unallocated address blocks that should not appear as the source or destination address in packets on the public Internet. Routers are typically configured to drop packets containing these addresses. This includes private address ranges defined in RFC 1918 (e.g., 10.0.0.0/8), the loopback block (127.0.0.0/8), and other special-use ranges specified by IANA. Their filtering is a common security best practice to prevent spoofing and other network anomalies.

A. Routing between different routing tables is a function of virtual routing and forwarding (VRF) instances, not Martian addresses.

B. While private addresses are a type of Martian address, the term is broader and includes many other reserved ranges, making this answer incomplete.

D. Multicast addresses (224.0.0.0/4) are a category of special-use addresses, but the term "Martian" is not exclusive to them.

1. Juniper Networks. (2023). Junos OS Routing Protocols Library for Routing Devices. Section: "Martian Routes". "Martian routes are host or subnet addresses on which a router should not forward packets." The documentation lists default Martian addresses including 0.0.0.0/8

127.0.0.0/8

and 224.0.0.0/4.

2. Internet Engineering Task Force. (2013). RFC 6890: Special-Purpose IP Address Registries. Section 2.2. This document provides the IANA registry of special-purpose address blocks

many of which are considered "Martian" in a public routing context.

3. Internet Engineering Task Force. (1996). RFC 1918: Address Allocation for Private Internets. This RFC defines the private IPv4 address spaces that are not globally routable and are considered Martian addresses on the public Internet.

A Link Aggregation Group (LAG) bundles multiple physical network links into a single logical link. This technique, standardized as IEEE 802.1AX (formerly 802.3ad), serves two main purposes for high availability. First, it increases the total available bandwidth by combining the capacity of all member links. Second, it provides redundancy; if one physical link within the LAG fails, traffic is automatically redistributed among the remaining active links without disrupting the logical connection. This ensures continuous operation and resilience against individual link failures.

B. LAG does not reroute to a separate backup path; it redistributes traffic over the remaining links within the same logical bundle.

C. LAG is a Layer 2 technology that aggregates physical links, not Layer 3 routing information between routers.

D. LAG provides link-level failover, not device-level failover. Protocols like VRRP or device clustering are used for automatic device failover.

1. Juniper Networks TechLibrary. (2023). Understanding Aggregated Ethernet Interfaces. This document states

"Aggregated Ethernet bundles Ethernet links to form a single link-layer interface... for increased bandwidth and for redundancy."

2. IEEE Std 802.1AX-2014. (2014). IEEE Standard for Local and metropolitan area networks--Link Aggregation. IEEE Standards Association. Section 1

"Overview

" describes the standard's purpose as allowing "one or more links to be aggregated together to form a Link Aggregation Group

such that a MAC Client can treat the Link Aggregation Group as if it were a single link."

Ethernet VPN (EVPN) is a control plane technology that uses BGP to exchange Layer 2 (MAC address) and Layer 3 (IP address) reachability information. Its fundamental role in data center architectures is to enable the creation of virtual Layer 2 networks that span across a physical Layer 3 IP underlay. This allows for the extension of L2 broadcast domains between different racks, pods, or even data centers, which is essential for virtual machine mobility and flexible network segmentation without the limitations of traditional Spanning Tree Protocol (STP)-based L2 networks.

B. EVPN is a control plane that works with data plane encapsulations like VXLAN; it does not provide an alternative to them.

C. While the overall architecture can simplify management, EVPN's primary role is extending L2 connectivity, not specifically simplifying IP routing.

D. EVPN provides network isolation for multi-tenancy, but it is not inherently a security mechanism that provides services like encryption or firewalling.

1. Juniper Networks Documentation. (2023). EVPN-VXLAN Overview. "EVPN-VXLAN is a standards-based technology that provides Layer 2 and Layer 3 connectivity between data centers over an IP network... EVPN is the control plane... and VXLAN is the data plane encapsulation protocol."

2. Internet Engineering Task Force (IETF). (2015). RFC 7432: BGP MPLS-Based Ethernet VPN. Section 1

Introduction. "This document describes procedures for BGP MPLS-based Ethernet VPNs (EVPN). The EVPN solution provides a number of forwarding applications... that allow for the transport of Layer 2 frames over an IP/MPLS core."

In OSPF, an Area Border Router (ABR) is a router that connects one or more OSPF areas to the main backbone area (Area 0). Its primary function is to advertise routing information, often in a summarized form, between the backbone and the non-backbone areas it is connected to. A Backbone Router is any router that has at least one interface in Area 0. Since all inter-area traffic must pass through the backbone, both ABRs and other backbone routers are integral to the exchange of routing information between different OSPF areas.

A. An Internal Router has all its interfaces within a single OSPF area and does not forward routing information to other areas.

D. An Autonomous System Boundary Router (ASBR) is responsible for injecting routes from external autonomous systems into the OSPF domain, not for exchanging routes between OSPF areas.

1. Juniper Networks TechLibrary. (2023). OSPF Areas Overview. "An area border router (ABR) is a router that is attached to more than one OSPF area... ABRs are used to connect the OSPF areas to the backbone area."

2. Juniper Networks TechLibrary. (2023). OSPF Router Types. "Backbone router—A router in the OSPF backbone (area 0)... Area border router (ABR)—A router that connects one or more areas to the backbone area."

3. Moy

J. (1998). RFC 2328: OSPF Version 2. IETF. Section 3.1

"The Autonomous System". Defines ABRs as routers attached to multiple areas and ASBRs as those exchanging routes with other ASes.

VLANs logically segment a physical network into multiple, distinct broadcast domains. By doing this, broadcast traffic generated within one VLAN is confined to that VLAN and not forwarded to others, which is the definition of isolating broadcast domains. This segmentation also reduces unnecessary traffic on the network, as broadcasts and other traffic are contained within smaller logical groups. This containment helps to reduce overall network congestion and improve performance by ensuring traffic is only sent where it is needed.

B. VLANs operate at Layer 2 and create segmentation. Routing traffic between these separate VLANs is a Layer 3 function, requiring a router or Layer 3 switch.

D. VLANs do not create or increase the number of IP addresses. IP addressing is a Layer 3 concept, independent of Layer 2 VLAN segmentation.

1. Juniper Networks Documentation. (2023). Understanding VLANs. Junos OS for EX Series Switches. "VLANs are broadcast domains... By default

traffic cannot pass between different VLANs." and "VLANs improve network performance by grouping users and resources and confining traffic to those groups."

2. Juniper Networks Documentation. (2023). VLANs Overview. Junos OS. "VLANs allow you to logically group devices on the same LAN and to isolate the traffic for each group... This isolation of traffic reduces congestion."

Link Aggregation Groups (LAGs) enhance high availability through two primary benefits. First, they provide redundancy (A) by bundling multiple physical links. If any single link within the group fails, traffic is automatically and rapidly redistributed across the remaining operational links. This ensures that a single point of failure at the physical link level does not cause a complete loss of connectivity. Second, as a direct result of this redundancy, LAGs help ensure continuous connectivity (C). The automatic rerouting of traffic upon a link failure is handled at the hardware/link layer, providing a seamless failover that is much faster than typical Layer 3 routing protocol reconvergence.

B. LAGs aggregate physical links and their bandwidth at Layer 2, not IP addresses, which are a Layer 3 construct.

D. LAGs provide link-level redundancy between two devices but do not replace the need for dynamic routing protocols for path redundancy across a larger network.

1. Juniper Networks TechLibrary. (2023). Understanding Aggregated Ethernet Interfaces and Link Aggregation Groups. "Additionally

link aggregation provides network redundancy by load-balancing traffic across all available links. If one of the links fails

the system automatically load-balances traffic across all remaining links." Section: "Aggregated Ethernet Interfaces Overview".

2. Purdue University

College of Engineering. (n.d.). Link Aggregation. ECN Knowledge Base. "Link aggregation provides a way to increase the available bandwidth between two systems... Link aggregation also provides a measure of redundancy. If one of the links in the group should fail

the traffic will be automatically re-routed to the other links in the group." Retrieved from official university documentation.

When an OSPF neighborship is stuck in the ExStart state, it indicates that the routers are failing to establish a master-slave relationship and agree on the initial Database Description (DBD) packet sequence number. The most common cause for this specific state failure is a Maximum Transmission Unit (MTU) mismatch between the neighboring interfaces. If the designated master router sends a DBD packet that is larger than the MTU configured on the slave router's interface, the slave will drop the packet, and the exchange process cannot proceed, causing the state to remain at ExStart.

A. The priority is set to 255: Priority values influence the DR/BDR election process, which is completed before the ExStart state. It does not cause a stall at this stage.

B. There is an interval timing mismatch: A mismatch in Hello or Dead timers will prevent the neighborship from reaching the 2-Way state, causing it to fail earlier in the process.

C. There is an area ID mismatch: An area ID mismatch will cause the routers to discard each other's Hello packets, preventing the neighborship from ever forming and moving past the Init state.

1. Juniper Networks TechLibrary. (2023). Troubleshooting OSPF. Section: "OSPF Neighbor State Is Stuck in ExStart". "The most common reason for the OSPF neighbor state to be stuck in ExStart is an MTU mismatch between the OSPF neighbors."

2. Juniper Networks Knowledge Base. (2021). KB16539 - OSPF neighbor is stuck in EXSTART/EXCHANGE state. "This problem is most likely caused by an MTU mismatch on the link."

3. IETF RFC 2328. (1998). OSPF Version 2. Section 10.8. "The slave must check whether it can accept a packet of this size. If not

it must stop the sending/receiving of Database Description Packets and revert to the ExStart state."

Virtual LANs (VLANs) are a fundamental networking technology used to logically segment a physical Layer 2 network into multiple distinct broadcast domains. This allows network administrators to group devices together based on function or department, regardless of their physical location. By creating these separate logical networks on a single physical switch, VLANs eliminate the need to purchase and manage multiple physical switches for segmentation, thereby reducing hardware costs and simplifying network management. Traffic between VLANs requires a Layer 3 device, such as a router, to be forwarded.

B. Assigning multiple IP addresses to a device is a function of the host's operating system and network stack, not a feature provided by VLANs.

C. VLANs can simplify network design, but communication between them requires inter-VLAN routing, which can add complexity. This is a consequence, not an advantage.

D. VLANs segment and isolate traffic into different broadcast domains; they do not prevent all network traffic. They control the flow of traffic at Layer 2.

1. Juniper Networks. (2023). Understanding VLANs on EX Series Switches. TechLibrary. Retrieved from https://www.juniper.net/documentation/us/en/software/junos/vlan/topics/concept/vlans-ex-series-understanding.html. (See the "Benefits of VLANs" section

which states

"VLANs enable you to logically group devices and to partition your network... without having to run new cables or make major changes in your current network infrastructure.")

2. Juniper Networks. (2023). Junos OS for EX Series Switches

Release 23.4R1. "VLANs Overview". Retrieved from https://www.juniper.net/documentation/us/en/software/junos/vlan/topics/concept/vlan-ex-series-overview.html. (This document explains that VLANs are "a collection of network nodes that are grouped together in a single broadcast domain... independent of their physical location.")

To enable aggregated Ethernet (AE) interfaces on a Junos device, you must first specify the total number of AE interfaces the device will support. This is a system-wide, chassis-level setting configured under the [edit chassis] hierarchy using the aggregated-devices ethernet device-count statement. This command allocates the specified number of AE interfaces (e.g., ae0, ae1, etc.) for subsequent configuration under the [edit interfaces] hierarchy. Without this initial declaration, AE interfaces cannot be configured or used.

A. [edit switch-options]: This hierarchy is used for configuring Layer 2 switching features like VLANs or storm control, not for defining the number of available aggregated Ethernet interfaces.

B. [edit system]: This hierarchy is for system-wide operational parameters such as hostname, login settings, and system services, not for hardware-related interface allocation.

C. [edit interfaces]: While individual AE interfaces (like ae0) are configured here, the ability to create them must first be enabled under the [edit chassis] hierarchy.

1. Juniper Networks Documentation

"Aggregated Ethernet Interfaces Configuration Guide for Switches

" Configuring Aggregated Ethernet Interfaces. The guide states

"To configure an aggregated Ethernet interface

you include the aggregated-devices statement at the [edit chassis] hierarchy level..."

2. Juniper Networks Documentation

"Junos OS Administration Library for Routing Devices

" aggregated-devices. This document specifies that the aggregated-devices statement is configured at the [edit chassis] hierarchy level to set the number of logical devices.

Bidirectional Forwarding Detection (BFD) is a low-overhead, short-duration protocol intended to detect failures in the path between two forwarding engines. It provides rapid failure detection for various encapsulations and routing protocols. BFD works with routing protocols like OSPF and BGP to detect forwarding path failures much faster than the protocols' native keepalive mechanisms. This rapid detection allows for quicker routing table recalculation and triggers fast reroute mechanisms, significantly improving convergence time and network high availability.

A. BFD is not independent; it is a detection protocol that signals registered client protocols (like OSPF, BGP) about path failures, enabling them to take action.

C. BFD is not limited to physical layer failures; it can detect failures at any layer, including data link, network, and even forwarding plane issues.

1. Juniper Networks TechLibrary. (2023). Understanding BFD for Routing Protocols. "BFD is a simple hello mechanism that detects failures in a network... BFD works with a wide variety of routing protocols... to provide faster convergence time."

2. Juniper Networks TechLibrary. (2023). BFD for BGP. "You can configure BFD to enable the rapid detection of link failures

which results in fast rerouting."

3. Katz

D.

& Ward

D. (2010). RFC 5880: Bidirectional Forwarding Detection (BFD). IETF. Section 1

"Introduction". "BFD provides a low-overhead

short-duration method of detecting failures in the path between two adjacent forwarding engines..."

When bundling multiple physical interfaces into a Link Aggregation Group (LAG), also known as an aggregated Ethernet bundle, all member interfaces must have identical characteristics to ensure proper operation. The most fundamental of these are link speed and duplex settings. If one member link operates at 1 Gbps and another at 10 Gbps, or if one is full-duplex and another is half-duplex, the bundle cannot be formed and will not function correctly.

A. While mismatched MTUs can cause problems, the primary and strict requirements for forming the bundle are speed and duplex.

C. A key feature of a Virtual Chassis is creating a LAG with member links on different physical chassis for redundancy.

D. Spreading member interfaces across different Packet Forwarding Engines (PFEs) is a common practice for load balancing and is not a restriction.

1. Juniper Networks. (n.d.). Understanding Aggregated Ethernet Interfaces and Link Aggregation. Junos OS Documentation. "To create a LAG

you must specify the link speed of the member links... All interfaces in the bundle must be of the same speed and in full-duplex mode." (See section: Aggregated Ethernet Interfaces Overview).

2. Juniper Networks. (n.d.). Configuring Aggregated Ethernet Interfaces. Junos OS Documentation. "All the interfaces that are part of an aggregated Ethernet bundle must have the same speed (for example

all 1-Gbps or all 10-Gbps) and be in full-duplex mode."

On Juniper switches using the port security feature set (secure-access-port), the default action for a MAC limiting violation is shutdown. When this action is triggered, the switch disables the interface, preventing it from sending or receiving any further traffic. As a direct consequence of the port being disabled, the offending packet and all subsequent packets arriving on that interface are dropped. By default, a system log message is also generated to record the violation.

A. No logging takes place. -> Incorrect. A syslog message is generated by default when the interface is shut down due to a MAC limit violation.

B. It causes Layer 2 loops. -> Incorrect. MAC limiting is a security feature intended to prevent network abuse, not cause network instability.

1. Juniper Networks TechLibrary. (n.d.). action (MAC Limiting). Retrieved from https://www.juniper.net/documentation/us/en/software/junos/port-security/topics/ref/statement/action-edit-ethernet-switching-options-secure-access-port.html. (This document explicitly states

"If you do not specify an action

the action is shutdown.").

2. Juniper Networks TechLibrary. (n.d.). Understanding Port Security. Retrieved from https://www.juniper.net/documentation/us/en/software/junos/port-security/topics/concept/port-security-understanding.html. (This guide explains that the shutdown action disables the port

which inherently results in packets being dropped).

A spine-leaf architecture offers significant advantages for modern data centers. First, it provides high scalability; capacity can be increased by adding more spine switches (for east-west bandwidth) or leaf switches (for server port density) without a major redesign. It also ensures predictable, low latency, as traffic between any two hosts is always just one hop across the spine. Second, the design is inherently redundant and fault-tolerant. With multiple spine switches, traffic is distributed via Equal-Cost Multi-Path (ECMP), and the failure of a single device or link has minimal impact on the fabric's overall performance.

B. A spine-leaf architecture is an internal data center topology; it does not inherently simplify or complicate integration with external WANs compared to other designs.

D. Spine-leaf architectures are typically built on Layer 3 to avoid the problems of large Layer 2 domains, effectively replacing complex L2 management (like STP) with L3 routing.

1. Juniper Networks TechLibrary. (2023). Benefits of an IP Fabric Architecture. "The key benefits of an IP fabric architecture are: ... Improved network scale... Improved resiliency... ECMP makes use of all available connections between the leaf and spine layers to load-balance traffic."

2. Juniper Networks. (2021). Day One: Data Center Fundamentals. Chapter 2

"Data Center Architectures

" Section "Spine and Leaf." "This architecture is highly scalable... The spine and leaf architecture is also very resilient."

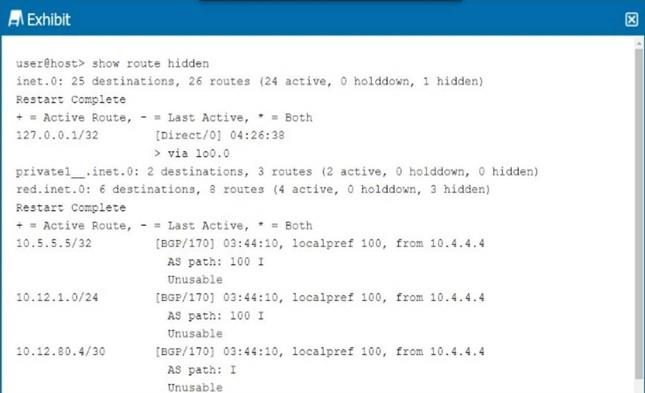

In Junos OS, a BGP route is marked as "hidden" when it fails the route validation process and cannot be installed as an active route in the forwarding table (e.g., inet.0). The most common reason for a route to be hidden is that the BGP next-hop address is not resolvable. This means there is no active route in the routing table that can be used to reach the BGP next hop. The route is kept in the BGP routing table but is not considered for path selection or forwarding until the next hop becomes reachable.

A. Load balancing (ECMP) applies to multiple valid, active paths to a destination; it does not cause a route to become hidden.

B. Having too many hops would typically result in an AS path loop, causing the route to be rejected, not hidden due to next-hop validation.

D. If another route with a better metric (e.g., lower administrative distance) were selected, the BGP route would be marked "Inactive," not "Hidden."

1. Juniper Networks Documentation

"Junos OS Routing Protocols Library for Routing Devices"

section "Troubleshooting BGP". It explains

"A hidden route is a route that is not installed in the forwarding table because the next hop is unreachable."

2. Juniper Networks Knowledge Base

Article KB16138

"BGP routes are hidden and not active in the routing table". The primary cause listed is: "The BGP next-hop for the route is not reachable."

The most direct and common method for monitoring the health and status of a Link Aggregation Group (LAG) is by using the show interfaces command. On Junos devices, show interfaces ae provides detailed output about the logical LAG interface, including its status, traffic statistics, and, crucially, the status of all its physical member links. This allows an administrator to quickly verify if the bundle is up and which member links are actively participating in the aggregation.

B. The ping command is a Layer 3 tool used to test reachability, not a direct method for verifying Layer 2 LAG health.

C. A router's routing table reflects Layer 3 forwarding decisions; it is an indirect and lagging indicator of a LAG's status, not a direct monitoring tool.

D. While BFD can be run over a LAG to monitor the path, LACP is the protocol that monitors member links. The primary tool to check this status is the show command.

1. Juniper Networks TechLibrary

"Monitoring Aggregated Ethernet Interfaces". This document explicitly lists show interfaces ae-interface-name [extensive | detail] as the primary command for monitoring LAGs. It details how the output shows link status and LACP information for the bundle and its members.

2. Juniper Networks TechLibrary

"Aggregated Ethernet Interfaces Overview". Section "Monitoring an Aggregated Ethernet Interface" states

"To display the state of an aggregated Ethernet interface

use the show interfaces command."

The primary role of a Link-State Advertisement (LSA) in OSPF is to describe the local state of a router or network. Each router generates LSAs containing information about its interfaces, the cost to its neighbors, and other network details. These LSAs are then flooded throughout an OSPF area, allowing every router in that area to build an identical and complete topological map of the network, which is stored in the Link-State Database (LSDB).

A. To share routing table information between OSPF routers: This describes distance-vector protocols like RIP. OSPF shares topology information (LSAs), not pre-computed routing tables.

C. To calculate the best path to each destination: The Shortest Path First (SPF) algorithm performs the calculation; LSAs are the data input for this algorithm.

D. To prioritize routes based on bandwidth: While the OSPF cost metric is often derived from bandwidth, the LSA's role is to carry this cost information, not to perform the prioritization itself.

1. Juniper Networks. (2023). Junos OS Routing Protocols Library for Routing Devices. OSPF Overview

Section: Link-State Advertisements. "OSPF routers exchange link-state information through packets called link-state advertisements (LSAs). The LSAs contain information about the topology of the network..."

2. Moy

J. (1998). RFC 2328 - OSPF Version 2. IETF. Section 1.2

"A brief description of the algorithm". "Each router is responsible for describing its local state (e.g.

its usable interfaces and reachable neighbors) in a link state advertisement (LSA)."

A Virtual Chassis configuration allows multiple supported Juniper Networks switches to be interconnected and managed as a single logical device. This consolidation significantly simplifies network management, as administrators can configure, monitor, and maintain the entire stack of switches through a single management interface and configuration file. This reduces operational complexity and the potential for configuration errors across multiple devices. The logical device has a single IP address and Junos OS image, streamlining operations and upgrades.

A. Virtual Chassis creates a single logical routing engine; it does not inherently increase the routing table size by combining disparate paths.

B. The primary goal of Virtual Chassis is simplification, not to enable more complex routing configurations than standalone switches.

D. VLANs provide security isolation, but this is a standard Layer 2 feature, not a unique advantage of a Virtual Chassis configuration.

1. Juniper Networks Documentation

"Understanding Virtual Chassis Technology

" Feature Guide. The document states

"You manage the Virtual Chassis as a single network entity... This simplification of network management is one of the biggest advantages of Virtual Chassis technology."

2. Juniper Networks Documentation

"Virtual Chassis Overview for EX Series Switches

" Junos OS. It explains

"A Virtual Chassis configuration simplifies network management

eliminating the need to configure

monitor

and maintain each switch individually."
