Free 3V0-24.25 Practice Test Questions and Answers (2026)

vSphere Kubernetes Service (VKS) uses Velero for backups. Velero provides several mechanisms to define the scope of a backup. An administrator can scope a backup to include all resources within one or more specific namespaces. Alternatively, for more granular control, a label selector can be used to back up only the Kubernetes objects that have a specific label. Additionally, Velero can back up specific kinds of resources, such as all Service objects, across the cluster.

B. "Cluster" is too general. You back up specific resources within a cluster. It is not a selectable object type for a backup operation's scope.

C. "Application" is a logical concept, not a native Kubernetes object type. A backup includes the objects that constitute an application (Deployments, Services, etc.).

E. Kubernetes uses "labels" and "label selectors" for metadata filtering. "Tags" are a vSphere-specific concept and are not used by Velero to scope backups.

1. Velero Documentation, "Backup Reference". The documentation for the velero backup create command lists flags for scoping, including --include-namespaces, --include-resources (e.g., services, deployments), and --selector (for label selection). VMware's implementation uses this standard Velero functionality.

2. VMware vSphere Documentation, "Backing Up Tanzu Kubernetes Cluster Workloads". The examples show using the velero backup create command with flags like --include-namespaces my-namespace and --selector app=my-app to define the backup scope.

For a Supervisor deployed on a vSphere Distributed Switch (VDS), Antrea is the default and fully integrated Container Network Interface (CNI). Antrea is an open-source project that leverages Open vSwitch to provide Kubernetes networking and security services. It directly meets the requirements for pod-to-pod communication observability and control through Kubernetes Network Policies without requiring additional licensing or a complex secondary network overlay. It is the standard, out-of-the-box CNI solution for VDS-based vSphere with Tanzu deployments.

B. Calico is a popular and powerful CNI, but it is not the default integrated option for Supervisor deployments on VDS. It is the CNI used when deploying a Supervisor with NSX networking.

C. Flannel is a basic CNI focused on providing a simple network fabric but lacks the advanced features like network policy enforcement required by the scenario.

D. Cilium is a CNI known for its eBPF-based implementation, offering high performance and security, but it is not the default supported CNI for a Supervisor on VDS.

1. VMware vSphere with Tanzu Configuration and Management Guide. "Supervisor Networking". This document specifies that when you configure a Supervisor with VDS networking, Antrea is automatically deployed as the CNI for the Supervisor and any Tanzu Kubernetes Grid clusters.

2. VMware vSphere 8.0 Documentation. "Container Network Interface for a Supervisor". The documentation states, "For a Supervisor that is configured with vSphere networking, the default CNI is Antrea."

3. Antrea Project Documentation (antrea.io). The official project site describes Antrea as a "Kubernetes-native project that provides networking and security services for a Kubernetes cluster," which aligns with the capabilities required in the question.

In Kubernetes, a Pod is the most fundamental and smallest deployable object. It represents a single instance of a running process in a cluster. A Pod encapsulates one or more tightly coupled application containers, along with shared storage (volumes), a unique network IP, and options that govern how the container(s) should run. While containers are the execution mechanism, Pods are the atomic unit of scheduling and deployment on the Kubernetes control plane.

B. A pod can contain only one container: Incorrect. A pod is designed to support multiple co-located and co-scheduled containers that share resources, often for helper or sidecar functions.

C. A pod is the smallest entity managed by Docker: Incorrect. Docker manages containers. Kubernetes manages pods, which are a higher-level abstraction that contains one or more containers.

D. A pod is deployed directly on the virtual machine: Incorrect. A pod is scheduled by Kubernetes to run on a Node (which can be a VM), but it is managed by the kubelet, not deployed directly.

1. Kubernetes Documentation. (n.d.). Pods. Retrieved from https://kubernetes.io/docs/concepts/workloads/pods/. The overview section states, "A Pod is the smallest and simplest unit in the Kubernetes object model that you create or deploy."

2. VMware vSphere with Tanzu Documentation. (2023). Managing Workloads in vSphere with Tanzu. "Understanding Pods, Deployments, and Services". This section introduces Kubernetes workloads, defining the Pod as the basic unit.

When upgrading Kubernetes platforms like vSphere with Tanzu, the underlying Kubernetes API versions often change. These changes can deprecate or alter fields and structures within the YAML manifests used to declare resources, such as a Tanzu Kubernetes Cluster (workload.yaml). The error described is a classic symptom of applying a YAML file with an outdated schema against a newer API server. The correct resolution is to update the manifest by removing or replacing the deprecated variables with their current equivalents as specified in the documentation for the new version.

A. While version compatibility is important, the error is likely within the manifest file itself, not a fundamental incompatibility between cluster versions that would be resolved by verification alone.

C. Renaming a storage policy would only be a solution if the error message specifically indicated the policy was not found, which is a different class of error.

D. Restarting services is a generic troubleshooting step that will not fix a declarative configuration error caused by an invalid schema in a YAML file.

1. VMware Tanzu Kubernetes Grid Documentation. The release notes for each version typically contain a "Known Issues" or "Changes in Behavior" section that details API deprecations and required changes to configuration files.

2. Kubernetes Documentation, "API Deprecation Guide". This official guide explains the Kubernetes policy for deprecating API fields and versions, which is the root cause of the issue described. (e.g., see kubernetes.io/docs/reference/using-api/deprecation-guide/).

3. VMware vSphere with Tanzu Configuration and Management Guide. Sections on "Provision a Tanzu Kubernetes Cluster" show the structure of the YAML manifest, which changes between major releases.

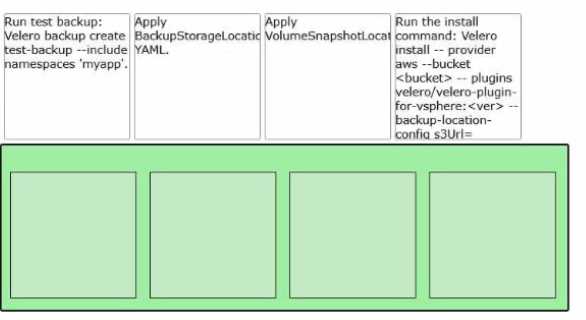

To implement a backup strategy using Velero with the vSphere plugin, the standard order of operations requires deploying the core components first. The velero install command is executed to install the Velero server, specify the primary object storage provider (e.g., AWS for S3 compatibility), and load the necessary vSphere plugin. Once the server components are deployed, custom resources must be applied. First, the BackupStorageLocation YAML is applied to define the destination bucket and configuration for storing the core backup data. Following this, the VolumeSnapshotLocation YAML is configured to define the provider-specific settings for creating persistent volume snapshots via the vSphere CSI. Finally, a test backup is executed using velero backup create to validate the end-to-end functionality of the backup pipeline.

VMware Docs: VMware vSphere Product Documentation - Kubernetes Backup and Restore, Installing Velero and vSphere Plugin. This documentation specifies the requirement of deploying the operator first, followed by configuring storage locations before performing any backup tasks.

Velero Official Documentation: Backup Storage Locations and Volume Snapshot Locations (v1.0+). This details how Velero leverages the BackupStorageLocation and VolumeSnapshotLocation custom resources to route storage and snapshots, noting that these CRs must be available and validated prior to executing velero backup create.

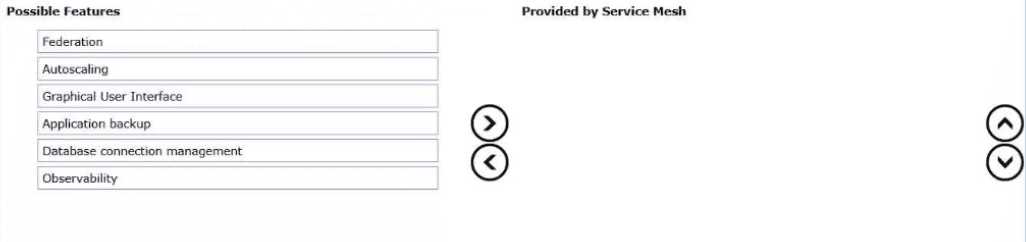

A service mesh is a dedicated infrastructure layer that manages service-to-service communication. Among the listed options, Federation, Graphical User Interface, and Observability are recognized features.

1. Federation: Service meshes (e.g., Istio, Tanzu) enable multi-cluster federation, allowing services across diverse regions to communicate securely and share identity policies.
2. Graphical User Interface: Vendor distributions often provide a centralized GUI (like Kiali for Istio or Tanzu Global Console) to visualize service topologies, trace health, and configure routing.
3. Observability: By injecting sidecar proxies, the mesh captures granular telemetry (metrics, traces, logs) without modifying application code.

Conversely, Autoscaling, Application backup, and Database connection management are natively handled by Kubernetes, external backup utilities (e.g., Velero), or application-level frameworks.

Peer-Reviewed Publication: Li, W., et al. "A Comprehensive Survey of Privacy-Enhancing and Trust-Centric Cloud-Native Security Techniques Against Cyber Threats." Sensors (MDPI). Section 4.1 (Overview of Security Techniques for Cloud-Native Applications - Service Mesh). Covers service mesh features including robust observability and traffic management. DOI: https://doi.org/10.3390/s25082350

Official Vendor Documentation (VMware): VMware Tanzu Service Mesh Product Documentation. Section: Tanzu Service Mesh Concepts. Details the use of Global Namespaces (for cross-cluster Federation), distributed telemetry (Observability), and the Tanzu Global Console (GUI) for topology visualization.

Official Vendor Documentation (Istio): Istio Core Documentation. Sections: Concepts > Observability (detailing metrics, distributed traces, and access logs) and Install > Multicluster (detailing multi-cluster federation and cross-cluster routing).

The complete cleanup of a Supervisor Service from the vSphere environment occurs in two main phases: removing its resources from the Supervisor cluster and deleting the service definition from vCenter Server. Because the task explicitly begins with the uninstallation phase, the administrator initiates the removal and must first Confirm uninstallation to strip the Harbor service from the cluster. Once uninstalled, the service definition still remains registered within vCenter. To permanently clear it from the environment, the administrator must navigate to the Services registry and Deactivate the service. Deactivation transitions the service state, unlocking the ability to remove it. The administrator then selects to Delete the service and, finally, must Confirm deletion to permanently purge Harbor from the vSphere environment.

VMware/Broadcom TechDocs: vSphere Supervisor Services and Workloads (vSphere 8.0) - Section: "Uninstall a Supervisor Service from a Supervisor". This details the initial process of selecting the service on the cluster and triggering the uninstallation confirmation.

VMware/Broadcom TechDocs: vSphere Supervisor Services and Workloads (vSphere 8.0) - Section: "Managing Supervisor Services". This specifies the lifecycle management rules, explicitly stating that to delete an entire service version from vCenter Server, you must first transition it to a "Deactivated" state and uninstall it before the "Delete" operation becomes available and can be confirmed.

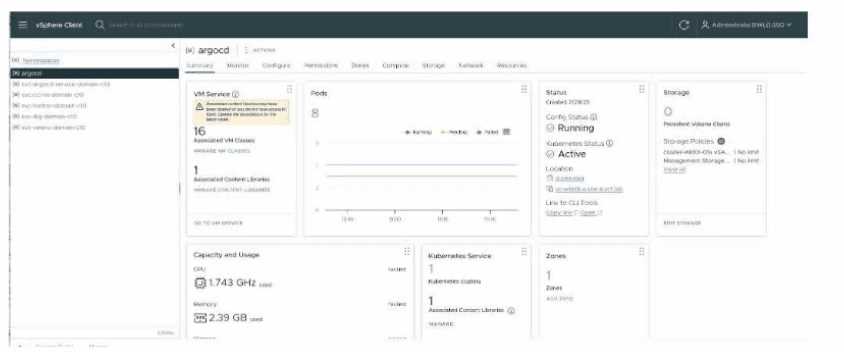

In the vSphere Client, an administrator can verify the details of a PersistentVolumeClaim (PVC)—including its specific Access Modes (e.g., ReadWriteOnce, ReadWriteMany)—from two primary dashboards:

1. Storage Tab: At the vSphere Namespace level, navigating to the Storage tab and selecting "Persistent Volume Claims" lists all PVCs in that namespace along with an "Access Mode" column.
2. Monitor Tab: At the vCenter Server, Datacenter, or Cluster level, navigating to the Monitor tab and selecting "Cloud Native Storage" > "Container Volumes" provides a comprehensive dashboard of all persistent volumes, which also includes a dedicated column for "Access Mode".

VMware vSphere 8.0 Documentation (Broadcom TechDocs): vSphere with Tanzu Configuration and Management -> Using Persistent Storage in vSphere with Tanzu -> "Monitor Persistent Volumes Using the vSphere Client" (Instructs navigating to the Namespace -> Storage tab -> Persistent Volume Claims).

VMware vSphere 8.0 Documentation (Broadcom TechDocs): vSphere Storage -> Cloud Native Storage -> "Monitor Volume Health and Capacity Using the Cloud Native Storage Dashboard" (Instructs navigating to vCenter/Cluster -> Monitor tab -> Cloud Native Storage -> Container Volumes).

In VMware vSphere with Tanzu, administrators cannot provision Tanzu Kubernetes Grid (TKG) workload clusters directly through a native wizard in the vSphere Client GUI. Instead, workload clusters are deployed declaratively by applying a YAML manifest to the Supervisor cluster using the Kubernetes CLI (kubectl) or the Tanzu CLI. To initiate this process, the administrator must navigate to the target namespace's Summary tab and click the "Open" link under "Link to CLI Tools" in the Status pane. This action allows them to download the required CLI binaries and vSphere plug-ins needed to authenticate to the Supervisor and create the cluster.

Broadcom/VMware TechDocs: vSphere with Tanzu Configuration and Management (vSphere 8.0). Section: "Provisioning TKG Clusters on Supervisor" > "Download and Install the Kubernetes CLI Tools for vSphere". This section explicitly states the requirement to navigate to the namespace Status pane and select the CLI tools link to begin K8s cluster deployment.

Broadcom/VMware TechDocs: vSphere Supervisor Services and Standalone Components (vSphere 9.0). Section: "Connecting to Supervisor and VKS Clusters" > "Download and Install the VCF Consumption CLI", Document Page 212. This page confirms the required workflow of navigating to Supervisor Management > Namespaces > Summary > Status pane > Link to CLI Tools to obtain the tools for provisioning VKS clusters.

To deploy a Supervisor across multiple compute clusters for high availability and fault tolerance, an administrator must first map those clusters to a vSphere Zone. The standard administrative workflow to begin this creation process within the vCenter inventory tree is to select the target vCenter Server, navigate to the Configure tab, and select vSphere Zones (or navigate globally via the Workload Management menu).

VMware vSphere 8.0 Product Documentation (2024/26). vSphere with Tanzu Configuration and Management. Section: "Create a vSphere Zone for a Supervisor." VMware by Broadcom Official Documentation.

VMware vSphere 8.0 Product Documentation (2024/26). vSphere with Tanzu Architecture and Components. Section: "vSphere Zones." VMware by Broadcom Official Documentation.
