Management Plane Appliance Proxy Hub (MP APH) to host connectivity - TCP:1234 Central Control

Plane (CCP) to host (NSX-Proxy) connectivity - TCP: 1235 esxcli network ip connection list | grep 1234

is the correct answer. https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID7F899902-6884-40D0-B0AF-

DF713AB052BD.html?hWord=N4IghgNiBcIHYGcAeACADgewE4BcUEYAmAZgBYQBfIA

Network Introspection is a service insertion feature that allows third-party network security services

to monitor and analyze the traffic between virtual machines. Network Introspection can be

configured on the host pNIC or on the partner SVM, depending on the type of service and the

deployment model. The host pNIC configuration is used for services that require traffic redirection

from the physical network to the service virtual machine. The partner SVM configuration is used for

services that require traffic redirection from the virtual network to the service virtual machine.

Network Introspection cannot be configured on the Tier-0 or Tier-1 gateways, as they are not part of

the data plane where the service insertion occurs. Network Introspection also cannot be configured

on the edge node, as it is a logical construct that hosts the Tier-0 and Tier-1

gateways. Reference: Distributed Service Insertion, NSX Securing “Anywhere” Part IV

According to the Network Bachelor article1, an IDS signature contains data used to identify an

attacker’s attempt to exploit a known vulnerability in both the operating system and applications.

This implies that statement B is true. According to the VMware NSX Documentation2, IDS/IPS Profiles

are used to group signatures, which can then be applied to select applications and traffic. This

implies that statement E is true. Statement A is false because users cannot upload their own IDS

signature definitions, they have to use the ones provided by VMware or Trustwave3. Statement C is

false because an IDS signature does not contain data used to identify the creator of known exploits

and vulnerabilities, only the exploits and vulnerabilities themselves. Statement D is false because IDS

signatures are classified into one of the following severity categories: Critical, High, Medium, Low, or

Informational1.

Reference: 3: Distributed IDS/IPS Settings and Signatures - VMware Docs 2: Distributed IDS/IPS -

VMware Docs 1: NSX-T: Exploring Distributed IDS - Network Bachelor

https://docs.vmware.com/en/VMware-SD-WAN/5.4/VMware-SD-WAN-Administration-Guide/GUID0BB81F8D-70EB-42D4-ABAF-F80C8F77A4CB.html

The NSX Application Platform Deployment features are divided into three form factors: Evaluation,

Standard, and Advanced. Each form factor determines which NSX features can be activated or

installed on the platform1. The Evaluation form factor supports only NSX Intelligence, which provides

network visibility and analytics for NSX-T environments2. The Standard form factor supports both

NSX Intelligence and NSX Network Detection and Response, which provides network threat

detection and response capabilities for NSX-T environments3. The Advanced form factor supports all

four features: NSX Intelligence, NSX Network Detection and Response, NSX Malware Prevention, and

NSX Metrics1.

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/nsx-application-platform/GUID85CD2728-8081-45CE-9A4A-D72F49779D6A.html

BGP will be configured on the T0 SR. Connect to the VRF for the T0 SR and run get bgp neighbor once

connected to it. https://docs.vmware.com/en/VMware-Validated-Design/5.1/sddc-deployment-ofvmware-nsx-t-workload-domains-with-multiple-availability-zones/GUID-8BD4228A-75C6-4C60-

80B4-538D4297E11A.html

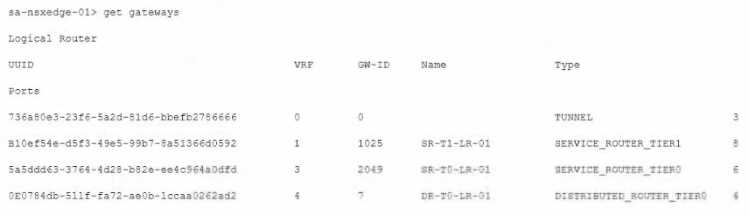

For the BGP configuration on NSX-T, the Tier-0 Service Router (SR) is typically where BGP is

configured. To check the BGP neighbor status:

Connect to the VRF for the T0 SR, which is VRF 3 based on the provided output.

Run the command to get BGP neighbor status once connected to it.

according to the VMware NSX Documentation, these are the three parameters that must match in

order to establish an OSPF neighbor relationship with an upstream router on a tier-0 gateway:

MTU of the Uplink: The maximum transmission unit (MTU) of the uplink interface must match the

MTU of the upstream router interface. Otherwise, OSPF packets may be fragmented or dropped,

causing neighbor adjacency issues.

Subnet mask: The subnet mask of the uplink interface must match the subnet mask of the upstream

router interface. Otherwise, OSPF packets may not reach the correct destination or be rejected by

the upstream router.

Area ID: The area ID of the uplink interface must match the area ID of the upstream router interface.

Otherwise, OSPF packets may be ignored or discarded by the upstream router.

https://www.computernetworkingnotes.com/ccna-study-guide/ospf-neighborship-condition-andrequirement.html

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-26C44DE8-1854-4B06-B6DAA2FD426CDF44.html

According to the VMware NSX Documentation, these are two of the ways that you can use to

configure Distributed Firewall on VDS:

NSX API: This is a RESTful API that allows you to programmatically configure and manage Distributed

Firewall on VDS using HTTP methods and JSON payloads. You can use tools such as Postman or curl to

send API requests to the NSX Manager node.

NSX UI: This is a graphical user interface that allows you to configure and manage Distributed

Firewall on VDS using menus, tabs, buttons, and forms. You can access the NSX UI by logging in to the

NSX Manager node using a web browser.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-0DEF9F18-608D-4B5C-91755514750E901B.html

Two tools that are used for centralized logging in VMware NSX are Syslog Server and VMware Aria

Operations for Logs. Syslog Server is a standard protocol for sending log messages from various

network devices to a centralized server1. VMware NSX supports syslog for long term retention of

logs and all NSX components can send syslog messages to a configured syslog server2. VMware Aria

Operations for Logs is a VMware product that provides intelligent log analytics for NSX3. It provides

monitoring and troubleshooting capabilities and customizable dashboards for network virtualization,

flow analysis, and alerts3. The other options are incorrect because they are not tools for centralized

logging in VMware NSX. VMware Aria Operations is a VMware product that provides operations

management and automation for NSX4, but it is not the same as VMware Aria Operations for

Logs. VMware Aria Automation is a VMware product that provides automation and orchestration for

NSX5, but it is not related to logging. VMware Aria Operations for Networks is not a valid product

name. Reference: Syslog, NSX Logging and System Events, VMware vRealize Log Insight for

NSX, VMware vRealize Operations Management Pack for NSX, VMware vRealize Automation

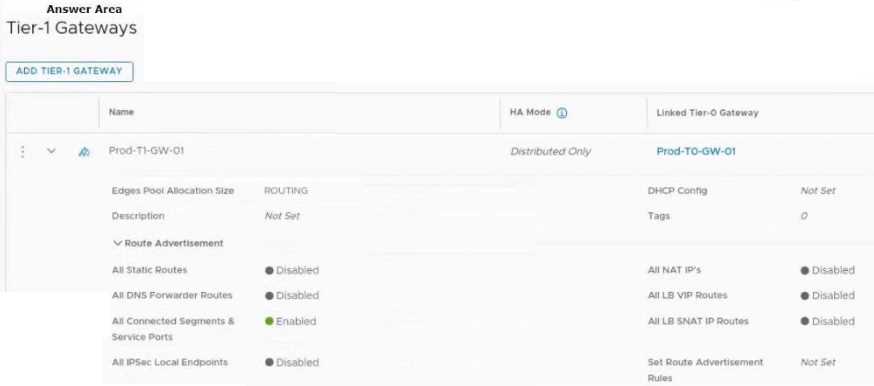

The correct answer is to enable the option All LB VIP Routes on the Tier-1 gateway route

advertisement settings. This option allows the Tier-1 gateway to advertise the NSX Advanced Load

Balancer LB VIP routes to the Tier-0 gateway and other peer routers, so that the end users can reach

the production website by using the VIP address1. The other options are not relevant for this

scenario.

To mark the correct answer by clicking on the image, you can click on the toggle switch next to All LB

VIP Routes to turn it on. The switch should change from gray to blue, indicating that the option is

enabled. See the image below for reference:

The correct answer is to enable the OSPF toggle and to add an Area Definition for the Tier-0 gateway

in the image. These two items are required to configure OSPF on the Tier-0 gateway, as explained in

the web search results123.

To mark your answers by clicking twice on the image, you can double-click on the toggle switch next

to OSPF to turn it on. The switch should change from gray to blue, indicating that the option is

enabled. Then, you can double-click on the Set button next to Area Definition to add an area

definition. A pop-up window should appear where you can specify the area ID and type.

1. Click the OSPF toggle to enable OSPF 2. In the Area Definition field, click Set to add an area

definition https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID5BEC626C-5312-467D-B873-8E117349E9FC.html

Load Balancing Algorithm

You specify the following parameters during the creation of a server pool:

• Name: A unique name for the server pool.

• Cloud: The cloud connector details for the NSX environment.

• VRF Context: Virtual Routing Framework (VRF) is a method to isolate traffic in a system. VRF is also

called a route domain in the load balancer community. A global VRF context is created by default.

Network administrators might create custom VRF contexts to isolate traffic between different

tenants or subsets.

• Default Server Port: New connections to servers will use this destination service port. The default

port is 80.

• Load-balancing algorithm: The selected load-balancing algorithm controls how the incoming

connections are distributed among the servers in the pool.

• Tier-1 gateway (logical router): Specify the Tier-1 gateway that you want to attach the server pool

to. This value matches the Tier-1 gateway specified for the virtual service and VIP.

The correct order of the rule processing steps of the Distributed Firewall is as follows: Packet arrives at vfilter connection table. If matching entry in the table, process the packet. If connection table has no match, compare the packet to the rule table. If the packet matches source, destination, service, profile and applied to fields, apply the action defined. If the rule table action is allow, create an entry in the connection table and forward the packet. If the rule table action is reject or deny, take that action. This order is based on the description of how the Distributed Firewall works in the web search results1. The first step is to check if there is an existing connection entry for the packet in the vfilter connection table, which is a cache of flow entries for rules with an allow action. If there is a match, the packet is processed according to the connection entry. If there is no match, the packet is compared to the rule table, which contains all the security policy rules. The rules are evaluated from top to bottom until a match is found. The match criteria include source, destination, service, profile and applied to fields. The action defined by the matching rule is applied to the packet. The action can be allow, reject or deny. If the action is allow, a new connection entry is created for the packet and the packet is forwarded to its destination. If the action is reject or deny, the packet is dropped and an ICMP message or a TCP reset message is sent back to the source.

Security policy recommendations: Are East-West distributed firewall (DFW) security policies in the application category12. Security group recommendations: Are VMs or physical servers whose traffic flows were analyzed for the time period and the boundary you had specified12. Service recommendations: Are service objects that were used by applications in the VMs or physical servers that you had specified, but the services are not yet defined in the NSX inventory12. https://docs.vmware.com/en/VMware-NSX-Intelligence/4.1/user-guide/GUID-BA3B0D67-4AA8439E-A845-4598DAD6B9D0.html

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-53D6C4807AD3-4B23-922D-430C89992B57.html

In VMware NSX 4.x, the Tier-0 gateway serves as a critical component for North-South traffic

management, which refers to the traffic entering and exiting the data center. It essentially acts as a

bridge between the external networks and the internal NSX-T Data Center environment.

The Tier-0 gateway is designed to handle various functionalities including routing, NAT, and

firewalling, making it an effective point for network introspection. Network introspection at the Tier-

0 gateway allows administrators to monitor, manage, and secure the traffic as it flows between

different networks, including the traffic headed to and from the internet or other external networks.

Here's why other options are less appropriate:

A) Guest VM vNIC: This refers to the virtual network interface cards attached to virtual machines.

While they handle East-West traffic (traffic within the data center), they are not typically used for

North-South traffic introspection.

B) Partner SVM: Service Virtual Machines (SVMs) provided by third-party vendors can integrate with

NSX for various services like security, but they are not the direct insertion points for North-South

traffic introspection.

D) Host Physical NIC: These are the network interface cards on the physical hosts. Although they are

involved in the underlying transport of North-South traffic, they do not serve as insertion points for

introspection in the context of NSX.

By utilizing the Tier-0 gateway for North-South introspection, organizations can achieve a centralized

and efficient approach to traffic management and security at the entry/exit points of the network.

Reference:

VMware NSX-T Data Center documentation provides detailed explanations of gateway functionalities

and their roles in network introspection.

VMware NSX-T Architecture and Component guides detail the use of Tier-0 and Tier-1 gateways in

traffic management and security implementations.

:

According to the VMware NSX Documentation1, core files and audit logs can contain sensitive

information and should be excluded from the support bundle unless requested by VMware technical

support. Controller files and management files are not mentioned as containing sensitive

information.

Reference: 1: Support Bundle Collection Tool - VMware Docs

Core files and Audit logs might contain sensitive information such as passwords or encryption keys.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-73D9AF0D-4000-4EF2-AC666572AD1A0B30.html

According to the VMware NSX 4.x Professional documents and tutorials, an NSX Manager is a

standalone appliance that hosts the API services, the management plane, control plane, and policy

management. The NSX Manager has three built-in roles: policy, manager, and controller2. The policy

role handles the declarative configuration of the system and translates it into desired state for the

manager role. The manager role receives and validates the configuration from the policy role and

stores it in a distributed persistent database. The manager role also publishes the configuration to

the central control plane. The controller role implements the central control plane that computes the

network state based on the configuration and topology information3. The other roles (master, cloud,

and zookeeper) are not valid NSX Manager roles.

The answer is C. Group all by means of tags membership.

Tags are metadata that can be applied to physical servers, virtual machines, logical ports, and logical

segments in NSX. Tags can be used for dynamic security group membership, which allows for

granular and flexible enforcement of security policies based on various criteria1

In the scenario, the company is deploying NSX micro-segmentation to secure a simple application

composed of web, app, and database tiers. The naming convention will be:

WKS-WEB-SRV-XXX

WKY-APP-SRR-XXX

WKI-DB-SRR-XXX

The optimal way to group them to enforce security policies from NSX is to use tags membership. For

example, the company can create three tags: Web, App, and DB, and assign them to the

corresponding VMs based on their names. Then, the company can create three security groups: Web-

SG, App-SG, and DB-SG, and use the tags as the membership criteria. Finally, the company can create

and apply security policies to the security groups based on the desired rules and actions2

Using tags membership has several advantages over the other options:

It is more scalable and dynamic than using Edge as a firewall between tiers. Edge firewall is a

centralized solution that can create bottlenecks and performance issues when handling large

amounts of traffic3

It is more simple and efficient than doing a service insertion to accomplish the task. Service insertion

is a feature that allows for integrating third-party services with NSX, such as antivirus or intrusion

prevention systems. Service insertion is not necessary for basic micro-segmentation and can

introduce additional complexity and overhead.

It is more flexible and granular than creating an Ethernet based security policy. Ethernet based

security policy is a type of policy that uses MAC addresses as the source or destination criteria.

Ethernet based security policy is limited by the scope of layer 2 domains and does not support logical

constructs such as segments or groups.

To learn more about tags membership and how to use it for micro-segmentation in NSX, you can

refer to the following resources:

VMware NSX Documentation: Security Tag 1

VMware NSX Micro-segmentation Day 1: Chapter 4 - Security Policy Design 2

VMware NSX 4.x Professional: Security Groups

VMware NSX 4.x Professional: Security Policies

According to the VMware NSX Documentation, Switch Visualization is a feature in the NSX UI that

shows the mapping between the virtual NIC and the host’s physical adapter for virtual machines

running on an ESXi transport node. You can use Switch Visualization to view details such as port ID,

MAC address, VLAN ID, IP address, MTU, port state, port speed, port type, and port group for each

virtual NIC and physical adapter.

https://docs.vmware.com/en/VMware-NSX/4.1/installation/GUID-55E5C735-18AD-43F8-9BE5F75D5B8C6EDB.html
