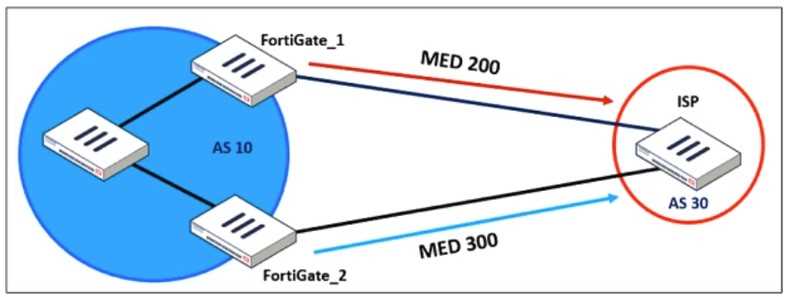

Refer to the exhibit, which shows a network diagram. An administrator would like to modify the MED value advertised from FortiGate_1 to a BGP neighbor in the autonomous system 30. What must the administrator configure on FortiGate_1 to implement this?

To modify BGP attributes for routes being advertised to a neighbor, a route-map-out is the correct mechanism. A route map is a policy tool that allows an administrator to match specific routes and then apply actions, such as modifying attributes. In this case, a route map would be created to set the desired Multi-Exit Discriminator (MED) value using the set metric command. This route map is then applied to the BGP neighbor configuration in the outbound direction (route-map-out) to influence the routing decisions of the receiving autonomous system (AS 30).

B. network-import-check: This command only validates if a network configured for advertisement via the network command exists in the routing table; it does not modify BGP attributes.

C. prefix-list-out: A prefix list is used to filter routes based on network prefixes. While it can be used within a route map to match routes, it cannot modify attributes by itself.

D. distribute-list-out: A distribute list uses an access list to permit or deny routes being advertised. It is a filtering tool and lacks the capability to modify BGP attributes like MED.

1. FortiOS Administration Guide 7.4

BGP > Route maps: "Route maps are used to control and modify routing information that is exchanged between routing protocols... You can define which routes are controlled by matching on a given route and then modify information for that route by setting certain values." This section explicitly states that route maps are the tool for modifying attributes.

2. FortiOS CLI Reference 7.4

config router route-map: The command set metric is documented here with the description "Set MED." This confirms that the metric parameter within a route map directly corresponds to the BGP MED attribute.

3. FortiOS CLI Reference 7.4

config router bgp: Within the config neighbor context

the command set route-map-out is available. Its description is "Apply a route map to outbound routes." This shows how the created route map is applied to affect advertised routes.
