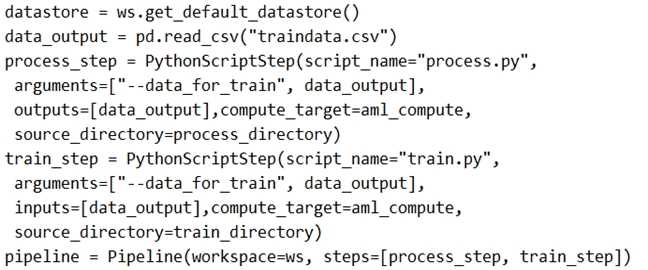

The solution fails because it attempts to pass data between steps using a Pandas DataFrame (data_output = pd.read_csv(...)), which resides in local memory. In an Azure Machine Learning pipeline, steps typically run on remote compute targets (like aml_compute). To pass data between these isolated steps, you must use a PipelineData object (v1) or Output/Input types (v2). The current code treats a local variable as a pipeline output, which is not supported; the training step will not have access to the data processed by the first step. Additionally, PythonScriptStep expects a list of OutputFileDatasetConfig or PipelineData for the outputs parameter, not a DataFrame object.

A. Yes This is incorrect because a Pandas DataFrame cannot act as a data bridge between remote pipeline steps; it lacks the necessary metadata and persistence to be serialized across compute nodes.

Official Vendor Documentation: Microsoft Azure Machine Learning SDK v1 - PipelineData Class. Link: Microsoft Learn - PipelineData

Official Vendor Documentation: How to move data in machine learning pipeline steps (Python). Section: "Use PipelineData for intermediate data." Link: Microsoft Learn - Moving Data

Official Vendor Documentation: PythonScriptStep Class Reference. Parameters: outputs and inputs. Link: Microsoft Learn - PythonScriptStep

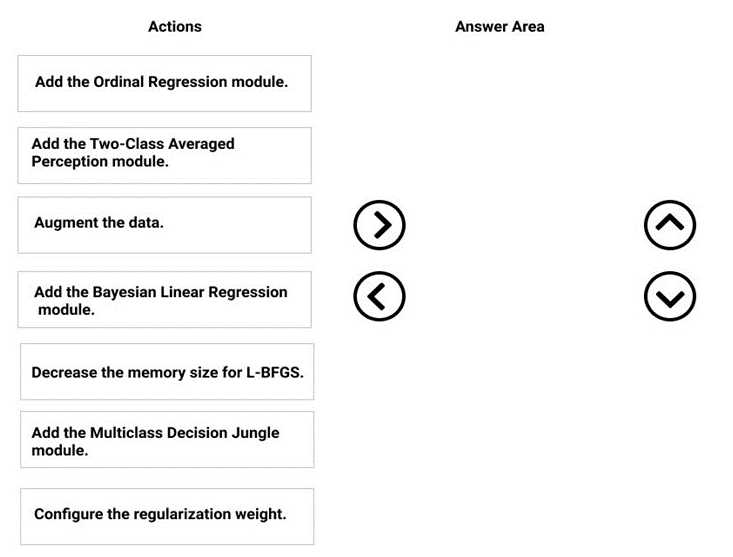

The model fit issue indicated by the options is overfitting (high variance), likely in a regression scenario. To correct this, you should perform the following sequence:

1. Augment the data: Increasing the size and diversity of the training dataset is the most effective way to help a model generalize better and reduce overfitting.
2. Add the Bayesian Linear Regression module: Unlike standard Linear Regression, the Bayesian approach uses probability distributions for weights (priors). It is explicitly recommended in Azure documentation for small datasets and is inherently robust against overfitting.
3. Configure the regularization weight: The Bayesian Linear Regression module includes a "Regularization weight" parameter (default 1.0). Adjusting this weight controls the penalty on the model's complexity, further mitigating overfitting.

Microsoft Learn - Azure Machine Learning Studio (classic) Module Reference: Bayesian Linear Regression.

Quote: "This approach is often useful when you have a small dataset... and it is robust to overfitting."

Parameter Reference: "Regularization weight: Defines the regularization weight. Regularization prevents overfitting."

Link: https://learn.microsoft.com/en-us/previous-versions/azure/machine-learning/studio-module-reference/bayesian-linear-regression

Microsoft Learn - Cloud-scale analytics: Machine learning glossary of terms.

Context: Defines Overfitting and suggests solutions including adding more data (augmenting) and using regularization.

Link: https://learn.microsoft.com/en-us/azure/cloud-adoption-framework/innovate/best-practices/ml-glossary#overfitting

Microsoft Learn - Configure the Linear Regression Module:

Context: Discusses the use of the L2 regularization weight parameter to prevent overfitting in regression models.

Link: https://learn.microsoft.com/en-us/previous-versions/azure/machine-learning/studio-module-reference/linear-regression

The scenario describes a compute cluster that is "fully-utilized" and cannot meet the inferencing demand, indicating that its maximum capacity has been reached. The most direct, efficient, and least disruptive way to increase the total processing capacity of a compute cluster like Azure Kubernetes Service (AKS) is through horizontal scaling, which involves adding more compute nodes. This action allows the service to handle more concurrent requests by distributing the load across a larger number of machines. This approach directly addresses the performance bottleneck with minimal administrative effort and without requiring service redeployment, thus ensuring minimal downtime.

A. Increasing the minimum node count only affects the baseline number of nodes for autoscaling; it does not raise the maximum capacity, which is the current limitation.

B. Creating a new cluster and redeploying is a complex migration process (blue-green deployment) that requires significant administrative effort and planning, contradicting the requirements.

C. Increasing the VM size (vertical scaling) is more disruptive than adding nodes, often requiring the creation of a new node pool and draining the old one, which is not a minimal effort task.

1. Microsoft Azure Documentation

"Troubleshoot model deployment": In the section on autoscaling

the documentation explains that when a service fails because the cluster is at maximum capacity

the solution is to increase the capacity. It states

"To change the maximum number of nodes in the cluster

you need to update the compute target." This directly supports increasing the node count to handle higher loads.

Source: Microsoft Corporation. (2023). Troubleshoot model deployment with Azure Machine Learning. Microsoft Docs. Retrieved from https://docs.microsoft.com/en-us/azure/machine-learning/how-to-troubleshoot-deployment#autoscaling (Refer to the section on Autoscaling).

2. Microsoft Azure Documentation

"Scale cluster in Azure Kubernetes Service (AKS)": This document details the procedures for scaling an AKS cluster. It highlights that scaling the node count is the primary method for adjusting compute capacity to meet application demands. The process can be done manually with a single command (az aks scale)

which exemplifies minimal administrative effort and is designed to be non-disruptive to running applications.

Source: Microsoft Corporation. (2023). Scale the node count in an Azure Kubernetes Service (AKS) cluster. Microsoft Docs. Retrieved from https://docs.microsoft.com/en-us/azure/aks/scale-cluster (Refer to the "Manually scale cluster nodes" section).

3. Microsoft Azure Documentation

"Deploy a model to an Azure Kubernetes Service cluster": This guide explains how to configure an AKS cluster for machine learning workloads

including setting autoscaling parameters. It notes that if autoscaling is not enabled

the cluster operates with a fixed number of nodes

which can be changed manually. If autoscaling is enabled but the maximum is reached

the solution is to increase the autoscalemaxnodes parameter when updating the compute target. Both actions are equivalent to increasing the node count.

Source: Microsoft Corporation. (2023). Deploy a model to an Azure Kubernetes Service cluster. Microsoft Docs. Retrieved from https://docs.microsoft.com/en-us/azure/machine-learning/how-to-deploy-azure-kubernetes-service (Refer to the "Autoscaling" section).

In the Azure Machine Learning designer, the asset library on the left pane lists all available assets, such as datasets and components. This library includes assets from the current workspace as well as from any connected registries, including the built-in system registry. To filter this list and display only the assets that have been created or registered specifically within the current workspace (in this case, proj1), you must use the "Registry name" filter and set its value to workspace. This keyword is the designated identifier for the collection of assets local to the active workspace.

A. proj1: This is the specific name of the workspace instance, not the generic filter keyword used in the designer UI to refer to the current workspace's local assets.

C. azureml-meta: This refers to a system registry used by Azure Machine Learning for metadata and internal components, not for user-defined assets within a specific workspace.

D. azureml: This is the name of the primary system registry that contains the built-in, Microsoft-provided components available across all workspaces, such as "Train Model" or "Evaluate Model".

1. Microsoft Learn. (2023). Use components in Azure Machine Learning designer.

Section: Find assets in the asset library

Quote: "The asset library on the left of the designer canvas contains components and datasets. You can find your workspace assets

and assets in registries under the Asset tab... You can use the registry filter to explore assets in different registries. Workspace is the registry for all assets in your current workspace." This directly confirms that workspace is the correct filter value.

2. Microsoft Learn. (2023). What is Azure Machine Learning designer?

Section: The designer homepage

Content: This document describes the designer interface

including the asset library which contains "custom components" (those in your workspace) and "prebuilt components" (those from the azureml registry)

reinforcing the distinction between workspace-level assets and registry assets.

For the Learning rate, the requirement specifies a "continuous hyperparameter between 0.001 and 0.1". In Azure Machine Learning, the uniform(min_value, max_value) function is used to define a continuous search space distributed uniformly between a specified minimum and maximum value.

For the Batch size, the requirement lists specific discrete integer values: "32, 64, or 128". The choice function is designed for discrete hyperparameters, allowing the model to select a value from a finite, explicit list of options. Other options like Normal or QNormal define statistical distributions rather than specific discrete sets or bounded continuous ranges.

Microsoft Learn. (2024). Hyperparameter tuning a model (v2) - Define the search space. Retrieved from https://learn.microsoft.com/en-us/azure/machine-learning/how-to-tune-hyperparameters#define-the-search-space

Relevant Quote: "Choice: Use choice to specify discrete values... Uniform: Returns a value uniformly distributed between min_value and max_value."

Microsoft Learn. (2024). azure.ai.ml.sweep module - Uniform & Choice. Retrieved from https://learn.microsoft.com/en-us/python/api/azure-ai-ml/azure.ai.ml.sweep

Documentation confirms the syntax and usage of uniform for continuous ranges and choice for discrete lists.

Statement 1 (No): Although max_total_runs is set to 50, the use of GridParameterSampling limits the runs to the Cartesian product of the discrete values. With 4 values for max_depth and 3 for learning_rate, only 12 runs will occur.

Statement 2 (No): The policy parameter is specifically for early termination policies (e.g., Bandit, Median Stopping) to stop poorly performing runs, not for security configurations.

Statement 3 (No): pe.choice creates a discrete set. The experiment will only test the specific values 0.05, 0.1, and 0.15, not a continuous range.

Microsoft Azure Documentation: Tune hyperparameters for your model (v1), section "Grid sampling". It specifies that grid sampling only searches over the specific values defined in the choice expression.

Microsoft Azure Documentation: HyperDriveConfig Class, section "Parameters". Defines policy as an early termination policy.

Microsoft Azure SDK for Python: azureml.train.hyperdrive module reference, GridParameterSampling section (exhausts combinations of discrete values).

Microsoft Learn: Optimize model hyperparameters, Unit 4: "Define a search space" (explaining choice vs. continuous distributions like uniform).

In Azure Machine Learning SDK v1, the AutoMLConfig class is used to define the settings for an automated ML experiment. When you have pre-split your data into training and validation sets (using random_split as shown in the code), you assign the training subset to the training_data parameter and the validation subset to the validation_data parameter. To identify the target variable for the regression task (in this case, the 'price' column), you must provide the string name of that column to the label_column_name parameter. This allows the AutoML engine to distinguish between features and the target label within the provided datasets.

Microsoft Learn / Azure SDK for Python: AutoMLConfig Class (azureml.train.automl.automlconfig).

Microsoft Learn: Configure automated ML experiments in Python. Section: "Data source and format".

Azure Machine Learning Documentation: Train a regression model with automated machine learning.

To use an existing DSVM outside your workspace, you must first create a configuration object. The RemoteCompute class provides the attach_configuration method, which defines the connection parameters (resource ID, SSH port, and credentials). Once the configuration object is created, you use the ComputeTarget.attach method to register that specific resource into your Azure Machine Learning workspace. The attach method is used for existing resources (like DSVM or HDInsight), whereas create would be used for managed compute like Azure Machine Learning Compute (AmlCompute).

Microsoft Documentation: Attach an existing compute resource to your workspace. Azure Machine Learning SDK v1 - RemoteCompute class.

Microsoft Documentation: ComputeTarget class - attach method. Azure Machine Learning SDK v1 - ComputeTarget.

Azure SDK for Python: azureml.core.compute.RemoteCompute.attach_configuration parameters and usage for DSVM.

Microsoft Learn: Set up a compute target for model training. Section: "External compute" (DSVM).

Overfitting occurs when a model learns the training data too well, including its noise and specific patterns, at the expense of its ability to generalize to new, unseen data. This phenomenon is identified by monitoring the model's performance on both the training and validation datasets during training. The classic sign of overfitting is when the training loss continues to decrease, indicating the model is still improving its fit to the training data, while the validation loss, after an initial decrease, begins to increase. This divergence shows that the model is losing its generalization capability.

A. Constant losses for both training and validation indicate that the model is not learning effectively, which is a sign of underfitting, not overfitting.

B. An increasing training loss is contrary to the goal of training and suggests a problem with the training process itself, not a standard overfitting scenario.

D. A constant training loss while validation loss decreases is a highly improbable scenario, as it implies the model is generalizing better without learning from the training data.

1. Microsoft Learn

"Prevent overfitting and underfitting": In the learning path for DP-100

this document states

"A classic sign of overfitting is when the validation metric starts to get worse while the training metric continues to improve." This directly corresponds to a decreasing training loss and an increasing validation loss.

Source: Microsoft

"Build and operate machine learning solutions with Azure Machine learning

" Module: "Train a model with a script

" Unit: "Prevent overfitting and underfitting."

2. Goodfellow

I.

Bengio

Y.

& Courville

A. (2016). Deep Learning. MIT Press.

Section 5.2.2

Capacity

Overfitting and Underfitting: "As training progresses

training error tends to decrease... By contrast

the generalization error... begins to increase again. This phenomenon is known as overfitting." (Note: Generalization error is measured using a validation or test set).

3. Stanford University

CS231n: Convolutional Neural Networks for Visual Recognition.

Course Notes

"Training Neural Networks

Part 1"

Section: "Track your learning process": The notes illustrate overfitting with a graph showing the training accuracy continually increasing while the validation accuracy reaches a peak and then starts to decrease. The inverse is true for loss: training loss decreases while validation loss begins to increase. This gap between training and validation performance is the indicator of overfitting.

In the Azure Machine Learning Python SDK v2, the @command_component decorator is used to define a component that executes a specific command or Python function. It encapsulates the inputs, outputs, and environment specification required for a single step in a pipeline. The @pipeline decorator is reserved for defining the workflow that connects multiple components, while tool is not a standard decorator for this context.

For the second selection, the Python import statement follows the syntax from <module_name> import <function_name>. Since the prompt explicitly states that the logic is contained in the file named model_train.py, the module name corresponds to the filename without the extension. Therefore, the correct code is from model_train import train.

Microsoft. (n.d.). Create and run machine learning pipelines using components with the Azure Machine Learning SDK v2. Microsoft Learn. Retrieved from https://learn.microsoft.com/en-us/azure/machine-learning/how-to-create-component-pipeline-python (Refer to section: "Define a component using the Python function").

Microsoft. (n.d.). azure.ai.ml package - command_component. Azure SDK for Python. Retrieved from https://learn.microsoft.com/en-us/python/api/azure-ai-ml/azure.ai.ml?view=azure-python#azure-ai-ml-command-component
