To set up a vSAN HCI Mesh, specific network requirements must be met between the client and server clusters. The round-trip time (RTT) latency must be less than 5 milliseconds. Additionally, a minimum of 10 Gbps network bandwidth is required for the vSAN network traffic. Option A correctly identifies the critical 5ms latency threshold. While network redundancy is a strongly recommended best practice for production environments to ensure high availability and is part of the vSAN network design guides, the latency value is a strict, officially documented requirement. Option A is the only choice that presents a correct value for a primary network requirement.

B. vSAN Enterprise License and 1 Gbps Networking

This is incorrect because the minimum network bandwidth requirement for vSAN HCI Mesh is 10 Gbps. 1 Gbps is insufficient and unsupported.

C. Latency of 10 milliseconds and bandwidth of 10 Gbps

This is incorrect because the maximum supported RTT latency is less than 5ms. A latency of 10ms is double the supported threshold and would lead to an unsupported configuration.

D. vSAN Advanced License and bandwidth of 25 Gbps

This is incorrect because the server cluster providing the datastore requires a vSAN Enterprise or Enterprise Plus license. A vSAN Advanced license is not sufficient.

1. VMware vSAN Design Guide (vSAN 8.0 U1)

Section: Chapter 2, Designing and Sizing a vSAN Cluster > vSAN HCI Mesh > HCI Mesh Compute Cluster Considerations.

Quote/Content: "The RTT between the vSAN datastore providing cluster and the vSAN compute cluster must be less than 5ms. A minimum of 10GbE networking is required for the vSAN network." This reference confirms the =10Gbps bandwidth requirements.

2. Administering VMware vSAN 8.0 Documentation

Section: vSAN Clusters > Sharing Remote Datastores with vSAN HCI Mesh > Requirements for a vSAN HCI Mesh Cluster.

Quote/Content: "The RTT latency between the client cluster and the server cluster must be less than 5 milliseconds." and "Each host in the client cluster must have a VMkernel adapter with vSAN traffic enabled, and a 10 GbE or faster physical NIC." This source validates the answers for both latency and bandwidth.

3. Dell VxRail 7.0 Network Planning Guide

Section: Network requirements > vSAN network requirements.

Quote/Content: "For all-flash configurations, Dell Technologies recommends a minimum of 10 GbE for the vSAN network. For optimal performance, Dell Technologies recommends 25 GbE or higher." While not specific to HCI Mesh, this establishes the 10 GbE baseline for modern VxRail/vSAN, invalidating the 1 GbE option. HCI Mesh requirements build upon this baseline.

When the vCenter Server is unavailable, an administrator must use a tool that can connect directly to an ESXi host to troubleshoot vSAN. ESXCLI is the command-line interface for ESXi that allows for direct management and diagnostics on a host without dependency on vCenter. It includes a specific vsan namespace with a comprehensive set of commands (e.g., esxcli vsan health cluster list) to check vSAN health, object status, and disk information, making it the appropriate choice in this scenario.

B. iDRAC: The Integrated Dell Remote Access Controller (iDRAC) is for out-of-band hardware management of the server node. It does not provide insight into the vSAN software layer.

C. PowerCLI: While some PowerCLI cmdlets can connect directly to an ESXi host, its cluster-wide vSAN troubleshooting capabilities are severely limited without a connection to vCenter Server.

D. VxRail Manager: VxRail Manager is deeply integrated with and dependent on vCenter Server for its primary management and monitoring functions. Its vSAN health reporting is unavailable if vCenter is offline.

1. VMware vSphere Documentation, vSAN Administration Guide 8.0, Chapter 11: Administering vSAN with ESXCLI. This chapter details the use of ESXCLI commands for vSAN management. It states, "You can use ESXCLI commands to manage a vSAN cluster... You can run ESXCLI commands from the ESXi Shell on a host in the cluster." This confirms ESXCLI operates directly on the host, independent of vCenter.

2. Dell Support Knowledge Base, Article 000188261: "VxRail: How to check vSAN health from command line" (Version 4, 21 Mar 2023). This official Dell article provides the procedure for checking vSAN health via SSH directly on an ESXi host using the command esxcli vsan health cluster list. This is a standard troubleshooting step when the vCenter UI is inaccessible.

3. Dell VxRail 7.0.x Technical Primer, Page 12. The document states, "VxRail Manager is tightly integrated with the vCenter Server and uses the vCenter Server as the primary management interface for the cluster." This confirms the dependency of VxRail Manager on vCenter, making it unsuitable for troubleshooting when vCenter is down.

VxRail uses the Loudmouth service for automatic node discovery. This service relies on IPv6 multicast packets sent by new nodes on the VxRail management network. The VxRail Manager listens for these packets to discover available nodes. When a node is not discovered, the loudmouth.log file is the primary resource to analyze. It contains detailed information about the discovery process, including multicast packet transmission and reception, which helps diagnose network connectivity issues (like blocked multicast traffic or VLAN misconfigurations) or problems with the Loudmouth service itself on either the new node or the VxRail Manager.

A. lcm.log: This log file is associated with the Life Cycle Management (LCM) process, which handles software and firmware updates, not initial node discovery.

B. marvin.log: This is the main log for the VxRail Manager service. While it may contain high-level entries, the loudmouth.log is specifically for the discovery protocol.

D. mystic.log: This log pertains to cluster configuration and host management tasks that occur after a node has been successfully discovered and is being added to the cluster.

1. Dell VxRail Appliance Log Collection Guide: In the section "VxRail Manager Log Files," the loudmouth.log is described as the log for the "Node discovery and IP configuration for new nodes" service. This directly links the log file to the scenario in the question. (Reference: Dell VxRail Appliance Log Collection, Page 10, Table 3: VxRail Manager Log Files).

2. Dell VxRail Troubleshooting Guide: The guide details the node discovery process, explaining that nodes use multicast announcements via the Loudmouth service. Troubleshooting steps for discovery failures consistently point to verifying network multicast functionality and checking the loudmouth.log for errors related to the discovery service. (Reference: Dell VxRail 7.0.xxx Troubleshooting Guide, Section: "Node Discovery Issues").

The scenario describes two VxRail clusters managed under a single vCenter instance and sharing one vSphere Distributed Switch (vDS). This configuration is only possible with an external vCenter Server. An internal vCenter is deployed on and dedicated to a single VxRail cluster; therefore, two clusters with internal vCenters would result in two separate vCenter instances and two separate vDS objects. Furthermore, VxRail does not deploy its own DNS server; it always requires a pre-existing, customer-provided (external) DNS server for both forward and reverse name resolution for all management components.

B. External vCenter Server with internal DNS: This is incorrect because VxRail does not provide an "internal DNS" service. DNS services must always be provided by the customer's external infrastructure.

C. Internal vCenter Server with external DNS: This is incorrect because an internal vCenter Server is dedicated to managing only the single VxRail cluster it is deployed on, making it impossible to manage two clusters with a shared vDS.

D. Internal vCenter Server with internal DNS: This is incorrect for two reasons: an internal vCenter manages only a single cluster, and VxRail does not offer an internal DNS service.

1. Dell VxRail™ Appliance TechBook (August 2023):

Page 19, Section: vCenter Server: "An internal vCenter Server is dedicated to its VxRail cluster and manages only that cluster... An external vCenter Server can be used to manage multiple VxRail clusters and non-VxRail clusters." This supports the requirement for an external vCenter to manage two clusters.

2. Dell VxRail Network Planning Guide for VxRail 8.0.x (August 2023):

Page 11, Section: Network requirements checklist: "A DNS server is required for VxRail deployment. The DNS server must include both forward and reverse lookup entries for all VxRail management components." This document confirms that a customer-provided (external) DNS is a mandatory prerequisite for any deployment type.

3. Dell VxRail Administration Guide for VxRail 8.0.x (August 2023):

Page 11, Section: VxRail vCenter Server: "If you plan to manage multiple VxRail clusters from a single vCenter Server, you must use an external vCenter Server." This explicitly states the architecture required by the question's scenario.

When deploying a VxRail cluster with a customer-supplied vCenter Server, two primary considerations are the management model and integration capabilities. The customer retains full responsibility for the vCenter Server's lifecycle management (LCM), including all patching and upgrades. This is a fundamental operational shift from a VxRail-managed vCenter. Architecturally, this model allows the vCenter to join an existing VMware Single Sign-On (SSO) domain, which enables Enhanced Linked Mode (ELM). This permits centralized administration of multiple vCenter Servers, including those managed by other VxRail clusters, from a single vSphere Client session.

A. Requires an internal DNS server

A properly configured DNS server is a mandatory prerequisite for all VxRail deployment types, not a unique consideration for using a customer-supplied vCenter.

C. Supports vCenter HA

While the customer can implement vCenter HA on their own vCenter, this is a feature of vCenter Server itself, not a primary deployment consideration compared to the fundamental LCM and integration (ELM) aspects.

1. Dell VxRail™ 7.0.x Administration Guide, Page 11, "VxRail-managed vCenter Server and customer-supplied vCenter Server": "For a customer-supplied vCenter Server, the customer is responsible for the life cycle management of the vCenter Server. The customer must manage the vCenter Server updates." This supports option D.

2. Dell VxRail™ Appliance Planning Guide, Page 16, "vCenter Server": "A customer-managed vCenter Server can be used to manage multiple VxRail clusters and other non-VxRail clusters. It can be part of an Enhanced Linked Mode configuration for centralized monitoring and management." This supports option B.

3. Dell VxRail™ Network Planning Guide, Page 10, "DNS": "Properly configured DNS is critical for a successful VxRail implementation and for ongoing life cycle management operations... Forward and reverse DNS records must be created for the VxRail management components before deployment." This confirms DNS is a universal requirement, making option A incorrect as a specific consideration.

below.

Explanation:

To configure active-active teaming and set the failover order for the vSAN and vMotion port groups

on a distributed switch using the vSphere Client, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: [email protected].

Enter the password: VMw@r3!123.

Click Login.

Navigate to Networking:

From the home screen, click on Networking in the left-hand navigation pane.

Select the Distributed Switch:

Locate and select the distributed switch that the vSAN and vMotion port groups are using.

Edit vSAN Port Group Settings:

Right-click on the vSAN port group and select Edit Settings.

In the Edit Settings window, click on Teaming and Failover.

Configure Active-Active Teaming for vSAN:

In the Teaming and Failover section, you will see the list of uplinks.

Ensure that both uplinks are set as Active Uplinks.

To do this, drag the uplinks from the Unused Uplinks or Standby Uplinks section to the Active Uplinks

section if necessary.

Ensure that no uplinks are in the Standby Uplinks section (all should be in Active Uplinks).

Set Failover Order for vSAN:

Ensure the failover order is correctly set to use both uplinks for active-active teaming.

Click OK to save the changes.

Edit vMotion Port Group Settings:

Right-click on the vMotion port group and select Edit Settings.

In the Edit Settings window, click on Teaming and Failover.

Configure Active-Active Teaming for vMotion:

In the Teaming and Failover section, ensure that both uplinks are set as Active Uplinks.

Drag the uplinks from the Unused Uplinks or Standby Uplinks section to the Active Uplinks section if

necessary.

Ensure that no uplinks are in the Standby Uplinks section (all should be in Active Uplinks).

Set Failover Order for vMotion:

Ensure the failover order is correctly set to use both uplinks for active-active teaming.

Click OK to save the changes.

Verify Configuration:

Check the Networking section to verify that the changes have been applied correctly and that both

port groups are using active-active teaming with the appropriate failover order.

Reference:

VMware vSphere Networking Guide: vSphere Networking

=========================

These steps outline the process to configure active-active teaming and set the failover order for the

vSAN and vMotion port groups without accessing any hosts directly. This ensures redundancy and

efficient use of available network resources.

below.

Explanation:

To temporarily remove a node with a specific serial number from the VxRail cluster, follow these

steps:

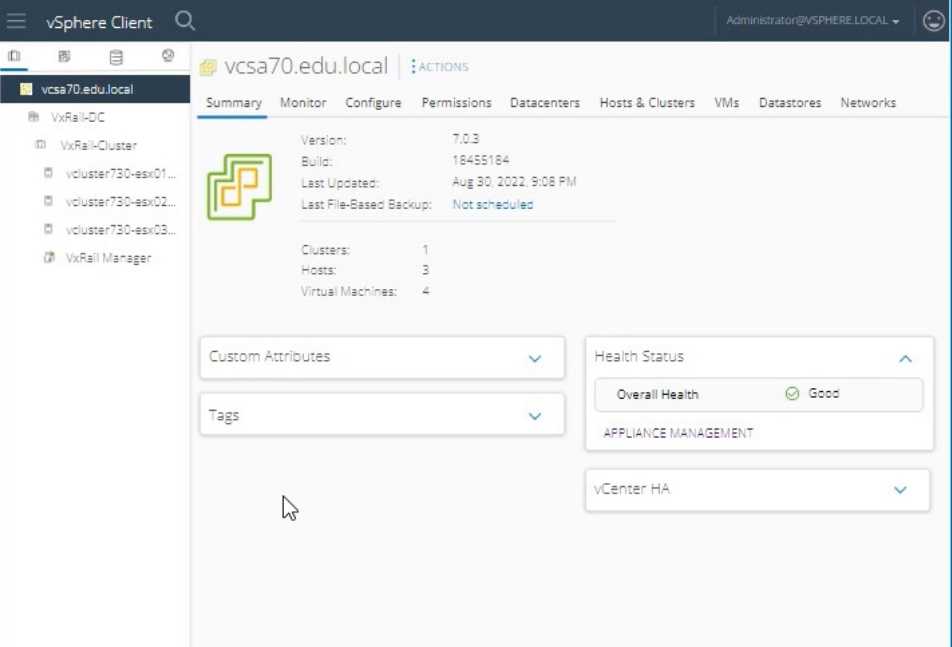

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: [email protected].

Enter the password: VMw@r3!123.

Click Login.

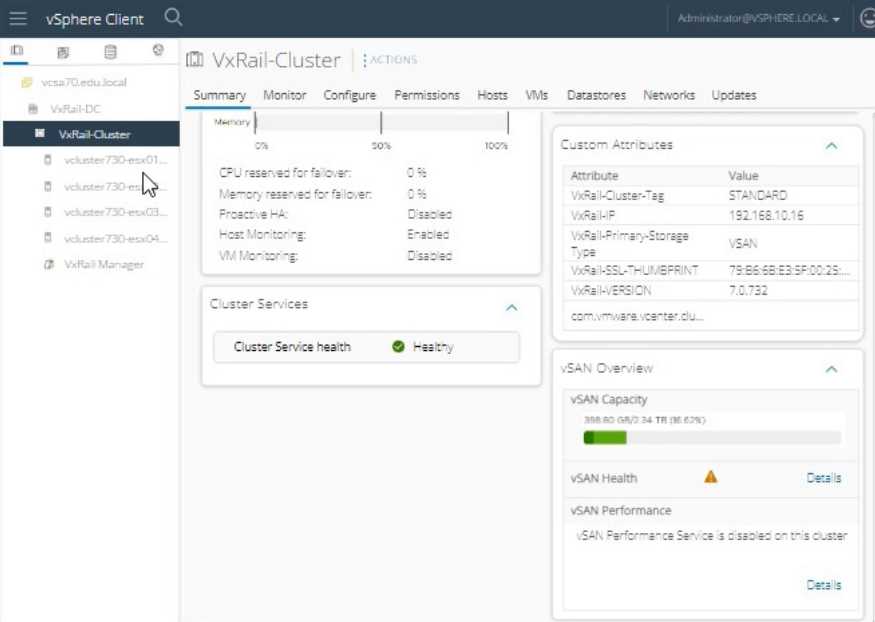

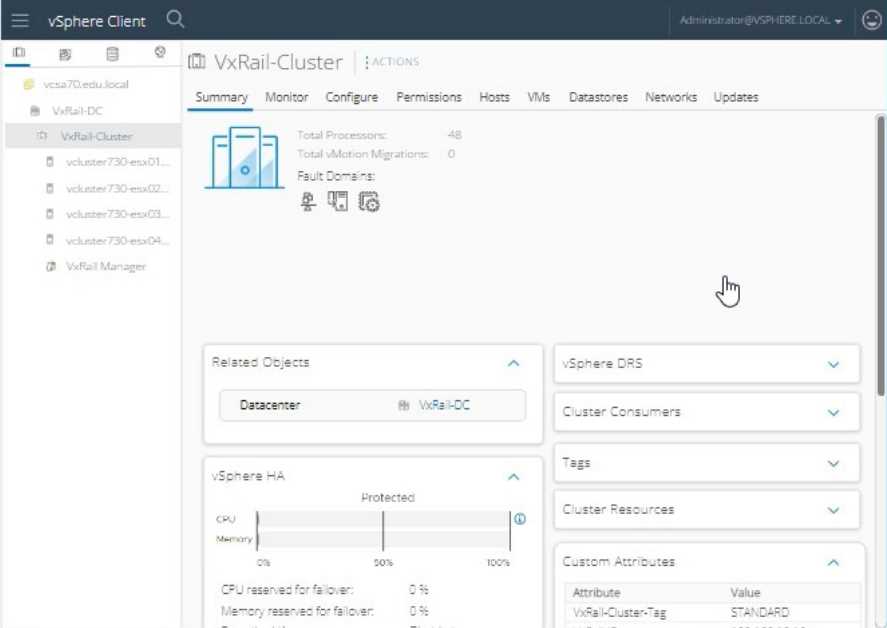

Identify the Node with Serial Number "V0730040000000":

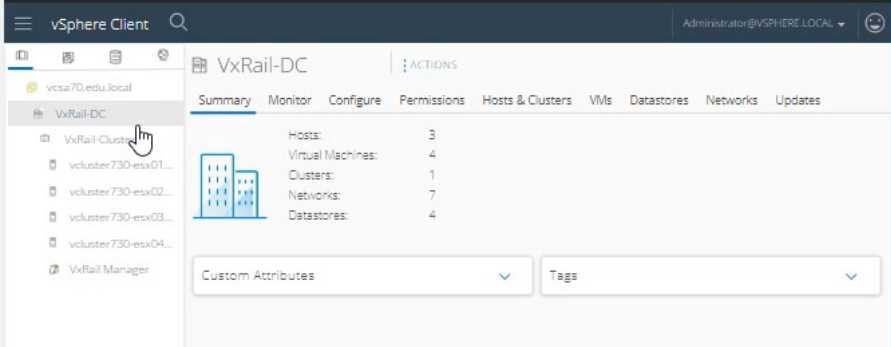

In the vSphere Client interface, navigate to the Hosts and Clusters view.

Expand the VxRail-DC and then the VxRail-Cluster.

Locate the Node:

Click on each host (e.g., vcluster730-esx01, vcluster730-esx02, vcluster730-esx03, vcluster730-esx04)

and check the Summary tab to identify the node with the serial number V0730040000000.

The Summary tab provides details about the hardware, including the serial number.

Put the Node in Maintenance Mode:

Right-click on the identified node.

Select Maintenance Mode > Enter Maintenance Mode.

Select Ensure Accessibility and click OK.

Remove the Node from the Cluster:

Once the node is in maintenance mode, right-click the node again.

Select Remove from Inventory.

Confirm the action by clicking Yes or OK when prompted.

Verify the Node Removal:

Ensure that the node is no longer listed under the VxRail-Cluster.

Check the overall health and status of the cluster to confirm that it is functioning properly without

the removed node.

Reference:

Dell VxRail Administration Guide: VxRail Administration Guide

=========================

Note: Be cautious when removing nodes from a VxRail cluster, as this can impact the cluster's

capacity and redundancy. Always follow proper procedures and consult with Dell Support as needed.

below.

Explanation:

To prepare the system for maintenance mode and avoid unnecessary vSAN re-synchronization, follow

these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: [email protected].

Enter the password: VMw@r3!123.

Click Login.

Navigate to the Host:

In the vSphere Client interface, navigate to Hosts and Clusters.

Expand the VxRail-DC and then the VxRail-Cluster.

Select the Host for Maintenance:

Select the host you plan to put into maintenance mode (e.g., vcluster730-esx01.edu.local,

vcluster730-esx02.edu.local, etc.).

Enter Maintenance Mode:

Right-click on the selected host and select Enter Maintenance Mode.

In the Enter Maintenance Mode window, you will have several options for vSAN data migration. To

avoid unnecessary re-synchronization, choose Ensure Accessibility.

Ensure Accessibility: This option makes sure that the data remains accessible during maintenance but

does not immediately trigger full data migration. It is the best choice to avoid unnecessary re-

synchronization during a short maintenance window.

Confirm Maintenance Mode:

Click OK to confirm the selection and put the host into maintenance mode.

Verify the Host Status:

Monitor the status to ensure the host enters maintenance mode without triggering excessive re-

synchronization.

Reference:

VMware vSAN Maintenance Mode Options: vSAN Maintenance Mode

=========================

To summarize, selecting Ensure Accessibility when entering maintenance mode helps to avoid

unnecessary vSAN re-synchronization during the maintenance window. This method ensures that

data remains accessible and minimizes the impact on the cluster’s performance and availability

during the maintenance activity.

below.

Explanation:

To resolve the issue of health monitoring being disabled and enable the relevant service, follow

these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: [email protected].

Enter the password: VMw@r3!123.

Click Login.

Navigate to VxRail Manager:

In the vSphere Client interface, expand VxRail-DC and then VxRail-Cluster.

Select VxRail Manager.

Access VxRail Health Monitoring Settings:

Click on the Configure tab.

Under VxRail, select Health.

Enable Health Monitoring:

Find the option for Health Monitoring.

If it is disabled, click Edit or the relevant button to enable it.

Ensure that Enable Health Monitoring is checked.

Click Apply or OK to save the changes.

Verify Health Monitoring Status:

Go back to the Summary tab or the appropriate section in VxRail Manager.

Verify that the health monitoring status is now enabled and shows as healthy.

Steps using the Simulator:

Login to vSphere Client:

Open the simulator and navigate to the vSphere Client interface.

Log in using the credentials:

Username: [email protected].

Password: VMw@r3!123.

Navigate to VxRail Manager:

In the vSphere Client interface, expand VxRail-DC and then VxRail-Cluster.

Select VxRail Manager.

Enable Health Monitoring:

Click on the Configure tab.

Under VxRail, select Health.

Click Edit to modify the health settings.

Check the box for Enable Health Monitoring.

Click Apply or OK to save the changes.

Verify:

Go back to the Summary tab in VxRail Manager.

Ensure that the warning message about health monitoring being disabled is no longer present and

that health monitoring is active.

Reference:

Dell VxRail Administration Guide: VxRail Administration Guide

=========================

By enabling health monitoring in VxRail Manager, you ensure that the system can accurately monitor

and report the health status of the nodes, helping to maintain system stability and performance.

Thank you for your visit.

below.

Explanation:

To enable the system LED on vcluster730-esx03.edu.local for identification in the physical rack, follow

these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: [email protected].

Enter the password: VMw@r3!123.

Click Login.

Navigate to the Host:

In the vSphere Client interface, navigate to the Hosts and Clusters view.

Expand the VxRail-DC and then the VxRail-Cluster.

Select the host named vcluster730-esx03.edu.local.

Access Host Actions:

Right-click on vcluster730-esx03.edu.local.

From the context menu, select Actions.

Enable System LED:

In the Actions menu, locate and select Enable LED or Turn On Locator LED (the exact wording might

vary).

Confirm the action if prompted.

Verify LED Activation:

Check the physical rack to ensure that the system LED on vcluster730-esx03.edu.local is enabled and

the node is easily identifiable.

Reference:

VMware vSphere Host Management Guide: vSphere Host Management

=========================

Note: The exact steps to enable the LED might vary slightly based on the version of vSphere Client

you are using, but the general process involves selecting the host and using the Actions menu to

enable the system LED.
