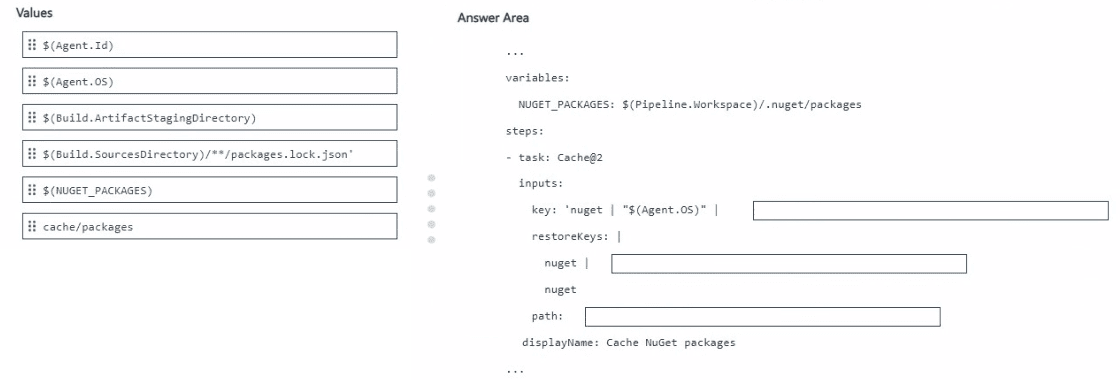

To ensure the Azure Pipeline correctly caches and restores NuGet packages, the configuration must match standard caching patterns for dependencies:

• Target 1 (Key): The primary key identifies the cache. It is composed of the string "nuget", the operating system, and the unique hash of the lock file. You must drag $(Build.SourcesDirectory)/**/packages.lock.json here so the cache invalidates/updates whenever your dependencies change.
• Target 2 (restoreKeys): This field provides fallback keys if the exact primary key isn't found (e.g., if the lock file changed). The standard pattern is to fall back to the OS level. The line nuget | is already present, so you drag $(Agent.OS) here to complete the prefix nuget | $(Agent.OS). This allows the pipeline to restore the most recent cache for that OS, even if the lock file hash doesn't match perfectly, speeding up the subsequent restore.
• Target 3 (path): This defines where the files are stored. The variable NUGET_PACKAGES is defined earlier in the YAML as $(Pipeline.Workspace)/.nuget/packages. Therefore, the path to cache is $(NUGET_PACKAGES).

Microsoft Learn - Caching NuGet packages

Relevance: The official documentation explicitly demonstrates this 3-part pattern: using the lock file in the key, using the $(Agent.OS) in the restoreKeys, and using the $(NUGET_PACKAGES) variable for the path.

Source: Cache NuGet packages - Azure Pipelines https://learn.microsoft.com/en-us/azure/devops/pipelines/artifacts/caching-nuget

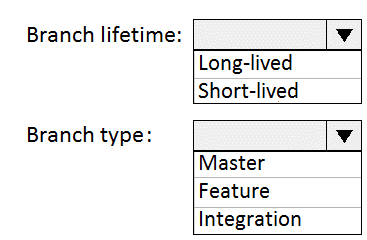

To add new functionality to a complex application, the industry standard is to use Feature branches. These branches are designed to be Short-lived, meaning they are created for a specific task or user story and merged back into the main codebase (Master/Main) as soon as the work is complete and tested. This approach facilitates Continuous Integration, reduces the complexity of merge conflicts, and ensures the main branch remains in a deployable state. In contrast, "Long-lived" branches (like Integration) are typically avoided in modern agile workflows to prevent "merge hell," and the "Master" branch serves as the permanent base, not the location for active development of new features.

Microsoft Learn: Adopt a Git branching strategy - Azure Repos. (Section: "Short-lived feature branches").

Microsoft Learn: What is GitHub Flow?. (Guidance on creating branches for new features and deleting them after merge).

Humble, J., & Farley, D. (2010): Continuous Delivery: Reliable Software Releases through Build, Test, and Deployment Automation. Addison-Wesley Professional. (Chapter 14: Advanced Version Control - "Short-lived branches").

IEEE Xplore: A Case Study of Team Collaboration with GitHub Flow. https://doi.org/10.1109/COMPSAC.2015.110

To request feedback using Azure Test Plans, the initiator (Developer) must have at least Basic access. Stakeholder access is insufficient as it does not include the ability to manage or request feedback within the Test Plans hub.

For the Pilot users to provide feedback via the Microsoft Test & Feedback extension (specifically in "Connected" mode to provide rich data and screenshots back to Azure DevOps), they must also have Basic access. While Stakeholders can provide feedback, they are limited to a "provide feedback" flow via email request that does not support the full functionality of the Test & Feedback extension in a way that integrates seamlessly with the developer's tracking requirements for this specific web application scenario. Therefore, Basic is the minimum level for both to ensure full functionality.

Microsoft Learn (Azure DevOps Documentation): "Access levels for Azure Test Plans" - Specifies that Basic access is required to request and manage feedback.

Microsoft Learn: "Provide feedback with the Test & Feedback extension" - Detailing that users must have Basic access to use the extension in 'Connected' mode for providing feedback to a project.

Azure DevOps Services: "Stakeholder access quick reference" - Confirms Stakeholders cannot request feedback or use the full suite of testing tools.

Microsoft Documentation: "Principle of least privilege in Azure DevOps" - Guidance on assigning the lowest possible access level (Basic vs. Basic + Test Plans) that still meets functional requirements.

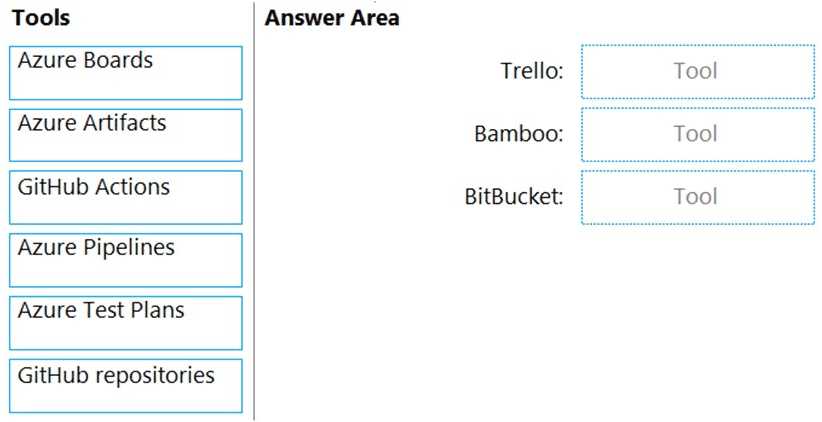

Trello is a project management tool known for its Kanban boards. Azure Boards is the direct Azure DevOps equivalent, providing Kanban boards, backlogs, and work item tracking to replace Trello's functionality.

Bamboo is a Continuous Integration and Continuous Delivery (CI/CD) server. Azure Pipelines is the dedicated CI/CD service within Azure DevOps used to build, test, and deploy applications, serving as the standard replacement for Bamboo in Microsoft-centric migrations (as specified in standard AZ-400 case studies like Woodgrove Bank).

BitBucket is a web-based version control repository hosting service. GitHub repositories is the correct replacement for source control hosting in this scenario, as Azure Repos is not provided as an option and the exam context frequently involves migrating source code to GitHub while using Azure DevOps for management and pipelines.

Microsoft Learn - Azure Boards: "Azure Boards provides software development teams with the interactive and customizable tools they need to manage their software projects." (Functionally replaces Trello).

Microsoft Learn - Azure Pipelines: "Azure Pipelines automatically builds and tests code projects to make them available to others." (Functionally replaces Bamboo).

Microsoft Learn - Woodgrove Bank Case Study (AZ-400): "Planned Changes: Implement Azure DevOps for project tracking [Azure Boards]. Centralize source code control in private GitHub repositories [GitHub repositories]. Implement Azure Pipelines for build pipelines and release pipelines [Azure Pipelines]."

The most effective solution is to use container jobs. By configuring each pipeline to run its job within a container, you ensure a clean, isolated environment for every build. The container provides a consistent runtime with specific dependencies, which is created at the start of the job and discarded upon completion. This prevents the conflicting dependencies of App1 and App2 from interfering with each other on the shared, self-hosted agent. This approach utilizes the existing agent, thereby adhering to the requirement of minimizing infrastructure costs.

B. Change the self-hosted agent to use Red Hat Enterprise Linux (RHEL) 9.

Changing the agent's operating system does not solve the underlying problem of shared state and potential dependency conflicts between different build jobs running on the same machine.

C. Add another self-hosted agent.

This would solve the isolation problem but would directly violate the requirement to minimize infrastructure costs, as it involves provisioning and maintaining a new virtual machine.

D. Add a Docker Compose task to the build pipelines.

Docker Compose is designed for defining and running multi-container applications. This is overly complex for isolating a single build job, for which a standard container job is the more direct and appropriate feature.

1. Microsoft Docs

Azure DevOps

"Container jobs": "Containers provide a lightweight abstraction over the host operating system. You can select the exact versions of operating systems

tools

and dependencies that your build requires. When you specify a container in your pipeline

the agent will first fetch and start the container. Then

each step of the job will run inside the container." This directly supports using containers for dependency isolation.

Source: https://learn.microsoft.com/en-us/azure/devops/pipelines/process/container-jobs?view=azure-devops

Section: "Prerequisites" and "Single job".

2. Microsoft Docs

Azure DevOps

"YAML schema reference for Azure Pipelines": The official schema defines the container property for a job

which specifies the container image to use. This confirms that running a job in a container is a first-class

intended feature for controlling the build environment.

Source: https://learn.microsoft.com/en-us/azure/devops/pipelines/yaml-schema/jobs-job-container?view=azure-pipelines

Section: "jobs.job.container".

3. Microsoft Docs

Azure DevOps

"Agents": The documentation on self-hosted agents implies that the agent's state is persistent. "If you're running your pipelines on self-hosted agents

you can incrementally improve performance by doing incremental builds and caching... However

because the state of the agent is preserved between runs

this can also cause problems." This highlights the exact problem that container jobs solve by providing an ephemeral

clean environment for each run.

Source: https://learn.microsoft.com/en-us/azure/devops/pipelines/agents/agents?view=azure-devops

Section: "Clean".

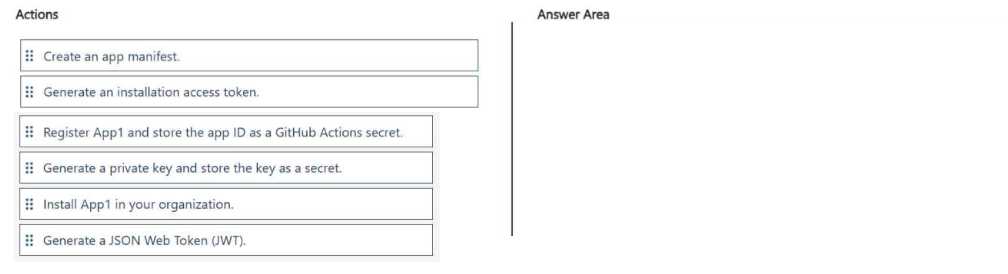

To perform authenticated API requests using a GitHub App in a workflow, you must follow a specific setup and runtime sequence:

1. Register: First, you must create (register) the GitHub App to establish its identity and obtain an App ID. This ID is required for authentication and should be stored as a secret.
2. Credentials: You must generate a private key for the registered app. This key is used to sign the JSON Web Tokens (JWTs) that prove the app's identity. This must also be stored as a secret.
3. Install: The app must be installed in the organization or repository. This grants the app actual access permissions and generates an installation_id. Without installation, the app has no scope to act.
4. Token Generation: Finally, within the workflow (runtime), you exchange the credentials (JWT) for an installation access token. This token is the actual credential used to perform authenticated API requests against the repository.

GitHub Docs: Authenticating with GitHub Apps

Section: Authenticating as an installation

Quote: "To authenticate as an installation, you must generate an installation access token... You can use an installation access token to authenticate API requests."

URL: https://docs.github.com/en/apps/creating-github-apps/authenticating-with-a-github-app/authenticating-as-a-github-app-installation

GitHub Docs: Making authenticated API requests with a GitHub App in a GitHub Actions workflow

Section: Prerequisites

Quote: "You must have created a GitHub App... generated a private key... installed the app on your repository."

URL: https://docs.github.com/en/actions/security-for-github-actions/security-guides/making-authenticated-api-requests-with-a-github-app-in-a-github-actions-workflow

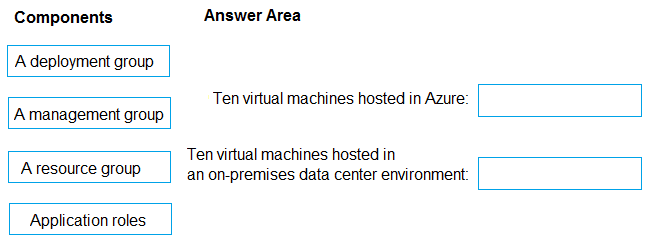

Deployment groups are the correct recommendation for both scenarios because the question specifies that all virtual machines have the Azure Pipelines agent installed. A deployment group is a logical set of deployment target machines (both cloud and on-premises) with agents installed on each one. It allows you to organize servers into environments (e.g., "Production") and execute deployment tasks on all grouped machines in parallel.

While Resource groups are used to manage Azure resources, they do not apply to on-premises environments and are not the primary mechanism for coordinating agent-based application deployments within Azure Pipelines. Management groups are for governance scope, and Application roles relate to security/access control, not deployment orchestration.

Microsoft Learn. (2022). Provision deployment groups. Azure DevOps. Retrieved from https://learn.microsoft.com/en-us/azure/devops/pipelines/release/deployment-groups/

Quote: "A deployment group is a logical set of deployment target machines that have agents installed on each one. Deployment groups represent the physical environments; for example, 'Dev', 'Test', 'UAT', and 'Production'."

Relevance: Confirms that deployment groups are the organizational unit for machines with agents.

Microsoft Learn. (2023). Deployment group jobs. Azure DevOps. Retrieved from https://learn.microsoft.com/en-us/azure/devops/pipelines/process/deployment-group-phases

Quote: "A deployment group job runs on the machines in a deployment group... You can specify the deployment group and the tags to filter the machines."

Relevance: Validates the use of deployment groups for executing deployment strategies across multiple endpoints.

To programmatically generate release notes that include specific work items (features and bugs), you must follow this logical workflow:

1. Define the Data (Query): First, you must create a Work Item Query in Azure Boards (e.g., using WIQL) to identify exactly which items (e.g., Work Item Type = Bug/Feature AND State = Closed) should be included in the release notes.
2. Authenticate (PAT): To retrieve this data from a script running in a pipeline, you need to authenticate against the Azure DevOps REST API. While the System.AccessToken is a modern alternative, Personal Access Tokens (PATs) are the standard mechanism referenced in these exam scenarios for authenticating custom PowerShell scripts to the Azure DevOps instance.
3. Execute (PowerShell Task): Finally, you configure a PowerShell task in the release pipeline. This script utilizes the PAT for authentication and the Query ID to fetch the relevant work items via the REST API, processes the JSON response, and writes the formatted content to a markdown file.

Microsoft Learn - Azure DevOps REST API:

Documentation on how to interact with Azure DevOps resources (like Work Items) using the REST API and authentication methods.

Reference: "To use the REST APIs, you need to authenticate... Personal access tokens (PATs) are an easy way to get started."

Microsoft Learn - Define queries in Azure Boards:

Explains the necessity of creating queries to filter work items (Bugs/Features) which serves as the data source for the API call.

Reference: "You can use the Query Editor to define a flat list query... to list work items."

Microsoft Learn - PowerShell task:

Describes using the PowerShell task to run scripts within a pipeline, which is the vehicle for generating the file.

Reference: "Use this task to run a PowerShell script... on Windows, macOS, or Linux."

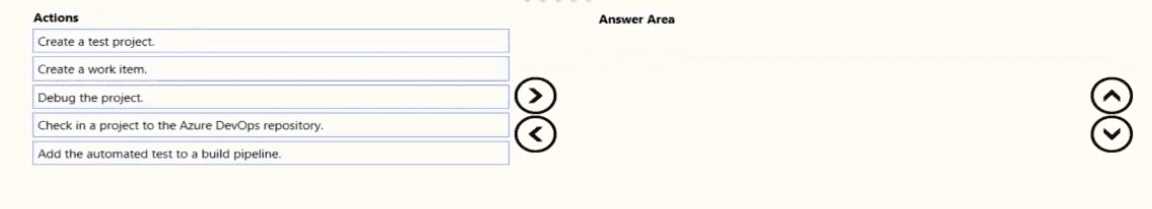

To successfully associate and run an automated test in Azure DevOps, you must follow the prerequisites outlined in the official documentation. First, Create a test project to contain the automation code (e.g., a Visual Studio Unit Test project). Second, Check in the project to the Azure DevOps repository so the code is version-controlled and accessible to the system. Third, Add the automated test to a build pipeline (typically by configuring a CI pipeline with a build task) to ensure the test binaries are generated and available for execution by the Test Plans service.

Microsoft Learn - Associate automated tests with test cases:

Section: "Prerequisites"

"Create a test project containing your automated test."

"Check your test project into an Azure DevOps or TFS repository."

"Create a build pipeline for your project and ensure that it contains the automated test."

URL: https://learn.microsoft.com/en-us/azure/devops/test/associate-automated-test-with-test-case?view=azure-devops#prerequisites

Microsoft Learn - Run automated tests from test plans:

Section: "Prerequisites"

Confirms the necessity of the build artifacts: "The test binaries for these tests must be available in the build artifacts generated by your build pipeline."

URL: https://learn.microsoft.com/en-us/azure/devops/test/run-automated-tests-from-test-hub?view=azure-devops

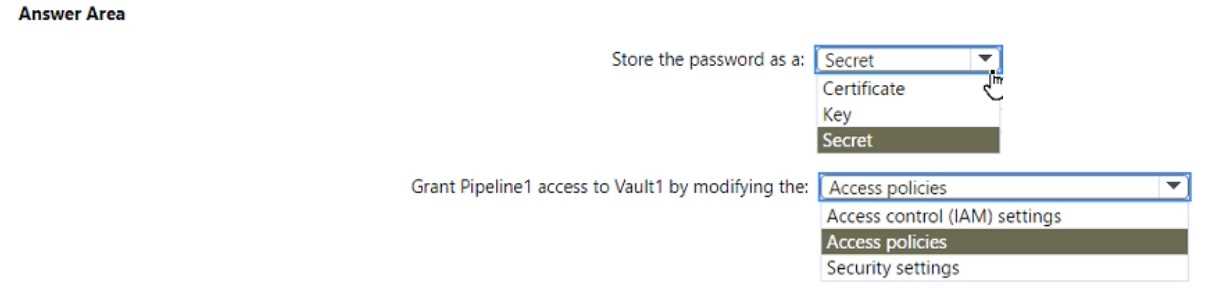

In Azure Key Vault, Secrets are the specific object type designed for storing sensitive strings like application passwords or connection strings. Certificates and Keys serve distinct purposes related to PKI and cryptography, respectively. To enable Pipeline1 (which typically uses a Service Principal or Managed Identity) to retrieve this secret during a deployment, you must configure permissions at the vault level. While Azure RBAC is an alternative, Access policies are the traditional, specific mechanism for granting granular permissions (like Get and List secrets) to a service principal to ensure the pipeline can authenticate and fetch the required credentials.

Microsoft Learn: About Azure Key Vault secrets. Section: "Secrets".

Microsoft Learn: Assign a Key Vault access policy. Section: "Grant a service principal access to Key Vault".

Microsoft Learn: Use Azure Key Vault secrets in Azure Pipelines. Section: "Prerequisites - Create a Key Vault".

Microsoft Learn: Azure Key Vault security. Section: "Access policies".
