AutoDesk RVT ELEC 01101.pdf
An electrical designer tries to place a generic annotation family in a data device family. The designer
receives the error message as shown. What should the designer do?

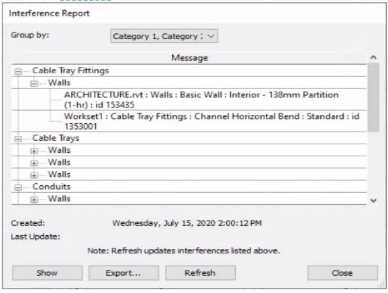

An electrical designer runs an interference check and reviews the Interference Report.
How can the designer select the cable tray fitting referenced in the interference to resolve the clash?HOTSPOT Refer to exhibit.

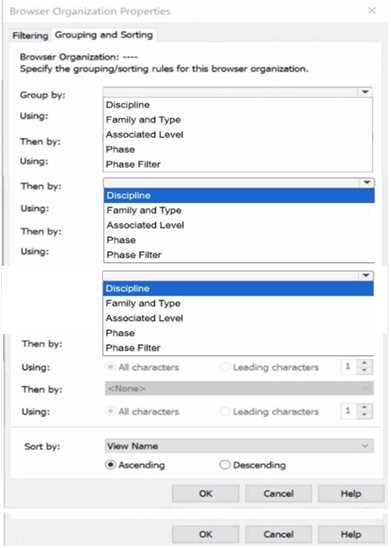

An electrical designer wants to organize the Protect Browser as shown in the exhibit. Select the correct options in order to achieve the desired organization. (Select three.)

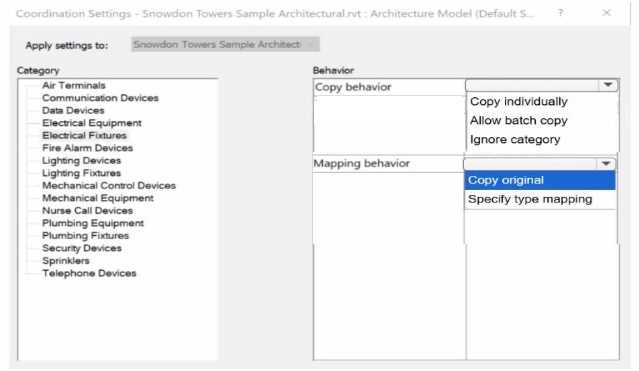

HOTSPOT An electrical designer receives an architectural model and links it into the electrical model. The designer wants to use the Copy/Monitor tool to copy the exact electrical fixtures created by the architect. The designer also wants the software to automatically detect new electrical fixtures added to the architectural model. Select the correct coordination settings from the drop-down lists
HOTSPOT An electrical designer needs to check for Interferences between conduit in the host model and beams in a linked structure model in the Interference Check dialog, select the items that the designer must select to perform the interference check. (Select two.)

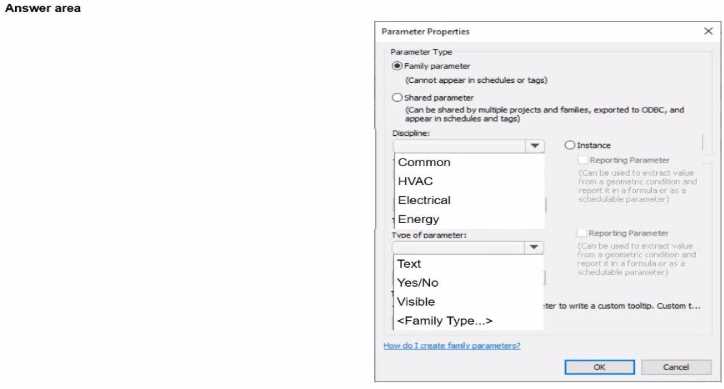

HOTSPOT An electrical designer is creating a panelboard family. The electrical designer wants to create a family parameter to control the visibility of a clearance zone. In the Parameter Properties dialog, select the required Discipline and Type for the parameter.
HOTSPOT Refer to exhibit.

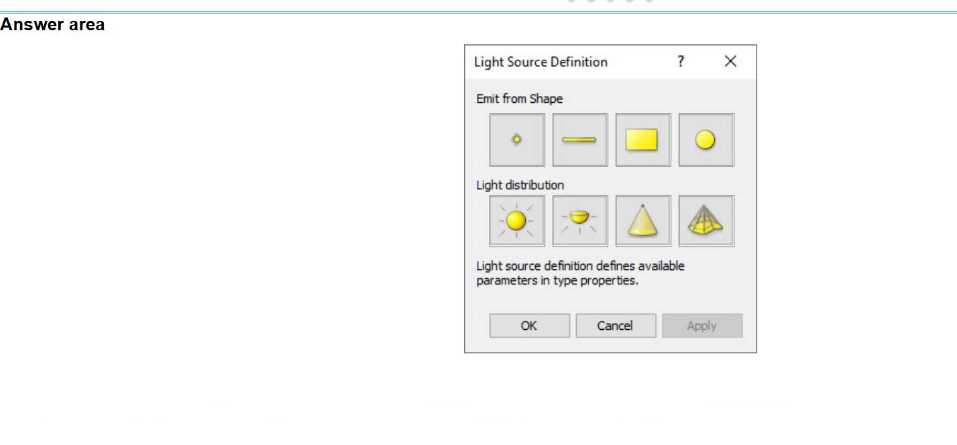

The exhibit is a lighting fixture family in the Family Editor environment and the light source is selected. An electrical designer has downloaded a photometric web tile in IES format from a manufacturer's website for use within this lighting fixture family. Define the light source's Emit Shape and Light Distribution for use with the photometric web (IES) file. (Select two in the answer area.)
