To establish a SnapMirror relationship between a Data ONTAP 8.1 Cluster-Mode system and an ONTAP 9.5 cluster, an upgrade of the source cluster is mandatory. The modern and recommended SnapMirror engine, Extended Data Protection (XDP), was introduced in ONTAP 8.3. The source cluster must be running a version of ONTAP that supports XDP to create this type of relationship. Therefore, the customer must upgrade the Data ONTAP 8.1 cluster to a minimum of ONTAP 8.3. Direct replication, even using the older DP type, is not supported across such a wide version gap.

A. Direct DP (version-dependent) SnapMirror is not supported between Data ONTAP 8.1 and ONTAP 9.5 due to the large version difference. An upgrade is required.

B. While upgrading to ONTAP 9.1 would work, it is not the minimum requirement. The minimum version needed to support the required XDP replication engine is ONTAP 8.3.

D. The XDP SnapMirror type was introduced in ONTAP 8.3. Data ONTAP 8.1 does not have the capability to create or manage XDP relationships.

1. NetApp ONTAP 9.5 Documentation, "Data Protection Guide": In the section "Data protection compatibility with earlier ONTAP versions," the guide states, "You can create a SnapMirror relationship between a system running ONTAP 9 and a system running Data ONTAP 8.3 or later." This establishes ONTAP 8.3 as the minimum compatible version for creating modern SnapMirror relationships with ONTAP 9.5.

2. NetApp Technical Report TR-4015, "SnapMirror Configuration and Best Practices Guide for ONTAP 9.5": Section 2.1, "SnapMirror Version-Independent and Version-Dependent Relationships," specifies, "Version-independent SnapMirror replication was introduced in clustered Data ONTAP 8.3. It is the basis for all SnapMirror replication relationships in ONTAP 9." This confirms that to use the modern, version-flexible (XDP) replication, the source must be at least ONTAP 8.3.

3. NetApp Interoperability Matrix Tool (IMT): Checking for SnapMirror compatibility between ONTAP 8.1.x and ONTAP 9.5 confirms that no direct version-dependent (DP) or version-independent (XDP) replication path is supported. This substantiates the requirement for an upgrade on the source cluster. (Note: The IMT is a dynamic tool, but its data consistently shows large version gaps are unsupported for SnapMirror).

OnCommand Unified Manager (now Active IQ Unified Manager) is the correct tool for this task. It is designed to monitor and manage multiple ONTAP clusters from a single, centralized console. A core feature of Unified Manager is its ability to provide comprehensive monitoring and reporting on data protection relationships, including SnapMirror replication. It can discover all replication relationships across the managed clusters and present them in a consolidated view, allowing an administrator to generate reports on their status, lag time, and overall health for the entire infrastructure.

A. OnCommand System Manager: This tool is used for managing a single ONTAP cluster. It cannot provide a consolidated, comprehensive report across multiple, separate clusters as required by the scenario.

B. Storage Replication Adapter: SRA is a software plug-in that integrates NetApp storage with third-party disaster recovery orchestration software, such as VMware Site Recovery Manager (SRM), not a reporting tool.

D. OnCommand Workflow Automation: This is an automation tool used to create and execute custom storage management workflows. While a custom report could potentially be built, it is not its primary function for out-of-the-box comprehensive reporting.

1. NetApp Active IQ Unified Manager Documentation, "Data protection overview": "Unified Manager enables you to monitor the SnapMirror and SnapVault relationships in your clusters to ensure that your data is protected and that the secondary storage systems are ready to take over in case the primary storage systems have issues." This confirms its role in monitoring replication across clusters.

Source: NetApp Product Documentation, Active IQ Unified Manager 9.10, "Data protection overview".

2. NetApp Active IQ Unified Manager Documentation, "Monitoring data protection relationship health": "The Protection/Relationships page provides an overview of the health of all your data protection relationships. You can view details about a specific relationship to identify and resolve issues." This highlights its capability to provide a comprehensive view of all relationships.

Source: NetApp Product Documentation, Active IQ Unified Manager 9.10, "Monitoring data protection relationship health".

3. NetApp ONTAP System Manager Documentation: "You can use System Manager to manage a cluster and its storage objects..." The documentation consistently refers to managing "a cluster" (singular), confirming its scope is limited to a single entity.

Source: NetApp Product Documentation, ONTAP 9.12.1, "ONTAP System Manager overview".

For a successful and resilient cluster peering configuration in NetApp ONTAP, two fundamental networking principles must be met. First, every node within a cluster must have at least one dedicated intercluster LIF. This ensures that each node can directly participate in replication traffic, preventing performance bottlenecks and single points of failure. Second, there must be full, routable network connectivity between all intercluster LIFs on the local cluster and all intercluster LIFs on the remote cluster. This "full mesh" connectivity is essential for the peering relationship to be established and for data transfers to proceed reliably, regardless of which nodes host the source and destination data.

A. The LIFs should be on the same subnet.

This is incorrect. Intercluster LIFs can reside on different subnets, provided there is proper routing between them to allow communication.

C. You must use one cluster LIF per node per network.

This statement is inaccurate. The correct term is "intercluster LIF," not "cluster LIF." Furthermore, the requirement is at least one intercluster LIF per node, not one per node per network.

1. NetApp ONTAP Documentation Center, "Network requirements for cluster peering":

"You must create at least one intercluster LIF on each node of the cluster." (Supports answer B).

"All intercluster LIFs on all nodes in the local cluster must have network connectivity with all intercluster LIFs on all nodes in the remote cluster." (Supports answer D).

"The intercluster LIFs for a node can be on the same or different subnets." (Refutes answer A).

2. NetApp Technical Report TR-4678, "Cluster Peering":

Page 10, Section "Intercluster Network Connectivity": "NetApp requires that every node in a cluster have at least one intercluster LIF. This configuration is required to avoid performance bottlenecks and to provide path redundancy for intercluster traffic." (Supports answer B).

Page 10, Section "Intercluster Network Connectivity": "All intercluster LIFs in the local cluster must be able to communicate with all intercluster LIFs in the remote cluster." (Supports answer D).

The -identity-preserve true option for an SVM-DR relationship requires that the source and destination clusters reside in the same broadcast domain for network configurations, such as LIFs and their IP addresses, to be replicated. The symptom described—that the iSCSI LIFs were not replicated—is a clear indication that this network requirement has not been met.

The correct procedure for setting up SVM-DR between clusters in different network subnets is to create the relationship with -identity-preserve false (which is the default). This allows the destination SVM to have a different network identity, after which you must manually configure the LIFs on the destination SVM with IP addresses that are valid for the disaster recovery site's network.

A. Re-running the relationship will not resolve the underlying network topology conflict that prevents the replication of LIFs with the -identity-preserve true setting.

B. While you will ultimately need to create LIFs manually, the root cause is the incorrect relationship type. The relationship must first be recreated correctly before configuring the LIFs.

D. Adding the FC protocol is irrelevant to solving a configuration problem with iSCSI LIFs and does not address the core issue with the SVM-DR identity setting.

1. NetApp Technical Report TR-4529: "ONTAP 9.3 SVM Disaster Recovery"

Section 3.1, "SVM-DR Identity Preservation," Page 10: "With identity-preserve set to true, the network configuration of the source SVM is replicated to the destination SVM. This includes LIFs, IP addresses, and routing tables. This requires that the source and destination clusters be in the same broadcast domain." This confirms why the LIFs failed to replicate.

Section 3.1, Page 11: "With identity-preserve set to false, the network configuration is not replicated to the destination SVM. The administrator must manually configure the network on the destination SVM." This supports option C as the correct alternative.

2. NetApp ONTAP 9 Documentation Center, snapmirror create command reference:

Parameter: -identity-preserve: The documentation specifies that when this parameter is set to false, "the destination Vserver has a different identity than the source Vserver. The network interfaces are not replicated from the source Vserver..." This directly outlines the behavior required to solve the problem described in the question.

The task is to provision new volumes and LUNs for an Oracle database. The SnapCenter Plug-in for Oracle Database is designed specifically for this purpose, providing an application-centric workflow for the database administrator to provision, clone, and protect their databases. It automates the creation of correctly configured volumes and LUNs.

Alternatively, ONTAP System Manager, the primary graphical management interface for an ONTAP cluster, can be used by a storage administrator (or a DBA with appropriate permissions) to perform the fundamental tasks of creating volumes and LUNs. Both tools directly accomplish the required storage provisioning task.

B. OnCommand Insight: This is a monitoring, analytics, and reporting tool for large, multi-vendor storage environments. It does not have capabilities for direct storage provisioning like creating volumes or LUNs.

D. Active IQ Unified Manager: This tool is used for monitoring the health, performance, and capacity of NetApp ONTAP systems at scale. It is not designed for ad-hoc provisioning of individual volumes and LUNs.

1. SnapCenter Plug-in for Oracle Database:

NetApp, SnapCenter Plug-in for Oracle Database Installation and Setup Guide, Version 4.6, Page 38, Section: "Provision storage for Oracle databases". The guide states, "You can use the SnapCenter provisioning feature to create volumes and LUNs on your storage system for your Oracle databases."

2. ONTAP System Manager:

NetApp, ONTAP 9.7 SAN configuration guide, Page 16, Section: "Provision a LUN using System Manager". This section provides a step-by-step procedure for creating a LUN in a new or existing volume using the ONTAP System Manager interface.

3. Active IQ Unified Manager (Incorrect Option):

NetApp, Active IQ Unified Manager 9.7 Concepts, Page 8, Section: "What Active IQ Unified Manager does". The document describes its functions as monitoring, alerting, troubleshooting, and reporting on ONTAP storage systems, not direct provisioning.

4. OnCommand Insight (Incorrect Option):

NetApp, OnCommand Insight 7.3 Documentation, "OnCommand Insight Concepts". The documentation describes OCI as a tool to "manage and improve your multivendor storage, SAN, and virtualized environment," focusing on visibility, analytics, and optimization rather than provisioning.

The backup tiering policy is specifically designed for Data Protection (DP) volumes, which include SnapMirror and SnapVault destinations. When this policy is applied to a destination volume, ONTAP immediately tiers all data blocks transferred from the source to the external capacity tier. This behavior is ideal for secondary backup or disaster recovery data, as it frees up space on the high-performance SSD aggregate almost instantly, aligning perfectly with the goal of storing destination SnapMirror data on a capacity tier.

A. auto: This policy tiers cold data from both the active file system and snapshots based on inactivity, which is not optimized for the immediate tiering of newly transferred DP data.

B. snapshot-only: This policy only tiers cold data blocks that are part of Snapshot copies and not in the active file system. It is not the most efficient policy for a DP volume.

C. none: This policy explicitly disables tiering for the volume, ensuring all data remains on the performance tier, which is the opposite of the stated requirement.

1. NetApp ONTAP Documentation, "Data protection on FabricPool aggregates": In the section "Tiering policies for data protection volumes," it states, "You can use the backup tiering policy on a data protection volume to move all the data blocks to the capacity tier. The backup policy is intended for data protection volumes that are SnapMirror destinations."

2. NetApp Technical Report TR-4598, "FabricPool Best Practices": In the "Tiering Policies" section, under the subsection "Backup Policy," it specifies, "The backup policy is designed for use with SnapVault and SnapMirror destination volumes. When the backup policy is used, data is tiered to the capacity tier as soon as it is transferred to the destination volume."

3. NetApp ONTAP Command Reference, volume modify: The description for the -tiering-policy parameter lists backup as an option and its documentation clarifies its use for "moving all blocks of a data protection volume to the capacity tier."

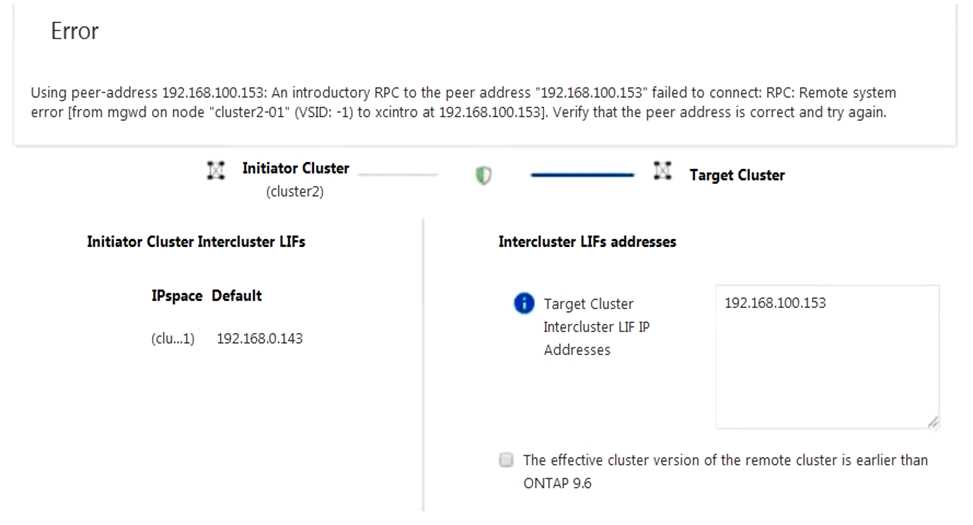

The user is initiating a cluster peer relationship from cluster2 (the source) to cluster1 (the target). The "Peer Cluster" dialog in ONTAP System Manager requires the intercluster LIF IP addresses of the target cluster. According to the provided details, the target cluster (cluster1) has an intercluster LIF IP of 192.168.0.153. However, the user has entered 192.168.0.143 in the "Target Cluster IP" field, which is the IP address of the source cluster (cluster2). This misconfiguration causes the peering setup to fail because the source cluster is attempting to peer with itself.

A. The dialog does not require the source cluster IP; the operation is initiated from the source cluster's management interface.

B. The provided details state the passphrase for cluster1 is netapp1234, which matches the value entered in the dialog box.

D. The dialog requires the passphrase for the target cluster, not the source cluster. The entered passphrase is correct for the target.

1. NetApp ONTAP 9.7 Documentation, Cluster and SVM Peering, "Create a cluster peer relationship": The procedure states, "In the Peer Cluster dialog box, specify the IP addresses of the intercluster LIFs of the remote cluster...". This confirms that the IP address of the target (remote) cluster must be used. The user in the scenario provided the IP of the local (source) cluster instead.

(Reference: NetApp ONTAP 9.7 Documentation Center, System administration -> Cluster and SVM peering -> Create a cluster peer relationship)

2. TR-4684: SnapMirror Best Practices for ONTAP 9.7 and 9.8, Page 11, Section 3.1 Cluster Peering: "To create a cluster peer, you must provide the intercluster LIF IP addresses of the remote cluster and a common passphrase." This technical report reinforces that the remote (target) cluster's IP addresses are the required input for a successful peering operation. The exhibit shows the local (source) IP being used, which is incorrect.

SnapMirror-Synchronous (SM-S) is the NetApp ONTAP feature designed to provide zero data loss, also known as a Recovery Point Objective of zero (RPO=0). It achieves this by synchronously replicating data on a per-volume basis between a source and a destination cluster. This solution is ideal for mission-critical applications where any data loss is unacceptable, directly satisfying the government policy and regulatory requirements mentioned in the scenario. The replication is configured and managed specifically at the volume level.

A. MetroCluster: This is a comprehensive high-availability solution that provides synchronous replication, but it operates at the aggregate and SVM level, not specifically at the volume level as the question asks.

C. SnapShot Copies: These are local, point-in-time images of a volume. They do not provide data replication to a secondary site and cannot prevent data loss if the primary storage system fails.

D. SyncMirror: This technology provides synchronous mirroring at the aggregate level (RAID-level mirroring), not at the volume level. It is a component used within MetroCluster configurations.

1. NetApp Technical Report 4732: SnapMirror Synchronous Technical Overview.

Page 4, Section "SnapMirror Synchronous Overview": "SnapMirror Synchronous (SM-S) is a feature of NetApp ONTAP data management software that provides synchronous data replication at the volume level. SM-S is designed to provide a recovery point objective (RPO) of zero." This directly supports the correct answer (B).

2. NetApp Technical Report 4705: NetApp MetroCluster Solution Architecture and Design.

Page 7, Section "MetroCluster Components": "MetroCluster configurations use SyncMirror to synchronously replicate data and NVRAM between the storage controllers at each site." This confirms that MetroCluster's underlying replication mechanism is SyncMirror, which operates on aggregates, making option A less precise than B.

3. NetApp ONTAP 9 Documentation, "Data protection using SyncMirror".

Introduction: "You can use SyncMirror to create and maintain a mirrored copy of an aggregate or a traditional volume. A mirrored aggregate is called a plex." This verifies that SyncMirror operates at the aggregate level, making option D incorrect.

4. NetApp ONTAP 9 Documentation, "Overview of Snapshot copies".

Introduction: "A Snapshot copy is a read-only, point-in-time image of a volume... Snapshot copies are stored on the same volume as the original data." This confirms that Snapshot copies are local and do not provide the required disaster recovery protection, making option C incorrect.

The question specifies that the storage system is an ONTAP Select cluster. For software-defined storage platforms like ONTAP Select and Cloud Volumes ONTAP, SnapCenter licensing is capacity-based, not controller-based. The required license capacity is calculated by summing the sizes of the source volumes being protected. In this scenario, the total capacity is the sum of the Engineering volume (2 TB) and the Marketing volume (3 TB), which equals 5 TB. Therefore, a 5 TB SnapCenter capacity-based license is the correct requirement to protect both volumes.

A. a SnapManagerSuite controller-based license: This is incorrect. ONTAP Select is a software-defined platform and requires capacity-based licensing for SnapCenter, not controller-based licenses which are for physical FAS/AFF systems.

B. a 3 TB SnapCenter capacity-based license: This is incorrect because the total capacity to be protected is 5 TB (2 TB + 3 TB). A 3 TB license would be insufficient.

D. a SnapProtectApps controller-based license: This is incorrect. Controller-based licenses are not applicable to ONTAP Select, which mandates a capacity-based licensing model for SnapCenter data protection.

1. NetApp Technical Report 4597, "SnapCenter Software Best Practices," Page 10, Section: Licensing.

"For ONTAP Select and Cloud Volumes ONTAP, SnapCenter is licensed based on the capacity of the source volumes that are being protected." This statement directly confirms that ONTAP Select requires capacity-based licensing calculated from the source volumes.

2. NetApp SnapCenter 4.6 Installation and Setup Guide, Chapter: Licensing, Section: SnapCenter license types.

"Capacity-based licenses are required for ONTAP Select and Cloud Volumes ONTAP systems. The capacity is based on the size of the source volumes that you want to protect." This official installation guide explicitly states the licensing model for ONTAP Select.

3. NetApp ONTAP Select 9.7 Datasheet, Page 3, Section: Licensing.

The datasheet details the capacity-tiered licensing for ONTAP Select itself (Premium, Standard). It clarifies that ONTAP Select is a software-defined storage solution licensed by capacity, and associated data protection with SnapCenter follows this capacity-based model rather than the controller-based model of physical appliances.

On an AFF A400 system running ONTAP 9.7, NetApp Aggregate Encryption (NAE) is enabled by default for all newly created aggregates. To ensure this security feature is active before migrating production data, a prudent administrator would first verify the prerequisites and then validate the outcome.

First, it is necessary to ensure the software encryption capabilities are licensed on the cluster. As of ONTAP 9.6 and later, NetApp Volume Encryption (NVE) and NAE are included in the base license bundle, but verifying this license is installed is a required prerequisite (B). Second, after creating a new data aggregate, a verification step is essential to confirm that the default encryption setting was applied correctly (D). This "trust but verify" approach ensures the security posture is as expected.

A. Aggregates cannot be "converted" to NAE in-place. Encryption must be enabled at the time of aggregate creation.

C. NetApp Aggregate Encryption (NAE) is a software-based feature and does not depend on or require hardware-based self-encrypting drives (SEDs/NSE).

1. NetApp ONTAP 9.7 Documentation, "Overview of NetApp encryption solutions": This official documentation states, "Beginning with ONTAP 9.6, NetApp Volume Encryption (NVE) and NetApp Aggregate Encryption (NAE) are included in the ONTAP software base license. You do not need to purchase a separate license." This supports the need to ensure the base license, which includes the encryption features (B), is properly installed. It also states, "On AFF systems...NAE is enabled by default on new aggregates," which necessitates the verification step in (D).

2. NetApp Technical Report 4567, "NetApp Volume Encryption and NetApp Aggregate Encryption": Section "NetApp Aggregate Encryption" on page 7 clarifies, "NAE is a software-based technology for encrypting data at rest... NAE is supported on any type of disk drive (SSD, HDD, or a mix) and does not require special self-encrypting drives." This directly refutes option C. The report also details using the storage aggregate show -fields encryption command to verify an aggregate's encryption state, which is the action described in option D.

3. NetApp ONTAP 9.7 Documentation, "Encrypting aggregates with NAE": This document describes the process for creating encrypted aggregates. It confirms that for AFF systems, NAE is enabled by default and does not mention any "conversion" process for existing aggregates, making option A incorrect. The process is to create a new NAE aggregate and, if necessary, move data to it.

The question asks for a solution with the "highest possible availability." In the NetApp disaster recovery portfolio, MetroCluster is the premier solution for continuous availability. It provides synchronous replication with transparent, automatic failover, resulting in a Recovery Point Objective (RPO) of zero and a near-zero Recovery Time Objective (RTO). While other solutions like SnapMirror Synchronous also offer an RPO of zero, they require manual or scripted intervention to failover, which does not constitute the "highest possible availability." The phrase "at the lowest possible price" is a secondary constraint, meaning the cost to achieve this specific top tier of availability. MetroCluster is the only option that meets the primary requirement for continuous, transparent availability.

B. SM-S: SnapMirror Synchronous (SM-S) provides a zero RPO but does not offer automatic, transparent failover. This results in a higher RTO and a lower level of availability compared to MetroCluster.

C. SnapMirror: This typically refers to asynchronous SnapMirror, which has a non-zero RPO (potential for data loss) and does not meet the "highest possible availability" requirement.

D. SVM-DR: This is an orchestration feature built upon SnapMirror technology, most commonly asynchronous SnapMirror. It simplifies the DR process but inherits the RPO/RTO characteristics of the underlying replication, which is not the highest available.

1. NetApp Technical Report 4705: NetApp MetroCluster Solution Architecture and Design

Section: Introduction, Page 5.

Quote: "NetApp MetroCluster software is a unique high-availability and disaster recovery solution that combines array-based clustering with synchronous replication to deliver continuous availability and zero data loss. The MetroCluster configuration is designed to protect against a total failure of one of the sites or data centers by providing redundant, synchronously mirrored data on the surviving site." This document establishes MetroCluster as the solution for "continuous availability."

2. NetApp Technical Report 4529: SnapMirror Synchronous (SM-S) for ONTAP 9.5 and Later

Section: Introduction, Page 5.

Quote: "SnapMirror Synchronous (SM-S) is a feature of NetApp ONTAP software that provides synchronous data replication at the volume level for a zero recovery point objective (RPO). ... Failover is not automatic." This reference explicitly contrasts SM-S with MetroCluster by stating that failover is not automatic, thus providing a lower tier of availability.

3. NetApp ONTAP 9 Documentation: Data protection overview

Section: Comparing MetroCluster and SnapMirror features.

Content: This documentation section compares business continuity solutions, positioning MetroCluster for "Continuous data availability for mission-critical applications" with "Automatic switchover," while positioning SnapMirror Synchronous for "Zero data loss" with "Manual switchover." This hierarchy confirms MetroCluster provides the highest availability.

The solution requires adherence to SnapMirror Synchronous (SM-S) network latency constraints. The round-trip time (RTT) for SM-S must be less than 10 ms.

The link between Cluster 1 and Cluster 2 has an RTT of 7 ms, which is suitable for SM-S. The link between Cluster 1 and Cluster 3 has an RTT of 29 ms, which exceeds the 10 ms limit, making SM-S unsupported. Therefore, any replication to Cluster 3 must be asynchronous.

Option A (cascade) and Option C (fan-out) both correctly propose using SM-S for the low-latency link to Cluster 2 and asynchronous SnapMirror for the high-latency link involving Cluster 3. Both are valid and supported three-way disaster recovery topologies in ONTAP.

B: This option is incorrect because SnapMirror Synchronous is not supported for the link between Cluster 1 and Cluster 3, as the 29 ms RTT exceeds the 10 ms maximum.

D: This option is incorrect because a cascade using SnapMirror Synchronous for the long-distance link from Cluster 2 to Cluster 3 is not feasible due to the high RTT.

1. NetApp, TR-4742: SnapMirror Synchronous Deployment and Best Practices Guide for ONTAP 9.5 and Later.

Page 9, Section: Network requirements: "The round-trip time (RTT) between the clusters must be less than 10ms." This confirms why the link to Cluster 3 cannot use SM-S.

Page 10, Section: Supported topologies: This section explicitly describes and illustrates both fan-out and cascade topologies. It states, "A source volume can be replicated to a maximum of four destination volumes. The replication can be a mix of SnapMirror Synchronous and SnapMirror asynchronous relationships" (validating option C) and "A SnapMirror Synchronous relationship can be cascaded to a SnapMirror asynchronous relationship" (validating option A).

2. NetApp ONTAP 9 Documentation Center, Data protection using SnapMirror Synchronous relationships.

Section: Requirements for synchronous replication: "The network latency between the clusters must be less than 10 milliseconds round-trip time (RTT)." This reinforces the core requirement used in the analysis.

Section: SnapMirror cascade and fan-out relationships for data protection: This document details how a source volume can be part of both a fan-out configuration (replicating to multiple destinations) and a cascade configuration (A->B->C), including mixed synchronous and asynchronous modes.

The requirement is for a zero Recovery Point Objective (RPO) solution that protects specific volumes and ensures application writes fail if they cannot be replicated. SnapMirror Synchronous (SM-S) in StrictSync mode is designed for this exact scenario. It operates at the volume level, providing granular protection. In StrictSync mode, a write I/O is not acknowledged to the application until it is committed on both the primary and secondary storage systems. If the write to the secondary fails, the primary write also fails, guaranteeing data consistency and a true zero RPO, which is essential for the mission-critical application described.

A. SnapMirror Synchronous using Sync mode: In Sync mode, if replication to the secondary fails, the primary system continues to accept writes, breaking the zero RPO guarantee and not meeting the write-failure requirement.

B. Mirrored aggregates using SyncMirror: SyncMirror operates at the aggregate level, protecting all volumes within it, not a select number of volumes as the customer requires.

D. Mirrored SVMs using MetroCluster: MetroCluster is a site-level disaster recovery solution that protects entire SVMs or aggregates. It is excessive and does not meet the specific requirement of protecting only select volumes.

1. NetApp ONTAP 9 Documentation, Data protection, "SnapMirror Synchronous modes of operation":

"In StrictSync mode, the primary I/O is not acknowledged to the client application until it is committed to the journal log on both the primary and secondary clusters. If the write to the secondary cluster is not successful, the client I/O fails. This ensures that the primary and secondary are always identical." (This supports option C).

"In Sync mode, ...If the write to the secondary cluster is not successful, the secondary is marked as out-of-sync, but client I/O on the primary is not affected." (This refutes option A).

2. NetApp ONTAP 9 Documentation, Disks and aggregates management, "How SyncMirror implementation works":

"SyncMirror technology provides synchronous mirroring of aggregates... A mirrored aggregate, as the name implies, is an aggregate for which a complete duplicate copy of the data is maintained on two sets of disks (plexes)." (This refutes option B by confirming its scope is the entire aggregate).

3. NetApp Technical Report TR-4705: NetApp MetroCluster Solution Architecture and Design, Section: "MetroCluster Overview":

"A NetApp MetroCluster configuration is a high-availability and disaster recovery solution that combines array-based clustering with synchronous mirroring to provide continuous data availability at a site level." (This refutes option D by confirming its scope is site-level).

To recover from a ransomware event that has encrypted a file share, you need two key components: a clean, unencrypted copy of the data from before the attack, and a mechanism to restore that data.

Snapshot (D) technology creates point-in-time, read-only copies of a volume. These copies, taken before the ransomware attack, contain the unencrypted, original files. They serve as the essential source for any recovery operation.

SnapRestore (C) is the feature used to revert an entire volume to a previous Snapshot copy. This process is nearly instantaneous and is the most efficient method for recovering a complete file share after it has been compromised by ransomware, effectively undoing the encryption damage.

A. SnapLock: This is a Write-Once, Read-Many (WORM) feature for compliance and data immutability. It protects data, including Snapshot copies, from deletion or modification but is not a recovery tool itself.

B. SnapMirror: This is a disaster recovery feature that replicates Snapshot copies to a secondary system. While it provides a crucial off-site source for recovery, SnapRestore is the more direct feature for recovering the primary volume.

1. NetApp, Inc. (2023). TR-4574: Ransomware Prevention and Recovery with NetApp ONTAP.

Page 13, Section "Recover": "NetApp Snapshot copies provide the primary mechanism for data recovery. Because Snapshot copies are read-only, online, and stored within the volume, they offer a simple, secure, and efficient solution for recovering from a ransomware attack." (Supports answer D)

Page 14, Section "Volume recovery": "NetApp SnapRestore technology enables you to revert the contents of an entire volume to a previous Snapshot copy almost instantaneously, regardless of the volume size or the number of files." (Supports answer C)

2. NetApp, Inc. (2023). TR-4015: SnapRestore: Best Practices Guide.

Page 5, Section "Introduction": "NetApp SnapRestore® technology uses a saved Snapshot copy to restore a file, a LUN, or, most commonly, an entire volume to a previous point in time. This restoration is accomplished without the need for an extended copy process from a backup device." (Defines SnapRestore's function for volume-level recovery).

The question requires identifying the volume protection relationship that violates the company policy of a lag time under 60 minutes. The exhibit displays the "Lag" column for each relationship. The lag time indicates how far the destination volume's data is behind the source volume's data.

By examining the exhibit, the relationship svmfabricpool:demovolume -> svmfabricpool:demovolumeDR shows a lag of "1h 10m 1s". This is equivalent to 70 minutes and 1 second, which clearly exceeds the 60-minute policy limit. The other three relationships show a lag of "0h 10m 1s", which is well within the policy.

A. The lag time for this relationship is 10 minutes and 1 second, which is within the 60-minute policy.

B. The lag time for this relationship is 10 minutes and 1 second, which is within the 60-minute policy.

D. The lag time for this relationship is 10 minutes and 1 second, which is within the 60-minute policy.

1. NetApp ONTAP Documentation Center, "Monitor SnapMirror relationships in System Manager": This document describes the fields displayed in the ONTAP System Manager Protection window. It defines the "Lag" field as "The amount of time that the data on the destination lags behind the source." The exhibit directly shows this value for each relationship. (Search for "Monitor SnapMirror relationships in System Manager" in the NetApp ONTAP 9 documentation for your specific version).

2. NetApp Technical Report TR-4015, "SnapMirror Configuration and Best Practices Guide for ONTAP 9.8": Section 2.1, "SnapMirror Fundamentals," explains the concept of lag time in asynchronous SnapMirror relationships. It clarifies that lag is the measure of data currency on the destination relative to the source, which is the metric used in the question's policy.

3. NetApp ONTAP 9 Documentation, "ONTAP concepts", Data protection section: This guide explains the fundamentals of SnapMirror technology. In the subsection "How SnapMirror asynchronous replication works," it states, "The lag is the amount of time by which the data on the destination lags behind the source." This confirms the meaning of the "Lag" column in the exhibit.

SnapCenter performs an application-aware restore by interacting directly with the Microsoft SQL Server instance. The automated workflow requires taking the target database offline, restoring the underlying storage LUNs from the selected Snapshot copy, and then bringing the database back online to complete the recovery process. For SnapCenter to execute these application-level commands and manage the database state, the SQL Server service must be running on the host. If the service is stopped, SnapCenter cannot communicate with the database instance, and the restore operation will fail.

A. Multipathing is a high-availability best practice for iSCSI but is not a strict requirement for a SnapCenter restore operation to function.

C. The SQL Server service must be running for SnapCenter to perform the application-specific steps of the restore, such as taking the database offline and online.

D. The iSCSI service (initiator) must be enabled and running for the host to access the LUNs where the database files are stored.

1. NetApp SnapCenter 5.0 Data Protection Guide for Microsoft SQL Server, Page 53, "Restore and recover Microsoft SQL Server databases". The documented workflow describes steps that SnapCenter performs on the database, such as "takes the database offline" and "brings the database online." These actions can only be performed if the SQL Server service is running and accessible to the SnapCenter plug-in.

2. NetApp Technical Report TR-4590: SnapCenter Best Practices, Page 10, Section 3.2 "SnapCenter Plug-In for Microsoft SQL Server". The document states, "The SnapCenter Plug-in for Microsoft SQL Server automates the backup and restore of Microsoft SQL Server databases." This automation relies on the plug-in's ability to communicate with a running SQL Server instance to quiesce and manage the database state during operations.

NetApp Cloud Manager is the centralized management and orchestration platform for NetApp's hybrid multi-cloud solutions. It provides a single-pane-of-glass interface to discover on-premises ONTAP clusters and manage Cloud Volumes ONTAP instances across multiple public clouds (AWS, Azure, GCP). A core function of Cloud Manager is to simplify the creation and management of data replication relationships (SnapMirror) for disaster recovery (DR) and other use cases. Its intuitive drag-and-drop functionality allows administrators to easily set up and monitor replication from on-premises to one or more clouds, directly addressing the need to simplify management in the described scenario.

A. Cloud Volumes ONTAP: This is the ONTAP software running in a public cloud. It acts as the DR target, not the tool that simplifies the management of the replication relationships.

C. Cloud Sync: This service is for synchronizing file or object data between different storage systems (e.g., NFS to S3), not for ONTAP-native, block-level replication used for DR.

D. Cloud Insights: This is a monitoring, troubleshooting, and optimization tool. It provides visibility into infrastructure health but does not actively manage or configure data replication for DR purposes.

1. NetApp Cloud Manager Documentation, "Replicating data between systems": "Cloud Manager simplifies the process of creating and managing data replication relationships between ONTAP systems in your hybrid cloud... You can replicate data by dragging and dropping a source volume onto a destination cluster." This directly supports Cloud Manager as the tool for simplifying replication management.

2. NetApp Technical Report TR-4679, "Cloud Manager for Hybrid Cloud Data Management", Page 5: "NetApp Cloud Manager is a centralized management platform that enables you to manage your ONTAP storage in a hybrid cloud environment... It simplifies the setup of data replication for disaster recovery, data distribution, and data protection." This confirms its role in simplifying DR management.

3. NetApp Cloud Volumes ONTAP Documentation, "Learn about disaster recovery": This section describes using Cloud Manager to set up SnapMirror replication from an on-premises ONTAP system to a Cloud Volumes ONTAP system for DR, positioning Cloud Manager as the orchestrator.

4. NetApp Cloud Sync Documentation, "What is Cloud Sync?": "Cloud Sync is a NetApp data synchronization service for rapid and secure data synchronization... It's not a backup or disaster recovery solution." This clearly distinguishes its purpose from the DR requirement in the question.

SnapVault relationships are governed by SnapMirror policies. The default policy for SnapVault, XDPDefault, has storage efficiency enabled by default. This means that after a SnapVault transfer completes, ONTAP automatically initiates storage efficiency operations (deduplication, compression) on the destination volume, so SnapVault manages the process.

Furthermore, SnapVault uses the XDP replication engine, which performs logical, efficiency-aware replication. When data is transferred from a primary volume with storage efficiency enabled to a secondary volume that also has it enabled, the efficiency is preserved. The system does not need to re-run efficiency operations from scratch on the destination to achieve the savings that already exist on the source.

B. A manual schedule is not required. The SnapMirror policy that controls the SnapVault relationship can be configured to automatically trigger efficiency operations post-transfer.

D. SnapVault does not "implicitly" use storage efficiency. It is a distinct feature that must be explicitly enabled on the volume, although it is highly integrated with SnapVault policies.

1. NetApp ONTAP 9.11.1 Documentation, snapmirror policy create command reference:

Reference: In the description for the -is-efficiency-enabled parameter, the documentation states: "If this parameter is set to true, ONTAP automatically runs efficiency operations on the destination volume after a SnapMirror transfer. The default is true for async-mirror and vault relationships." This supports that SnapVault can manage the schedule (Answer A).

2. NetApp Technical Report 4015, "SnapMirror Configuration and Best Practices Guide for ONTAP 9.8":

Reference: In the section "SnapMirror Logical Replication with Storage Efficiency" on page 16, it states: "When data is replicated from a source volume with storage efficiency enabled to a destination volume that also has storage-efficiency enabled, the storage savings are maintained." This confirms that efficiency is preserved (Answer C).

3. NetApp ONTAP 9.11.1 Documentation, "How SnapMirror logical replication with storage efficiency works":

Reference: This section explains: "Because logical objects are replicated, storage efficiency is preserved across the network... You do not need to run a storage efficiency operation on the destination volume to get the storage savings that you have on the source volume." This further validates that efficiency is preserved from primary to secondary (Answer C).

Network Data Management Protocol (NDMP) is a standard protocol used for backing up and restoring data on network-attached storage (NAS) devices running ONTAP. It enables backup applications to directly control data protection operations on the storage system. ONTAP supports NDMP operations for both its standard single-container volume type, FlexVol, and its scale-out, multi-container volume type, FlexGroup. This allows for efficient, direct-to-tape or direct-to-disk backups of the primary data residing in these two volume types.

A. FlexCache: A FlexCache volume is a read-only, sparse cache of an origin volume. Data protection operations, including NDMP backups, must be performed on the origin volume, not the cache itself.

B. Flash Pool: Flash Pool is not a volume type. It is an aggregate-level technology that combines SSDs and HDDs to create a hybrid storage aggregate, on which volumes are then created.

1. NetApp ONTAP 9.12.1 Documentation, "Data protection using NDMP": In the overview section, it explicitly states, "NDMP is supported on FlexVol volumes and FlexGroup volumes." This directly confirms that both C and D are correct.

2. NetApp Technical Report 4075, "FlexGroup Volumes Best Practices and Implementation Guide": In the section "Data Protection for FlexGroup Volumes," subsection "NDMP Backup," the document states, "FlexGroup volumes support NDMP-based backup and restore operations." This provides specific confirmation for FlexGroup volumes.

3. NetApp ONTAP 9.12.1 Documentation, "FlexCache volume management overview": This document clarifies the nature of FlexCache volumes, stating, "You cannot perform backup or replication operations on a FlexCache volume. You must perform these operations on the origin volume." This confirms why option A is incorrect.

4. NetApp ONTAP 9.12.1 Documentation, "Flash Pool aggregate management overview": This resource defines Flash Pool as "a type of ONTAP aggregate that is composed of both solid-state drives (SSDs) and hard disk drives (HDDs)," confirming it is an aggregate-level feature and not a volume type, making option B incorrect.

The customer has two primary requirements: creating application-consistent backups for an Oracle database and offloading these backups to the cloud.

NetApp SnapCenter is the solution for the first requirement. It integrates directly with Oracle databases using a dedicated plug-in to quiesce the application, ensuring that snapshots are transactionally consistent and viable for recovery.

NetApp FabricPool addresses the second requirement. It automatically tiers inactive (cold) data blocks from a high-performance AFF aggregate to a lower-cost cloud object store. Data blocks belonging exclusively to older snapshot copies are considered cold and are tiered, effectively offloading the backup data to the cloud while maintaining seamless access.

B. Flash Pool: This technology creates a hybrid aggregate using SSDs and HDDs on-premises for performance caching; it does not involve cloud tiering.

D. FlexClone: This feature creates space-efficient, writable copies of volumes for development or testing, not for creating primary backups or offloading them to the cloud.

1. NetApp Technical Report 4614: SnapCenter Best Practices.

Section 3.1, "SnapCenter Plug-in for Oracle Database," states, "The SnapCenter Plug-in for Oracle Database is a host-side software suite that enables application-consistent data protection for Oracle databases on NetApp storage." This confirms SnapCenter's role in application-consistent backups.

2. NetApp Technical Report 4598: FabricPool Best Practices with ONTAP.

Section 5.1, "Backup and Archive," explains, "FabricPool is an excellent technology for reducing the cost of storing long-term backups on-premises... When snapshots are created for backup purposes, the data blocks associated with those snapshots can be tiered to the cloud tier." This validates FabricPool for offloading backups.

3. NetApp ONTAP 9.11.1 Documentation, "Data protection using FabricPool."

The documentation states, "You can use FabricPool to tier Snapshot copies to the cloud tier... When you create a Snapshot copy of a volume in a FabricPool aggregate, the Snapshot copy is stored on the performance tier. The data in the Snapshot copy is tiered to the cloud tier when it becomes cold." This directly supports using FabricPool to offload snapshot-based backups.
