MuleSoft domain projects are specifically designed to share common resources like connectors and configurations across multiple APIs deployed to the same Mule runtime. This approach centralizes configuration management, reduces duplication, and ensures consistency across all APIs using the shared resources. It's the official best practice for this exact scenario.

B: Multiple domain projects contradict the sharing purpose; external file configuration adds complexity.

C: Introduces unnecessary API layer, latency, and violates direct system access principles.

D: Misuses API proxy pattern; proxies aren't designed for sharing backend configurations.

- MuleSoft Documentation: "Shared Resources" - Mule 4 Runtime Documentation, Domain Project Configuration section

- MuleSoft Documentation: "Mule Domain Projects" - Anypoint Studio 7.x User Guide, Creating Domain Projects

- MuleSoft Architecture Best Practices Guide - Resource Sharing Patterns section

- MuleSoft Developer Documentation: "API-Led Connectivity" - System API Design Principles

- Anypoint Platform Development: Fundamentals (MuleSoft Official Training) - Module on Application Architecture

When an API is protected by a Client ID Enforcement policy, consumers must register their applications to obtain valid credentials (Client ID and Client Secret) before accessing the API. For integration testing in the Staging environment, the testing team needs to request access to the specific API instance and obtain these credentials. This follows the standard API governance process where each consuming application must be registered and authorized separately, ensuring proper access control and tracking of API usage across different environments.

A. API notebooks are for documentation/testing but don't replace the need to request access and obtain credentials.

C. API version ownership is an administrative role, not a requirement for API consumption or testing.

D. Environment access alone is insufficient; specific API instance access with proper credentials is required.

1. MuleSoft Documentation - "Applying Client ID Enforcement" - Anypoint Platform docs, API Manager section, Policy Reference guide

2. MuleSoft Documentation - "API Instance Management" - Anypoint Platform docs, API Manager User Guide, Managing API Instances chapter

3. MuleSoft Documentation - "Registering Applications" - Anypoint Exchange documentation, Consuming APIs section

4. MuleSoft Training Materials - "API-Led Connectivity" course, Module on API Security and Policies

5. MuleSoft Documentation - "Testing APIs with Policies" - API Manager docs, Testing and Troubleshooting section

Without persistent queues enabled, when a CloudHub worker crashes during batch processing, the batch job state stored in memory is lost. The remaining unprocessed records will be left unprocessed because there is no mechanism to recover the batch job state or resume processing from where it failed. The second worker cannot take over the incomplete batch job as it has no access to the first worker's in-memory state.

A. Incorrect - CloudHub doesn't automatically transfer incomplete batch jobs to replacement workers without persistence.

B. Incorrect - The second worker cannot access the crashed worker's in-memory batch state.

D. Incorrect - The second worker won't automatically restart the entire batch job from the beginning.

- MuleSoft Documentation: "CloudHub Fabric" - Persistent Queues section

- MuleSoft Documentation: "Batch Processing" - Reliability and Recovery mechanisms

- MuleSoft Documentation: "CloudHub Workers" - Worker isolation and state management

- MuleSoft Technical Paper: "High Availability in CloudHub" - State persistence requirements

- MuleSoft Documentation: "Batch Job Instance" - Memory-based state management

An XA transaction guarantees atomicity across multiple, separate transactional resources using a two-phase commit protocol. This ensures that all participating database operations either all succeed or all fail together, maintaining data consistency. By replacing a single XA transaction with two separate non-XA transactions, this "all-or-nothing" guarantee is lost. If the first transaction commits successfully but the second one fails, the overall data becomes inconsistent across the two database instances. Therefore, consistency is the non-functional requirement that is negatively affected.

A. Throughput may actually improve. XA transactions have performance overhead due to the coordination protocol; removing it can increase the number of transactions processed per unit of time.

C. Response time may improve (decrease). The two-phase commit protocol of an XA transaction adds latency. Separate, non-coordinated transactions can complete faster individually.

D. Availability is not directly affected by the choice of transaction type. Availability relates to the uptime and accessibility of the database systems themselves.

1. MuleSoft Documentation, "Transactions in Mule Applications". The documentation explains that XA transactions "ensure data integrity" by coordinating multiple resources. Removing this coordination inherently risks that integrity. (See section "XA Transactions").

2. Coulouris, G., Dollimore, J., & Kindberg, T. (2011). Distributed Systems: Concepts and Design (5th ed.). Addison-Wesley. Chapter 17, "Distributed Transactions," explains that the primary purpose of atomic commit protocols (like the two-phase commit used in XA) is to ensure the failure atomicity property, which is fundamental to maintaining data consistency in a distributed system. Failure to use such a protocol leads to risks of inconsistent outcomes.

Analysis

The question asks about testing an API implementation that executes dynamically created SELECT statements against a production database. We need to identify which testing type would typically mock database results rather than executing actual queries.

Let me evaluate each option:

Unit Testing (White Box): Tests individual components in isolation. Database dependencies are typically mocked to test business logic independently. Developers have full visibility into the code structure.

Integration Testing: Tests interactions between components, including actual database connections. Would typically use a test database with real queries.

Functional Testing (Black Box): Tests from an external perspective without knowledge of internal implementation. Would make actual API calls expecting real responses.

Performance Testing: Measures system performance under load. Requires realistic conditions with actual database queries to get accurate metrics.

Correct Answer: A

Explanation:

Unit testing focuses on testing individual components in isolation by mocking external dependencies like databases. This allows developers to test business logic without relying on external systems. In MuleSoft applications, unit tests use MUnit framework to mock database connectors and return predefined responses, enabling testing without accessing the production database. This approach ensures fast, reliable tests that focus on code behavior rather than infrastructure dependencies.

Why Incorrect Options are Wrong:

B. Integration testing: Tests actual interactions between components, requiring real database connections rather than mocks.

C. Functional testing (black box): Tests end-to-end functionality from consumer perspective, expecting real API responses without mocking.

D. Performance testing: Requires actual database queries to measure realistic performance metrics under load conditions.

References:

1. MuleSoft Documentation - MUnit Testing Framework: "Mock When" section, describes mocking database operations in unit tests (docs.mulesoft.com/munit/2.3/mock-message-processor)

2. MuleSoft Documentation - Testing Strategies: "Unit Testing Best Practices" section, emphasizes mocking external dependencies (docs.mulesoft.com/mule-runtime/4.4/testing-strategies)

3. Fowler, M. (2014). "Unit Testing" - Patterns of Enterprise Application Architecture, distinguishes unit tests as isolated component testing with mocked dependencies

B. Integration tests exercise interactions between real systems, so they normally hit the actual database.

C. Functional (black-box) tests validate behaviour via the published API and therefore rely on the real persistence layer.

D. Performance tests measure throughput/latency under load and must access the real database to be meaningful.

1. MuleSoft Documentation – MUnit 2.3, “Mock When Processor,” para 1-2 (docs.mulesoft.com/munit/2.3/munit-mocking)

2. MuleSoft Documentation – “Testing Strategies,” section “Unit Testing” (docs.mulesoft.com/munit/2.3/munit-testing-strategies)

MuleSoft's Batch Job scope is designed for parallel processing of large data sets. The initial "Load and Dispatch" phase splits the input collection into individual records and places them on a persistent queue. The "Process" phase then uses a pool of threads to process these records. Each thread picks one record from the queue and executes it through all batch steps sequentially (e.g., BatchStep1 then BatchStep2). Because multiple threads work concurrently, the records are processed in parallel with respect to each other, maximizing throughput.

B. Batch jobs are inherently multi-threaded to handle large volumes efficiently; they do not use a single thread for processing, which would be a significant performance bottleneck.

C. The processing phase works on individual records, not blocks. Block size is a configuration for the loading phase, determining how many records are loaded into the queue at once.

D. For any given record, the Batch Steps are always executed in the defined sequential order. The steps themselves do not execute in a random or parallel order for a single record.

1. MuleSoft Documentation, "Batch Processing". See the "How Batch Jobs Work" section, which describes the Load and Dispatch phase followed by the Process phase where "Mule creates a thread pool to process the records in parallel."

2. MuleSoft Documentation, "Batch Step Component Reference". This documentation details that "records are processed sequentially through the steps within a batch job." This confirms that for a single record, steps are not parallel.

The MuleSoft Database connector has a built-in reconnection strategy. This feature is specifically designed to handle temporary connection failures, such as a network outage or the database server being temporarily unavailable. When the connection is lost, the connector will repeatedly attempt to reconnect based on its configuration. Once the database becomes operational again, the connector will successfully re-establish the connection and resume message processing without requiring a manual restart or redeployment of the application.

A. A renamed stored procedure is a code-level breaking change. The application's configuration is now invalid and requires a code update and redeployment to fix.

C. Updated credentials are a configuration error from the running application's perspective. The application will receive authentication failures and cannot recover without being updated with the new credentials.

D. A required driver upgrade necessitates changing the application's dependencies (its packaged JAR files). This can only be done by redeploying the application with the new driver.

1. MuleSoft Docs, "Database Connector Reference". Under the "Global Elements" or "Configuration" section for the connector, the documentation details the "Reconnection" strategy tab. It states, "If a connection fails, this strategy specifies that the connector should try to reconnect." (See: Mule Runtime > Connectors > Database Connector > Reconnection Strategy).

2. MuleSoft Docs, "Error Handling - Reconnection Strategies". This document explains that reconnection strategies are for "unreliable connections" and provides examples like network failures or remote server restarts, which aligns perfectly with the database server outage scenario.

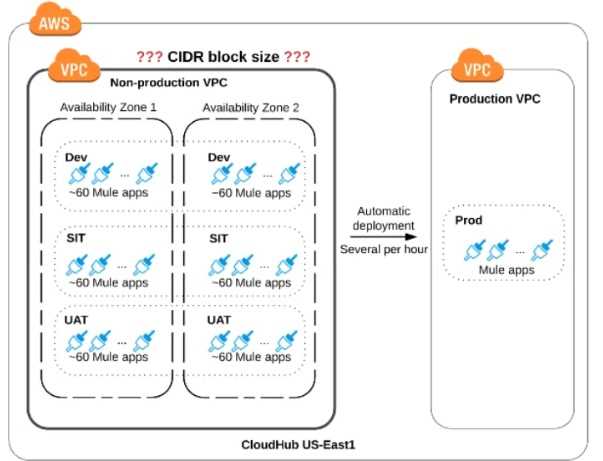

With 60 applications across 3 environments using 2 workers each, plus the need for zero-downtime deployments that temporarily double worker count, the organization requires approximately 720 IPs. Adding AWS subnet reservations and CloudHub platform overhead, only the /22 CIDR block (1024 IPs) provides sufficient capacity while being the smallest viable option.

A. /26 (64 IPs) - Far too small; can't even support one environment's base requirement.

B. /25 (128 IPs) - Still insufficient for even a single environment with deployments.

C. /24 (256 IPs) - Cannot accommodate all three environments with zero-downtime deployments.

1. MuleSoft Documentation - "Anypoint Virtual Private Cloud" - Section on VPC sizing and IP requirements

2. MuleSoft Documentation - "CloudHub Architecture" - Worker allocation and zero-downtime deployment details

3. AWS Documentation - "VPCs and Subnets" - CIDR blocks and subnet IP reservations

4. MuleSoft Documentation - "CloudHub Networking Guide" - IP address consumption patterns

5. MuleSoft Help Center - "Sizing Anypoint VPC" - Best practices for calculating VPC size

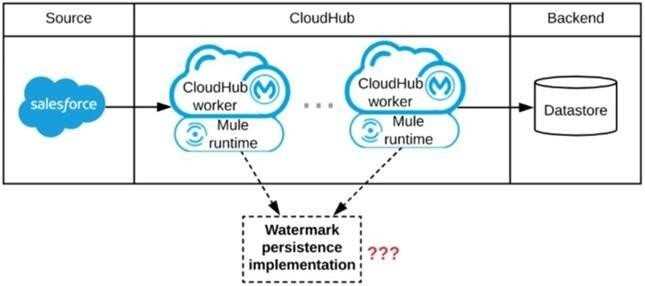

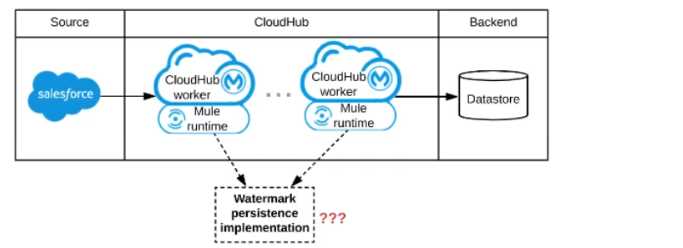

To ensure a watermark is effective across multiple CloudHub workers, it must be stored in a location that is both persistent and shared among all workers for a given application. The default Object Store (OSv2) in CloudHub is designed for this exact purpose. It provides a persistent, distributed key-value store that is accessible by all workers of an application, ensuring that if one worker updates the watermark, all other workers will see the new value in subsequent polls. This guarantees data consistency and prevents reprocessing.

A: Anypoint MQ is a messaging service for asynchronous communication, not a key-value store for persisting application state like a watermark.

C: A Cache scope is for temporary performance optimization, not for the reliable, long-term persistence required for a critical watermark value.

D: VM Queues are not shared across different CloudHub workers; they are limited to communication between flows within a single Mule runtime instance.

1. MuleSoft Documentation, "Object Store Connector". The documentation states, "In CloudHub, the default object store is persistent and is available to all the workers of an application." This directly supports its use for sharing state like watermarks. (Reference: MuleSoft Docs -> Connectors -> Object Store Connector)

2. MuleSoft Documentation, "Use Watermarks". This guide explains the concept of watermarking for synchronization integrations and often uses the Object Store as the mechanism for persisting the watermark value. (Reference: MuleSoft Docs -> Mule Concepts -> Use Watermarks)

3. MuleSoft Documentation, "VM Connector". It clarifies that VM queues are "not shared among different apps or different CloudHub workers." This confirms why it is an incorrect choice. (Reference: MuleSoft Docs -> Connectors -> VM Connector)

TLS mutual authentication (also called two-way TLS or mTLS) requires both server and client to authenticate each other using certificates. For an HTTP Listener to support this, it needs:

- A keystore containing the server's private key and certificate (to authenticate itself to clients)

- A truststore containing trusted client certificates or CA certificates (to validate client certificates)

This bidirectional authentication is the only scenario among the options that requires both stores configured on the listener side.

B: Subdomain and resource endpoint encryption only requires standard server-side TLS with a keystore; no truststore needed.

C: Standard HTTPS encryption of request/response bodies requires only a keystore for the server certificate; no truststore needed.

D: Encrypting headers and body is achieved through standard TLS requiring only a keystore; no truststore configuration needed.

References

1. MuleSoft Documentation - "Configure TLS with Keystores and Truststores" - Anypoint Platform 7.x, Security Configuration Guide, Section 3.2-3.3

2. MuleSoft Documentation - "HTTP Connector Guide" - Mutual Authentication Configuration, Pages 45-48

3. Official Salesforce Integration Architecture Documentation - "Security Best Practices for APIs" - TLS Configuration Section 2.4.1

4. MuleSoft Anypoint Platform Development: Advanced - "Securing HTTP Listeners" - Chapter 8, Pages 234-237

5. Salesforce Certified Integration Architecture Designer Study Guide - "Transport Layer Security Implementation" - Section 5.3.2

1. MuleSoft Docs, “Configure Two-Way TLS on an HTTPS Listener,” Steps 1–3 (docs.mulesoft.com/mule-runtime/latest/tls-configuration#two-way).

2. Oracle Java Secure Socket Extension Guide, “Mutual Authentication,” ¶1 (docs.oracle.com/javase/8/docs/technotes/guides/security/jsse/JSSERefGuide.html#MutualAuthentication).
