Free JN0-637 Practice Test Questions and Answers (2026)

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding the Scenario:

Multinode HA Default Mode Deployment:

In a chassis cluster, two SRX devices operate together to provide high availability.

ICL (Inter-Cluster Link) is Down:

The control and fabric links between the nodes are not operational.

Objective:

Determine how the SRX devices verify each other's activeness without the ICL.

Option A: Custom IP addresses may be configured for the activeness probe.

When the control link is down, SRX devices use an ICMP ping-based activeness probe to check the

peer's status.

Custom IP addresses can be configured as probe targets to verify the peer's activeness.

Reference:

"You can configure the SRX Series device to send activeness probes to a configured IP address to

verify the peer's state when the control link is down."

Source: Juniper Networks Documentation - Control Link Failure Detection

Option D: Each peer sends a probe with the virtual IP address as the source IP address and the

upstream router as the destination IP address.

The SRX devices send ICMP probes to an upstream device using the redundancy group's virtual IP

address as the source.

This helps determine if the peer node is still active by verifying network reachability.

Reference:

"When the control link fails, each node sends ICMP pings to the configured probe addresses using

the redundancy group's virtual IP address as the source."

Source: Juniper Networks Documentation - Chassis Cluster Control Link Failure

Why Options B and C are Incorrect:

Option B: Fabric link heartbeats cannot be used because the ICL (which includes the fabric link) is

down.

Option C: Probes are sent to upstream devices, not using the virtual IP address as the destination.

Conclusion:

The correct options are A and D because they accurately describe how SRX devices verify activeness

without the ICL.

:

:

:

:

:

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding Secure Wire:

Secure Wire Feature:

Connects two interfaces directly without any Layer 2 or Layer 3 processing.

No routing or switching lookup occurs.

Use Case:

Ideal for scenarios where traffic needs to pass through the SRX device transparently.

Option B: Secure wire

Secure wire creates a bidirectional link between two interfaces.

Traffic flows between the interfaces as if they are connected by a physical wire.

Reference:

"The secure wire feature allows traffic to pass between two interfaces without any security

processing or route lookups."

Source: Juniper TechLibrary - Secure Wire Overview

Why Other Options Are Incorrect:

Option A: Transparent mode involves Layer 2 switching.

Option C: Mixed mode combines Layer 2 and Layer 3 but doesn't prevent switching/routing lookups.

Option D: Switching mode operates at Layer 2 and includes switching lookups.

Conclusion:

Secure wire is the correct feature to map two interfaces together without switching or routing

lookups.

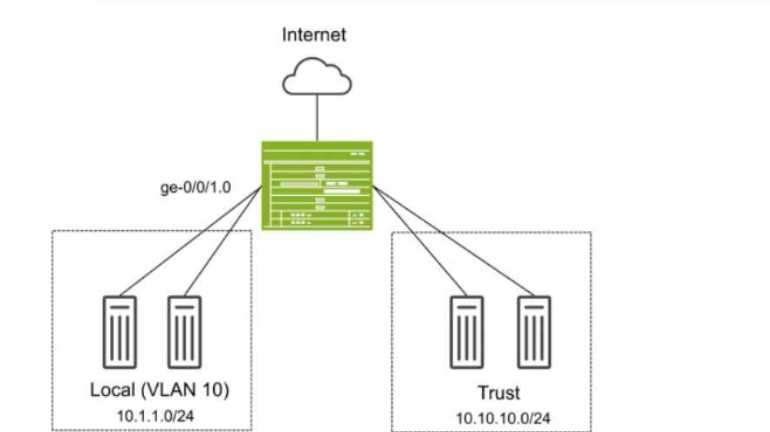

In this scenario, we need to configure the SRX Series device so that devices in the Local zone (VLAN

10, 10.1.1.0/24 network) can communicate with each other but not with other networks or the SRX

itself. Additionally, you must be able to apply security policies to traffic flows between the devices in

the Local zone.

Explanation of Answer A (Assigning Interface to Security Zone):

You need to assign the interface ge-0/0/1.0 to the Local security zone. This is crucial because the SRX

only applies security policies to interfaces assigned to security zones. Without this, traffic between

devices in the Local zone won't be processed by security policies.

Configuration:

set security zones security-zone Local interfaces ge-0/0/1.0

Explanation of Answer B (Configuring Ethernet-Switching for VLAN 10):

Since we are using Layer 2 switching between devices in VLAN 10, we need to configure the interface

to operate in Ethernet switching mode and assign it to VLAN 10.

Configuration:

set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan-members 10

Explanation of Answer D (Transparent Bridging Mode for Layer 2):

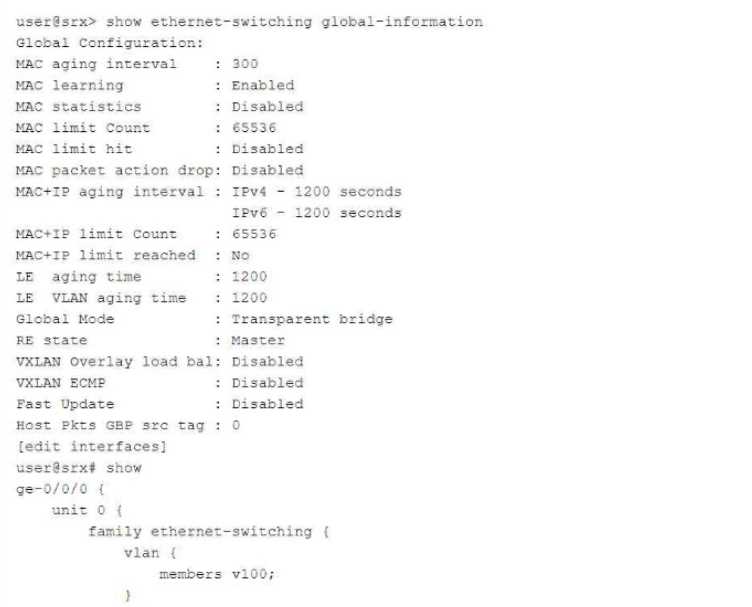

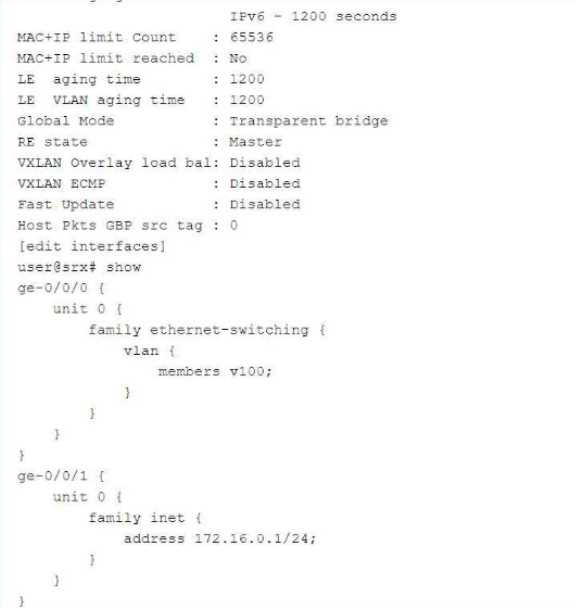

The global mode for Layer 2 switching on the SRX device must be set to transparent-bridge. This

ensures that the SRX operates in Layer 2 mode and can switch traffic between devices without

routing.

Configuration:

set protocols l2-learning global-mode transparent-bridge

Summary:

Interface Assignment: Interface ge-0/0/1.0 is assigned to the Local zone to allow policy enforcement.

Ethernet-Switching: The interface is configured for Layer 2 Ethernet switching in VLAN 10.

Transparent Bridging: The SRX is configured in Layer 2 transparent-bridge mode for switching

between devices.

Juniper Security Reference:

Layer 2 Bridging and Switching Overview: This mode allows the SRX to act as a Layer 2 switch for

forwarding traffic between VLAN members without routing. Reference: Juniper Transparent Bridging

Documentation.

:

:

:

:

:

:

:

:

Referring to the exhibit for a multinode HA environment, we can conclude the following about the

HA setup:

Two Services Redundancy Groups (Correct: Option A):

The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy

groups in the HA configuration.

Node 1 Hosting SRG 1 (Correct: Option C):

The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1

will continue to host SRG 1 unless it becomes unavailable.

Session State Synchronization (Correct: Option D):

In this HA setup, session state synchronization is enabled between the two nodes. This ensures that

sessions remain active and seamless failover can occur if one node fails.

Juniper Reference:

Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and

session synchronization.

:

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding the Problem:

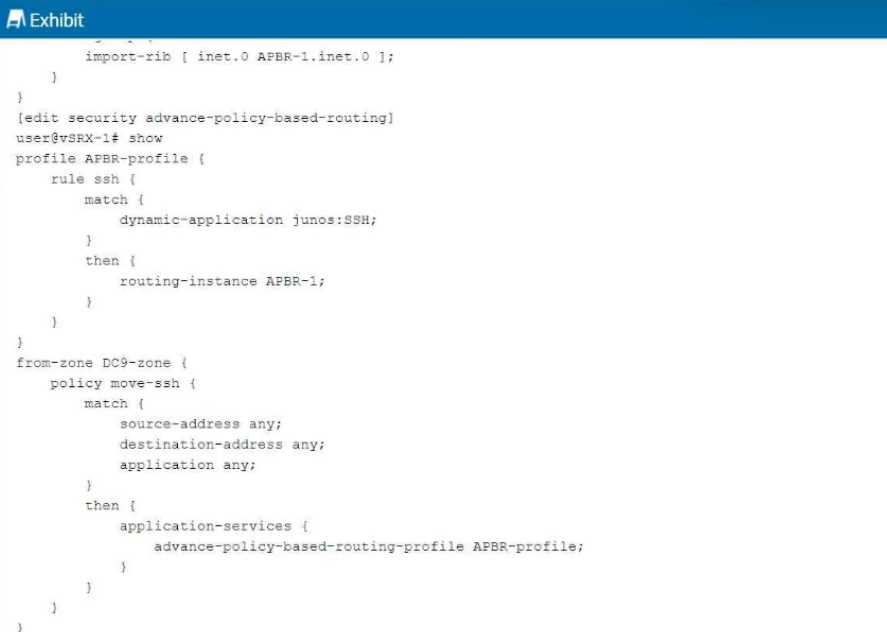

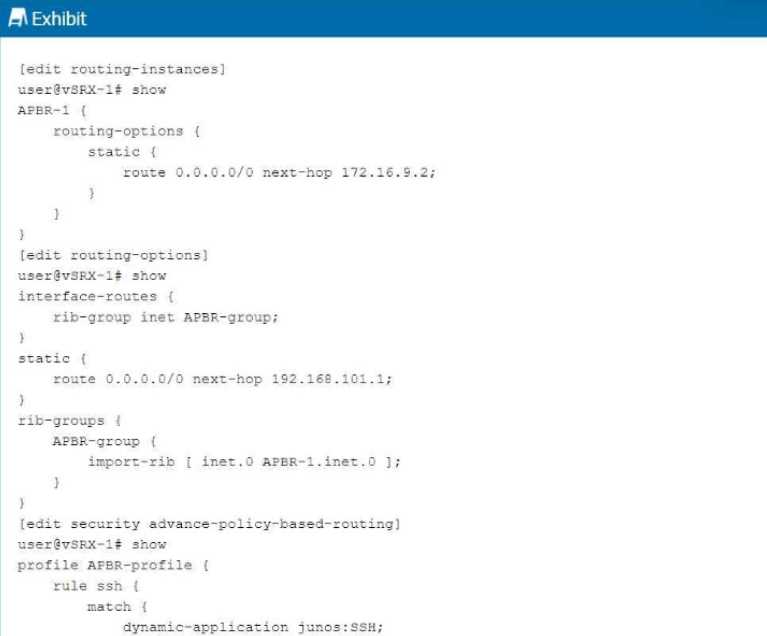

The goal is to bypass IDP for traffic destined to social media sites using Application-Based Policy

Routing (APBR).

Despite the configuration, IDP is still dropping the sessions.

Need to identify two reasons why this is happening.

Key Concepts:

Application-Based Policy Routing (APBR): Allows routing decisions based on the application identified

in the traffic.

IDP (Intrusion Detection and Prevention): Monitors network traffic for malicious activity and can drop

suspicious packets.

Bypassing IDP: To bypass IDP for certain traffic, specific configurations are required within the APBR

rule.

Option A: IDP disable is not configured on the APBR rule.

To bypass IDP for specific traffic using APBR, you must explicitly configure the idp-disable option

within the APBR rule.

Without this configuration, even if APBR redirects the traffic, IDP will still inspect and potentially

drop the traffic.

Reference:

Juniper Networks Documentation:

"To bypass IDP processing for traffic matching an APBR rule, include the idp-disable statement in the

rule configuration."

Source: Juniper TechLibrary - Configuring APBR to Bypass IDP

Option D: The session did not properly reclassify midstream to the correct APBR rule.

Midstream Reclassification: APBR relies on application identification, which may occur after several

packets have been exchanged (not just the first packet).

When the application is identified mid-session, the session should be reclassified according to the

correct APBR rule.

If midstream reclassification does not occur properly, the session continues under the initial policy,

and IDP continues to inspect and potentially drop the traffic.

Possible Causes:

Session Setup Issues: If the session was established before the application was identified, and

reclassification is not enabled or not functioning, the session won't switch to the APBR rule that

bypasses IDP.

Configuration Errors: Incorrect or missing configuration for midstream reclassification.

Reference:

Juniper Networks Documentation:

"For APBR to reclassify sessions after the application is identified, ensure that midstream

reclassification is enabled."

Source: Juniper TechLibrary - Understanding APBR and Midstream Reclassification

Why Options B and C are Incorrect:

Option B: The application services bypass is not configured on the APBR rule.

There is no specific application-services bypass option within APBR rules for bypassing IDP.

To bypass IDP, the idp-disable option must be used.

Application services bypass generally refers to bypassing other services like UTM, not specifically IDP

within APBR.

Reference:

Juniper Networks Documentation:

"APBR rules can include the idp-disable statement to bypass IDP. There is no application-services

bypass statement for APBR."

Option C: The APBR rule does a match on the first packet.

By default, APBR can match on the first packet, but for applications that require deeper inspection,

you can configure the rule to not match on the first packet.

Matching on the first packet is generally beneficial for routing decisions.

In this scenario, matching on the first packet is not the reason why IDP is dropping the session.

Reference:

Juniper Networks Documentation:

"If you configure APBR to match on the first packet, the routing decision is made immediately. If the

application is not identified on the first packet, the default routing is used until the application is

identified."

Conclusion:

Correct Answers:

A. IDP disable is not configured on the APBR rule.

Without idp-disable, IDP will continue to inspect and possibly drop the traffic matching the APBR

rule.

D. The session did not properly reclassify midstream to the correct APBR rule.

If midstream reclassification fails, the session remains under the initial policy, and IDP processing

continues.

Resolution Steps:

Configure idp-disable: Ensure that the APBR rule includes the idp-disable statement to bypass IDP for

the specified traffic.

arduino

Copy code

set security application-path-routing rule then idp-disable

Enable Midstream Reclassification: Verify that midstream reclassification is enabled and functioning

correctly to reclassify sessions once the application is identified.

Note: Midstream reclassification is enabled by default, but verify that no configuration is preventing

it.

Additional Reference:

Juniper TechLibrary:

"Application-Based Policy Routing Overview" - Provides an overview of APBR features and

configurations.

Source: Juniper TechLibrary - APBR Overview

"Configuring IDP Policy Bypass" - Discusses how to bypass IDP for specific traffic.

Source: Juniper TechLibrary - Configuring IDP Bypass

Juniper Networks Day One Book:

"Advanced Security Policies" - Offers insights into configuring advanced security policies, including

APBR and IDP interactions.

Persistent NAT with target host allows external hosts to establish connections only when the internal

device initiates a session first, ideal for specific interactive applications. Refer to Juniper Persistent

NAT Documentation.

The scenario requires that external hosts be able to initiate a connection only if the internal device

has already initiated a connection. The correct solution is Persistent NAT with target host, which

ensures that a specific external host can initiate new connections back to the internal device, but

only after the internal device has established a session first.

Persistent NAT with Target Host (Answer C): This allows the internal device to initiate a connection,

and once established, the specified external host can also initiate new connections to the internal

device on the same NAT mapping.

Example Configuration:

bash

set security nat source persistent-nat permit target-host-port

This solution is appropriate when controlled bidirectional communication is required based on an

internal-initiated connection.

Reference: Juniper persistent NAT documentation.
