Q: 1

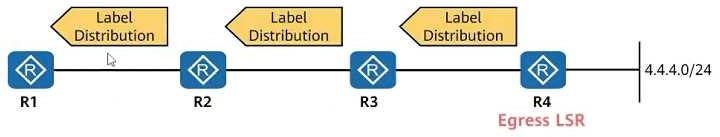

As shown in the figure, R1, R2, R3, and R4 are in the same PLs domain, and LDP is used to distribute IPLS labels between devices. R4 is the Egress LSR of the FEC 4.4.4.0/24. If you want to achieve R1 access 4.4.4.0/24, R4 does not need to query the label table but can know the forwarding priority of the data, then the outgoing label of R3 for the FEC should be: . (Please fill in the Arabic numerals directly, without symbols) H12 831 V1 question
Your Answer
Q: 2

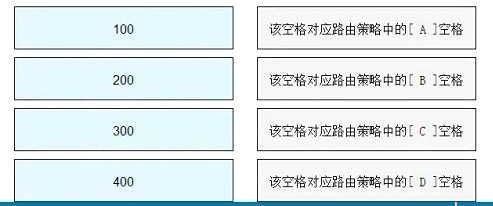

The configuration shown is performed on R2 to filter all incoming routes. Suppose there is a BGP route with the AS_Path attribute of [100200300400] on R1 that needs to be sent to R2. Please help the network administrator to adjust the AS order in the AS_Path attribute of the route on R1 to ensure that the route entry will not be filtered by the routing policy of R2 , , , . H12 831 V1 question H12 831 V1 question 100 This space corresponds to the [A] space in the routing policy 200 This space corresponds to the [B] space in the routing policy 300 This space corresponds to the [C] space in the routing policy 400 This space corresponds to the [D] space in the routing policy
Your Answer
Q: 3
Deploying port isolation technology in Ethernet can realize Layer 2 intercommunication and Layer 3 isolation, making networking more flexible. A,correct B,mistake
Your Answer
Q: 4
All routers in a network run IS-IS, and all are in Area 49.0001, where the L SDB of R1 is shown in the figure According to this, it is judged that the DIS of Level-2 is. (Please fill in the device name, such as R1) H12 831 V1 question | displayisisisdb DatabaseinformationforISIS (1) Level-1Link State Database LSPIDO Seq Num ChecksumbHoldtime Length ATT/P/OL 0001.0000.4004.00-00 0x00000008 0xb701 1186 68 0/0/0 0001.0000.2002.00-00Ox 0000008 0xb701 1186680/0/0 0001.0100.1001.00-00*0x00000050x2f9d1187 680/0/0 0001.0100.1001.01-00*0x00000001 0xa79e1110550/0/0 Level-2 Link State Database LSPIDAN> Seq Num Checksum., Holdtime Length ATT/P/OL 0001.00002002.00-00 0000000080xb7011188 6S0/0/0 0001.0100.1001.00-00* 0x00000060x2d9e 1187 680/0/0 0001.0100.1001.01-00* 0x00000005OxdObO 1191 660/0/0 0100.0000.3003.00-00 000000005 0xfe53 1185 560/0/0 0
Your Answer
Q: 5
In OSPFv3, an LSA whose propagation range is one area has kind. (Fill in Arabic numerals only)
Your Answer
Q: 6
by executing The command can completely isolate the second and third layer users of different ports on the same LAN and cannot communicate. (Please use English and lowercase letters to complete the command, and the command cannot be abbreviated)
Your Answer
Q: 7
As shown in the figure, OSPF is enabled on all interfaces of the router, and the ip address identified in the figure is the device's IP address. Loopback0 presses the IP address of the port, RI, R2, R3EJLoopbacD is advertised in the area 1, R4 LoopbacfkD advertises in area D and which of the following functional addresses can be pinged between the LoopbackD announcements of R5 and R5 in area 2? Areal 10.0.1.1/32 A,10.0.3.3 10.0.5.5 B,10.0.4.4and10.0.2.2 C,10.0.2.2and10.0.3.3 D,10.0.2.2 10.0.5.5
Your Answer
Q: 8

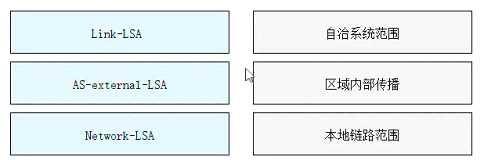

Please match 0SPFv3LSA with its transmission range. H12 831 V1 question
Your Answer
Q: 9

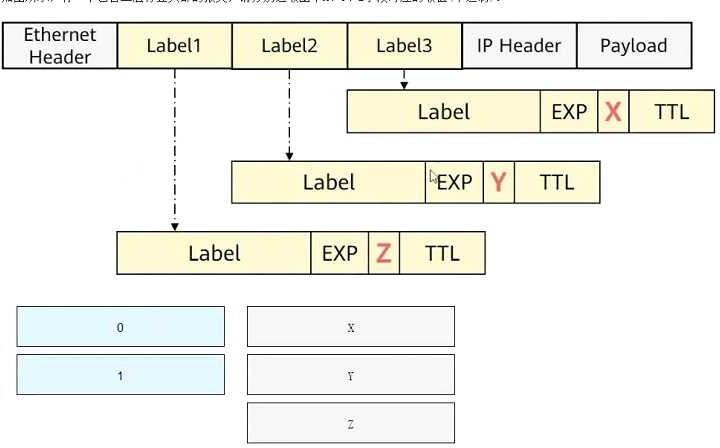

As shown in the figure, there is a packet containing a three-layer label header. Please select the values (decimal) corresponding to the x, and Z fields in the figure. H12 831 V1 question

Your Answer
Q: 10
During the daily troubleshooting process, engineers may need to view some alarm information of the device. Run the terminal command to enable the terminal to display the debugging/log/alarm information sent by the information center.
Your Answer
Q: 11
IGP converges faster than BGP, which may cause network traffic loss. By enabling the OSPF and BGP linkage feature of the device, the device can keep the OSPF and BGP linkage during the set linkage time. The router makes the link metric value in the LSA advertised to be the maximum value, so as to inform other OSPF devices not to use this router to forward data, so as to avoid traffic loss. (Note: If English letters are involved, all uppercase)
Your Answer
Q: 12

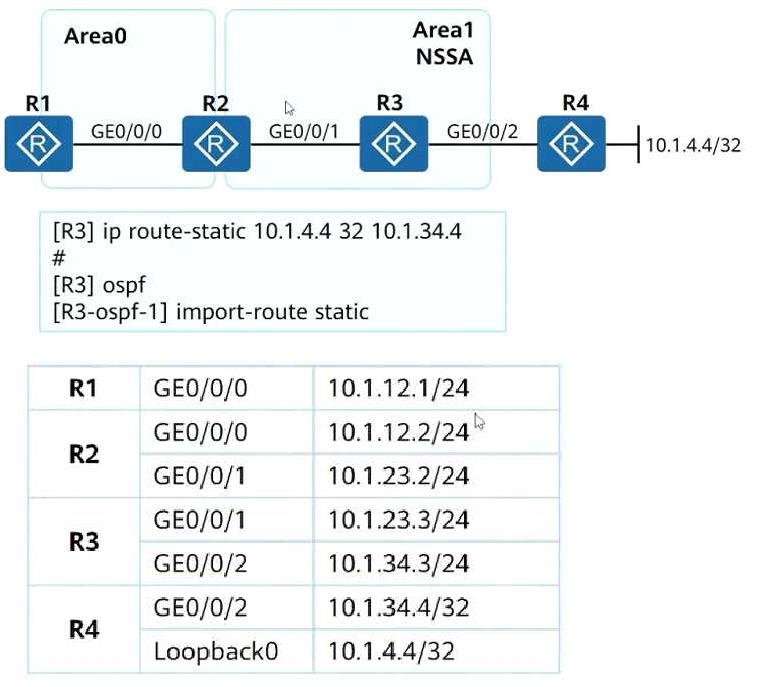

OSPF is deployed in a campus to achieve network interworking, and OSPF is also enabled on the GEO/0/2 interface of R3. Area1 is deployed as an NSSA area, and the device addresses are shown in the figure. An engineer configures a static route on R3 to access the loopback interface address of R4, and imports the static route in the 0SPF process. At this point, in the Type5 LSA received by R1, the forwarding address (FA) is . (Note: Please fill in the IP address without mask) H12 831 V1 question
Your Answer
Q: 13
Which of the following is included in the routine collection of basic equipment information?
Options
Q: 14
Which of the following statements about MPLS header TTL is correct?
Options
Q: 15
Regarding multi-instance CE (Mlulti-VPN-Instance CE, MCE), which of the following descriptions is wrong?
Options
Q: 16
BGP authentication can prevent illegal routers from establishing neighbors with BGP routers. BGP authentication can be divided into ID5 authentication and Keychain authentication. Which of the followingBGP packets will carryBGPKeychain authentication information?
Options
Q: 17
An engineer uses two routers to test IPv6 services, and simulates the interconnection between the headquarters and branches by running BGP4+. The logical topology of the network is shown in the figure. Regarding the transmission of IPv6 routes between the two devices, which of the following Is a statement wrong? H12 831 V1 question
Options
Q: 18

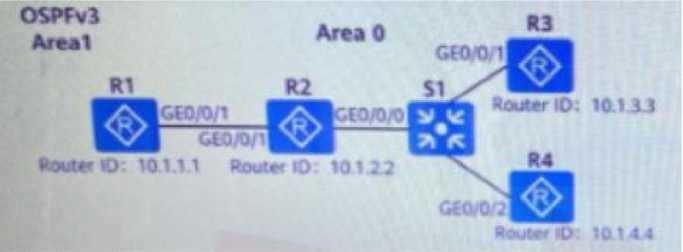

A campus has deployed IPv6 for service testing. There are 4 routers in the network, running 0SPFV3. Interconnection of IPv6 networks. As shown in the figure, an engineer checked the LSDB of R2 and intercepted one of them Link-LSAs. Which of the following statements is true about the description of this LSA? H12 831 V1 question
Options
Q: 19
In intra-domain MPLS VPN networks, data packets will be encapsulated with two layers of MPLS when they enter the public network and are forwarded. label, the description of the two-layer label in the following options is wrong
Options
Q: 20
The RR rules for advertising routes violate the IBGP split horizon rules, which may cause loops in the AS. Which routing attributes does RR use to prevent loops?
Options
