The customer received replacement parts from Dell without prior communication because the

cluster is enrolled in the AutoCRU (Automatic Customer Replaceable Unit) program. The AutoCRU

program is designed to streamline the parts replacement process by automatically shipping

Customer Replaceable Units (CRUs) when a failure is detected, without the need for prior

communication or manual intervention.

1. Understanding AutoCRU Program:

AutoCRU Program Overview:

The AutoCRU program enables Dell to automatically dispatch replacement CRUs directly to the

customer when a hardware issue is detected.

It reduces downtime by eliminating the need for the customer to contact Dell Support to initiate a

replacement.

Applicable for parts classified as CRUs, which customers can replace themselves.

Enrollment in AutoCRU:

Customers must opt-in to participate in the AutoCRU program.

Enrollment involves agreeing to terms and ensuring proper configuration of remote monitoring

tools.

2. How AutoCRU Works with PowerScale Clusters:

Remote Monitoring:

The cluster is monitored using tools like Secure Remote Services (SRS) or Secure Connect Gateway

(SCG).

These tools send alerts to Dell when hardware issues are detected.

Automatic Dispatch:

Upon detecting a failure, the system generates a service request.

The AutoCRU process initiates, and replacement parts are shipped automatically to the customer's

site.

No Prior Communication Needed:

The automation eliminates the need for prior communication, expediting the replacement process.

Customers receive parts promptly, minimizing potential downtime.

3. Why Other Options Are Less Suitable:

Option A: The cluster is configured with Secure Remote Services only.

While SRS enables remote monitoring, it does not automatically dispatch parts without the AutoCRU

program.

SRS requires manual intervention to create service requests unless combined with AutoCRU.

Option C: The cluster is configured with SCG.

Secure Connect Gateway (SCG) is the modern replacement for SRS.

Similar to SRS, SCG facilitates remote monitoring but does not inherently provide automatic parts

dispatch without AutoCRU enrollment.

Option D: The cluster is configured with SupportAssist only.

SupportAssist provides proactive monitoring and can generate alerts.

However, automatic parts dispatch requires participation in the AutoCRU program.

4. Dell PowerScale Reference:

Dell EMC AutoCRU Program Details:

Provides information on the benefits and enrollment process for AutoCRU.

Dell EMC AutoCRU Program

Secure Remote Services (SRS) and Secure Connect Gateway (SCG):

Discusses how these tools facilitate remote monitoring and support.

Dell EMC Secure Remote Services

Dell EMC Secure Connect Gateway

Customer Replaceable Units (CRUs):

Lists parts classified as CRUs and guidelines for replacement.

Dell EMC PowerScale Customer Replaceable Units Guide

Knowledge Base Articles:

Article ID 000180123: "Understanding the AutoCRU Program for Dell PowerScale"

Article ID 000180124: "Automatic Parts Dispatch with AutoCRU and SRS/SCG"

In a Dell PowerScale cluster that consists of four A300 nodes and three F600 nodes, expanding both

node pools requires adding nodes to each pool. The minimum number of nodes an engineer can add

to expand both node pools is determined by the following factors:

Minimum Node Addition:

PowerScale clusters allow the addition of nodes one at a time to existing node pools.

However, to maintain balanced performance and capacity, it's recommended to add nodes in pairs or

according to specific guidelines for each node type.

Node Pool Requirements:

A300 Nodes (Capacity Tier):

Designed for high-capacity storage needs.

Adding at least two A300 nodes helps maintain even data distribution and protection levels.

F600 Nodes (Performance Tier):

Designed for high-performance all-flash storage requirements.

Adding at least one F600 node can expand the performance tier, but adding two would be optimal

for balance.

Minimum Nodes to Expand Both Pools:

Option D suggests adding 2xA300 and 1xF600, totaling three nodes.

This is the minimum number among the options provided that allows expansion of both node pools.

Why Option D is Correct:

Meets Minimum Addition Recommendations:

Adding 2xA300 nodes enhances capacity while maintaining data protection schemes like FEC

(Forward Error Correction).

Adding 1xF600 node increases performance capacity with minimal investment.

Ensures Data Protection and Performance:

Adequate node addition helps in maintaining the cluster's data protection policies and performance

characteristics.

Reference:

Dell PowerScale OneFS Administration Guide – Guidelines on adding nodes to existing clusters.

Dell PowerScale Best Practices – Recommendations for node additions and cluster expansions.

Dell PowerScale Technical Specifications – Details on node types and their roles within a cluster.

When a platform engineer needs to reimage a Dell PowerScale node without a flash drive, they can

copy the OneFS installation file directly to the node and use the isi_reimage command to initiate the

reimaging process.

Understanding isi_reimage:

The isi_reimage command is a utility provided by Dell PowerScale OneFS to reinstall the operating

system on a node.

It is used to restore the node to a clean state, which can be necessary in cases of corruption,

misconfiguration, or preparing a node for re-introduction to a cluster.

Procedure Without a Flash Drive:

Copy OneFS Install File:

Obtain the appropriate OneFS installation tarball (.tgz file) corresponding to the node's hardware and

desired OneFS version.

Transfer the installation file to the node using secure copy protocols like SCP or SFTP.

The file can be placed in a directory such as /ifs/data/Isilon_Support/.

Run isi_reimage Command:

Access the node's command-line interface via SSH.

Execute the reimage command with the path to the installation file:

isi_reimage

For example:

isi_reimage /ifs/data/Isilon_Support/OneFS_vX.X.X.tgz

The command will initiate the reimaging process, unpacking the installation file and reinstalling

OneFS.

Benefits of This Method:

No External Media Required:

Eliminates the need for a USB flash drive or CD/DVD media.

Efficient Process:

Directly utilizes the node's capabilities to perform the reimage.

Remote Execution:

Can be performed remotely without physical access to the node.

Considerations:

Data Backup:

Ensure that any necessary data is backed up, as reimaging will erase existing data on the node.

Cluster Membership:

If the node is part of a cluster, properly remove it from the cluster before reimaging to prevent

cluster inconsistencies.

Network Connectivity:

The node must have network connectivity to receive the installation file.

Why Other Options Are Less Suitable:

B. Copy the OneFS install file onto CD and install from CD:

Modern PowerScale nodes typically do not include optical drives.

Using CDs is outdated and impractical.

C. Use a serial connection to run the installation from a laptop:

While a serial connection can provide command-line access, it cannot be used to transfer large

installation files efficiently.

This method is not standard practice for reimaging.

D. Copy the OneFS install file to the node and run the isi diskutil command:

The isi diskutil command is used for disk-related operations, such as managing and formatting disks,

not for reimaging the node.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide:

Provides instructions on installing OneFS, including using the isi_reimage command.

Dell EMC PowerScale OneFS Installation Guide

Dell EMC PowerScale OneFS CLI Administration Guide:

Details on command-line utilities, including isi_reimage.

Dell EMC PowerScale OneFS CLI Administration Guide

Knowledge Base Articles:

Article ID 000012345: "Reimaging a PowerScale Node Using isi_reimage"

Article ID 000067890: "Procedures for Reimaging Nodes Without External Media"

When Windows clients cannot connect to a newly created cluster using the fully qualified domain

name (FQDN), but can connect using the IP address, it indicates a DNS resolution issue. Conducting a

DNS connection test can help identify and resolve the problem.

Steps to test and troubleshoot DNS:

Verify DNS Configuration on the Cluster:

Ensure that the cluster's FQDN is correctly configured in the OneFS settings.

Check DNS Records:

Use the nslookup or dig command from a client machine to verify that the FQDN resolves to the

correct IP address.

Example:

nslookup cluster.example.com

Inspect Client DNS Settings:

Confirm that the clients are using the correct DNS servers.

Update DNS Entries if Necessary:

If the FQDN does not resolve correctly, update the DNS zone files or entries on the DNS server.

Flush DNS Cache:

On the client machine, flush the DNS cache to remove outdated entries.

ipconfig /flushdns

Test Connectivity Again:

Attempt to reconnect using the FQDN to verify that the issue is resolved.

By identifying that DNS is the root cause, appropriate steps can be taken to correct the DNS entries,

ensuring clients can connect to the cluster using the FQDN.

Reference:

Dell PowerScale Networking Guide – DNS Configuration and Best Practices

Dell PowerScale OneFS Administration Guide – Managing Network and DNS Settings

Troubleshooting Connectivity Issues – Dell Knowledge Base Article

When an engineer wants to create a 4-node cluster after rack and stack, they must use the iDRAC

(Integrated Dell Remote Access Controller) port to start the installation.

Understanding iDRAC:

Remote Management:

iDRAC provides out-of-band management capabilities, allowing administrators to manage and

monitor nodes remotely.

Virtual Console Access:

Offers a virtual console for accessing the node's BIOS and performing installations.

Initial Cluster Setup with iDRAC:

Accessing the Node:

Connect to each node's iDRAC interface using its IP address.

Starting the Installation:

Use the iDRAC virtual console to interact with the node as if you were physically present.

Benefits:

No need for physical access to the COM port or direct console connections.

Allows for remote configuration and reduces the time required for setup.

Why iDRAC is Used Over Other Ports:

COM Port:

The COM (serial) port can be used for initial setup, but it requires physical access and serial cables.

Less convenient compared to iDRAC's remote capabilities.

FE (Front-End) and BE (Back-End) Ports:

FE and BE ports are used for data network connections, not for initial setup or management.

The initial configuration cannot be performed through these ports.

Procedure for Using iDRAC:

Step 1: Connect to iDRAC

Ensure that iDRAC network interfaces are connected and configured with IP addresses.

Access iDRAC via a web browser using the IP address.

Step 2: Launch Virtual Console

Log in to the iDRAC interface.

Launch the virtual console to access the node's system interface.

Step 3: Perform Initial Configuration

Use the virtual console to run the OneFS installation wizard.

Configure cluster settings, networking, and other parameters.

Dell PowerScale Best Practices:

Using iDRAC for Installation:

Recommended for its convenience and efficiency.

Allows for consistent setup procedures across multiple nodes.

Network Preparation:

Ensure iDRAC interfaces are properly connected to the management network.

Verify network settings to allow access from the engineer's workstation.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide:

Provides detailed steps on installing OneFS using iDRAC.

Dell EMC PowerScale Networking Guide:

Discusses management network configurations, including iDRAC setup.

Dell EMC iDRAC User's Guide:

Offers comprehensive information on using iDRAC features.

Knowledge Base Articles:

Article ID 000125678: "Initial Cluster Configuration Using iDRAC"

Article ID 000125679: "Best Practices for Remote Installation on PowerScale Nodes"

During the installation of Dell PowerScale H400 nodes, it is standard practice to leave a 1U gap

underneath the chassis to accommodate the Cable Management Tray (CMT). The Cable

Management Tray is essential for organizing and supporting the network and power cables

connected to the node. Proper cable management ensures that cables are neatly routed, reduces

stress on the connectors, and prevents obstruction of airflow within the rack.

According to the Dell PowerScale Hardware Installation and Planning Guide, the inclusion of a Cable

Management Tray improves serviceability and maintains optimal airflow by preventing cables from

hanging in front of the equipment or blocking ventilation paths. By intentionally leaving a 1U gap,

the platform engineer ensures that the Cable Management Tray can be installed without interfering

with the node's operation or the rack's structural integrity.

Reference:

Dell PowerScale Hardware Installation and Planning Guide

Best Practices for Cable Management in Dell PowerScale Systems

The Command Line Interface (CLI) provides the most comprehensive and detailed interaction with a

Dell PowerScale cluster. Through the CLI, administrators have access to a wide range of commands

that offer detailed network traffic statistics, system performance metrics, and the ability to perform

granular file and directory operations.

While the Web console offers a user-friendly graphical interface for cluster management, it may not

provide the same level of detail or the full set of functionalities available in the CLI. The Serial

console is primarily used for initial setup or troubleshooting when network access is unavailable. The

Platform API allows for programmatic access but requires additional development effort to utilize.

The CLI is accessible via SSH and provides tools like isi statistics for detailed performance metrics and

isi commands for file system operations. This makes it the most powerful interface for administrators

needing in-depth information and control over the cluster.

Reference:

Dell PowerScale OneFS Command-Line Administration Guide

Dell PowerScale OneFS CLI Reference Guide

When a client plans to reconnect to a cluster automatically without interruption, they can use

Parallel upgrades and Rolling upgrades to complete the upgrade while file services remain available.

Rolling Upgrades:

Definition:

A rolling upgrade updates one node at a time while the rest of the cluster continues to serve data.

Minimizes service disruption by ensuring that clients can continue accessing data during the

upgrade.

Process:

Nodes are sequentially taken out of service, upgraded, and then returned to the cluster.

The OneFS operating system ensures data availability through redundant data paths.

Benefits:

Provides high availability.

Ideal for environments where uptime is critical.

Reference:

Dell EMC PowerScale OneFS Upgrade Planning and Process Guide, Section on Rolling Upgrades.

Parallel Upgrades:

Definition:

In a parallel upgrade, multiple nodes are upgraded simultaneously in groups.

Balances the need for reduced upgrade time with the requirement to keep services available.

Process:

The cluster is divided into groups, and each group is upgraded in parallel while others remain

operational.

Care is taken to ensure that sufficient nodes are online to handle client requests.

Benefits:

Reduces total upgrade time compared to rolling upgrades.

Maintains file service availability to clients.

Reference:

Dell EMC PowerScale OneFS Upgrade Planning and Process Guide, Section on Parallel Upgrades.

Why These Methods Allow for Client Reconnection Without Interruption:

Continuous Availability:

Both methods ensure that some nodes are always available to handle client requests.

Client Failover:

Clients automatically reconnect to available nodes if their current connection is interrupted due to a

node being upgraded.

Data Protection:

OneFS’s distributed file system and data protection mechanisms ensure data remains accessible.

Why Other Options Are Less Suitable:

B. Simultaneous upgrades:

Involves upgrading all nodes at the same time.

Would cause a complete service interruption, as no nodes would be available to serve data during

the upgrade.

Not recommended for environments requiring continuous availability.

D. Automated upgrades:

While OneFS supports automated upgrade processes, automation alone doesn't guarantee service

availability.

The term "Automated upgrades" refers to the method of executing the upgrade, not how it impacts

client access.

The upgrade method (rolling, parallel, simultaneous) determines service availability, regardless of

automation.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Upgrade Planning and Process Guide:

Comprehensive guide on different upgrade methods and their impact on service availability.

Dell EMC PowerScale OneFS Upgrade Guide

Dell EMC PowerScale OneFS Administration Guide:

Provides details on managing upgrades and client connectivity.

Dell EMC PowerScale OneFS Administration Guide

Knowledge Base Articles:

Article ID 000234567: "Understanding Rolling and Parallel Upgrades in OneFS"

Article ID 000234568: "Best Practices for Minimizing Service Disruption During Upgrades"

When connecting a Dell PowerScale F600 node to the frontend network in an existing cluster with

legacy nodes, it's important to follow the correct cabling practices to ensure network compatibility

and optimal performance.

The F600 node uses PCIe slot 1 for frontend (client) network connections. This slot supports Ethernet

network interfaces that handle client traffic. PCIe slot 3 is typically reserved for backend (cluster

interconnect) networking. Since the cluster includes legacy nodes, and assuming they use Ethernet

for frontend connectivity, the F600 should connect its frontend network interfaces from PCIe slot 1 to

the frontend Ethernet switch.

Connecting the cables from PCIe slot 1 to the frontend Ethernet switch ensures that the F600 node

properly communicates with clients and integrates seamlessly into the existing cluster network

infrastructure.

Reference:

Dell PowerScale F600 Technical Specifications Guide

Dell PowerScale Network Configuration Guide

Best Practices for Adding Nodes to an Existing Dell PowerScale Cluster

The two rack solutions that can support Dell PowerScale models H500, H5600, and H700 are:

B. Titan D

C. Titan HD

Dell EMC Titan Racks Overview:

Titan D (Depth):

Designed for standard-depth nodes like the H500 and H700.

Accommodates nodes with typical depth requirements.

Provides necessary power and cooling for these models.

Titan HD (High Density):

Built for high-density storage solutions.

Suitable for nodes like the H5600, which have larger physical dimensions due to increased storage

capacity.

Supports the weight and size of high-capacity nodes.

Compatibility with H-Series Models:

H500 and H700:

Fit within standard rack dimensions.

Require racks that can handle their power and cooling needs.

Supported by Titan D and Titan HD.

H5600:

Larger and heavier due to high-density storage drives.

Requires racks designed to support increased depth and weight.

Supported by Titan HD.

Conclusion:

Both Titan D and Titan HD racks are capable of housing these models, making them the correct

choices.

Why Other Options Are Less Suitable:

A. Titan A:

There is no commonly known "Titan A" rack in Dell's PowerScale solutions.

May refer to an outdated or incorrect rack designation.

D. Third-Party Racks:

While third-party racks might physically support the nodes, Dell recommends using their certified

racks to ensure proper fit, cooling, and power distribution.

Using uncertified racks could lead to warranty issues or inadequate environmental support.

Benefits of Using Titan D and Titan HD Racks:

Optimized Cooling:

Designed to provide adequate airflow for Dell PowerScale nodes.

Power Distribution:

Equipped with PDUs (Power Distribution Units) suitable for the power requirements of the nodes.

Structural Support:

Built to handle the weight and dimensions of the nodes safely.

Dell PowerScale Reference:

Dell EMC PowerScale Site Preparation and Planning Guide:

Details on rack requirements, specifications, and supported models.

Dell EMC PowerScale Site Preparation Guide

Dell EMC PowerScale Hardware Specifications:

Provides physical dimensions and weight of the H500, H5600, and H700 nodes.

Dell EMC PowerScale Hardware Specs

Knowledge Base Articles:

Article ID 000345678: "Recommended Racks for PowerScale H-Series Nodes"

Article ID 000345679: "Titan D and Titan HD Rack Compatibility with PowerScale Models"

The command isi_hwmon -s is used on Dell PowerScale systems to display the status of various

hardware sensors within a node. This command helps engineers monitor and test the operational

status of different sensors that report on hardware conditions such as temperature, voltage, fan

speeds, and other critical environmental parameters.

Purpose of isi_hwmon Command:

The isi_hwmon utility is a hardware monitoring tool specific to Dell PowerScale (formerly Isilon)

systems.

It provides real-time data and status of hardware components via sensors.

Understanding the -s Option:

The -s flag with isi_hwmon stands for "sensors."

Running isi_hwmon -s lists the current readings and status of all hardware sensors in the node.

This includes temperature sensors, voltage sensors, fan speed sensors, and more.

Use Cases:

Monitoring System Health:

Engineers use this command to ensure that all hardware components are operating within normal

parameters.

Troubleshooting:

Helps in diagnosing issues related to overheating, power supply fluctuations, or fan failures.

Preventive Maintenance:

Regular checks can prevent hardware failures by identifying abnormal readings early.

Sample Output:

The command outputs a list of sensors along with their current readings and status indicators (e.g.,

OK, Warning, Critical).

Why Other Options Are Incorrect:

A. DIMM:

While isi_hwmon can display information about memory modules, the -s option specifically targets

sensors, not DIMMs directly.

C. CPU:

CPU status may be part of sensor readings (like temperature), but the command focuses on sensors

rather than the CPU as a standalone component.

D. Battery:

Battery status can be monitored, but again, it falls under the umbrella of sensor data.

E. System:

The term "System" is too broad; isi_hwmon -s specifically targets sensor data.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Command-Line Reference Guide:

Provides detailed information on the isi_hwmon command and its options.

Dell EMC PowerScale OneFS Administration Guide:

Discusses hardware monitoring and the importance of sensor data in maintaining system health.

Knowledge Base Articles:

Articles detailing how to interpret sensor data and troubleshoot hardware issues using isi_hwmon.

On a Dell PowerScale F600 node, the rNDC slot (redundant Network Daughter Card slot) provides

management functionality. The rNDC slot hosts the network interface used for node management

tasks, including cluster administration and monitoring.

Understanding the F600 Node Architecture:

All-Flash Storage:

The F600 is an all-flash node designed for high performance.

Network Connectivity:

Equipped with various network interface options for data and management traffic.

Role of the rNDC Slot:

Management Port Location:

The rNDC slot houses the management network interfaces.

Dedicated Management Functionality:

Separates management traffic from data traffic to enhance security and performance.

Redundancy Features:

Provides failover capabilities to ensure continuous management access.

Why PCIe Slots Are Less Suitable:

PCIe Slot 1, 2, and 3:

Typically used for data network interfaces or additional hardware components.

Not designated for primary management interfaces.

Management Interface Specificity:

Management ports are specifically assigned to the rNDC slot to standardize configurations across

nodes.

Benefits of Using the rNDC Slot for Management:

Simplified Network Design:

Clear separation of management and data networks.

Enhanced Security:

Management interfaces can be placed on a secure network segment.

Consistency Across Clusters:

Facilitates easier administration and support.

Physical Identification:

Location on the Node:

The rNDC slot is located on the back of the F600 node and is typically labeled for easy identification.

Port Types:

May include Ethernet ports designated for management tasks.

Dell PowerScale Reference:

Dell EMC PowerScale F600 Hardware Overview:

Details the node's hardware components, including the rNDC slot.

Dell EMC PowerScale Networking Guide:

Discusses network configurations and the role of management interfaces.

Hardware Installation Manuals:

Provide diagrams and instructions that identify the rNDC slot as the management port location.

The Pre-Engagement Questionnaire (PEQ) is a tool used by Dell EMC to gather essential information

about a customer's environment before deployment.

PEQ Replaces Site Preparation and Planning Guide:

Purpose of PEQ:

Collects detailed information on site readiness, network configuration, and customer requirements.

Ensures that all necessary preparations are made for a smooth implementation.

Why It Replaced the Site Preparation and Planning Guide:

Streamlines the process by consolidating information gathering into a single document.

Provides a more interactive and customer-focused approach.

Why Other Options Are Incorrect:

Web Administration Guide (Option B):

Provides instructions on administering the system via the web interface.

Supportability and Compatibility Guide (Option C):

Details supported hardware and software configurations.

Configuration Guide (Option D):

Offers guidance on configuring the system post-installation.

Dell PowerScale Reference:

Dell EMC PowerScale Implementation Resources:

PEQ Documentation:

Describes the purpose and usage of the PEQ.

Highlights how it replaces the previous Site Preparation and Planning Guide.

Best Practices:

Complete the PEQ thoroughly and accurately.

Use the PEQ to facilitate communication between the implementation team and the customer.

The correct order of steps to install a PowerScale Gen6 in a rack is as follows:

Align the chassis with the rails that are attached to the rack.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.

Carefully push the chassis off the lift arms and into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.

Comprehensive Detailed Step by Step Explanation with Reference

To install a PowerScale Gen6 in a rack, you need to follow a systematic process that ensures both

safety and correct placement:

Align the chassis with the rails that are attached to the rack.

The chassis must be properly aligned with the rails in the rack, which will support the chassis during

the installation process.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.

Once aligned, slide the back of the chassis onto the supporting ledge of the rails, ensuring the chassis

is seated securely.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.

After the chassis is aligned and placed onto the rails, release the lift casters and push the chassis into

the rack with controlled force, using the lift mechanism.

Carefully push the chassis off the lift arms and into the rack.

Once the chassis is positioned on the rails, remove the support from the lift arms, and push the

chassis fully into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.

Finally, use screws to secure the chassis at the top and bottom points on both sides, ensuring it is

tightly fastened to the rack.

This order ensures a smooth, safe installation and proper alignment in the rack. Following these

steps is crucial for the stability of the PowerScale Gen6 system during operation​.

The correct sequence is:

Accept End User License Agreement

Configure cluster name

Configure cluster join mode

Configure internal network

Configure external network

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Dell_D-PSC-MN-01/page_5_img_2.jpg

When creating a new Dell PowerScale cluster using the Configuration Wizard, the steps must be

performed in a specific sequence to ensure proper setup and functionality. Below is the detailed

order of the steps with explanations and

to Dell PowerScale documentation.

1. Accept End User License Agreement

Purpose:

Before any configuration can begin, you must accept the End User License Agreement (EULA) to

comply with legal requirements and proceed with the cluster setup.

Action:

Review the EULA presented in the Configuration Wizard.

Select the option to accept the terms and conditions.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide

Chapter: Initial Configuration

The Configuration Wizard begins by displaying the EULA, which must be accepted to continue.

Best Practices:

Carefully read the EULA to understand your rights and obligations.

2. Configure Cluster Name

Purpose:

Assigning a cluster name is essential for identification and management purposes within your

network environment.

Action:

Enter a unique and descriptive name for the cluster when prompted.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide

Section: Configuring Cluster Settings

After accepting the EULA, the wizard prompts for cluster-specific settings, starting with the cluster

name.

Best Practices:

Use a naming convention that aligns with your organization's standards.

Ensure the cluster name is DNS-resolvable if necessary.

3. Configure Cluster Join Mode

Purpose:

Determine whether to create a new cluster or join an existing one.

Since you are creating a new cluster, you need to select the appropriate join mode.

Action:

Choose "Create a new cluster" from the available options.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide

Section: Cluster Creation Options

The wizard asks whether to create a new cluster or join an existing one.

Best Practices:

Verify that all nodes intended for the cluster are correctly cabled and powered on.

4. Configure Internal Network

Purpose:

Set up the internal networking (back-end network) that enables communication between nodes

within the cluster.

Critical for cluster operations, data replication, and management traffic.

Action:

Configure settings for internal interfaces int-a and int-b.

Assign IP address ranges and netmasks as required.

Dell PowerScale Reference:

Dell EMC PowerScale Networking Configuration Guide

Chapter: Configuring Internal Networks

Details on setting up the internal network interfaces during cluster creation.

Best Practices:

Use separate subnets for int-a and int-b to enhance redundancy.

Ensure that the internal network is isolated from external networks for security.

5. Configure External Network

Purpose:

Establish the external networking (front-end network) that allows clients and services to access the

cluster.

Action:

Configure settings for external network interfaces.

Assign IP addresses, netmasks, gateways, and DNS information.

Dell PowerScale Reference:

Dell EMC PowerScale Networking Configuration Guide

Chapter: Configuring External Networks

Provides guidance on setting up external interfaces after internal networking is configured.

Best Practices:

Plan IP addressing to avoid conflicts within your network.

Configure SmartConnect zones if required for load balancing and failover.

Additional Notes:

Sequence Importance:

Following this sequence ensures that foundational settings are established before dependent

configurations.

For example, internal networking must be configured before external networking to ensure proper

node communication.

Validation and Testing:

After completing the Configuration Wizard, validate the cluster setup by checking node status and

network connectivity.

Use the OneFS web administration interface or CLI commands to verify configurations.

Reference to Dell PowerScale Documentation:

Dell EMC PowerScale OneFS Installation Guide

Provides step-by-step instructions for initial cluster setup.

Dell EMC PowerScale Networking Configuration Guide

Offers detailed information on networking configurations and best practices.

Dell EMC PowerScale OneFS Administration Guide

Useful for advanced configurations and cluster management post-installation.

Conclusion:

By following the sequence outlined above, the platform engineer can successfully create a new Dell

PowerScale cluster using the Configuration Wizard. Each step builds upon the previous one, ensuring

a robust and properly configured cluster ready for operation.

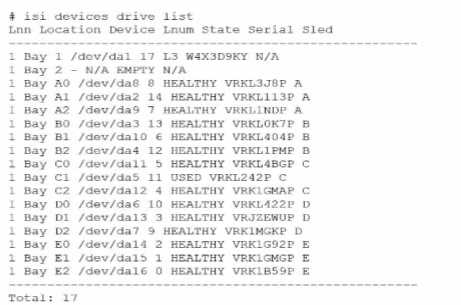

In the output of the isi devices drive list command shown in the exhibit, the drive in location C1 is

marked as "USED," with the serial number VRKL242P. This indicates that the drive has been replaced

but has not yet been initialized or formatted for use within the PowerScale cluster.

To make the drive usable, it must be formatted. The correct procedure to follow is to use the isi

devices drive format command, specifying the drive location (C1 in this case). This will prepare the

drive for use in the cluster, ensuring that it is recognized and available for OneFS to start writing data

to it.

Steps to format the drive:

Log in to the OneFS cluster using an SSH session with an account that has the necessary privileges.

Run the following command to format the new drive:

bash

Copy code

isi devices drive format C1

This command will format the drive located at C1, making it available for use in the cluster.

After the format is complete, verify that the drive is now in a HEALTHY state by running:

isi devices drive list

This should display the new status of the drive as HEALTHY, indicating that it has been successfully

formatted and is ready for data operations.

This process is outlined in Dell’s PowerScale Administration Guide and ensures the correct

initialization of new or replaced drives​.

For Dell EMC PowerScale systems, when installing nodes such as the F200, a common 1:4 breakout

cable ratio is used. This means that a single 40GbE port on a switch is broken out into four 10GbE

connections, which are used for connecting nodes like the F200.

For example, in environments where multiple F200 nodes need to be connected to a switch using

high-speed Ethernet, a 40GbE port on the switch can be split into four 10GbE connections, which is

commonly used in PowerScale installations to maximize the available network connections while

minimizing the number of switch ports required.

After replacing a failed node in a PowerScale H500 cluster, it is crucial to run a diagnostic test on the

replacement node to ensure it is functioning correctly and can integrate seamlessly into the cluster.

Importance of Diagnostics:

Verify Hardware Functionality:

Ensures all components of the replacement node are working properly.

Identify Potential Issues:

Detects any hardware faults or configuration problems before the node joins the cluster.

Diagnostic Procedures:

Boot Diagnostics:

During startup, the node performs POST (Power-On Self-Test).

OneFS Healthcheck:

Use the isi diagnostics commands to run health checks on the node.

Cluster Integration Tests:

Verify network connectivity, storage availability, and cluster communication.

Steps to Run Diagnostics:

Physical Inspection:

Ensure all cables and components are properly connected.

Power On the Node:

Observe for any error lights or beep codes.

Execute Diagnostic Commands:

Run isi_hw_status to check hardware status.

Use isi_diag tools for comprehensive testing.

Review Logs:

Check system logs for any error messages.

Why Other Options Are Less Crucial:

B. Confirm that the replacement node inherits the old serial number from the cluster:

Serial numbers are hardware-specific and cannot be inherited.

Nodes have unique serial numbers; cluster identity is managed logically.

C. Verify the size of the storage capacity of the replacement node:

While important, it's generally assumed that the replacement node matches the failed node's

specifications.

Not as crucial as ensuring the node functions correctly.

D. Power on the replacement node and ensure it connects to the network without any problems:

Necessary, but this is part of the diagnostic process.

Running diagnostics encompasses powering on and verifying network connectivity.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Administration Guide:

Provides information on monitoring and diagnostics commands.

Node Replacement Procedures in SolVe Online:

Outline the steps for replacing nodes and the importance of running diagnostics.

Best Practices for Cluster Maintenance:

Emphasize verifying node health before adding it to the cluster.

To access the Dell EMC PowerScale cluster through the Web Administration interface, you need to

use a web browser to connect to the cluster's management port using HTTPS on the appropriate

port.

Correct URL Format:

https://:8080

Protocol: HTTPS (Secure HTTP)

Cluster Name/IP: Replace with the cluster's hostname or IP address.

Port Number: 8080, which is the default port for the PowerScale Web Administration interface.

Why Option A is Correct:

HTTPS Protocol:

Ensures secure communication with the cluster's web interface.

Port 8080:

Default port for accessing the Web Administration interface on PowerScale clusters.

Combining Both:

Using https://:8080 directs the browser to the correct interface.

Why Other Options Are Incorrect:

Option B (http://:80):

Uses HTTP on port 80, which is not the default for the administration interface.

Option C (http://:8082):

Incorrect protocol and port.

Option D (https://:8081):

Port 8081 is not the default for the web interface.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Web Administration Guide:

Accessing the Web Interface:

Specifies that the Web Administration interface is accessible via HTTPS on port 8080.

Provides the URL format for connecting to the cluster.

Example:

If your cluster's hostname is powerscale-cluster, you would enter:

arduino

Copy code

https://powerscale-cluster:8080

Security Note:

Certificate Warnings:

Browsers may display a security warning due to self-signed certificates.

You can proceed by adding an exception or install a valid SSL certificate.

Best Practices:

DNS Configuration:

Ensure that the cluster's hostname is resolvable via DNS.

Alternatively, use the cluster's IP address in the URL.

Browser Compatibility:

Use a modern browser that supports the necessary encryption protocols.

Firewall Settings:

Verify that network firewalls allow traffic on port 8080.

In Dell EMC PowerScale clusters, upgrades can be performed using different methods, each with its

own impact on cluster availability and performance.

Simultaneous Upgrade:

Definition:

A simultaneous upgrade involves rebooting all nodes in the cluster at the same time.

Characteristics:

The entire cluster is taken offline during the upgrade process.

Downtime is required, making it suitable for non-production environments or maintenance windows.

Why Other Options Are Incorrect:

Rolling Upgrade (Option B):

Nodes are upgraded one at a time, allowing the cluster to remain online.

Side-by-Side Upgrade (Option C):

Involves building a new cluster and migrating data; nodes are not rebooted simultaneously.

In-Place Upgrade (Option D):

Refers to upgrading software on the existing hardware but does not imply simultaneous reboots.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Upgrade Guide:

Chapter on Upgrade Methods:

Describes simultaneous upgrades and their impact on cluster availability.

Provides guidelines on when to choose this method.

Best Practices:

Schedule simultaneous upgrades during planned downtime.

Notify users of the expected service interruption.
