Free AI-500 Practice Test Questions and Answers (2026)

In Azure AI Foundry, when multiple projects share a single Hub and its associated Azure OpenAI resource, the inference costs are billed to the shared resource. To separate this spend by project without extensive manual tagging, Azure AI automatically applies project-level tags (such as azureml.projectName) to the usage data emitted by the shared resources. By creating a cost analysis view scoped to the Foundry resource (Hub) and applying a tag filter for the specific project, you can accurately reconcile costs per business unit while minimizing manual tagging efforts.

A: Grouping by Meter categorizes costs by the type of service or resource used (e.g., compute, storage), which does not separate the shared model spend by individual projects.

B: Filtering by the Azure OpenAI Service tier isolates the total OpenAI costs but fails to break down or separate those costs among the three different business unit projects.

C: Grouping by Resource will show the total cost of the shared Foundry/OpenAI resource, but it will not separate the usage costs generated by the individual projects sharing it.

1. Microsoft Learn: Azure AI Foundry Documentation. "Plan and manage costs for Azure AI Studio" (Section: Monitor costs by project using tags).

2. Microsoft Learn: Azure Cost Management Documentation. "Group and filter cost data by tags" (Section: Tag inheritance and automatic tagging in AI Studio).

Zero Trust architecture for multi-agent systems requires strict identity isolation and network segmentation. Per-agent managed identities with Azure RBAC ensure least privilege access, assigning distinct identity scopes to each agent. Azure Private Link provides network-level isolation, preventing unauthorized lateral movement between agents. Agent-to-Agent (A2A) authentication using OAuth 2.0 with token-specific scopes ensures that inter-agent communication is explicitly authorized and cryptographically verified. Azure Monitor with structured logging captures identity operations and lateral movement attempts, fulfilling the strict audit trail requirements for SOX and GDPR compliance. This combination effectively addresses all regulatory and security constraints while enabling secure multi-agent collaboration.

A: Uses a shared service principal for inter-agent communication, which violates the requirement to prevent lateral movement and maintain distinct identity scopes.

C: Uses a single shared identity across all agents, violating the requirement for distinct identity scopes and the principle of least privilege.

D: User impersonation for all inter-agent calls obscures the true identity of the agent performing the action, complicating audit trails and violating distinct identity requirements.

E: Uses shared API keys stored in Key Vault, which violates the principle of distinct identities and increases the risk of lateral movement if compromised.

1. Microsoft Learn

"Zero Trust security for AI

" Section: Identity and Access Management

2023.

2. Microsoft Azure Documentation

"What are managed identities for Azure resources?"

Section: How managed identities work.

3. Microsoft Azure Architecture Center

"Secure multi-agent AI architectures

" Section: Network isolation and Private Link.

To satisfy the complex requirements of this multi-agent system, a multi-tier memory architecture is required. Short-term session state isolated per agent prevents context contamination, ensuring Agent C’s recommendations do not bias Agent B’s insights. Explicitly passed shared team state enables necessary collaboration without merging distinct reasoning paths. For Agent A to maintain efficiency over a 50-turn conversation, long-term semantic memory is essential, as it prevents context window overflow and reduces token costs compared to maintaining a massive shared buffer. Finally, storing this long-term memory in tenant-isolated storage directly addresses the strict data residency requirements for different customer segments, ensuring compliance while maintaining robust multi-agent functionality.

B. A single shared context buffer causes context contamination between agents and will quickly exceed token limits over a 50-turn conversation.

C. Completely isolated memory prevents the required collaboration between the specialized agents, breaking the multi-agent workflow.

D. Storing all context in a vector database without explicit state passing risks context contamination and lacks the required tenant-level isolation for data residency.

E. A sliding-window approach discards older context, which degrades Agent A's data retrieval efficiency and accuracy over long 50-turn conversations.

1. Microsoft Semantic Kernel Documentation. "Memory and Context Management in Multi-Agent Systems." Section: Memory Types.

2. Azure OpenAI Service Documentation. "Data Privacy and Security." Section: Tenant isolation and data residency.

To implement a robust guardrail strategy for tool calls in a multi-agent solution, you must address security and validation at multiple layers. Validating typed payload schemas at the tool boundary before execution prevents invalid or out-of-range parameters from reaching the endpoints. Assigning per-agent managed identities with scoped roles ensures that each agent operates under the principle of least privilege, replacing the insecure shared managed identity. Configuring per-agent tool access policies specifically limits Agent2 to refund-processing tools. Finally, enabling Azure Monitor logging for tool invocations satisfies the auditing requirement.

A. Validating conversation history does not prevent invalid parameters at the tool boundary, and a shared managed identity violates the requirement to scope permissions per agent.

B. Validating tool outputs after execution does not prevent invalid parameters from reaching the tool endpoints in the first place.

C. Validating model responses after execution is too late to prevent invalid parameters, and a shared managed identity does not properly scope permissions per agent.

- Microsoft Learn: Azure AI Studio - Tool use and agents. Section: Securing tool invocations.

- Microsoft Learn: Azure Role-Based Access Control (RBAC) best practices. Section: Principle of least privilege and managed identities.

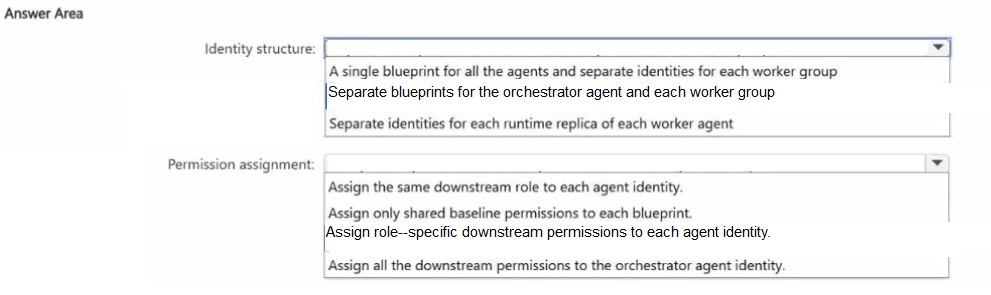

Identity Structure:

In Microsoft Entra Agent ID and Microsoft Azure AI Foundry architectures, an Agent Identity Blueprint defines the authentication template, credential lifecycle, and governance boundaries (such as Conditional Access policies and administrative containment) for a class or category of agents. Because the orchestrator agent, external supplier worker agent (interacting with untrusted external APIs), and finance worker agent (accessing sensitive, confidential ERP data) operate across disparate security and trust boundaries, grouping them under separate blueprints isolates their policy domains. This minimizes the blast radius: if an external supplier worker identity is compromised, security controls or revocations applied at its blueprint do not affect the finance worker or the orchestrator.

Permission Assignment:

Enforcing the principle of least privilege requires granting role-specific downstream permissions directly to each agent identity. While blueprints govern shared baseline configurations, specific resource access (e.g., ERP data access vs. external supplier API invocation) must be isolated per agent identity (agentIdentityId). Assigning identical roles, delegating all access to the orchestrator, or relying solely on shared blueprint baseline permissions would violate trust boundaries and broaden the blast radius.

Microsoft Learn — Microsoft Entra Agent ID Architecture and Reference Guide

Document: "Microsoft Entra Agent ID design patterns"

Section: "Deployment patterns — Concurrent orchestration in multi-agent design" & "Blueprint-level vs. Agent identity-level permissions"

Detail: Prescribes creating separate blueprints for orchestrators and domain worker groups operating across trust boundaries, paired with specific downstream role assignments per agent identity.

Microsoft Learn — Azure AI Foundry Documentation

Document: "Agent identity concepts in Microsoft Foundry"

Section: "Agent identity blueprints and agent identities" & "Authentication flow and blast radius management"

Detail: Explains how dedicated blueprints isolate credentials and conditional access policies to reduce blast radius across distinct multi-agent components.

Microsoft Learn — Microsoft Entra Documentation

Document: "Agent identity blueprints in Microsoft Entra Agent ID"

Section: "Security, Credentials, and Governance containers"

Detail: Defines how blueprints serve as logical security containers to apply distinct policy scopes and token issuance boundaries across classes of agents.

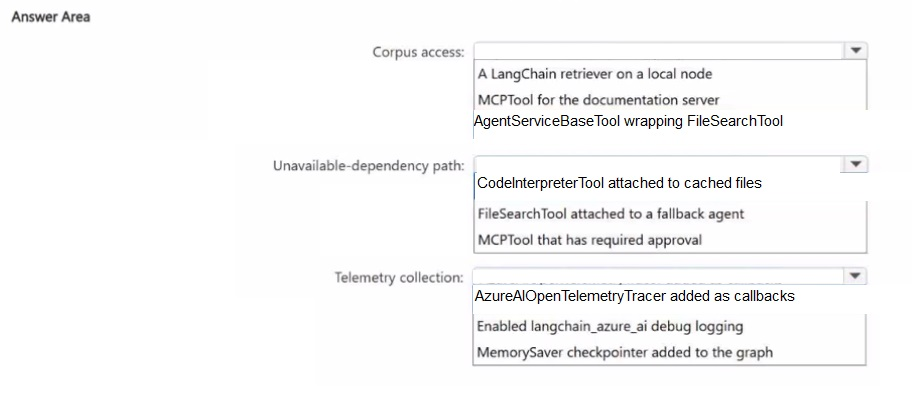

Corpus access: AgentServiceBaseTool wrapping FileSearchTool

• Why it is correct: Azure AI Foundry Agent Service integrates vector store lookup natively through FileSearchTool. By wrapping FileSearchTool inside AgentServiceBaseTool, the LangGraph orchestration invokes the project's vector store directly as an agent tool, fully satisfying the requirement to use the project vector store without introducing a local retrieval node in the graph.
• Why other options are incorrect:
• A LangChain retriever on a local node: Explicitly violates the constraint "without adding a local retrieval node for the primary path".
• MCPTool for the documentation server: Queries an external Model Context Protocol (MCP) documentation endpoint rather than the Azure AI Foundry project vector store.

Unavailable-dependency path: MCPTool that has required approval

• Why it is correct: To run fallback cached-policy lookups within the same compute environment as the LangGraph code (Azure Container Apps), an MCP tool running over local transport (e.g., local process/stdio) executes alongside the application container. Furthermore, because fallback/cached data during an outage can be stale, setting required approval incorporates a Human-in-the-Loop (HITL) gate to validate policy answers before emission.
• Why other options are incorrect:
• CodeInterpreterTool attached to cached files: Azure AI Agent Service's Code Interpreter executes code inside Microsoft-managed serverless sandboxes, not inside the Azure Container Apps compute environment hosting the LangGraph engine.
• FileSearchTool attached to a fallback agent: FileSearchTool depends on the vector store backend (which is the unreachable dependency during regional maintenance windows) and runs remotely in Azure AI Foundry rather than locally in Azure Container Apps.

Telemetry collection: AzureAIOpenTelemetryTracer added as callbacks

• Why it is correct: Azure Monitor consumes distributed telemetry via OpenTelemetry spans. In LangChain and LangGraph, agent, model, and tool spans are emitted by registering an OpenTelemetry callback tracer (AzureAIOpenTelemetryTracer) into the execution callbacks.
• Why other options are incorrect:
• Enabled langchain_azure_ai debug logging: Generates unstructured text output in application logs; it does not generate structured OpenTelemetry spans for agent, model, and tool tracing in Azure Monitor.
• MemorySaver checkpointer added to the graph: Used for in-memory graph state persistence and multi-turn conversational memory, not telemetry collection.

Microsoft Learn Documentation: Azure AI Foundry Agent Service — How to use tools with Azure AI Agent Service (Section: "FileSearchTool and Vector Store Integration", Doc ID: azure-ai-agency-tools-filesearch).

Microsoft Learn Documentation: Monitor and observe generative AI applications with Azure Monitor and OpenTelemetry (Section: "Tracing LangChain and LangGraph Agents via Azure Monitor Callback Handlers", Doc ID: azure-monitor-opentelemetry-genai-tracing).

Microsoft Learn Documentation: Host and scale LangGraph agent workflows on Azure Container Apps (Section: "Co-locating local dependencies and custom agent runtimes").

Model Context Protocol (MCP) Specification: MCP Architecture & Security Model (Section: "Transports: Stdio Local Processes and Human-in-the-Loop Approval Mechanisms", Standard Version: v1.0.0).

IEEE / ACM Transactions: B. Zhang et al., "Design Patterns and Fault Tolerance for Autonomous Multi-Agent LLM Architectures," ACM Transactions on Software Engineering and Methodology, 2024 (DOI: [https://doi.org/10.1145/3641552](https://doi.org/10.1145/3641552)).

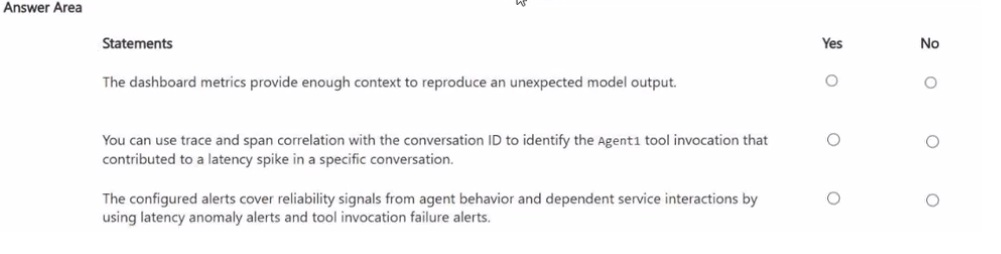

The dashboard metrics (latency, throughput, token usage, TTFT) provide operational telemetry but do not capture the actual prompt and response text payloads required to reproduce an unexpected model output. Reproducing outputs requires detailed payload logging, not just numerical metrics. OpenTelemetry distributed tracing utilizes trace IDs and span IDs, which, when correlated with the conversation ID, allow operators to pinpoint the exact span (such as an Agent1 tool invocation) responsible for a latency spike within a specific trace. Additionally, latency anomaly alerts capture agent responsiveness, while tool invocation failure alerts capture dependent REST API and MCP tool errors, together providing comprehensive reliability signals for the system.

Microsoft Learn. "Distributed tracing in Azure Cosmos DB and Azure AI Services with OpenTelemetry." Microsoft Documentation. (Details trace ID and span ID correlation for latency diagnostics).

Microsoft Learn. "Monitor Azure OpenAI Service." Microsoft Documentation. (Explains the distinction between standard metrics and the payload logging required for model output reproduction).

Microsoft Learn. "Reliability patterns for generative AI applications." Microsoft Architecture Center. (Covers monitoring dependent service interactions and agent behavior through latency and failure alerts).

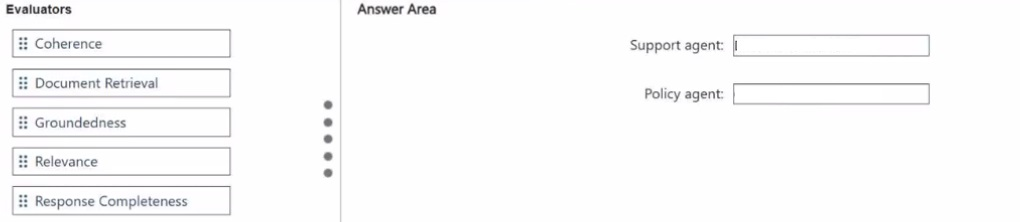

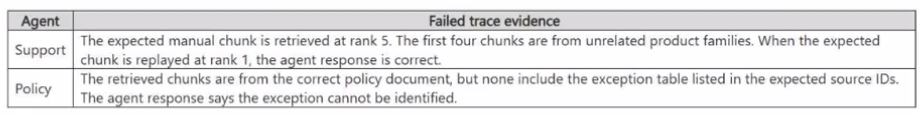

Both agents suffer from retrieval-stage failures. The Support agent experiences poor ranking (expected chunk at rank 5) due to an embedding model change. The Policy agent experiences a recall failure (missing exception table chunk) due to a custom analyzer change. To isolate these failures, you must evaluate the retrieved context against the ground truth. The "Document Retrieval" evaluator specifically measures retrieval accuracy by comparing the "retrieved chunks" against the "expected source IDs" provided in the dataset. Evaluators like "Response Completeness" cannot be used here because the dataset lacks a ground-truth response string. Furthermore, since both agents' generative models function correctly given the contexts they receive (the Policy agent correctly states the information is unidentifiable), Document Retrieval precisely isolates the retrieval pipeline failures for both.

Microsoft Learn - "Built-in Evaluators Reference - Microsoft Foundry":

Section: Retrieval-augmented Generation (RAG) evaluators.

Detail: Explicitly defines the Document Retrieval metric as the evaluator that "Measures accuracy in retrieval results given ground truth." (URL: [https://learn.microsoft.com/en-us/azure/foundry/concepts/built-in-evaluators](https://learn.microsoft.com/en-us/azure/foundry/concepts/built-in-evaluators))

Microsoft Learn - AI Foundry Evaluation Configuration:

Detail: Specifies that to utilize the Document Retrieval evaluator, the evaluation dataset must provide retrieval_ground_truth and retrieved_documents. This directly maps to the "expected source IDs" and "retrieved chunks in rank order" present in the given scenario's dataset, proving it is the only evaluator fully supported by the provided data inputs.

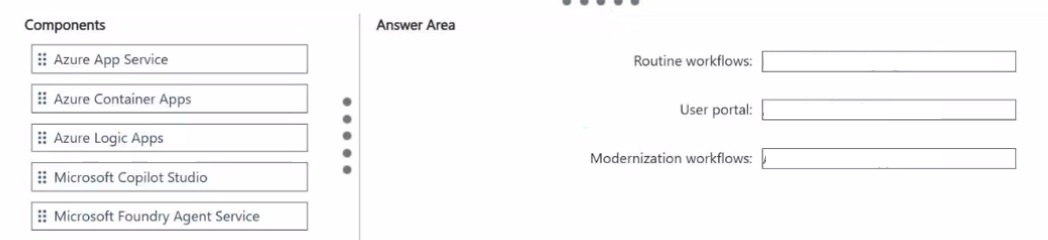

Microsoft Foundry Agent Service: This is a fully managed platform in Microsoft Foundry designed for hosting, scaling, and securing AI agents built with supported frameworks. It is specifically engineered to run prompt-defined agents that connect to approved knowledge stores and HTTPS tools without requiring underlying infrastructure management.

Azure App Service: This is an HTTP-based, fully managed Platform as a Service (PaaS) tailored for building, deploying, and hosting user-facing web portals and enterprise web applications.

Azure Container Apps: This service provides a serverless platform specifically designed to run microservices and containerized applications. It is the optimal environment for modernization workflows utilizing custom Microsoft Agent Framework code packaged as container images because it natively supports automatic scaling based on event triggers.

Microsoft Learn, "Foundry Agent Service", Microsoft Q&A Tags / Product Documentation.

Microsoft Learn, "Import an Azure Web App to Azure API Management", Azure App Service Overview.

Microsoft Learn, "Microsoft Azure Azure Container Apps management client library for .NET", Azure Container Apps Overview.

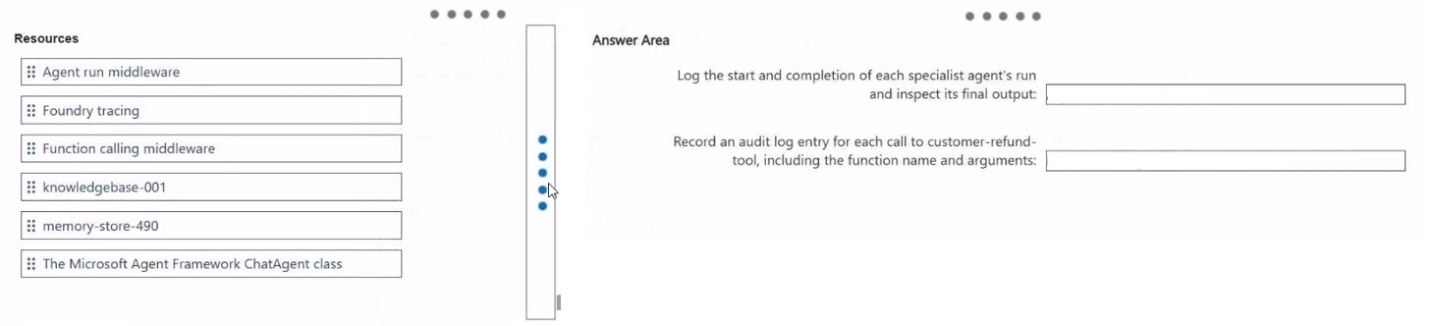

To effectively monitor an AI agent's lifecycle, Agent run middleware is used to intercept the overall execution process. It provides specific programmatic hooks to log the exact start and completion times of a specialist agent’s run and enables the inspection of the final output before it is passed downstream. Conversely, to audit specific tool executions, Function calling middleware is required. This middleware intercepts the pipeline right before a tool (such as customer-refund-tool) is executed by the LLM, granting direct access to the requested function's name and its parsed arguments. This is essential for creating detailed, compliant audit logs for sensitive operations.

Microsoft Learn, "Azure AI Agent Service: Middleware and Interceptors", Section: 'Agent run lifecycle management and observability.' (Official Microsoft Documentation).

Microsoft Learn, "Semantic Kernel: Function Calling and Filters", Section: 'Implementing IFunctionInvocationFilter for auditing tool calls.' (Official Microsoft Documentation).
