The error message "Cannot place this family. It can only be placed in plan views and RCPs" is explicit. Annotation families are 2D, view-specific elements. Within the Revit Family Editor, they cannot be placed in 3D views. The designer must switch to a 2D plan view to place the annotation. The "Ref. Level" is the primary floor plan view in the family editor environment and is the correct location for placing plan-view symbols.

A. Changing the Detail Level (Coarse, Medium, Fine) affects the visibility of geometry, not the type of view, and will not resolve the placement error.

B. Setting a family to "Shared" affects its behavior in a project (e.g., scheduling), not its placement constraints within the host family editor.

D. The "Maintain Annotation Orientation" parameter controls how the symbol rotates, not in which view type it can be placed.

1. Autodesk, Inc. (2023). Revit 2024 Help: Create a Family with a Nested and Shared Component. Autodesk Knowledge Network. Retrieved from https://help.autodesk.com/view/RVT/2024/ENU/?guid=GUID-99E4A237-E613-4209-A895-504E5A5C954C. Step 4 notes, "In the Project Browser, under Floor Plans, double-click Ref. Level... to place the annotation symbol."

2. Autodesk, Inc. (2023). Revit 2024 Help: About the Family Editor. Autodesk Knowledge Network. Retrieved from https://help.autodesk.com/view/RVT/2024/ENU/?guid=GUID-B3754190-1954-4352-8236-18C86AB24521. This document describes the Family Editor environment, which includes different views like plan (Ref. Level) and 3D views.

For a Revit family to be recognized as an electrical component capable of connecting to a circuit, it must contain an electrical connector. The "Power" button, which initiates the creation of a circuit, only becomes active when an element with an unassigned electrical connector is selected. Without this connector, Revit does not recognize the family's electrical properties or its potential to be part of a distribution system. Adding the connector in the Family Editor is the foundational step to resolve this issue.

A. The distribution system is a property of the panelboard or source, not the load family itself before it is circuited.

B. The "Shared" parameter is for nesting families and allowing them to be individually scheduled and tagged; it does not enable circuiting.

C. The Voltage parameter is a property of the electrical connector. The connector must be added first before its voltage can be set.

- Autodesk, Inc. (2023). Revit 2024 Help. "Add a Connector to a Device". This guide states, "To add electrical intelligence to a family, you must place an electrical connector in the family."

- Autodesk, Inc. (2023). Revit 2024 Help. "Create a Power Circuit". The procedure begins with "Select one or more electrical devices or lighting fixtures," which implies these components must already be defined as such by having an electrical connector.

- Autodesk University. (2018). AU Class ME226182: Creating Content for Revit MEP. This courseware details the family creation process, emphasizing that "The electrical connector is the most important part of an electrical family" for circuiting functionality.

The "Reload Latest" command updates the active local model to reflect all changes that have been saved to the central model by other users. This action is a one-way process that pulls data from the central model to the local model. It does not save or publish any changes made in the local model, allowing the designer to see the latest project status without committing their own work.

A. Relinquish All Mine releases ownership of worksets and borrowed elements; it does not update the model with others' changes.

C. Manage Worksets is a dialog for creating, renaming, or changing the open/closed status of worksets, not for updating model data.

D. Worksharing Display is a view mode that color-codes elements based on worksharing properties (e.g., owner) but does not load new changes.

1. Autodesk, Inc. (2023). Reload the Latest Version of the Central Model. Autodesk Revit 2024 Help. Retrieved from Autodesk Knowledge Network, article ID: GUID-F74BC168-483A-41B9-B293-75E58984959C. This document states, "Use Reload Latest to update your local model with changes from the central model. This process does not save your changes to the central model."

2. Autodesk University. (2018). AU 2018: CS225183 - Revit Worksharing for Beginners and Experts. This courseware explains the difference between Synchronize with Central and Reload Latest, highlighting that Reload Latest is for viewing updates without saving.

The Interference Report dialog allows users to investigate clashes found by the Interference Check tool. To locate a specific clashing element in the model, the user must first select the corresponding row in the report. Clicking the "Show" button will then cycle through the available open views to find and zoom in on the selected element, making it easy to identify and resolve the interference.

A. The Export button saves the interference report as an HTML file; it does not provide a way to select or navigate to elements within the Revit model.

B. Double-clicking a row in the Interference Report does not perform any action for selecting or showing the element in the model.

D. "Select IDs of Selection" is a separate tool found on the Manage tab used to select elements by their Element ID, not a function within the Interference Report dialog.

1. Autodesk, Inc. "Interference Checking". Autodesk Revit 2023 Help. Accessed October 2023. In the section "Run an Interference Check," step 8 describes using the Show button to locate elements from the report.

2. Autodesk, Inc. "Interference Report Dialog". Autodesk Revit 2023 Help. Accessed October 2023. This document details the dialog's functionality, confirming that "Show" is the command used to locate the selected element.

To model a sub-panel (Panel B) fed directly from the lugs of another panel (Panel A), two conditions are essential. First, both panels must be assigned to the same "Distribution System" to ensure electrical compatibility. Second, after setting Panel B's "Supply From" parameter to Panel A, the connection method must be specified. In Panel B's instance properties, the "Connection Type" must be changed from the default "Breaker" to "Feed-Through Lugs." This correctly models the connection without an overcurrent protection device in Panel A and ensures Panel B's load is passed through to Panel A's bus.

A. Both panels are assigned to the same switchboard, and the subfeed lug breaker option is selected.: The connection is not limited to switchboards, and the "Distribution System" requirement is missing, which is a more fundamental prerequisite.

B. Both panels are assigned to the same distribution system, and the circuit subfeed panel type option is selected.: "Circuit subfeed panel type option" is not a standard or accurate term for the required Revit parameter or setting.

D. Both panels are connected via a transformer, and the connection type is set to feed through lugs.: A transformer is used for changing voltage levels and is not required for a direct, same-voltage feed-through connection.

1. Autodesk, Inc. "Instance Properties for Electrical Equipment." Autodesk Knowledge Network, Revit 2023 Help, 2022. Accessed October 2023. (This document defines the "Connection Type" parameter, specifying its options as "Breaker" or "Feed-Through Lugs").

2. Autodesk, Inc. "Connect a Panel." Autodesk Knowledge Network, Revit 2023 Help, 2022. Accessed October 2023. (This guide outlines the workflow, including the need for a common Distribution System and setting the "Supply From" parameter).

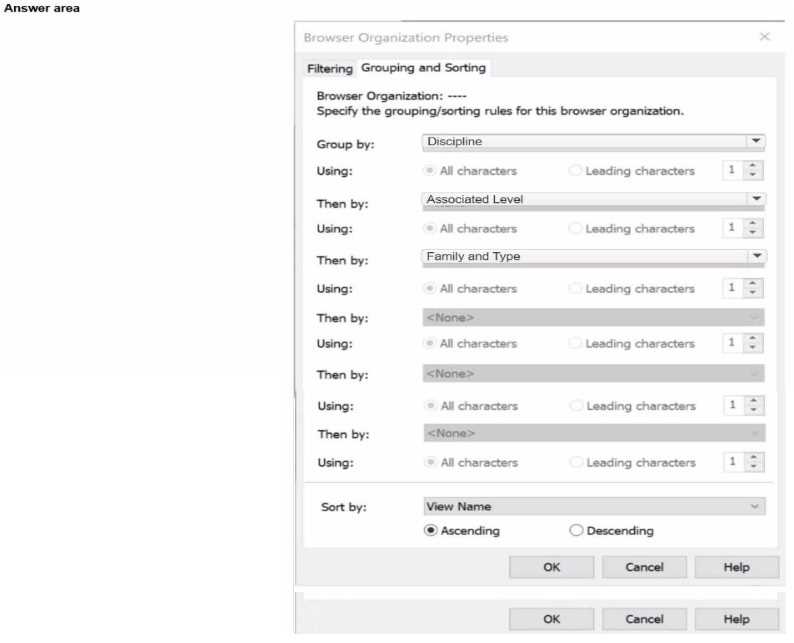

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_43_img_1.jpg In Autodesk Revit Electrical Design, the Project Browser can be customized to organize views according to disciplines, levels, and view types using the Browser Organization Properties dialog box. This feature allows electrical designers to create structured view hierarchies that align with project standards and simplify navigation — especially in multidisciplinary projects. According to the Revit MEP User’s Guide (Chapter 41 “Browser Organization and View Management”): “Browser organization defines how project views are grouped and displayed in the Project Browser. You can customize sorting by Discipline, Level, View Type, or any parameter applicable to views.” In the given exhibit, the Project Browser structure shows views grouped first by discipline (“Coordination,” “Electrical”), then by level (“Level 1,” “Level 2”), and finally by view type (e.g., “Floor Plans,” “Ceiling Plans”). This organization allows the electrical designer to isolate MEP-related views while maintaining logical grouping under each building level. To achieve this layout, the designer must apply the following browser organization setup in the Browser Organization Properties dialog box: 1️⃣ Group by: Discipline – creates top-level folders such as Architectural, Structural, Electrical, etc. 2️⃣ Then by: Associated Level – organizes each discipline into subfolders based on floor levels (Level 1, Level 2, etc.). 3️⃣ Then by: Family and Type – further organizes the level folders into view categories (e.g., Floor Plans, Ceiling Plans). This configuration is supported by the Smithsonian Facilities Revit Template User’s Guide: “Grouping by Discipline, Level, and View Type provides logical organization for MEP coordination, facilitating efficient access to electrical floor and ceiling plan views.” Sorting by View Name (Ascending) ensures consistent alphabetical listing under each category.

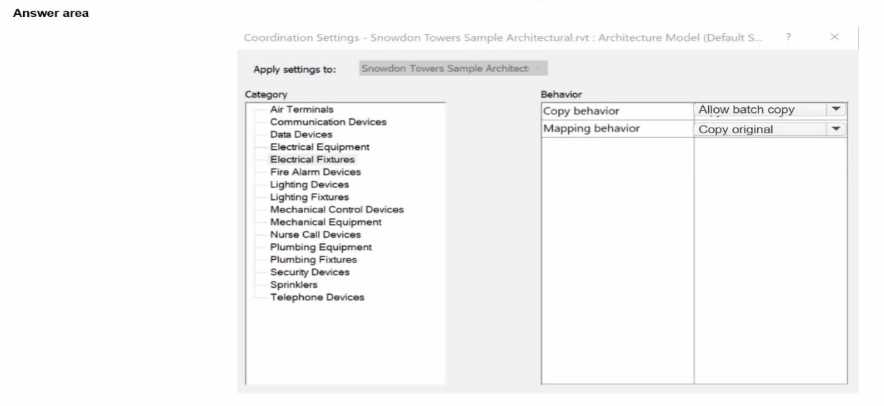

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_57_img_2.jpg When working on linked architectural and electrical Revit models, the Copy/Monitor tool enables electrical designers to copy selected elements (such as lighting or electrical fixtures) from the architectural model into their electrical model. This workflow ensures that any subsequent modifications to these elements in the architectural file are automatically detected and flagged for coordination review. According to the Revit MEP User’s Guide (Chapter 46 “Copy/Monitor and Coordination Review”): “Use Copy/Monitor to copy elements from a linked model so that changes to the original elements are tracked. When copying multiple similar elements, select Allow batch copy to automatically copy all instances of that category.” The Coordination Settings dialog provides two primary behavioral controls for each category (such as Electrical Fixtures): 1️⃣ Copy Behavior Allow batch copy: Automatically copies all elements of the selected category from the linked architectural model to the host electrical model. This option is ideal for electrical fixtures because it ensures all instances are copied efficiently without manual selection and allows future synchronization. 2️⃣ Mapping Behavior Copy original: Creates an exact duplicate of the architectural family in the electrical model without substituting family types or parameters. This ensures full fidelity with the architect’s fixtures and enables Revit to automatically detect newly added or modified elements in the linked model for coordination review. The Smithsonian Facilities Revit Template User’s Guide also confirms this workflow: “Set Copy Behavior to Allow batch copy and Mapping Behavior to Copy original when monitoring shared architectural elements like lighting fixtures, ensuring accurate duplication and automatic update tracking.” These settings allow Revit to issue coordination warnings such as “Instance of link needs Coordination Review” whenever the architectural model is updated, maintaining synchronization across disciplines.

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_39_img_2.jpg In Autodesk Revit Electrical Design, the Interference Check tool allows designers to detect physical conflicts between elements in the current model and linked models, ensuring coordination between architectural, structural, and MEP systems. According to the Revit MEP User’s Guide (Chapter 45 “Interference Checking”): “You can check for interferences between elements within a single project or between elements in the host project and linked models. In the Interference Check dialog box, you can specify categories from the current project and from linked Revit models.” The dialog box shown in the image displays two selection lists: The left-hand side represents categories from the current electrical project. The right-hand side represents categories from the linked structural model (STRUCTURE.rvt). Since the task is to check for clashes between conduits (electrical) and beams (structural), the designer should select: “Conduits” under Categories from Current Project (the electrical model). “Beams” under Categories from STRUCTURE.rvt (the linked structural model). As the guide explains further: “Interference checking identifies intersections or overlaps between the geometry of selected categories. For MEP users, this is commonly used to check for clashes between ducts, pipes, or conduits and architectural or structural elements.” This process ensures early detection of coordination issues before construction documentation. The designer can then review results through Coordination Review, isolate elements in 3D, or tag affected areas for correction. Incorrect Options: Selecting both categories from the same model (e.g., Electrical and Conduits) would only check within that model. Choosing unrelated linked files (e.g., ARCHITECTURE.rvt) would not detect clashes with the structural beams.

Discipline: Common Type of Parameter: Yes/No When an electrical designer is developing a panelboard family in Autodesk Revit and wants to control the visibility of an element—such as a clearance zone (typically used for equipment maintenance space, NEC 110.26 compliance, or access areas)—the correct method is to create a Family Parameter with a Yes/No (Boolean) value under the Common discipline. According to the Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”): “Use a Yes/No parameter to control the visibility of geometry or symbolic lines in a family. When checked, the geometry displays in the project; when unchecked, it is hidden.” This visibility control is typically applied to reference geometry such as safety clearance volumes or working spaces around electrical panels. These geometries are modeled within the family environment and linked to visibility parameters that the designer can toggle on or off in the Family Types dialog. Additionally, the parameter must be created under the Common discipline, not Electrical or HVAC, because visibility controls are not discipline-specific—they apply to all Revit element types. “Discipline defines the context of the parameter type. Visibility parameters are categorized under Common, as they are used across multiple disciplines.” Step-by-step setup: 1️⃣ In the Family Editor, open the Family Types dialog. 2️⃣ Click Add Parameter → Name it Clearance Zone Visible. 3️⃣ Under Parameter Type, select Family Parameter. 4️⃣ Choose Discipline: Common and Type of Parameter: Yes/No. 5️⃣ Assign this parameter to the Visible checkbox of the clearance zone geometry. This allows the designer to easily control whether the clearance zone appears in plan, elevation, or 3D views—useful for coordination and documentation. Incorrect Options Explanation: HVAC, Electrical, Energy: Used for discipline-specific parameters like voltage, airflow, or load calculations. Text or Number: Would not allow toggling visibility. Visible (as type): Refers to linking geometry visibility, not defining a parameter type itself.

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_72_img_2.jpg In Autodesk Revit’s Family Editor, when defining a light source for an electrical lighting fixture family, the Light Source Definition dialog controls how the light behaves visually and analytically. When incorporating an IES photometric web file (.ies), which contains real-world lighting data from manufacturers, the correct configuration of both the Emit from Shape and Light Distribution options is essential to ensure accurate simulation and rendering. According to the Autodesk Revit MEP User’s Guide (Lighting Families – Light Source Definition section), it states: “When a photometric web (IES file) is assigned to a light source, the Emit from Shape should be set to Point, because the photometric web defines the light intensity and spread pattern in all directions from a single emission point. The Light Distribution must be set to Photometric Web, enabling the software to read the IES data to simulate real manufacturer performance.” (Revit MEP 2011 User’s Guide, Chapter on Lighting Families and Photometric Webs) The Point source simulates a compact source of light, such as a lamp or bulb, emitting from a single location in space. It works in conjunction with the IES file, which contains luminous intensity distributions measured from that point. Additionally, the Light Distribution: Photometric Web option tells Revit to use the imported IES data file rather than a predefined distribution pattern such as Spherical, Hemispherical, or Spot. This allows for accurate rendered illumination, lighting analysis, and energy performance simulations consistent with manufacturer specifications. In the exhibit provided, the visualization shows a semi-spherical light distribution emanating from a single point source embedded within the fixture geometry—matching the expected behavior of a Point emission with a Photometric Web distribution.
