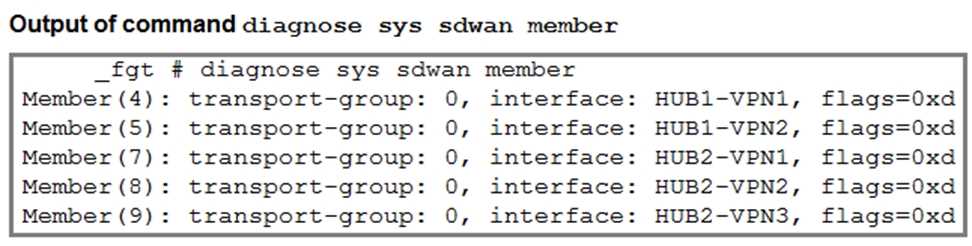

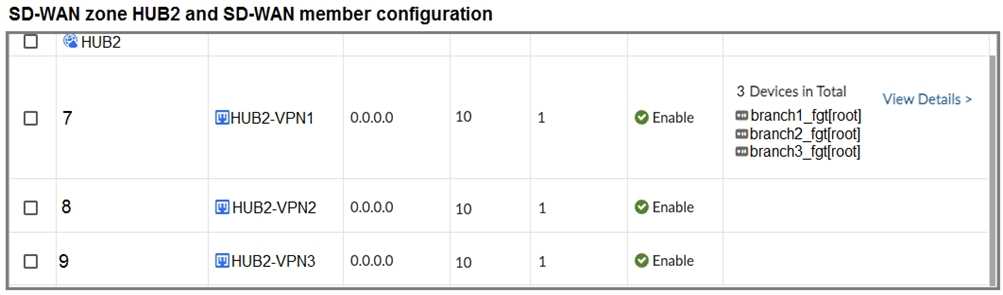

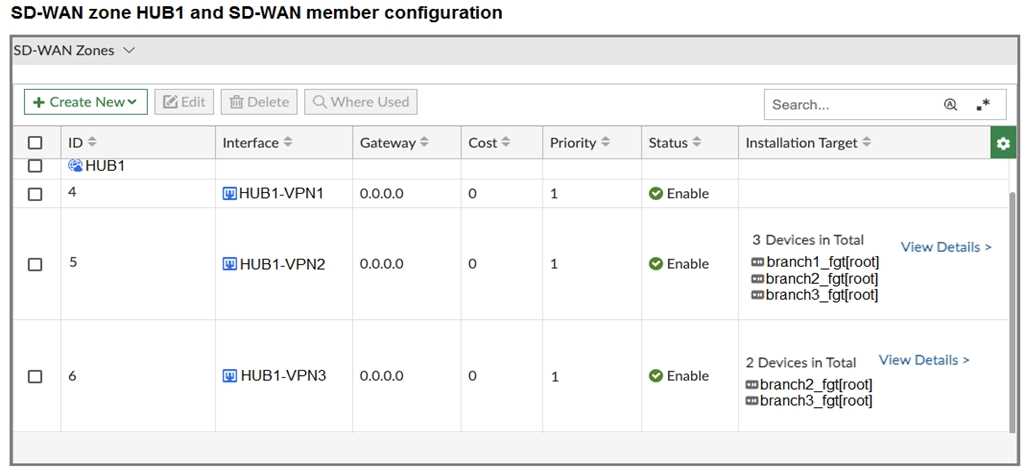

By analyzing the SD-WAN template exhibits, we can see that SD-WAN Member 6 (Interface HUB1-VPN3) has an "Installation Target" restricted to only two devices: branch2_fgt and branch3_fgt. The provided CLI output for the diagnose sys sdwan member command lists members 4, 5, 7, 8, and 9, but explicitly lacks member 6. Because member 6 is configured to be installed on branches 2 and 3, its absence in the CLI output confirms that the device being queried cannot be branch2_fgt or branch3_fgt. Therefore, the output must have been collected from branch1_fgt, which receives the other template members but is appropriately excluded from member 6.

Option A: The flags=0xd value indicates the interface is active (0x1), valid (0x4), and alive (0x8), meaning the members are functioning normally, not dead.

Option B: The output directly corresponds to the expected SD-WAN member configuration pushed to branch1_fgt via the FortiManager template.

Option C: If the output were collected from branch2_fgt, Member 6 (HUB1-VPN3) would be visible in the list because it is an explicit installation target for that device.

Fortinet, "FortiManager 7.2 Administration Guide," SD-WAN Configuration, section "Assigning SD-WAN members and Installation Targets".

Fortinet, "FortiOS 7.2 CLI Reference," System Diagnostics Commands, section "diagnose sys sdwan member," 2023.

Fortinet, "FortiOS 7.2 Administration Guide," SD-WAN Troubleshooting, section "Understanding SD-WAN member flags".
