Wireless client roaming decisions are made by the client device based on its own criteria, such as

signal strength, noise level, data rate, etc. The network can influence the client’s roaming decision by

providing information such as neighbor reports, load balancing, band steering, etc., but the final

decision is up to the client. Reference:

https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/wlanroaming/client-roaming.htm

Wireless client roaming decisions are primarily made by the client device itself. The client device

monitors the signal strength and quality of the current connection and decides to roam to a different

Access Point (AP) when the current signal deteriorates below a certain threshold or a better option is

available. While APs and controllers can provide information and support for roaming decisions

through protocols like 802.11k and 802.11v, the ultimate decision to roam is made by the client

device based on its algorithms and thresholds.

Bonding multiple 20MHz wide 802.11 channels is a technique to create a wider bandwidth channel

that supports higher data rate transmissions. It can increase the throughput between the client and

AP by using more spectrum resources and reducing interference. Reference:

https://ieeexplore.ieee.org/document/9288995

Bonding multiple 20MHz wide 802.11 channels is a technique used to increase the throughput

between the client device and the Access Point (AP). By combining two or more 20MHz channels into

a wider channel (e.g., 40MHz, 80MHz, or even 160MHz), the data carrying capacity and,

consequently, the overall throughput of the wireless connection are increased. This method is

particularly useful in high-bandwidth applications or environments where higher data rates are

required.

Aruba’s Captive Portal uses Layer 3 authentication, which means that it intercepts the client’s HTTP

requests and redirects them to a web page where the client can enter their credentials. The

credentials are then verified by a RADIUS server or a local database before granting network access.

Reference: https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instantug/captive-portal/captive-portal-auth.htm

Aruba's Captive Portal primarily uses Layer 3 authentication, which operates at the network layer.

When a user connects to a network with a Captive Portal, they are redirected to a web page for

authentication. This process involves the user entering credentials or accepting terms and conditions

through a web interface before gaining full access to the network. The Captive Portal intercepts the

user's web traffic at Layer 3, requiring them to authenticate before proceeding, which is why it's

considered a form of Layer 3 authentication.

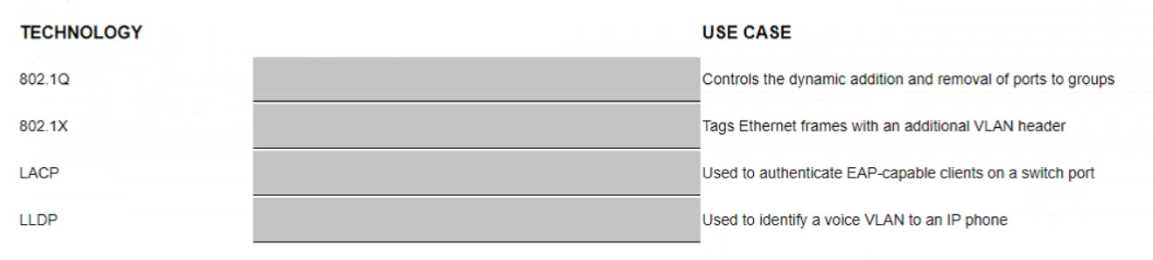

USE CASE: a) Controls the dynamic addition and removal of ports to groups Technology: 3) LACP USE CASE: b) Tags Ethernet frames with an additional VLAN header Technology: 1) 802.1Q USE CASE: c) Used to authenticate EAP-Capable client on a switch port Technology: 2) 802.1X USE CASE: d) Used to identify a voice VLAN to an IP phone Technology: 4) LLDP The following table summarizes the switching technologies and their use cases: Technology Use case 802.1Q is a standard that defines how to create and manage virtual LANs (VLANs) on a network. VLANs allow network administrators to logically segment a network into different broadcast domains, improving security, performance, and manageability. 802.1Q tags Ethernet frames with an additional VLAN header th contains a VLAN identifier (VID), which indicates which VLAN the frame belongs to1. 1) 802.1Q 802.1X is a standard that defines how to provide port-based network access control (PNAC) on a network. PNAC allows network administrators to authenticate and authorize devices before granting them access to network resources. 802.1X uses the Extensible Authentication Protocol (EAP) to exchange authentication messages between a supplicant (a device that wants to access the network), an authenticator (a device tha controls access to the network, such as a switch), and an authentication server (a device that verifies the credentials of the supplicant, such as a RADIUS server)2. 2) 802.1X LACP stands for Link Aggregation Control Protocol, which is part of the IEEE 802.3ad standard that defines how to bundle multiple physical links into a single logical link, also known as a link aggregation group (LAG or an EtherChannel. LAGs provide increased bandwidth, load balancing, and redundancy for network connections. LACP controls the dynamic addition and removal of ports to groups, ensuring that only ports with compatible configurations can form a LAG3. 3) LACP LLDP stands for Link Layer Discovery Protocol, which is part of the IEEE 802.1AB standard that defines how discover and advertise information about neighboring devices on a network. LLDP operates at Layer 2 of th OSI model and uses TLVs (type-length-value) to exchange information such as device name, port number, VLAN ID, capabilities, and power requirements. LLDP can be used to identify a voice VLAN to an IP phone b sending a TLV that contains the voice VLAN ID and priority. 4) LLDP Reference: 1 https://en.wikipedia.org/wiki/IEEE_802.1Q 2 https://en.wikipedia.org/wiki/IEEE_802.1 X 3 https://en.wikipedia.org/wiki/Link_aggregation https://en.wikipedia.org/wiki/Link_Layer_Discovery_Protocol

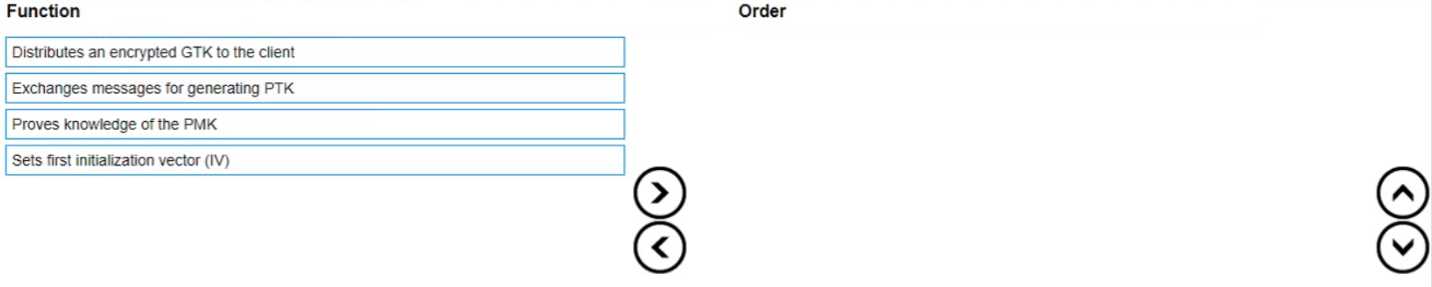

Proves knowledge of the PMK Exchanges messages for generating PTK Distributes an encrypted GTK to the client Sets first initialization vector (IV)

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/HP_HPE6-A85/page_58_img_1.jpg

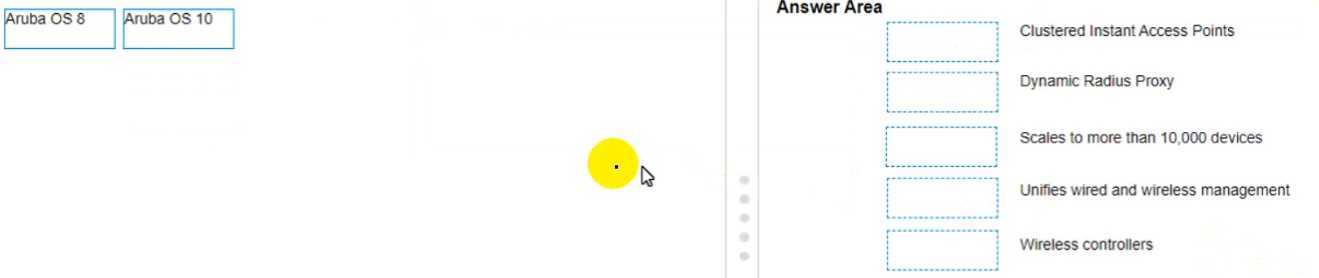

Features: 1) Clustered Instant Access Points Aruba OS version: a) Aruba OS 8 Features: 2) Dynamic Radius Proxy Aruba OS version: a) Aruba OS 8 Features: 3) Scales to more than 10,000 devices Aruba OS version: b) Aruba OS 10 Features: 4) Unifies wired and wireless management Aruba OS version: a) Aruba OS 8 Features: 5) Wireless controllers Aruba OS version: a) Aruba OS 8 ArubaOS is the operating system for all Aruba Mobility Controllers (MCs) and controller-managed wireless access points (APs). ArubaOS 8 delivers unified wired and wireless access, seamless roaming, enterprise grade security, and a highly available network with the required reliability to support high density environments1. Some of the features of ArubaOS 8 are: Clustered Instant Access Points: This feature allows multiple Instant APs to form a cluster and share configuration and state information. This enables seamless roaming, load balancing, and fast failover for clients2. Dynamic Radius Proxy: This feature allows an MC to act as a proxy for RADIUS authentication requests from clients or APs. This simplifies the configuration and management of RADIUS servers and reduces the network traffic between MCs and RADIUS servers3. Wireless controllers: Aruba wireless controllers are devices that centrally manage and control the wireless network. They provide functions such as AP provisioning, configuration, security, policy enforcement, and network optimization. ArubaOS 10 is the next-generation operating system that works with Aruba Central, a cloud-based network management platform. ArubaOS 10 delivers greater scalability, security, and AI-powered optimization across large campuses, branches, and remote work environments. Some of the features of ArubaOS 10 are: Scales to more than 10,000 devices: ArubaOS 10 can support up to 10,000 devices per cluster, which is ten times more than ArubaOS 8. This enables customers to scale their networks without compromising performance or reliability. Unifies wired and wireless management: ArubaOS 10 provides a single platform for managing both wired and wireless devices across the network. Customers can use Aruba Central to configure, monitor, troubleshoot, and update their devices from anywhere. Both ArubaOS 8 and ArubaOS 10 share some common features, such as: Unifies wired and wireless management: Both operating systems provide unified wired and wireless access for customers who use Aruba switches and APs. Customers can use a single interface to manage their entire network infrastructure1 . Reference: 1 https://www.arubanetworks.com/resource/arubaos-8-fundamentalguide/ 2 https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/iap- maintenance/cluster.htm 3 https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Con tent/arubaos-solutions/1-overview/dynamic-radius-proxy.htm https://www.arubanetworks.com/products/networking/controllers/ https://www.arubanetworks.com/products/network-management-operations/arubaos/ https://blogs.arubanetworks.com/solutions/making-the-switch/ https://www.arubanetworks.com/products/network-management-operations/aruba-central/

Layer: 1) Physical layer Phase of Message Processing: d) Organize the data into bits Layer: 2) Data Link layer Phase of Message Processing: c) Organize the data into frames Layer: 3) Network layer Phase of Message Processing: b) Organize the data into packets Layer: 4) Transport layer Phase of Message Processing: a) Organize the data into segments The OSI model divides the networking process into seven layers, each representing a different step of the transmission chain. Each layer has its own function and is responsible for well-defined tasks. User data passes sequentially from the highest layer down through the lower layers until the device transmits it externally. The lowest layer, the physical layer, converts the data into bits that can be sent over a physical medium. The second layer, the data link layer, organizes the bits into frames that can be transmitted over a link between two nodes. The third layer, the network layer, organizes the frames into packets that can be routed across a network of nodes. The fourth layer, the transport layer, organizes the packets into segments that can provide reliable and error-free communication between two end points12. Reference: 1 https://www.linode.com/docs/guides/introduction-to-osinetworking-model/ 2 https://en.wikipedia.org/wiki/OSI_model

QoS Quality of Service (QoS) is a set of techniques that manage network resources and provide different levels of service to different types of traffic based on their requirements. QoS can improve network performance, reduce latency, increase throughput, and prevent congestion. concept and its definition. QoS Concept: Best Effort Service Class of Service Differentiated Services WMM ====================== Definition: d) A method where traffic is treated equally in a first-come, first-served manner a) A method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes b) A method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes c) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standard Short But Comprehensive Explanation of Correct Answer Only: The correct match between QoS concept and its definition is as follows: Best Effort Service: This is a method where traffic is treated equally in a first-come, first-served manner without any prioritization or differentiation. This is the default service level for most networks and applications that do not have specific QoS requirements or guarantees. Best Effort Service does not provide any assurance of bandwidth, delay, jitter, or packet loss. Class of Service: This is a method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes (0 to 7). These service classes are also known as IEEE 802.1p priority values or PCP Priority Code Point (PCP) is a 3-bit field in the 802.1Q VLAN tag that indicates the priority level of an Ethernet frame . Class of Service allows network devices to identify and handle different types of traffic based on their priority levels. Class of Service is typically used in LAN Local Area Network (LAN) is a network that connects devices within a limited geographic area, such as a home, office, or building environments where Layer 2 switching is predominant. Differentiated Services: This is a method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes (0 to 63). These service classes are also known as DiffServ Code Points (DSCP) DiffServ Code Point (DSCP) is a 6-bit field in the IP header that indicates the service class of a packet . Differentiated Services allows network devices to identify and handle different types of traffic based on their service classes. Differentiated Services is typically used in WAN Wide Area Network (WAN) is a network that connects devices across a large geographic area, such as a country or continent environments where Layer 3 routing is predominant. WMM: This is a method for classifying network traffic using access categories based on the IEEE 802.11e QoS standard. WMM stands for Wi-Fi Multimedia and it is a certification program developed by the Wi-Fi Alliance to enhance QoS for wireless networks. WMM defines four access categories (AC): Voice, Video, Best Effort, and Background. These access categories correspond to different priority levels and contention parameters for wireless traffic. WMM allows wireless devices to identify and handle different types of traffic based on their access categories. Reference: https://en.wikipedia.org/wiki/Quality_of_service https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos_dfsrv/configuration/xe-16/qos-dfsrv-xe16-book/qos-dfsrv-overview.html https://www.cisco.com/c/en/us/support/docs/quality-of-service- qos/qos-packet-marking/10103-dscpvalues.html https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/81831-qoswlan.html https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-wmm
