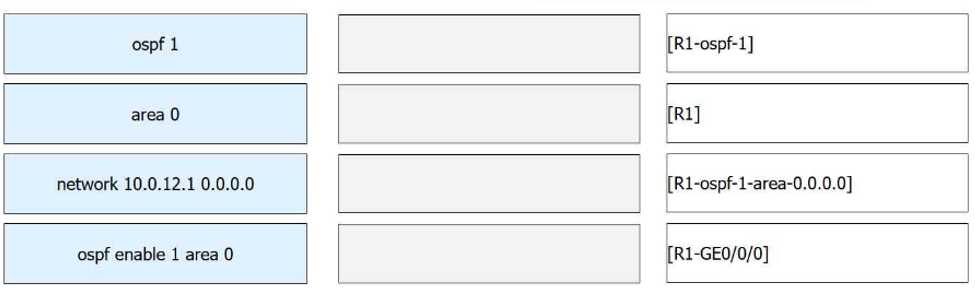

In Huawei's Versatile Routing Platform (VRP), configuring OSPF follows a strict hierarchical command-line structure.

• The ospf 1 command is executed in the system view ([R1]) to instantiate the OSPF routing process.
• Within the OSPF process view ([R1-ospf-1]), the area 0 command creates or enters the specified backbone area view.
• Inside the OSPF area view ([R1-ospf-1-area-0.0.0.0]), the network 10.0.12.1 0.0.0.0 command enables OSPF precisely on the interface possessing that IP address.
• Alternatively, OSPF can be activated directly on the interface by utilizing the ospf enable 1 area 0 command inside the GigabitEthernet interface view ([R1-GE0/0/0]).

Huawei Technologies Co., Ltd. AR Gen2 Routers V200R010 CLI Reference. "OSPF Configuration Commands," pp. 1042-1045.

Huawei Technologies Co., Ltd. Huawei VRP (Versatile Routing Platform) Configuration Guide - IP Routing. "Configuring Basic OSPF Functions," Section 3.4.

The statement is True. The routing table entry 10.0.12.0/24 Direct 0 0 D 10.0.12.1 Vlanif2 indicates a "Direct" route. For direct routes in a Huawei VRP routing table, the NextHop column (10.0.12.1) displays the IP address configured on the local router's own interface (Vlanif2). The Destination/Mask column (10.0.12.0/24) shows the network this interface is connected to. Therefore, it can be correctly inferred that the IP address of VLANIF 2 on router R1 is 10.0.12.1 with a /24 mask.

Note: This is a True/False question where 'A' represents 'True'.

This question is a True/False format. There are no other options to evaluate as incorrect in the traditional sense. The provided statement is a correct interpretation of the routing table output.

1. Huawei. (2019). VRP V800R019C00 Command Reference. Section: IP Routing Command Reference

Subsection: display ip routing-table. "For a direct route

the next hop address is the address of the local interface."

2. Huawei. (2020). HCIA-Datacom V1.0 Training Material (Version 1.0). Section: IP Routing Overview

Subsection: Routing Table. "Direct routes are discovered by the data link layer protocol. They are generated when an IP address is configured for an interface and the interface is Up." (Page 3-11).

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal, with a modulating signal that typically contains information to be transmitted. In digital modulation, the properties of the carrier wave—specifically its amplitude, frequency, or phase—are modified to represent digital data (bits). For example, Amplitude Shift Keying (ASK) varies the amplitude, Frequency Shift Keying (FSK) varies the frequency, and Phase Shift Keying (PSK) varies the phase. More complex schemes like Quadrature Amplitude Modulation (QAM) vary both amplitude and phase.

C. A channel is the physical medium or logical path through which the signal is transmitted; it is not a parameter of the carrier wave that is modified during modulation.

1. Huawei. (2020). HCIA-Datacom V1.0 Training Material (Model H12-811). Section: WLAN Overview

Subsection: Basic WLAN Concepts

Chapter: 802.11 Physical Layer Technologies. (This section describes how modulation techniques like PSK and QAM are used to encode data onto radio waves by modifying carrier properties).

2. Stallings

W. (2016). Data and Computer Communications (10th ed.). Pearson. Chapter 5

"Signal Encoding Techniques

" pp. 147-165. (This chapter details how amplitude

frequency

and phase are the fundamental characteristics of a carrier signal altered in digital-to-analog conversion/modulation).

OSPF does indeed divide the routed domain into areas, and Area 0 (0.0.0.0) is mandated as the backbone area.

However, the Area ID field is 32 bits, allowing values from 0-to-4 294 967 295 (notation 0.0.0.0–255.255.255.255).

Saying the allowed range is only 0-255 is therefore inaccurate, so the statement is false.

Why Incorrect Option is Wrong:

• “True” would require the Area-ID range to be 0-255, which contradicts the 32-bit definition in both Huawei documentation and the OSPF standard.

This is a True/False question. The statement is factually incorrect due to the specified range for the Area ID, making the correct answer False.

1. Huawei

“HCIA-Datacom Routing & Switching – OSPF Fundamentals”

V1.0

Section 2.2 “OSPF Areas”

p. 34: “The Area ID is a 32-bit value (0-4294967295)… Area 0 (0.0.0.0) is the backbone area.”

2. Huawei VRP8 “OSPF Configuration Guide”

Chapter 3 “Basic Concepts”

para. ‘Area ID’ (Document ID: HEDN-VRP8-OSPF-CG-2023).

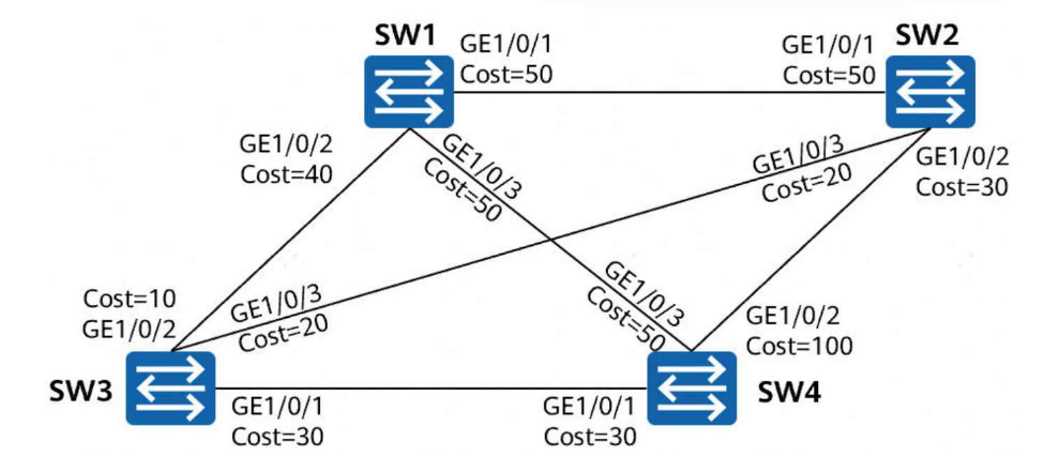

In Spanning Tree Protocol (STP), traffic forwarding follows the loop-free topology established. To determine the path from the root bridge (SW1) to any other switch (SW4), we must first determine the lowest cost path from SW4 to the root bridge. This path's ingress port on SW4 becomes its Root Port.

The possible path costs from SW4 to SW1 are:

1. SW4 → SW3 → SW1: Cost = 5 + 10 = 15

2. SW4 → SW2 → SW1: Cost = 10 + 10 = 20

3. SW4 → SW1 (direct): Cost = 25

The path via SW3 has the lowest cost (15). Therefore, traffic from SW1 to SW4 will follow the reverse path: SW1 → SW3 → SW4.

A. The path via SW2 has a higher root path cost (20) compared to the path via SW3 (15), so it is not selected.

C. This path is suboptimal and has an even higher cost (25). STP would not select this redundant path.

D. The direct link has the highest cost (25) and will be blocked on the SW4 side to prevent a loop.

1. Huawei

HCIA-Datacom V1.0 Training Material (2020)

"STP/RSTP Implementation

" Section: STP Path Cost

pp. 198-199. The material explains that a switch selects the path with the lowest root path cost to reach the root bridge.

2. Huawei

HedEx Documentation for VRP V800R012C10

"STP/RSTP Configuration

" Section: STP Algorithm. This section details how the root path cost is calculated by summing the costs of all links on the path to the root bridge.
