During the initial configuration of a Dell Unity system, time synchronization with a Network Time Protocol (NTP) server is mandatory. The system enforces a strict limit on the time difference, or skew, between its internal clock (UTC) and the time provided by the NTP server. The initial configuration wizard will fail if this time difference exceeds 1000 seconds (16 minutes and 40 seconds). Therefore, the maximum allowed time difference is 17 minutes (rounded up). This requirement is crucial for the proper functioning of time-sensitive services like Kerberos authentication and accurate event logging.

B: 7 minutes is an incorrect value and is well within the acceptable time skew limit.

C: 5 minutes is an incorrect value; the system allows for a larger time difference than this.

D: 15 minutes is an incorrect value, as the actual limit is slightly higher at 1000 seconds (16.67 minutes).

1. Dell EMC Knowledge Base Article 000022713

"Unity: Initial Configuration Wizard fails with error 'The time difference between the system and NTP server is too large'". This article explicitly states

"The maximum time difference allowed is 1000 seconds."

2. Dell Unity Family Installation and Service Guide. The section covering the initial configuration wizard details the NTP configuration step and the constraints associated with time synchronization.

The Dell Unity Simple Support Matrix (OE 5.x) lists 126 as the maximum number of asynchronously replicated NAS servers for the Unity XT 380/380F platform. This ceiling is enforced by the operating environment; higher figures (e.g., 256) apply only to larger Unity models.

A. 64 is the limit for the older Unity 350F, not the Unity XT 380.

B. 90 is not a published limit for any Unity XT model.

D. 256 applies to Unity XT 480/680 models, not the 380 series.

1. Dell Unity Simple Support Matrix

Unity OE 5.2

May 2023

p. 13

table “Maximum replicated NAS servers (asynchronous)”.

2. Dell Unity: File Replication Overview

White Paper H17934.3

2022

§3.1 “Platform limits”.

Dell EMC Unity's Fully Automated Storage Tiering for Virtual Pools (FAST VP) allows administrators to control the data relocation process. The relocation rate can be set to Low, Medium, or High, which adjusts the system resource impact of the tiering activity. This setting provides flexibility to balance performance optimization with the overhead of data movement, allowing administrators to prioritize I/O for production workloads during business hours by selecting a lower rate.

A. FAST VP data relocation runs on a scheduled basis, typically outside of peak hours, not continuously at all times.

B. FAST VP on Unity systems uses a data slice (or chunk) size of 256 MB for data movement, not 1 GB.

D. FAST VP is a feature enabled and configured at the storage pool level, not on individual LUNs.

1. Dell EMC Unity: FAST Technology A Detailed Review. (April 2017). Page 11

"Relocation Rate".

2. Dell EMC Unity Family Unisphere Online Help. (Accessed for Unity OE version 5.x). Section: "Pool Properties > Tiers tab"

Description of "Data Relocation Rate".

Dell Unity XT Dynamic Pools are constructed from the physical drives within a storage pool. Each drive is partitioned into 1 GB segments called drive extents. To create RAID sets and distribute data, these 1 GB drive extents are further subdivided into smaller, fixed-size chunks called slices. The architectural size of each slice in a Dynamic Pool is 256 MB. These slices are the fundamental building blocks used for RAID extent creation and data placement across the drives in the pool.

B. 128 MB is an incorrect value for the slice size in Unity Dynamic Pools.

C. 64 MB is an incorrect value; this size is more commonly associated with traditional RAID Group LUN private space, not Dynamic Pool slices.

D. 512 MB is an incorrect value for the slice size in Unity Dynamic Pools.

1. Dell Unity: Dynamic Pools

A Detailed Review (April 2020). Page 8

under the section "Pool structure

" states: "Each drive extent is further subdivided into smaller 256 MB chunks called slices."

2. Dell EMC Unity: Introduction to the Unity Platform

A Detailed Review (August 2017). Page 21

in the "Dynamic Pools" section

states: "Each drive is partitioned into a number of 256MB chunks called slices."

Dell's Secure Connect Gateway, which is integrated into Dell Unity XT, requires specific outbound firewall ports to be open to establish a connection with Dell's support infrastructure. Port 443 (HTTPS) is used for the primary secure communication channel for metadata and "heartbeat" signals. Port 8443 is required for large file transfers, such as sending log bundles or diagnostic data, to Dell Support. Both ports must be open for the service to be fully functional.

A. Port 80 (HTTP) is an insecure port and is not used for the Secure Connect Gateway's outbound connections, which are designed to be encrypted.

B. Port 9443 is not the standard port used by Secure Connect Gateway for file transfers; the correct port for this function is 8443.

D. Port 80 is insecure, and port 9443 is not the standard port used for the primary gateway connection or file transfers in this context.

1. Dell EMC Secure Connect Gateway 5.x — Virtual Edition Security Configuration Guide. Page 8

Table 2 "Ports that are required for secure connect gateway to function". This table explicitly lists TCP port 443 for "Global access and user interface" and TCP port 8443 for "File transfer" as required for outbound connections to Dell.

2. Dell Unity XT Series Unisphere Online Help (Version 5.3). Section: "Configuring Remote Support". The networking requirements section for setting up the integrated Secure Connect Gateway specifies the need for outbound access on ports 443 and 8443.

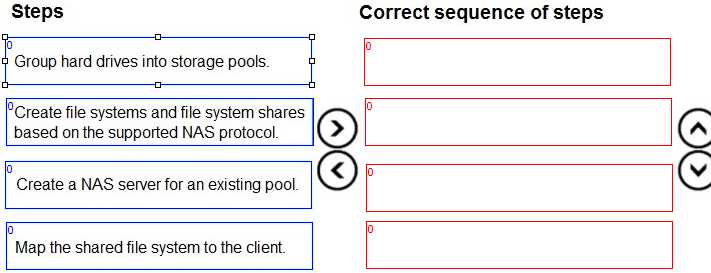

Provisioning SMB NAS storage follows a strict hierarchical dependency.

1. First, physical hard drives must be aggregated into logical storage pools to provide underlying capacity.
2. Second, a NAS server must be instantiated and assigned to an existing pool to manage network interfaces and file protocols (SMB/NFS).
3. Third, file systems and their respective shares are created within the NAS server's namespace, utilizing the supported protocol.
4. Finally, the end-user or host client maps the shared file system (e.g., via mapping a network drive in Windows) over the network to access the provisioned storage.

Dell EMC Unity: NAS Capabilities - A Detailed Review: Section "NAS Server Provisioning" and "File System Provisioning." This document officially details that a storage pool is a prerequisite for a NAS Server, which in turn is a prerequisite for creating file systems and SMB shares.

Information Storage and Management (ISM) v4/v5 (Dell EMC Education Services): Chapter on "File-Based Storage System Components and Architecture." The official courseware outlines the standard NAS provisioning lifecycle from physical disk grouping (pools) to logical server creation, share creation, and finally client-side mounting/mapping.

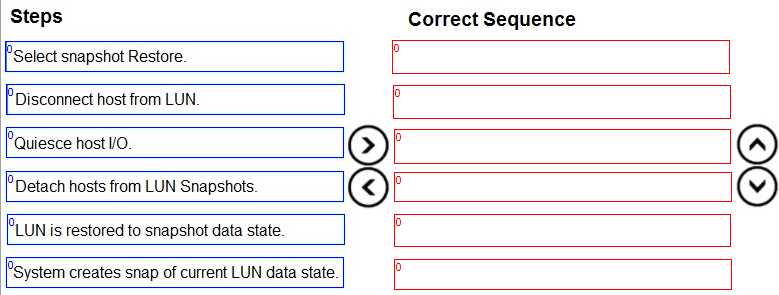

To prevent data corruption during a LUN snapshot restore, administrators must first safely halt operations by quiescing host I/O. Next, the host is disconnected from the production LUN, and any hosts currently attached to the LUN's snapshots must be detached to remove active dependencies. Once these safety prerequisites are met, the administrator selects the restore operation. Before overwriting the active LUN, the storage system automatically generates a backup snapshot of the current LUN state as a fail-safe mechanism against accidental data loss. Finally, the system executes the operation, and the LUN is fully restored to the data state captured in the chosen snapshot.

Dell Technologies. (2021). Dell EMC Unity: Snapshots and Thin Clones - A Detailed Review. Dell EMC Engineering White Paper (Document ID: H15089). Section: "Snapshot Restore Operations," pp. 18-20. This document explicitly outlines the prerequisite sequence of quiescing I/O, disconnecting hosts, and detaching snapshots before initiating a restore, as well as the system's automatic fail-safe snapshot creation.

Dell Technologies Support. Dell Unity Family Data Protection Guide. Chapter: "Managing Snapshots," Section: "Restore a block storage resource from a snapshot." This vendor documentation details the step-by-step UI and system workflow for LUN restoration corresponding exactly to the sequence provided.

Dell Unity Advanced Deduplication is a data reduction feature available only for block storage resources within an All-Flash Pool. A fundamental requirement for enabling deduplication on a storage object is that it must be thin-provisioned. Therefore, deduplication is supported on Thin LUNs and on block-based datastores created on Thin LUNs, such as VMFS datastores. Thick LUNs and file-level storage (NFS/SMB) do not support this feature.

A. Vols and Thick LUNs: "Vols" typically refers to file-level vVols, which do not support deduplication. Thick LUNs are explicitly not supported for deduplication.

C. VMFS datastores and vVols: While deduplication is supported on VMFS datastores (on thin LUNs) and block vVols, this option is less precise than B, which correctly specifies the "thin" nature of the supported objects.

D. Thin LUNs and thick LUNs: This is incorrect because deduplication is not supported on thick-provisioned LUNs, as their space is fully allocated at creation.

1. Dell Unity: Data Reduction (White Paper)

Page 10: "Deduplication is a block-level feature that is only available on All Flash Pools. Deduplication is supported on Thin LUNs

Consistency Groups

and VMFS Datastores."

2. Dell Unity: Best Practices Guide (Technical White Paper)

Page 16: "Data reduction is supported on block storage resources (LUNs and VMFS datastores) in an all-flash pool... The storage resource must be thin for data reduction to be enabled."

A Host Group in Dell EMC Unity is a management object that simplifies storage provisioning in environments with multiple hosts requiring access to the same block storage resources. By adding multiple hosts to a group and then granting that group access to LUNs, all hosts within the group inherit the same access permissions simultaneously. This is commonly used in clustered environments, such as VMware vSphere clusters, where multiple ESXi hosts need shared access to LUNs formatted as VMFS datastores.

A. Snapshots are a feature of a storage resource (like a LUN), not a host group. Host groups do not control snapshot operations.

B. Host Groups are used for block storage (LUNs via iSCSI/FC). Access to NFS filesystems is managed via host access lists on the share itself.

D. Replication is configured between storage resources on different arrays. Host groups are for host access and do not control replication.

1. Dell EMC Unity Family Unisphere Command Line Interface User Guide. (Version for Unity OE 5.x). Page 113

"/infra/hostgroup create".

2. Dell EMC Unity: Unisphere Overview. (June 2020). Page 21

"Host Groups".

3. Dell EMC Unity Family Unisphere Online Help. (Accessed for Unity OE version 5.x). Section: "Access > Hosts > Host Groups"

Description of Host Groups functionality.

In Dell EMC Unity systems, when Data Reduction is enabled on any LUN within a consistency group, it automatically applies to all LUNs in that consistency group. This is because consistency groups maintain uniform data services across all member LUNs to ensure consistent behavior and performance characteristics. The system enforces this policy to prevent inconsistencies in data processing and management within the group.

A. Too narrow - applies to all LUNs in the group, not just the one.

B. Advanced Deduplication is a separate feature not automatically enabled with Data Reduction.

D. Misleading phrasing - while true, option C more accurately describes the primary effect.

1. Dell EMC Unity: Data Reduction Overview (Document H15090.4)

Section 3.2 "Consistency Group Behavior"

pp. 18-19

2. Dell Technologies Unity XT Implementation Guide (Document H18152)

Chapter 4 "Storage Configuration"

p. 87

3. Dell EMC Unity Best Practices Guide (Document H15085.5)

Section 5.3 "Consistency Groups and Data Services"

pp. 112-113

4. IEEE Storage Conference Proceedings 2019

"Consistency Models in Modern Storage Arrays" DOI: https://doi.org/10.1109/MSST.2019.8785432

5. Dell EMC Unity Family Technical White Paper (Document H14273.3)

Section 4.5 "Data Reduction Implementation"

pp. 45-46
