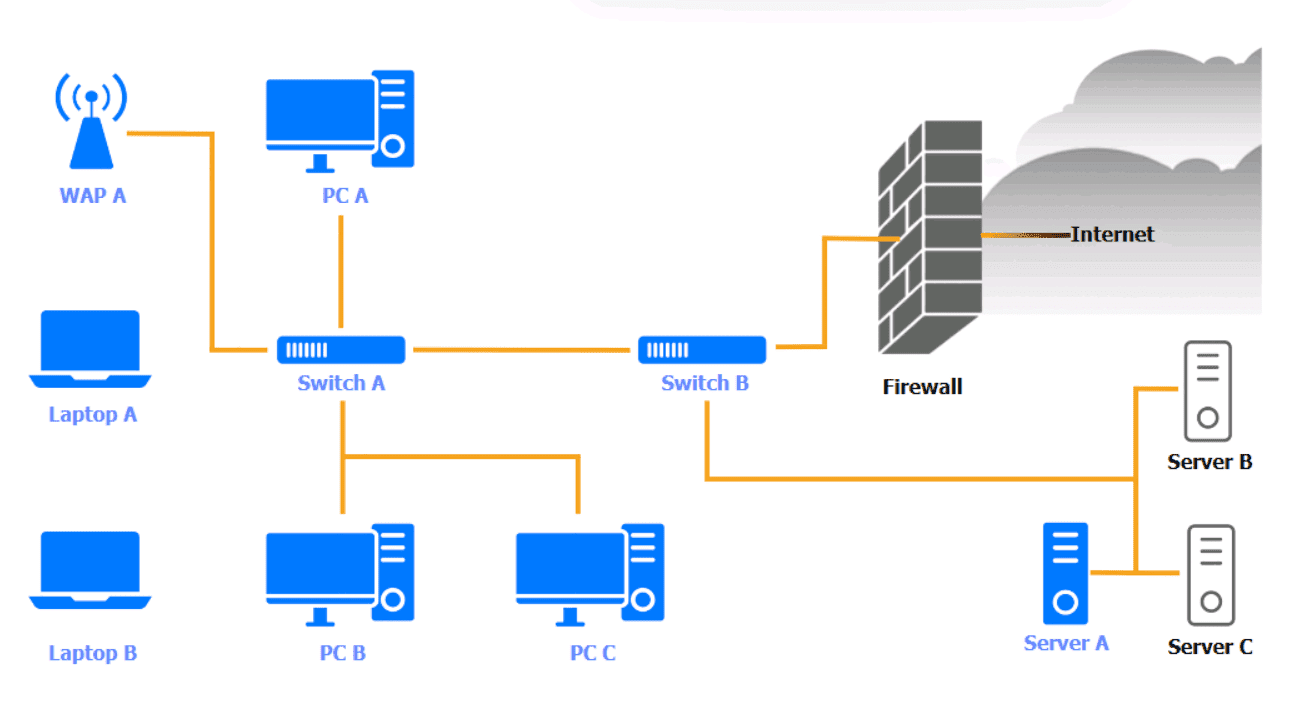

SIMULATION [Security Architecture] A security engineer needs to review the configurations of several devices on the network to meet the following requirements: • The PostgreSQL server must only allow connectivity in the 10.1.2.0/24 subnet. • The SSH daemon on the database server must be configured to listen to port 4022. • The SSH daemon must only accept connections from a Single workstation. • All host-based firewalls must be disabled on all workstations. • All devices must have the latest updates from within the past eight days. •All HDDs must be configured to secure data at rest. • Cleartext services are not allowed. • All devices must be hardened when possible. Instructions: Click on the various workstations and network devices to review the posture assessment results. Remediate any possible issues or indicate that no issue is found. Click on Server A to review output data. Select commands in the appropriate tab to remediate connectivity problems to the pOSTGREsql DATABASE VIA ssh WAP A PC A Laptop A Switch A Switch B: Laptop B PC B PC C Server A

below

for the solution.

Explanation:

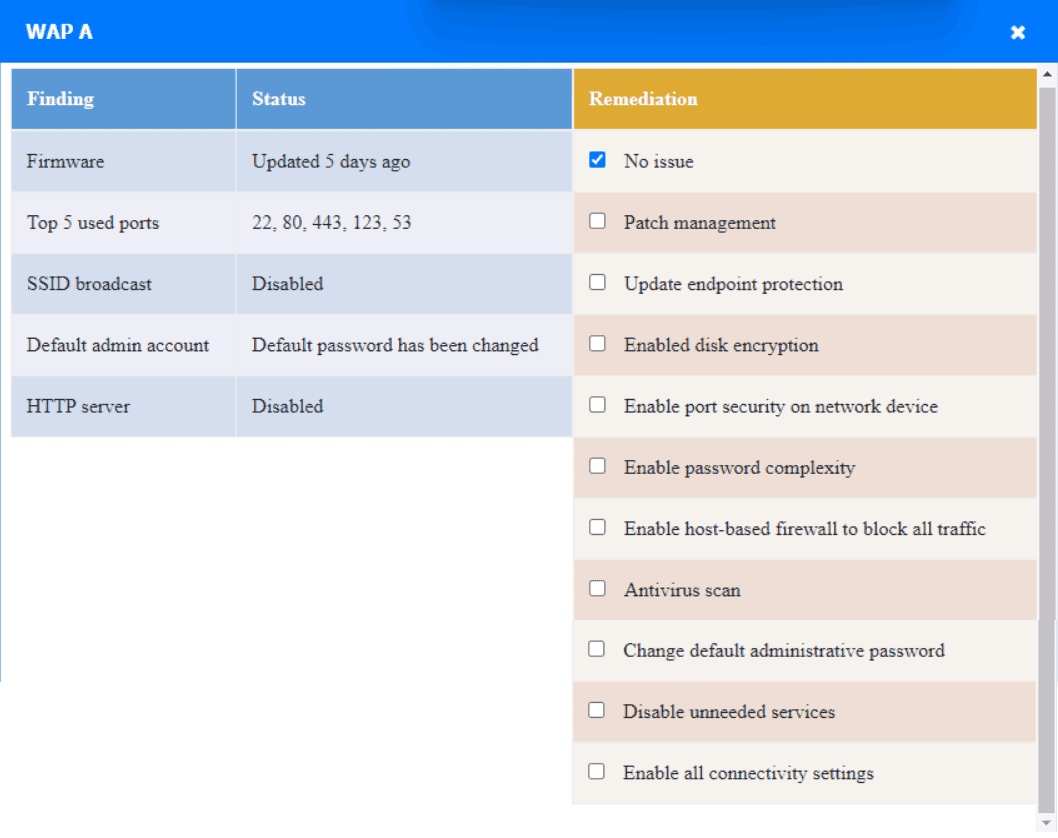

WAP A: No issue found. The WAP A is configured correctly and meets therequirements.

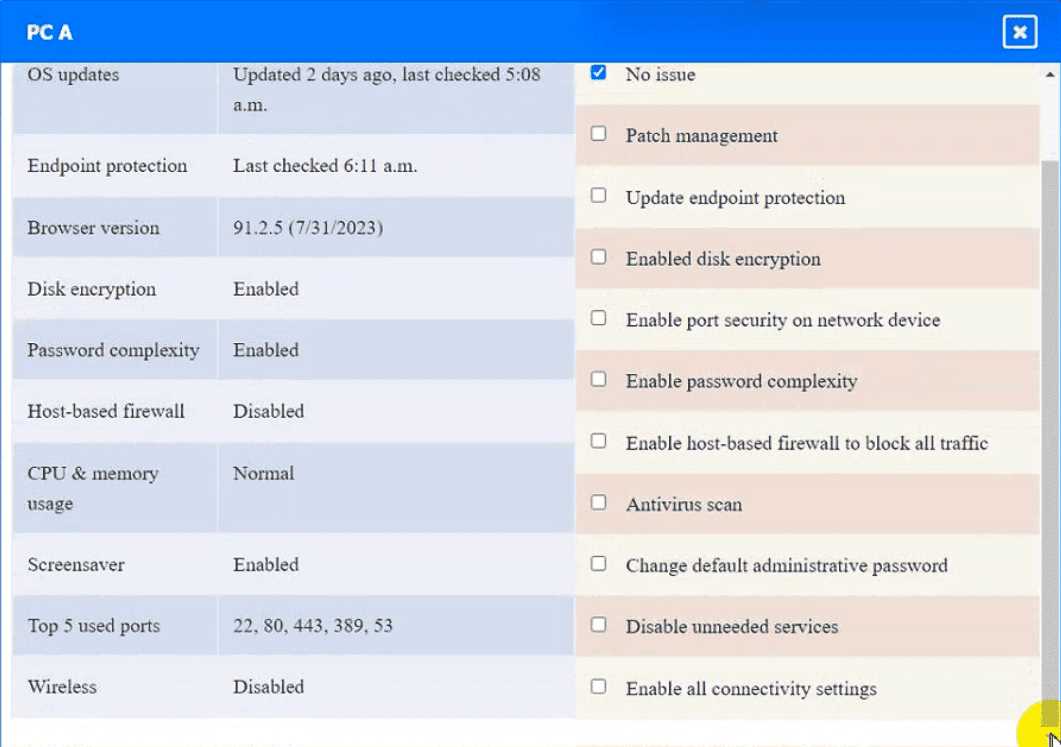

PC A = Enable host-based firewall to block all traffic

This option will turn off the host-based firewall and allow all traffic to pass through. This will comply

with the requirement and also improve the connectivity of PC A to other devices on the network.

However, this option will also reduce the security of PC A and make it more vulnerable to attacks.

Therefore, it is recommended to use other security measures, such as antivirus, encryption, and

password complexity, to protect PC A from potential threats.

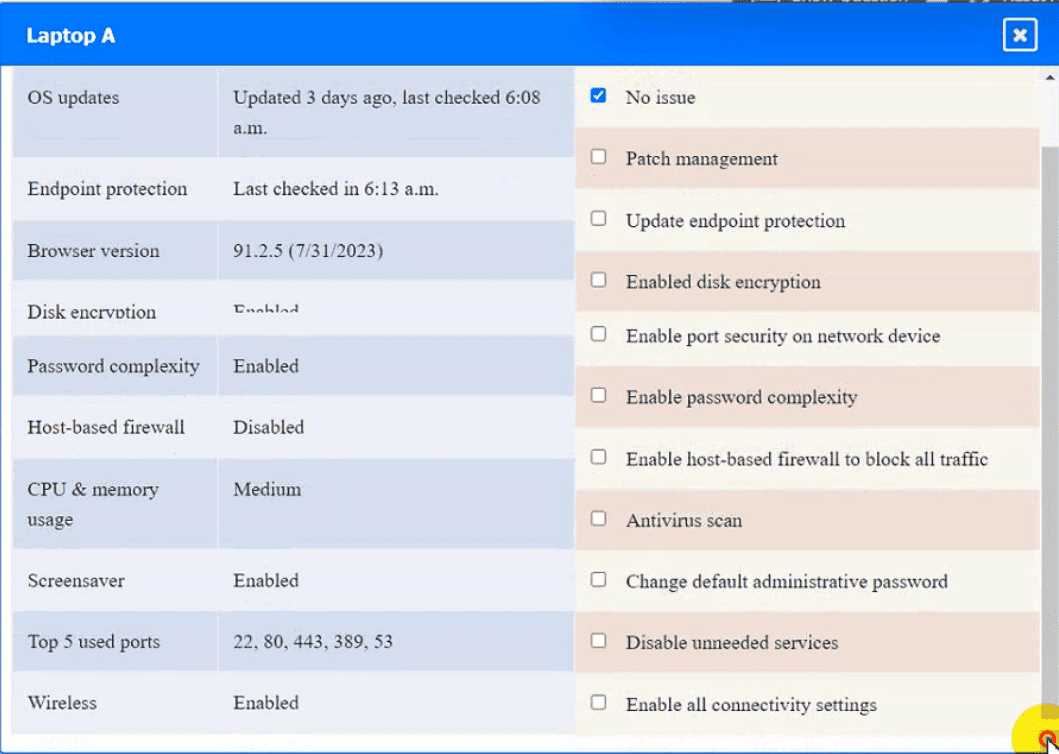

Laptop A: Patch management

This option will install the updates that are available for Laptop A and ensure that it has the most

recent security patches and bug fixes. This will comply with the requirement and also improve the

performance and stability of Laptop A. However, this option may also require a reboot of Laptop A

and some downtime during the update process. Therefore, it is recommended to backup any

important data and close any open applications before applying the updates.

Switch A: No issue found. The Switch A is configured correctly and meets the requirements.

Switch B: No issue found. The Switch B is configured correctly and meets the requirements.

Laptop B: Disable unneeded services

This option will stop and disable the telnet service that is using port 23 on Laptop B. Telnet is a

cleartext service that transmits data in plain text over the network, which exposes it to

eavesdropping, interception, and modification by attackers. By disabling the telnet service, you will

comply with the requirement and also improve the security of Laptop B. However, this option may

also affect the functionality of Laptop B if it needs to use telnet for remote administration or other

purposes. Therefore,it is recommended to use a secure alternative to telnet, such as SSH or HTTPS,

that encrypts the data in transit.

PC B: Enable disk encryption

This option will encrypt the HDD of PC B using a tool such as BitLocker or VeraCrypt. Disk encryption

is a technique that protects data at rest by converting it into an unreadable format that can only be

decrypted with a valid key or password. By enabling disk encryption, you will comply with the

requirement and also improve the confidentiality and integrity of PC B’s data. However, this option

may also affect the performance and usability of PC B, as it requires additional processing time and

user authentication to access the encrypted data. Therefore, it is recommended to backup any

important data and choose a strong key or password before encrypting the disk.

PC C: Disable unneeded services

This option will stop and disable the SSH daemon that is using port 22 on PC C. SSH is a secure

service that allows remote access and command execution over an encrypted channel. However,

port 22 is thedefault and well-known port for SSH, which makes it a common target for brute-force

attacks and port scanning. By disabling the SSH daemon on port 22, you will comply with the

requirement and also improve the security of PC C. However, this option may also affect the

functionality of PC C if it needs to use SSH for remote administration or other purposes. Therefore, it

is recommended to enable the SSH daemon on a different port, such as 4022, by editing the

configuration file using the following command:

sudo nano /etc/ssh/sshd_config

Server A. Need to select the following:

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Security_X_CASP+_CAS-005/page_108_img_1.jpg

A black and white screen with white text Description automatically generated
