The istioctl command-line interface tool is used to manage and debug an Istio service mesh. It includes a specific subcommand, istioctl analyze, which is designed to perform diagnostic analysis on Istio configurations. This command can inspect a live Kubernetes cluster or local configuration files to detect potential issues, such as misconfigurations or deviations from best practices. It then prints validation messages and suggestions for resolution, directly matching the functionality described in the question.

A. calicoctl: The calicoctl CLI is for managing Calico network policies and configurations. It does not have an analyze command; its primary diagnostic tool is calicoctl node diags.

B. oc: The oc CLI is the primary tool for managing OpenShift Container Platform clusters. It lacks a specific analyze subcommand for general resource validation in the manner described.

C. cloudctl: The cloudctl CLI is the IBM Cloud Pak CLI, used for tasks like managing catalogs, PPA archives, and installation processes, not for in-depth resource configuration analysis.

1. Istio Documentation: The official documentation for istioctl explicitly describes the analyze command. It states

"Analyzes Istio configuration and warns about potential issues. It can analyze a live cluster

a local directory of YAML files

or individual files."

Source: Istio / istioctl analyze Reference

Section: "Synopsis". (Available on the official Istio website: istio.io)

2. Project Calico Documentation: The command reference for calicoctl in the official Project Calico documentation lists all available commands

such as get

create

apply

and node diags. The analyze command is not present.

Source: Project Calico Documentation / calicoctl / Command Reference. (Available on the official Project Calico documentation website: projectcalico.docs.tigera.io)

3. OpenShift Container Platform Documentation: The OpenShift CLI reference documentation details the available oc commands. There is no analyze command listed for general configuration validation. Diagnostic and validation tasks are handled by other commands like oc adm must-gather.

Source: OpenShift Container Platform 4.10 Documentation / CLI tools / OpenShift CLI (oc) / oc command reference. (Available on the official Red Hat OpenShift documentation website: docs.openshift.com)

4. IBM Documentation: The documentation for the IBM Cloud Pak CLI (cloudctl) outlines its commands

which are focused on installation and lifecycle management (e.g.

case

catalog

login). It does not include a resource configuration analysis tool named analyze.

Source: IBM Documentation / IBM Cloud Paks / IBM Cloud Pak foundational services / Installing / Using the IBM Cloud Pak CLI (cloudctl). (Available on the official IBM documentation website: www.ibm.com/docs)

IBM defines Agile Integration not as a single technology or pattern, but as a comprehensive rethinking of the integration discipline. It is an architectural approach based on three core pillars: decentralized integration (affecting people and ownership), fine-grained architecture (using APIs, microservices, and event-driven patterns), and cloud-native infrastructure (the underlying technology). This holistic view, which combines changes in people, architecture, and technology to achieve speed and flexibility, is most accurately captured by option D. The other options describe specific components or patterns within this broader approach.

A. Unlocking enterprise data securely using integration powered APIs is a key capability within Agile Integration's fine-grained architecture pillar, but it does not define the entire approach.

B. Implementing event-driven architectures is one of several important patterns for building fine-grained, real-time integrations, but it is not the overarching definition of Agile Integration.

C. Adopting microservices is a foundational architectural style for creating the fine-grained integration components central to Agile Integration, but it only represents the "architecture" aspect, not the people and technology pillars.

1. IBM Redbooks. (2020). Agile Integration with IBM Cloud Pak for Integration. (Publication No. SG24-8453-00). IBM. In Chapter 1

"Introduction to agile integration

" Section 1.1

the text introduces Agile Integration as a comprehensive "architectural approach" with three core tenets: decentralized integration

fine-grained integration

and cloud-native infrastructure

which directly map to people

architecture

and technology.

2. IBM Cloud Learn Hub. (n.d.). What is agile integration? IBM. Retrieved from the official IBM website. This resource defines Agile Integration as "an approach to connecting applications

data

and systems that emphasizes speed

flexibility

and collaboration

" highlighting its nature as a methodology rather than a single technology.

3. IBM Developer. (2018). An architect's guide to agile integration. IBM. This guide explicitly frames Agile Integration as a "rethinking of the integration discipline" and details the three pillars: Decentralized integration (People)

Fine-grained architecture (Architecture)

and Cloud-native infrastructure (Technology)

directly supporting the chosen answer.

IBM API Connect provides a powerful assembly editor that allows developers to create APIs by orchestrating policies. A key feature is the ability to build composite APIs. Using policies like invoke, developers can call multiple backend services to access various data assets. The map policy can then be used to transform and combine the data from these different sources into a single, unified response. This allows API Connect to create a facade that accesses, transforms, and combines data from enterprise applications and systems, exposing it as a new, managed API.

A. This is a high-level description of the entire product category (API Management), not a specific, distinguishing feature of the IBM API Connect capability.

B. This lists the general pillars of any API management platform (security, control, access). It is a correct but less specific description of a feature compared to option D.

C. Building integration flows with a large library of pre-built connectors for SaaS products is a core feature of IBM App Connect, a different product from IBM API Connect.

1. IBM Documentation for API Connect v10.x

"Working with policies in the assembly editor": "You can use the assembly editor to create an assembly of policies that manipulate the request and response of your API operations... For example

you can use an invoke policy to call a backend service

and a map policy to transform the response from that service before it is returned to the calling application." This directly supports the capability to access

transform

and combine data assets.

2. IBM Documentation for API Connect v10.x

"Invoke policy": "The invoke policy is used to call a web service from within an assembly flow... You can configure the invoke policy to call a web service that is exposed by a backend server

or to call another API that is managed by API Connect." This confirms the "access" part of the correct answer.

3. IBM Documentation for API Connect v10.x

"Map policy": "The map policy enables you to transform data between the request and response... by mapping fields from a set of input variables to a set of output variables." This confirms the "transform and combine" part of the correct answer.

App Connect Enterprise (ACE) achieves high availability (HA) for its stateless integration servers by running multiple, independent replicas. A load balancer distributes traffic among these active instances, and if one fails, traffic is simply redirected to the others. This architecture does not require a quorum-based consensus among the ACE nodes.

Similarly, Aspera High-Speed Transfer Server provides HA through an active-passive configuration. In this model, a primary server handles all operations while a standby server monitors it. If the primary fails, the standby takes over its identity and functions. This failover mechanism does not depend on a quorum.

A. MQ: Native HA for MQ explicitly requires a three-node quorum to replicate data and elect a leader, preventing split-brain scenarios.

D. Event Streams: Built on Apache Kafka, which uses a ZooKeeper ensemble for cluster coordination. ZooKeeper requires a quorum (a majority of nodes) to be operational.

E. API Connect: The management subsystem's database cluster requires a quorum (a majority of pods) to remain functional and ensure data consistency.

1. App Connect Enterprise: IBM Documentation

"High availability for integration servers". It states

"Because integration servers are stateless

you can achieve high availability by running multiple replicas of an integration server." This model of independent

load-balanced replicas does not use a quorum. (IBM Cloud Pak for Integration documentation

App Connect

High availability).

2. Aspera: IBM Documentation

"Aspera High-Speed Transfer Server Admin Guide"

Section: "High Availability Active/Passive". This section details the two-node active-passive setup with a floating IP address

a classic non-quorum HA architecture.

3. MQ: IBM Documentation

"Native HA". It specifies

"A native HA group consists of three queue managers... The three nodes communicate with each other... determining which is the active queue manager. This is known as the quorum." (IBM MQ 9.3.x documentation

High availability

Native HA).

4. Event Streams: IBM Documentation

"Planning for an enterprise deployment of Event Streams". It explains that the ZooKeeper nodes

which manage the Kafka cluster

"form a quorum" and that "an odd number of servers is required". (IBM Cloud Pak for Integration documentation

Event Streams

Planning for high availability).

5. API Connect: IBM Documentation

"High availability and disaster recovery for the management subsystem". It states

"For a management subsystem to remain fully functional

a majority of the database pods in the cluster must be available (a quorum)." (IBM API Connect 10.x documentation

Deploying

High availability and disaster recovery).

The agile integration paradigm fundamentally shifts ownership of integration capabilities from a central team to the application development teams. To facilitate this decentralized model and achieve development agility, the underlying asynchronous infrastructure (messaging and events) must provide self-service capabilities. Self-provisioning and self-administration empower teams to create, configure, and manage their own resources (like queues or topics) on-demand, eliminating dependencies and bottlenecks associated with a central IT team. This autonomy is a cornerstone of agile integration, directly enabling faster development and deployment cycles.

A. While desirable, a simple HA topology is not a defining requirement. Agile integration can be supported by complex, distributed architectures as long as they are automated and manageable via self-service.

B. Converting messages to events is a specific integration pattern or function, not a fundamental characteristic of the infrastructure required to support the agile integration methodology itself.

D. Centralized logging is a crucial operational and observability feature for any distributed system, but it primarily supports administration and troubleshooting rather than directly enabling the development agility and team autonomy that define the paradigm.

1. IBM Cloud Pak for Integration Documentation (v2022.4)

"Overview of IBM Cloud Pak for Integration". In the section describing the platform's approach

it states: "Empower extended teams to create integrations securely

leveraging self-service capabilities that promote reuse." This directly links self-service to the empowerment of development teams

a key goal of agile integration.

2. IBM Architecture Center

"Agile integration architecture: An introduction"

Section: "Decentralized ownership". The article explicitly states

"To enable teams to work in this decentralized way

they need to be able to self-serve the integration capabilities that they need

when they need them." This confirms that self-provisioning is a mandatory feature.

3. IBM Redbooks

"Modernizing Applications for IBM Cloud Pak for Integration (SG24-8480-00)"

Chapter 2

Section 2.1.2 "Agile integration". This section discusses the three tenets of agile integration

including "Decentralized integration ownership

" which is achieved by providing teams with self-service access to integration runtimes and capabilities.

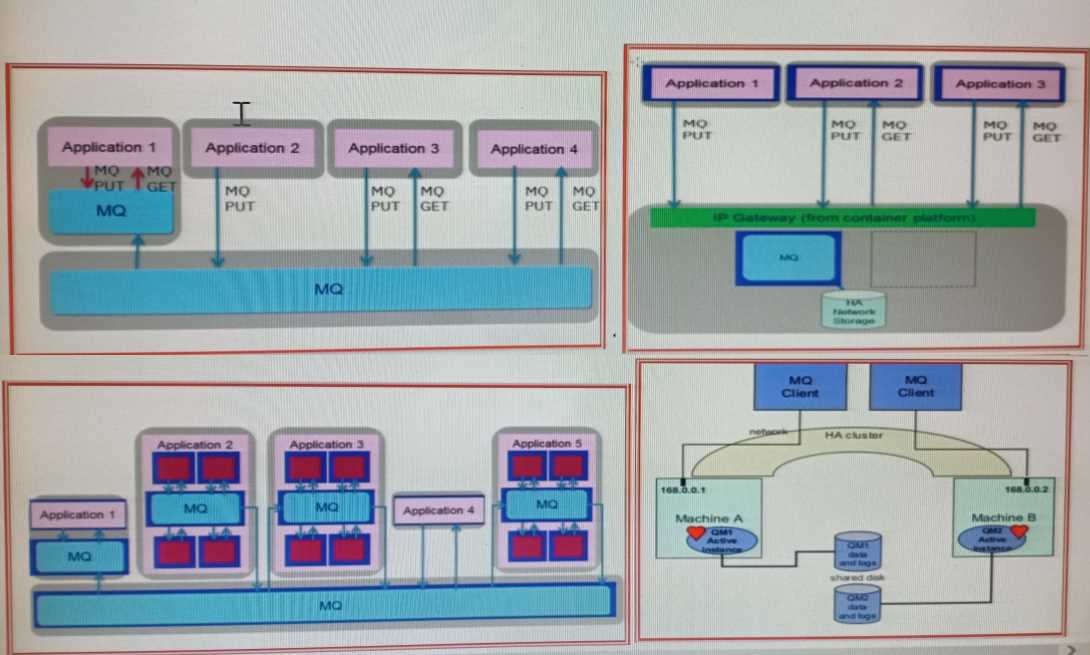

The provided diagram illustrates a Hybrid MQ Architecture. This model integrates both centralized and decentralized messaging patterns within the same system.

Some components (Applications 2, 3, and 5) are shown in a decentralized, container-style pattern, each with its own dedicated MQ queue manager. This provides agility and isolation for modern, microservices-based applications.

Simultaneously, a large, shared MQ instance serves as a central messaging backbone. This centralized component is used by other applications (like Application 4) and also facilitates communication between the newer decentralized applications and legacy systems. This hybrid approach is common in enterprises that are progressively modernizing from a monolithic architecture to a microservices-based one.

IBM Redbooks Publication: Application Modernization with IBM MQ, SG24-8483-00. Chapter 2, "Architectural evolution and modernization patterns," discusses how enterprises evolve from traditional, centralized messaging topologies to modern, agile ones. It describes scenarios where new, containerized MQ deployments for microservices coexist and integrate with an established, centralized MQ infrastructure, creating a hybrid environment.

Newman, S. (2019). Monolith to Microservices: Evolutionary Patterns to Transform Your Monolith. O'Reilly Media. Chapter 4, "Splitting the Monolith," describes migration strategies where new microservices are created alongside a legacy monolith. The resulting communication patterns often create a hybrid topology, where new services use decentralized messaging while still needing to connect back to a central enterprise service bus (ESB) or message broker.

Richards, M. (2020). Fundamentals of Software Architecture: An Engineering Approach. O'Reilly Media. The book contrasts broker-based (centralized) and brokerless (decentralized) messaging topologies, noting that in real-world systems, hybrid models are often implemented to leverage the benefits of both patterns or to accommodate architectural transitions.

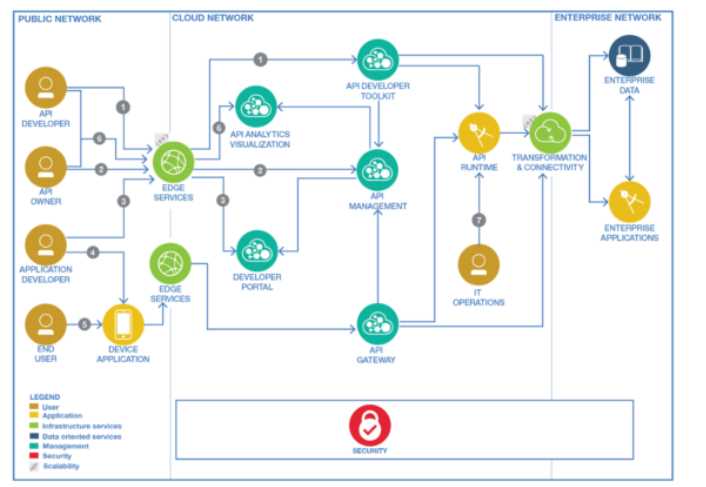

The API Owner (often synonymous with API Product Manager) is the role responsible for the business and lifecycle management of an API. This role's key responsibilities include defining the API as a product by bundling it into plans, specifying business-level policies such as access control and rate limits, and deciding when to publish the API to the developer portal for consumption by Application Developers. While the API Developer writes the code, the API Owner is responsible for its strategic packaging, governance, and release, as depicted by the flow from the API Owner to the API Management component in the diagram.

IBM API Connect v10 Documentation: Administering user access. The documentation defines roles within an API management platform. The "Product Manager" role is explicitly granted permissions to "manage and publish Products," which encompasses creating plans, setting visibility, and controlling subscriptions. The API Owner of an organization holds these responsibilities.

Stolte, A., & Pautasso, C. (2021). From APIs to Composable Ecosystems: A Process Model for API Management. In Service-Oriented and Cloud Computing (pp. 3-19). Springer, Cham. Section 3, "API Management Process Model," outlines the API lifecycle. It distinguishes the development phase from the "Publication" and "Management" phases, where decisions about API productization, access policies, and visibility in a portal are made. These tasks are attributed to a product management or ownership role. DOI: https://doi.org/10.1007/978-3-030-88219-5_1

Ameller, D., & Franch, X. (2020). A framework for API development and management. Information and Software Technology, 127, 106367. Section 4.2, "API Management," discusses the activities involved in managing APIs, including "defining access rights" and "API publication." The paper's framework assigns these governance and publication activities to a role distinct from the technical developer. DOI: https://doi.org/10.1016/j.infsof.2020.106367

The correct sequence follows the standard API lifecycle workflow in IBM API Connect.

1. First, an API definition must be created or imported. This is the foundational step.
2. Next, security definitions (e.g., API Key, OAuth) are added to the API. This defines what security schemes are available.
3. Then, these definitions are referenced in the API's security section to enforce them on API operations.
4. APIs are not published directly; they must be bundled into a Product. Therefore, the secured API is added to a Product definition.
5. Finally, the Product is published to a Catalog (like the Sandbox catalog), making the API accessible to developers.

IBM API Connect v10.x Documentation, "Tutorial: Creating a proxy API": This tutorial demonstrates the initial step is always to create the API definition itself before any other configuration can be applied.

IBM API Connect v10.x Documentation, "Securing your API": This document clarifies the two-part process for applying security. First, you create one or more Security Definitions in the API. Second, you create a Security Requirement that references those definitions to apply them to the API. This validates that "Add security definitions" precedes "Reference the security definitions."

IBM API Connect v10.x Documentation, "Working with Products": This source states: "To make an API available to your users, you must include it in one or more Products... When you have finished creating your Product you can publish it to make the APIs that it contains available to developers." This confirms that an API must be added to a Product before it can be published.

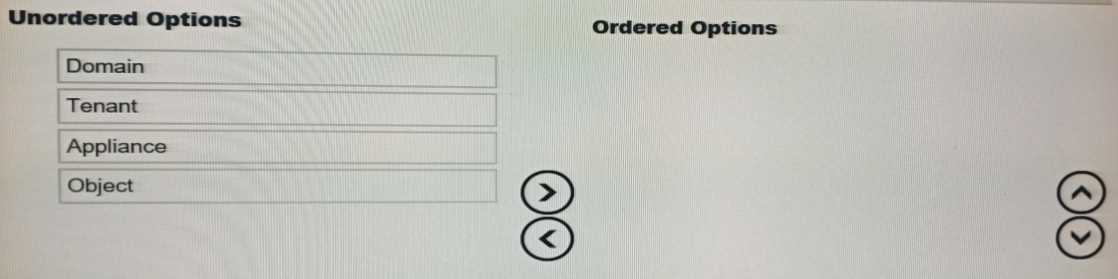

The dependency order in IBM DataPower Gateway follows a clear hierarchical structure, from the physical or virtual platform down to individual configuration settings.

1. Appliance: This is the top-level container, representing the physical or virtual DataPower Gateway itself. All other components and configurations reside on the appliance.
2. Tenant: On supported models, an appliance can be partitioned into logically isolated instances called tenants. Each tenant receives a dedicated portion of the appliance's resources, effectively operating as a self-contained virtual appliance.
3. Domain: Within an appliance or a tenant, an application domain is a logical partition used to isolate development, testing, or production configurations. Each domain contains its own set of services and resources.
4. Object: An object is the most granular component. It represents a specific configuration instance, such as a Multi-Protocol Gateway, a processing policy, or a cryptographic profile, and always exists within a specific domain.

IBM DataPower Gateway v10.5.x Documentation, "Tenants": This document states, "A tenant is a logical grouping of a landlord-defined portion of the appliance resources." This establishes that a Tenant is a partition of the Appliance.

IBM DataPower Gateway v10.5.x Documentation, "Application domains": This source defines a domain as a logical partition in the DataPower Gateway. It explains, "With the exception of the default domain, each application domain is a configuration partition in the system." This places the Domain within the broader Appliance/Tenant structure.

IBM DataPower Gateway v10.5.x Documentation, "Configuration management": This section describes how configurations are made of objects and that these objects are managed within specific application domains. For example, when exporting a configuration, you select the objects from a specific domain, confirming that objects are nested within domains.

The correct sequence for configuring TLS profiles in IBM API Connect follows the platform's hierarchical structure and component dependencies.

1. Organization: The configuration starts at the highest level, which is the provider Organization. This entity acts as a container for all other components like Catalogs, APIs, and Products.
2. Catalog: Within an Organization, you create a Catalog, which serves as a staging target for APIs. Key configurations, including the TLS profiles for the associated API gateway, are managed at this level.
3. Portal: The Developer Portal is a service associated with a specific Catalog. Its TLS profile is configured within the parent Catalog's settings to secure the portal's website.
4. Space: A Space is a subdivision within a Catalog. Official documentation states that before you can enable and use Spaces, the parent Catalog and its associated Developer Portal must already be configured. Therefore, Space configuration is the final step in this sequence.

IBM API Connect v10.x Documentation, "Administering Catalogs": This source details the API Connect hierarchy, stating: "A Catalog is created within a provider organization... A Space is a subdivision of a Catalog." This establishes the Organization -> Catalog -> Space sequence.

IBM API Connect v10.x Documentation, "Securing the Developer Portal": The procedure for assigning a TLS profile to the Portal website explicitly shows that this action is performed within the settings of a specific Catalog. This confirms that Portal configuration is dependent on and occurs after the Catalog is established.

IBM API Connect v10.x Documentation, "Using syndication in IBM API Connect": This document clarifies the dependency between the Portal and Spaces. It states, "Before you can enable Spaces in a Catalog, you must have configured the user registries for the Catalog and the associated Developer Portal." This confirms that Portal configuration must precede Space configuration.
