Both Azure Application Insights and Azure SQL Database Intelligent Insights send their diagnostic and telemetry data to Azure Monitor Logs. The service used to query this data is Azure Log Analytics. The query language used within Azure Log Analytics is the Kusto Query Language (KQL). Although KQL is the specific language, "Azure Log Analytics" is the correct option as it represents the platform and its associated query capability for analyzing this monitoring data. The other options are query languages for different database systems and are not used for querying Azure Monitor telemetry.

A. PL/pgSQL: This is a procedural programming language for the PostgreSQL database system, not for querying logs in Azure Monitor.

B. Transact-SQL: This is used to query the data within an Azure SQL Database, not the monitoring and diagnostic logs stored in Azure Monitor Logs.

D. PL/SQL: This is Oracle Database's procedural extension for SQL and is irrelevant to querying Azure monitoring services.

---

1. Microsoft Docs | Azure Monitor | Log queries in Azure Monitor: "Azure Monitor Logs is based on Azure Data Explorer

and log queries are written by using the same Kusto Query Language (KQL). KQL is a rich language designed to be easy to read and author

so you should be able to start writing queries with some basic guidance."

Reference: docs.microsoft.com/en-us/azure/azure-monitor/logs/log-query-overview

Section: "Who uses KQL?".

2. Microsoft Docs | Azure Application Insights | Application Insights data model: "All telemetry in Application Insights is represented as a data model of typed telemetry items... All telemetry is ultimately stored in an Azure Monitor Logs workspace as traces

exceptions

requests

etc."

Reference: docs.microsoft.com/en-us/azure/azure-monitor/app/data-model

Introduction section.

3. Microsoft Docs | Azure SQL Database | Use the Intelligent Insights diagnostics log: "You can use Azure Monitor logs with Log Analytics to write queries on the log data and to create alerts... To access

query

and analyze the Intelligent Insights log streamed to Azure Monitor logs

you need to go to the Log Analytics workspace."

Reference: docs.microsoft.com/en-us/azure/azure-sql/database/intelligent-insights-use-diagnostics-log

Section: "Use Log Analytics".

Release gates in Azure Pipelines are the correct mechanism for this scenario. They provide automated control over the promotion of a release from one stage to the next. Gates can be configured to periodically query external services, such as Azure Monitor, for health signals. In this case, a gate can be set up on the production stage to check for active performance-related alerts in the staging environment. If the gate detects alerts that violate the defined performance baseline, it will fail and prevent the deployment to production until the conditions are met.

A. an Azure Scheduler job: Azure Scheduler is a deprecated service for running jobs on a schedule; it is not an integrated control-flow mechanism within an Azure release pipeline.

B. a trigger: Triggers initiate a pipeline or a stage based on an event (e.g., a code commit or completion of a previous stage), but they do not perform conditional health checks to approve a deployment.

D. an Azure function: While an Azure Function can be invoked by a gate to perform a custom health check, the gate itself is the pipeline feature that controls the deployment flow based on the function's result.

1. Microsoft Docs

"Control deployments by using gates": This document explicitly states

"Gates allow automatic collection of health signals from external services and then promote the release when all the signals are successful... Before or after any stage

you can define release gates to query external health services. For example

a gate can query Azure Monitor for active alerts."

Source: Microsoft Learn

"Release gates and approvals overview"

Section: "Use gates to control your deployment".

2. Microsoft Docs

"Control deployments by using gates": This page details the available gate types

including "Query Azure Monitor alerts". It explains

"Use this gate to verify that there are no active alerts for your application. The gate succeeds if there are no alerts at the time of sampling." This directly addresses the scenario of checking performance baselines via alerts.

Source: Microsoft Learn

"Control deployments by using gates"

Section: "Gate types".

3. Microsoft Docs

"Release deployment control using gates": This article provides a use case: "A common use case for release gates is to ensure that the release is deployed to the next stage only if there are no blocking bugs in the product and no active incidents in the monitoring system." This aligns perfectly with preventing deployment due to negative performance impacts.

Source: Microsoft Learn

"Release deployment control using gates"

Section: "Why use gates?".

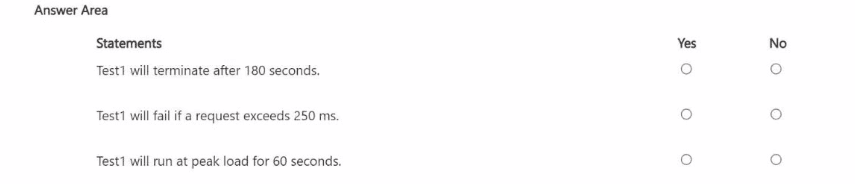

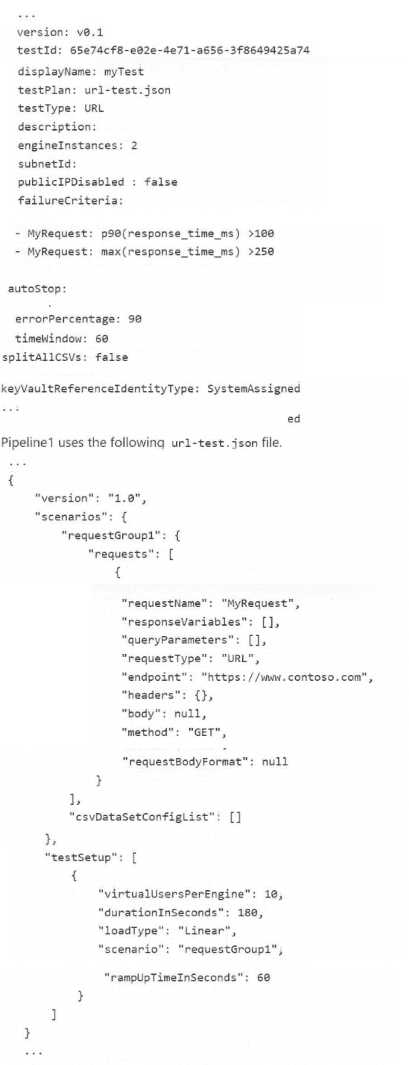

Termination: The url-test.json file explicitly defines durationInSeconds: 180. In Azure Load Testing, this parameter specifies the total duration of the test execution, including the ramp-up period.

Failure Criteria: The YAML configuration includes failureCriteria. The rule - MyRequest: max(response_time_ms) > 250 dictates that if the maximum response time for any individual request exceeds 250 ms, the test status is marked as failed.

Peak Load Duration: The test uses a Linear load type with a rampUpTimeInSeconds of 60 and a total durationInSeconds of 180. The time spent at peak load is calculated as:

Total Duration - Ramp-up Time = 180s - 60s = 120 seconds

Therefore, the statement that it runs at peak for only 60 seconds is incorrect.

Microsoft Learn: Test configuration YAML syntax. Section: "failureCriteria". This document defines how threshold metrics like max(response_time_ms) trigger test failure.

Microsoft Learn: Create and manage load tests with Azure Load Testing. Section: "Test plan (JSON)". Explains that durationInSeconds represents the total execution time.

Microsoft Learn: Configure high-scale load tests. Section: "Ramp-up time". Describes the relationship between ramp-up, total duration, and peak load holding time.

Microsoft Learn: Azure Load Testing auto-stop configuration. Details how errorPercentage and timeWindow (set to 90% and 60s here) can terminate a test prematurely, but the primary scheduled termination is defined by the duration.

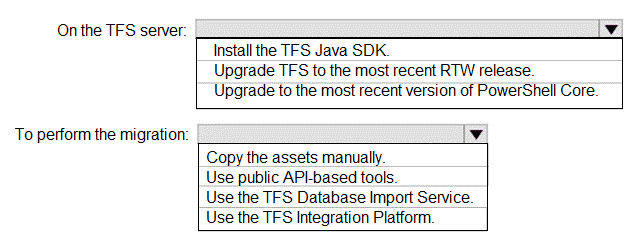

To use the Azure DevOps Data Migration Tool (formerly the TFS Database Import Service), the source TFS instance must be on a supported version, typically the most recent RTW (Release to Web) or Update of Azure DevOps Server (or the latest TFS releases). This method is the only "high-fidelity" migration path that preserves all metadata, including original timestamps for changesets and work item history. Using public APIs or manual copying fails to preserve original "Created Date" or "Changed Date" values, as those tools usually stamp the migration date as the new creation date.

Microsoft Official Documentation: "Migrate data from Azure DevOps Server to Azure DevOps Services," section Supported TFS versions for import. It specifies that the source must be upgraded to a version that matches the current Azure DevOps Service sprint.

Microsoft Official Documentation: "Data migration tool for Azure DevOps," section High fidelity migration. It explicitly states this tool preserves work item IDs, revision history, and changeset dates.

Microsoft Cloud Adoption Framework: "Migration tools for Azure DevOps," comparing API-based tools (like OpsHub or Azure DevOps Migration Tools) vs. the Data Migration Tool; the latter is cited for maintaining full database integrity and history.

Microsoft Docs: "Upgrade your deployment to the latest version of Azure DevOps Server," highlighting that RTW releases are the prerequisite baseline for migration service compatibility.

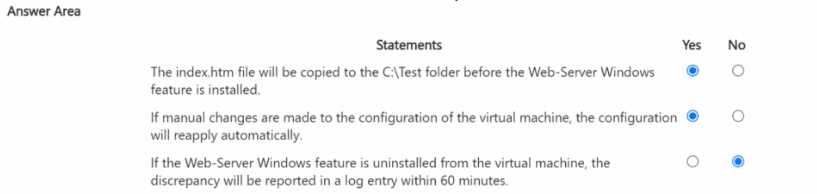

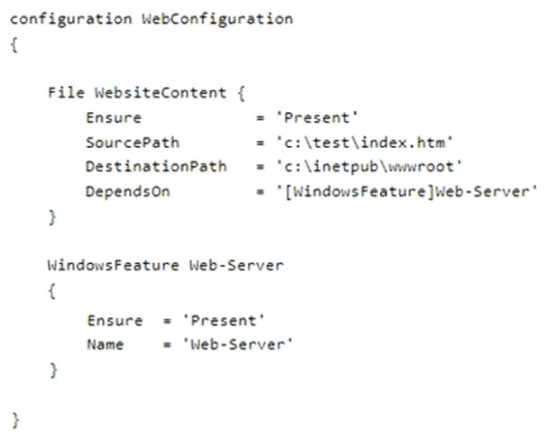

Statement 1 (No): The DependsOn property ensures that the WindowsFeature [Web-Server] resource is processed and present before the File [WebsiteContent] resource is executed. Furthermore, the configuration specifies that the file is copied from C:\Test to C:\inetpub\wwwroot, not into the C:\Test folder.

Statement 2 (No): The ConfigurationMode is set to ApplyAndMonitor. In this mode, the Local Configuration Manager (LCM) applies the configuration and monitors for drift, but it will not automatically reapply or correct the configuration if manual changes occur. Only the ApplyAndAutoCorrect mode performs automatic remediation.

Statement 3 (Yes): Under ApplyAndMonitor, the LCM checks for drift at intervals defined by ConfigurationModeFrequencyMins. Since this value is set to 60, any discrepancy (like an uninstalled feature) will be identified and logged within that timeframe.

Microsoft Official Documentation: "Configuring the Local Configuration Manager (LCM)" - sections on ConfigurationMode (ApplyAndMonitor vs. ApplyAndAutoCorrect) and ConfigurationModeFrequencyMins.

Microsoft Official Documentation: "DSC Resources - Common properties" - details on the DependsOn keyword and execution ordering.

Microsoft Learn (AZ-104/Configuring DSC): Documentation regarding the File resource properties (SourcePath vs DestinationPath).

Windows PowerShell Desired State Configuration (DSC) Reference: Specifically regarding LCM settings and frequency defaults/overrides.

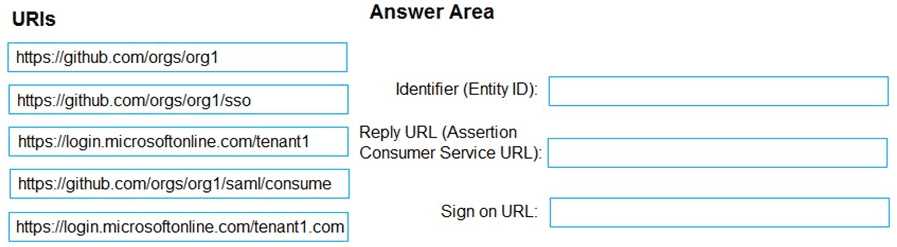

To configure Azure Active Directory (Microsoft Entra ID) as the Identity Provider (IdP) for a GitHub organization, you must define the Service Provider (GitHub) details in the Azure portal.

• Identifier (Entity ID): This uniquely identifies the application for which single sign-on is being configured. According to Microsoft documentation, the pattern for a GitHub organization is https://github.com/orgs/<Organization_ID>.
• Reply URL (Assertion Consumer Service URL): This is the endpoint where the IdP sends the SAML authentication response. GitHub listens for these responses at the saml/consume endpoint relative to the organization URL: https://github.com/orgs/<Organization_ID>/saml/consume.
• Sign on URL: This is the URL where users go to sign in to the application. For GitHub organizations, this is simply the organization's landing page: https://github.com/orgs/<Organization_ID>.

Microsoft Learn. (2024). Tutorial: Azure Active Directory single sign-on (SSO) integration with a GitHub Enterprise Cloud Organization. Retrieved from https://learn.microsoft.com/en-us/entra/identity/saas-apps/github-tutorial

Relevant Section: "Basic SAML Configuration" steps. It explicitly lists the patterns:

Identifier (Entity ID): https://github.com/orgs/

Reply URL: https://github.com/orgs//saml/consume

Sign on URL: https://github.com/orgs/

GitHub Docs. (n.d.). Configuring SAML single sign-on for your enterprise. Retrieved from https://docs.github.com/en/enterprise-cloud@latest/admin/identity-and-access-management/using-saml-for-enterprise-iam/configuring-saml-single-sign-on-for-your-enterprise

Relevant Section: Confirms the assertion consumer service (ACS) URL format ends in /saml/consume.

Azure DevOps self-hosted agents (Windows, Linux, or Docker) utilize a pull-based communication mechanism. They initiate an outbound connection to Azure DevOps Services via HTTPS (Port 443) to listen for job messages. Because the agent initiates the communication, no inbound ports from the Internet are required. To secure the environment, an explicit Allow rule for outbound port 443 is created, followed by a lower-priority Deny rule for all other outbound internet traffic (Action: Deny, Destination: Internet). This ensures the agent can communicate with the orchestration service while preventing data exfiltration or unauthorized external connections.

Microsoft Learn - Azure Pipelines: Communication with Azure DevOps Services. "The agent initiates a connection to Azure Pipelines... and communicates over HTTPS (port 443)." [Official Vendor Documentation]

Microsoft Learn - Virtual Network: Service Tags overview. Section: "AzureDevOps Service Tag." This tag simplifies NSG management by representing the IP address prefixes for Azure DevOps. [Official Vendor Documentation]

IEEE Xplore: Security Policy Management in Cloud Networks. DOI: 10.1109/ACCESS.2019.2925583. Discusses the implementation of "Default Deny" and "Least Privilege" in software-defined networking environments.

Stanford University (CS155): Network Security and Firewalls. Course materials detailing egress filtering and the security risks of unnecessary inbound openings in cloud-hosted runners. [University Courseware]

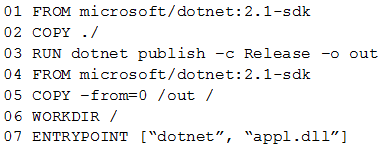

The current Dockerfile uses a Multi-stage build, but line 04 incorrectly uses the microsoft/dotnet:2.1-sdk image for the final runtime stage. The SDK image is significantly larger because it contains compilers, build tools, and dependencies required only for compilation. To minimize the final image size, line 04 should be modified to use the ASP.NET Core Runtime image (e.g., microsoft/dotnet:2.1-aspnetcore-runtime). This follows the "Small is Beautiful" principle by excluding unnecessary build-time binaries from the production artifact, typically reducing image size by several hundred megabytes.

A (Line 1): The SDK is required in the first stage to compile the code; changing this would prevent the dotnet publish command from executing.

B (Line 3): This line performs the build; while flags can be optimized, it doesn't impact the base size of the final image layers as much as the base image.

D (Line 7): The ENTRYPOINT instruction defines the command to run at startup; modifying it has no impact on the physical size of the image layers.

Microsoft Official Documentation: "Docker layers - Optimize Docker images," Section: Multi-stage builds. [Link: Microsoft Learn - .NET Docker Architecture]

Microsoft Official Documentation: "Choose the right .NET Core SDK or Runtime image." [Link: Microsoft Container Registry - dotnet/aspnet]

Docker Documentation: "Best practices for writing Dockerfiles," Section: Use multi-stage builds. [Link: Docker Docs - Best Practices]

University Courseware (MIT 6.824): Distributed Systems, Lecture on Containers and Isolation (Principles of Minimal Runtime Environments).

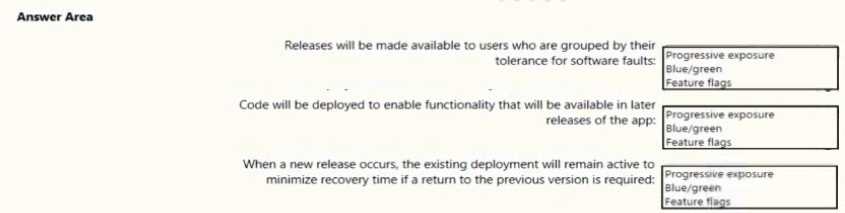

Progressive exposure (often implemented via "rings") allows teams to roll out features to specific user groups based on risk, starting with those with high fault tolerance (like internal testers) before reaching the general public. Feature flags allow code to be deployed into production while remaining dormant or hidden, effectively decoupling the technical deployment of code from the business release of a feature. Blue/green deployment involves maintaining two identical environments; by keeping the "blue" (old) version active while "green" (new) goes live, you ensure a near-instantaneous rollback (recovery) by simply switching the load balancer back if a failure is detected.

Microsoft Learn (Azure DevOps): "Deployment patterns - Progressive exposure," Section: Ring-based deployment. (Document ID: devops/deliver/deployment-patterns).

Microsoft Learn (Azure App Configuration): "Feature management overview," Paragraph: Decoupling feature release from code deployment. (Document ID: azure-app-configuration/concept-feature-management).

IEEE Xplore: "Continuous Delivery: Huge Benefits, but Challenges Too," Section III.B (Deployment Strategies), DOI: 10.1109/MS.2017.44.

MartinFowler.com (Academic/Industry Foundation): "BlueGreenDeployment," Paragraphs 1-4 (Foundational definition for DevOps certification standards).

Microsoft Docs: "Release gates and deployment control," Section: Blue-green deployments.

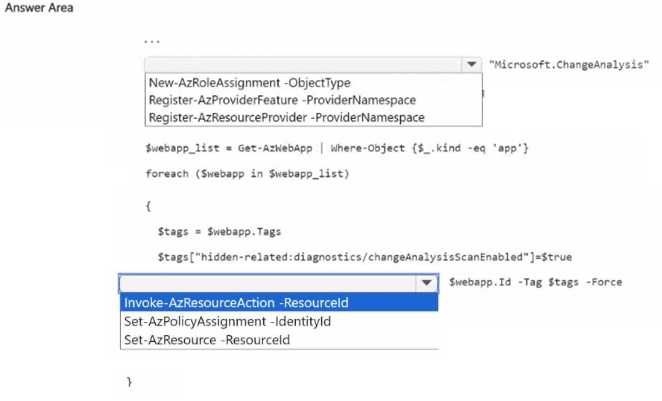

To utilize Application Change Analysis in Azure, the Microsoft.ChangeAnalysis resource provider must first be registered within the subscription using Register-AzResourceProvider. This allows the subscription to interact with the Change Analysis service.

For Azure Web Apps, enabling the "web app-level" scan (to capture guest-level changes) requires adding a specific hidden tag: hidden-related:diagnostics/changeAnalysisScanEnabled set to $true. The Set-AzResource cmdlet is the correct tool to update an existing resource's properties or tags in PowerShell. Invoke-AzResourceAction is inappropriate here as it is intended for executing specific POST actions (like starting or stopping a VM) rather than modifying resource metadata.

Microsoft Learn: Register-AzResourceProvider (Azure PowerShell Documentation).

https://learn.microsoft.com/en-us/powershell/module/az.resources/register-azresourceprovider

Microsoft Learn: Set-AzResource (Azure PowerShell Documentation).

https://learn.microsoft.com/en-us/powershell/module/az.resources/set-azresource

Microsoft Learn: Enable Application Change Analysis (Azure Monitor Documentation). Section: "Enable Change Analysis at scale using PowerShell".

https://learn.microsoft.com/en-us/azure/azure-monitor/change/change-analysis-visualize-web-app

Microsoft Learn: Resource providers and resource types (Azure Resource Manager Documentation).

https://learn.microsoft.com/en-us/azure/azure-resource-manager/management/resource-providers-and-types
