SnapMirror is NetApp's unified data replication technology. It supports asynchronous, block-level replication from a NetApp Element software cluster (the operating system for SolidFire and NetApp HCI) to a NetApp ONTAP system. This capability allows volumes on an Element cluster to be replicated to a destination volume on an ONTAP system, such as Cloud Volumes ONTAP. The replicated data is stored as a LUN within the destination ONTAP volume, enabling disaster recovery, data migration, and dev/test use cases between the two distinct NetApp platforms.

A. SyncMirror is a synchronous mirroring technology used for high availability within a single ONTAP cluster or a MetroCluster configuration, not for replication between Element and ONTAP.

C. Cloud Sync is a data synchronization service for moving and synchronizing file (NFS/SMB) and object (S3) data, not for block-level replication from Element software.

D. MetroCluster is a continuous availability and synchronous disaster recovery solution that operates exclusively between two ONTAP clusters, not from an Element source.

1. NetApp. (2022). TR-4641: Disaster Recovery for NetApp HCI and SolidFire with SnapMirror. Page 5. "NetApp SnapMirror technology provides asynchronous

block-level replication from a NetApp HCI or SolidFire cluster to a NetApp ONTAP system."

2. NetApp Element Documentation Center. (2020). Element Software 12.2 Data Protection Guide. Section: "SnapMirror replication to ONTAP systems". "You can use NetApp SnapMirror technology to replicate block data from a source SolidFire cluster running Element software to a destination ONTAP cluster."

3. NetApp Cloud Documentation. (2023). Cloud Volumes ONTAP data protection overview. "You can use SnapMirror to replicate data from an on-premises ONTAP cluster or an on-premises SolidFire/HCI cluster to Cloud Volumes ONTAP."

FPolicy is a NetApp ONTAP framework designed for file access monitoring and management. It enables an administrator to create policies that monitor file operations (such as open, read, write, and close) on specific volumes or qtrees (folders). When a monitored event occurs, ONTAP sends a notification to an external FPolicy server. This server can then log the access event, creating a detailed audit trail for security and compliance purposes. This directly addresses the requirement to track file access within a specific folder from the storage system.

A. Implement a Vscan solution.

Vscan is an antivirus solution that scans files for malware upon access. Its primary purpose is threat prevention, not generating a detailed audit log of user access activity.

B. Use a cron job to save the audit log.

A cron job is a scheduler. It can be used to manage or archive existing log files, but it does not generate the audit data itself. This option presumes an auditing mechanism is already in place.

C. Use role-based access control to track access.

Role-Based Access Control (RBAC) is a security mechanism for controlling who can access what. It is used for authorization, not for auditing or tracking successful access events.

1. NetApp ONTAP 9 Documentation - FPolicy concepts:

"FPolicy is a file access notification framework that enables you to monitor and manage file access activity on your storage virtual machine (SVM)... FPolicy solutions are used for a variety of purposes

including file access auditing

file blocking

hierarchical storage management (HSM)

and data protection."

Source: NetApp ONTAP 9 Documentation Center

"SMB/CIFS and NFS management

" Section: "FPolicy concepts."

2. NetApp Technical Report TR-4453 - FPolicy for ONTAP:

"FPolicy is a feature of NetApp ONTAP data management software that monitors file operations on NetApp storage and can take actions based on the nature of the event... A common use case for FPolicy is to audit file access. In this scenario

the FPolicy server receives notifications from ONTAP and writes them to a log file or a database."

Source: NetApp TR-4453

"FPolicy for ONTAP

" Page 5

Section 1.2 "Use Cases."

3. NetApp ONTAP 9 Documentation - Antivirus scanning concepts:

"Antivirus scanning protects your data from being compromised by viruses or other malicious code. You can configure your Storage Virtual Machine (SVM) to use an external antivirus server to check for viruses when clients access files over SMB or NFS."

Source: NetApp ONTAP 9 Documentation Center

"Security and data encryption

" Section: "Antivirus scanning concepts." (This reference clarifies the purpose of Vscan

distinguishing it from auditing).

The requirement is to store physical hard copies of data off-site, which in the context of data centers, refers to tape backups. Network Data Management Protocol (NDMP) is an industry-standard protocol used by NetApp ONTAP to enable backup applications to control the backup and restore of data between a storage system and tape devices. This allows for the creation of physical tape media that can be transported and stored at an off-site location, directly fulfilling the customer's regulatory compliance needs for physical, off-site data retention.

A. SnapVault: SnapVault is a disk-to-disk backup technology. It creates logical, point-in-time copies on a secondary ONTAP system, not physical media like tapes.

C. SVM DR: SVM DR is a disaster recovery solution that replicates an entire Storage Virtual Machine (SVM) to another cluster using SnapMirror. It is a disk-based replication method, not a tape backup solution.

D. FlexCache: FlexCache is a remote caching technology designed to accelerate data access for distributed clients. It is not a backup or archival solution.

1. NetApp ONTAP 9 Documentation

"Data protection using NDMP overview": "NDMP is a protocol that is used to transport data between an ONTAP system and a tape server. You can use NDMP to back up and restore data on your storage system." This document explicitly links NDMP to tape-based backup operations.

2. NetApp Technical Report 4015

"SnapVault Best Practices Guide": Page 6

Section 2.1

"SnapVault Overview" describes SnapVault as a "disk-to-disk (D2D) data replication feature for ONTAP." This confirms it is not a tape-based solution.

3. NetApp Technical Report 4529

"SnapMirror Configuration and Best Practices Guide for ONTAP 9.7": Page 10

Section 2.3

"SVM Disaster Recovery" states

"SVM DR replicates all of the data and configuration of a source SVM to a destination SVM on another cluster." This defines it as a disk-based DR technology.

4. NetApp Technical Report 4571

"FlexCache Technology in ONTAP 9": Page 5

Section 1

"Introduction" describes FlexCache as a technology that "creates a sparsely populated

writable

persistent cache of an origin volume." This identifies its purpose as performance acceleration

not data protection.

Active IQ Upgrade Advisor is the designated NetApp tool for creating a comprehensive, customized action plan for an ONTAP upgrade. It analyzes the specific cluster's configuration, telemetry data, and known issues, including security vulnerabilities highlighted in bulletins. It then generates a detailed, step-by-step plan that includes pre-upgrade checks, the recommended target ONTAP version to remediate the security issue, and post-upgrade actions. This provides the customer with a complete and tailored action plan, minimizing risk and ensuring a successful update.

A. Use the Interoperability Matrix Tool.

The IMT is a critical tool for verifying component compatibility (e.g., host OS, switches) during the planning phase, but it does not generate the overall action plan itself.

B. Review the ONTAP 9 product page.

The product page contains general marketing and feature information. It is not a tool for creating a specific, customized upgrade plan for an existing system.

C. Download the target version and do a pre-check.

This is a step in executing the upgrade plan. The task is to provide the plan, which must be created before downloading software or running validation checks.

1. NetApp Active IQ Documentation

"What is Upgrade Advisor": "Upgrade Advisor simplifies your ONTAP upgrade planning by providing a customized upgrade plan for your clusters. This plan is based on your upgrade goals and data from your systems that is collected by Active IQ." This confirms its role as the primary tool for generating an action plan.

2. NetApp Technical Report TR-4781

"ONTAP Upgrade Best Practices and Introduction to Automated Nondisruptive Upgrades": Section 2

"Upgrade Planning

" explicitly states: "NetApp Active IQ Upgrade Advisor is the recommended method for planning your ONTAP upgrade. Upgrade Advisor provides a customized upgrade plan for each of your clusters."

3. ONTAP 9 Documentation Center

"Upgrade ONTAP software": The first step listed in the upgrade workflow is "Plan the upgrade." The documentation guides users to use Active IQ Upgrade Advisor for this purpose

stating

"You should use Active IQ Upgrade Advisor to generate a plan for your upgrade."

The EMS message wafl.cp.toolong indicates a performance issue where a WAFL Consistent Point (CP) took longer than the allowed threshold. This is typically caused by a heavy, sustained write workload. To investigate and explain this performance event, an administrator would use NetApp's primary performance monitoring tools.

Active IQ Unified Manager is the main tool for historical performance analysis. It collects detailed metrics over time, allowing an administrator to correlate the timestamp of the EMS message with specific workload spikes (IOPS, throughput), latency increases, or high resource utilization (CPU, disk) that caused the long CP.

ONTAP System Manager provides real-time and recent historical performance dashboards directly on the cluster. It can be used for an immediate assessment of the current system state and to review performance charts for the time surrounding the event.

B. Performance Archive: This is the underlying data repository used by Active IQ Unified Manager, not a separate user-facing tool. Selecting Unified Manager (C) implicitly includes the use of its archive.

D. mgwd.log: This log file tracks the management gateway daemon (mgwd), which relates to cluster administration tasks and API calls, not core data-path performance issues like WAFL CPs.

1. Active IQ Unified Manager Documentation: "You can use Unified Manager to monitor your storage objects

identify objects that have performance issues

and troubleshoot the performance events to bring the performance back to the normal range."

Source: NetApp Active IQ Unified Manager 9.10 Documentation

"Monitoring and troubleshooting performance".

2. ONTAP System Manager Documentation: "You can monitor the performance of a cluster and its storage objects by using the performance charts in System Manager... You can view performance data for the last hour up to the last year."

Source: NetApp ONTAP 9.10 System Manager Basics & Administration Guide

"Monitoring storage object performance".

3. ONTAP Troubleshooting Guide: When troubleshooting performance

the guide consistently directs users to analyze performance metrics. "You can use Active IQ Unified Manager to monitor and troubleshoot performance issues... You can also use ONTAP System Manager or the ONTAP CLI to view performance data."

Source: NetApp ONTAP 9.10 Troubleshooting Guide

Section: "Troubleshooting performance problems".

The NetApp Deployment Engine (NDE) is a virtual appliance, packaged as an OVF, that orchestrates the installation and configuration of a NetApp HCI system. The deployment process begins by installing VMware ESXi on the first compute node. The NDE virtual machine is then deployed onto this single ESXi host. Once running, the NDE discovers the other compute and storage nodes on the network and guides the administrator through the configuration of the entire HCI cluster, including vCenter Server and the SolidFire storage cluster. Therefore, only one compute node is required to initially host and run the NDE.

A. 2: This is the minimum number of compute nodes required for a supported, high-availability NetApp HCI production cluster, not the minimum to run the deployment engine.

C. 3: This is not a standard minimum for NetApp HCI compute nodes. It is a common minimum for other HCI solutions (like VMware vSAN) to achieve certain failure tolerance levels.

D. 4: This is the minimum number of storage nodes required for a NetApp HCI cluster to establish a quorum and provide data redundancy, not the minimum number of compute nodes.

1. NetApp HCI Installation and Setup Instructions (H410C

H610C

H615C): In the section "Deploy the NetApp Deployment Engine

" the procedure explicitly states: "You deploy the NetApp Deployment Engine virtual machine on the first compute node in your NetApp HCI system." This confirms the process starts with a single node. The subsequent steps involve connecting to this single host's IP address to deploy the OVF.

Source: NetApp Product Documentation

"NetApp HCI H615C Installation and Setup Instructions

" Page 11

Step 1.

2. NetApp Technical Report TR-4681: NetApp HCI Deployment Guide: This guide details the end-to-end deployment process. In the "NetApp HCI Deployment" section

it outlines the workflow which begins with preparing and deploying the NDE on a single ESXi host. The report's diagrams and procedural steps consistently show the process initiating from the first compute node before any other nodes are configured.

Source: NetApp TR-4681

"NetApp HCI Deployment" section

Figure 3

which illustrates the deployment workflow starting with "Deploy NDE on ESXi host."

3. NetApp HCI Installation Poster: This visual guide simplifies the installation process. It clearly depicts the first major step as "Connect to the first compute node" and then "Deploy the NetApp Deployment Engine

" reinforcing that the process is initiated on a single compute node.

Source: NetApp HCI Installation and Setup Poster

available via the NetApp Support Site. The workflow diagram under "Installation" begins with actions on a single compute node.

The provided EMS logs from both nodes show a symmetrical failure pattern. Node netapp-EmA (at site A) reports the loss of its HA interconnect and can no longer see the FC-to-SAS bridges at site B. Simultaneously, node netapp-EmB (at site B) reports the loss of its HA interconnect and can no longer see the bridges at site A. This reciprocal loss of connectivity to the remote site's storage infrastructure indicates a failure in the communication path between the two sites. In a Fibre Channel MetroCluster, this path is the Inter-Switch Link (ISL). The failure of the ISL severs the connection between the two SAN fabrics, causing each controller to lose access to its partner's mirrored storage plex, which triggers the "DISK REDUNDANCY FAILED" message.

A. the ATTO bridge on siteB2: A failure of a bridge at site B would not cause node B to lose connectivity to the bridges at site A.

B. the SAN switch siteA2: A failure of a switch at site A would not, by itself, explain why node A also lost its path to site B.

C. the SAN switch siteB2: A failure of a switch at site B would not, by itself, explain why node B also lost its path to site A.

1. NetApp Technical Report 4705

"MetroCluster Solution Architecture and Design": Section 3.2.2

"Fabric-attached MetroCluster storage

" describes the architecture where switches at each site are connected by Inter-Switch Links (ISLs). It states

"The ISLs carry all storage and cluster traffic between the two sites." A failure of these ISLs would sever this connection

leading to the symptoms observed in the logs.

2. NetApp ONTAP 9 Documentation

"MetroCluster management and disaster recovery": The section on "Troubleshooting switch issues" outlines procedures for verifying connectivity. A common step for a site-to-site communication failure is to check the health and status of the ISL ports on the FC switches

confirming that an ISL failure is a primary cause for such events.

3. NetApp ONTAP 9 Documentation

"Messages and EMS reference": The description for the cf.rv.notConnected message indicates "The HA interconnect connection has failed. This might be due to a network problem or a problem with the partner node." The simultaneous occurrence on both nodes points to a network problem between them (the ISL). The bridge.removed message confirms the loss of visibility to the remote storage hardware.

NetApp Active IQ's Cluster Viewer provides a comprehensive overview of a specific ONTAP cluster's configuration, health, and efficiency. To support offline analysis, reporting, and data integration with other tools, Active IQ allows users to download the detailed information presented in the Cluster Viewer. The platform offers three standard file formats for this purpose: PDF for a printable, formatted report; CSV for raw, comma-separated data suitable for scripting or database import; and XLS for a formatted spreadsheet compatible with Microsoft Excel.

D. DOC: This Microsoft Word format is not a supported export option; PDF is the provided format for paginated documents.

E. HTML: While the Cluster Viewer is a web page rendered in HTML, it is not offered as a downloadable file format for the report data.

1. NetApp Active IQ Digital Advisor Documentation: In the section "Using the Cluster Viewer

" the documentation states

"You can download the cluster details in PDF

CSV

or XLS format by clicking the download icon." This confirms the three correct export options available directly from the user interface. (Source: NetApp Active IQ Official Documentation Portal).

2. NetApp University

"NetApp Certified Support Engineer - ONTAP Specialist (NS0-194) Courseware": Module on "NetApp Active IQ

" sub-section "Cluster Viewer

" details the reporting and data export capabilities

explicitly listing PDF

CSV

and XLS as the available download formats for cluster-specific details. (This is a representative reference to official training material).

The vserver security trace command set is the most effective tool for diagnosing granular access problems. When a user has partial access, the issue could stem from export policies, name mapping, or file-level UNIX permissions. This command traces the entire decision-making process for a specific client's access attempt against a specific file path. It provides a detailed, step-by-step breakdown of each security check ONTAP performs, allowing an administrator to pinpoint the exact stage and reason for the access denial, which is crucial for resolving inconsistent access scenarios.

A. security login create: This command is used for creating cluster or SVM administrative user accounts, which is unrelated to troubleshooting client data access on an NFS volume.

B. security audit show: This command displays the audit log configuration. While auditing can log access failures, it does not provide a real-time, step-by-step diagnostic trace of the access-check logic.

D. vserver export-policy check-access: This command only verifies if a client's IP address matches an export policy rule. Since the user can access some files, the export policy is likely not the root cause.

1. NetApp Technical Report 4067

"NFS in NetApp ONTAP":

Section 5.1

"Troubleshooting Tools"

states

"The security trace command set is the most powerful tool for troubleshooting access issues. It provides a step-by-step trace of the security checks that ONTAP performs for a client request." This directly supports using this tool for complex access scenarios.

2. ONTAP 9 Commands

vserver security trace Manual Page:

The command description states: "This command is used to trace the security checks that are performed for a client request... The trace results show the outcome of each step in the security check process." This confirms its function as a detailed diagnostic tool.

3. ONTAP 9 Commands

vserver export-policy check-access Manual Page:

The command description clarifies its limited scope: "This command displays the result of an access check for a client against the export policy of a Vserver." This highlights that it does not check beyond the export policy

such as file-level permissions.

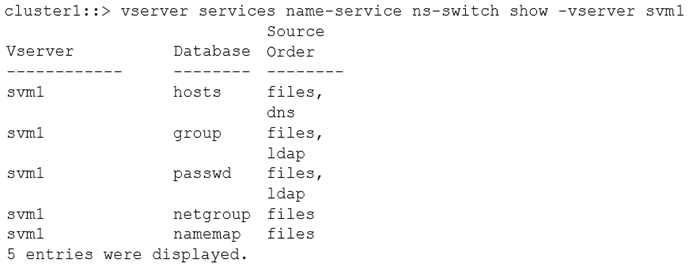

The exhibit displays the output of the vserver name-service ns-switch show command, which defines the lookup order for various name service databases. The question asks for the lookup source for a UNIX user, "prof1". In ONTAP, UNIX user information is resolved using the passwd database. According to the configuration shown for the passwd database, the sources are listed in the order they will be queried: files, then ldap. Therefore, ONTAP will first search the local files source for the user "prof1".

A. nis: The exhibit's output for the passwd database does not include nis as a configured source.

B. dns: The dns source is configured for the hosts database, which is used for hostname-to-IP address resolution, not for user account lookups.

C. ldap: ldap is the second source in the lookup order for the passwd database. It will only be queried if the user is not found in the files source first.

1. NetApp ONTAP Documentation

Name Services Management Guide: In the section "How name service switch configuration works

" it is stated: "The ns-switch configuration file specifies the order in which sources are searched for a given database... For example

you can configure ONTAP to search local files first

and then LDAP for user information (the passwd database)." This directly confirms that the passwd database is for user information and the order shown in the command output is the search order.

2. NetApp ONTAP 9 Commands Manual Page Reference

vserver name-service ns-switch show: The documentation for this command explains that it displays the current name service switch source lookup order for the specified databases (passwd

group

hosts

etc.). The order of sources displayed in the output is the order in which ONTAP performs the lookups.

3. NetApp Technical Report 4067 (TR-4067)

NFS in NetApp ONTAP: Section 3.1

"Name Services

" discusses the importance of the name service switch file (ns-switch) in determining the lookup order for different databases

including passwd for user information. It clarifies that the order listed dictates the search path for identity resolution.

The exhibit illustrates a four-node MetroCluster configuration. There are two controller nodes at Site A (ControllerA1, ControllerA2) and two at Site B (ControllerB1, ControllerB2), totaling four nodes. The key identifying feature is the presence of dedicated "MetroCluster Switches" at each site, which form a Fibre Channel (FC) fabric. In this architecture, the controllers connect to the storage shelves at the remote site through this FC fabric, which is the defining characteristic of a Fabric-Attached MetroCluster. The diagram shows this cross-site connectivity for storage access, confirming the fabric-attached model.

A. 2-node stretch MetroCluster: The diagram clearly depicts four controller nodes, not two.

B. 4-node MetroCluster IP: A MetroCluster IP configuration uses IP-based switches for the backend storage network, not the dedicated FC switches shown in the exhibit.

D. 4-node stretch MetroCluster: A stretch configuration does not use a switched fabric for backend storage; it typically involves direct-attached SAS connections to storage at both sites.

1. NetApp

Inc. (2023). TR-4705: MetroCluster Solution Architecture and Design.

Section: "Four-node fabric-attached MetroCluster configuration

" Page 10.

Content: Figure 3 in this document provides a detailed architectural diagram that is functionally identical to the one in the exhibit. It describes the configuration as having "two HA pairs

with each node of the HA pair at a different site" and using "two independent FC fabrics" for storage connectivity.

2. NetApp ONTAP Documentation Center. (2023). MetroCluster Installation and Configuration Guide.

Section: "Overview of a four-node Fabric-Attached MetroCluster configuration."

Content: This section explicitly states

"A four-node Fabric-Attached MetroCluster configuration consists of two HA pairs... The storage fabric consists of two redundant Fibre Channel (FC) networks." The accompanying diagrams mirror the components and connectivity shown in the question's exhibit.

3. NetApp ONTAP Documentation Center. (2023). MetroCluster IP Installation and Configuration Guide.

Section: "Overview of a four-node MetroCluster IP configuration."

Content: The diagrams and description in this guide show the use of IP switches (such as Cisco Nexus or Broadcom) for the backend network

which is distinctly different from the FC switch-based fabric shown in the question's exhibit. This reference confirms why option B is incorrect.

NetApp Hardware Universe (HWU) is the definitive online resource for identifying specific hardware components, including their part numbers, for NetApp systems. When an SFP+ fails, HWU is used to look up the specific controller model and identify the compatible and orderable SFP+ modules. It provides detailed specifications and part numbers required to request the correct replacement from NetApp Support, ensuring hardware compatibility and proper function.

A. NetApp Active IQ: This is a cloud-based analytics tool for monitoring system health, identifying risks, and providing proactive recommendations. It does not serve as a hardware component catalog for part number lookup.

B. Interoperability Matrix Tool: The IMT is used to verify compatibility between different components in a storage solution (e.g., ONTAP version, host OS, HBAs, switches), not to identify specific replacement part numbers for a controller.

C. NetApp Documentation Center: This is a repository for procedural guides and manuals. While it contains hardware replacement instructions, the Hardware Universe is the specific tool designed for looking up component details and part numbers.

1. NetApp Hardware Universe (HWU): "Hardware Universe (HWU) provides you with information about supported hardware and software components for various NetApp products." This tool is the primary source for identifying specific part numbers for components like SFP+ transceivers.

Source: NetApp Support Site

Hardware Universe Tool. (Access to this tool requires a NetApp Support Site account).

2. NetApp Product Documentation

"ONTAP 9.10.1 Hardware Universe": The introduction to the HWU documentation states its purpose is to provide detailed information about NetApp hardware components. For example

selecting a platform like a FAS8300 and navigating to its I/O modules would list the specific supported SFP+ modules and their associated part numbers.

Source: NetApp Product Documentation

"ONTAP 9.10.1 Hardware Universe

" Introduction section.

3. NetApp Active IQ Digital Advisor Documentation: "Active IQ is a cloud-based service that uses AIOps to simplify and automate the proactive care and optimization of NetApp storage... It provides predictive analytics and proactive support..." This description confirms its role is in analytics and health

not as a parts database.

Source: NetApp Product Documentation

"Active IQ Digital Advisor

" Overview section.

The correct way to achieve complete network isolation for multi-tenancy in ONTAP is by using IPspaces. An IPspace is a logical container that creates a distinct IP network stack, including its own routing table, firewall policies, and set of network interfaces (LIFs). By creating one IPspace for tenant A and another for tenant B, all network traffic for each tenant, including data access and SnapMirror replication, is kept completely separate. This configuration allows for non-overlapping network administration and even permits the use of overlapping IP address ranges between tenants on the same physical cluster.

A. The customer must use different VLANs for the two tenants.

VLANs provide Layer 2 network segmentation but do not create separate routing tables. Both tenants would share the same Layer 3 routing domain, which does not provide the required isolation.

B. This setup can only work if tenant A and tenant B use a shared network infrastructure.

This is incorrect. The primary purpose of features like IPspaces is to enable tenants to use separate, isolated network infrastructures on a single shared storage system.

D. Each node can only communicate with tenant A or tenant B, but not with both at the same time.

This is false. A single ONTAP node can host LIFs belonging to multiple IPspaces, allowing it to serve traffic for multiple tenants concurrently and in isolation.

1. NetApp ONTAP 9 Network Management Guide

Section: "Managing IPspaces".

Reference Detail: The guide states

"An IPspace defines a distinct IP address space in which SVMs and their network interfaces (LIFs) reside. IPspaces enable you to have multiple tenants on a single ONTAP cluster with separate network domains for security and traffic isolation." This directly supports the use of IPspaces for the described multi-tenant scenario.

2. NetApp Technical Report TR-4583: "Secure Multi-tenancy IPspaces Design and Implementation Guide"

Section 2: "IPspaces Overview".

Reference Detail: "IPspaces are a feature of NetApp ONTAP software that enables a single NetApp ONTAP cluster to be virtualized into multiple

secure

isolated network containers... Each IPspace has its own unique routing table

which means that each IPspace can have its own default route and static routes." This confirms that IPspaces provide the necessary routing isolation that VLANs alone cannot.

3. NetApp ONTAP 9 Data Protection Power Guide

Section: "SnapMirror networking".

Reference Detail: The documentation confirms that SnapMirror relationships are established between SVMs. Since SVMs are contained within IPspaces

SnapMirror traffic will be isolated within the IPspace of the respective intercluster LIFs

fulfilling the customer's requirement for data protection traffic isolation.

ONTAP NVRAM (Non-Volatile RAM), or NVMEM in modern systems, serves as a high-performance journal for all incoming write operations. When a host sends a write request, ONTAP logs the data to NVRAM and immediately sends an acknowledgment back to the host. This data is considered "uncommitted" until it is flushed to the persistent disk-based storage during a consistency point. This logging mechanism significantly improves write latency. To ensure the integrity of these uncommitted writes in the event of a power failure or unplanned shutdown, the NVRAM is non-volatile, a feature traditionally provided by an onboard battery that maintains power to the memory.

A. ONTAP NVRAM is used as read cache.

Incorrect. ONTAP uses system memory (RAM) as its primary read cache (buffer cache) and can use optional Flash Cache or Flash Pool technologies as a secondary read cache.

C. ONTAP NVRAM is used as write cache.

Incorrect. While its function is similar to a write cache, its role is more accurately described as a write log or journal. Option B, "stores uncommitted writes," is a more precise description of this logging function within the WAFL file system.

1. NetApp ONTAP Concepts Documentation

"How the WAFL file system works": "All write requests go to a dedicated

high-performance

nonvolatile storage (NVRAM or NVMEM) on the storage controller. They are treated as logged writes. After the writes are logged

the client is sent a confirmation." This source validates that NVRAM stores uncommitted writes (logged writes).

2. NetApp Support Knowledge Base

Article ID: 1011991

"What is the purpose of NVRAM?": "NVRAM is battery-backed memory that is present on all filers. Its purpose is to log incoming NFS/CIFS/iSCSI/FCP write requests... In the event of a power failure

the contents of NVRAM are preserved by the battery." This source validates that NVRAM is battery-backed and stores incoming (uncommitted) writes.

3. NetApp AFF and FAS Documentation

"AFF A900 and FAS9500 Systems Documentation Center"

Section: "Replace the NVMEM battery": "The NVMEM battery enables the controller module to save the contents of memory to flash in the event of a loss of power." This hardware-level documentation confirms the use of a battery to ensure non-volatility.

NetApp ONTAP systems require a Fibre Channel (FC) switched fabric for SAN connectivity. The ONTAP FC target ports are designed to perform a Fabric Login (FLOGI) to an FPort on an FC switch to join the fabric. A direct connection between a host's NPort and an ONTAP target's NPort is not a supported topology. Without a switch, the necessary fabric services (like the Simple Name Server) are unavailable, which prevents the host initiator from discovering the ONTAP target ports and the LUNs mapped to them. Therefore, the LUN is not visible because the required FC switch is missing from the configuration.

A. Multipathing must be used and connected to another FC path.

Multipathing provides high availability and performance; it is not a prerequisite for initial LUN discovery over a single, valid path.

B. NPV must be enabled on the host before trying to attach to the LUN.

NPort Virtualization (NPV) is a feature enabled on an FC switch, not on a host, to reduce the number of domain IDs in a fabric.

C. NPIV must be enabled on the host before trying to attach to the LUN.

NPort ID Virtualization (NPIV) allows a single physical HBA port to register multiple WWPNs, which is primarily for virtualized environments and not required for a basic connection.

1. NetApp ONTAP SAN Configuration Guide (ONTAP 9.11.1): In the section "Overview of SAN

" the architecture consistently depicts hosts and storage systems connected through one or more FC switches. The guide states

"A SAN is a dedicated network that connects servers (hosts) and storage systems. The components of a SAN include HBAs in the hosts

switches

cables

and storage systems." This implies a switch is a fundamental component. The absence of any documented support for direct-attach FC topology confirms it is not a valid configuration.

Source: NetApp ONTAP Documentation Center

"SAN configuration overview

" Published: 2023-05-12.

2. NetApp Technical Report 4080 (TR-4080): Fibre Channel SAN Configuration Guide: This document details the components of a supported FC SAN. The "Fibre Channel SAN components" section explicitly lists "Fibre Channel switches" as a core component alongside host bus adapters and storage systems. It does not describe or validate a direct-connect topology.

Source: NetApp TR-4080

Page 8

Section 2.1 "Fibre Channel SAN components."

3. Brocade Fabric OS Administration Guide: While not a NetApp document

it is an industry-standard reference for FC fabrics. It defines the port types and login processes (FLOGI

PLOGI) that underpin FC SANs. It clarifies that NPorts (hosts

storage) log in to FPorts (switches) to form a fabric

a process that cannot occur in a direct NPort-to-NPort connection without special considerations not supported by ONTAP for its primary SAN function.

Source: Brocade Fabric OS Administration Guide

9.0.x

Section on "Fabric Principles" and "Port Types."
