Free 200-901 Practice Test Questions and Answers (2026)

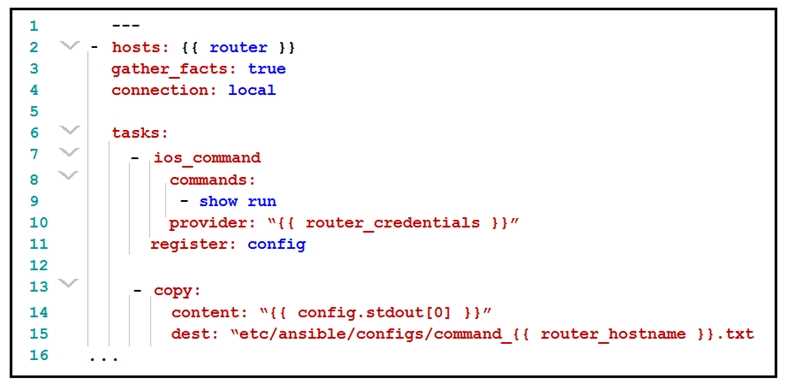

The playbook executes two distinct tasks to perform a configuration backup. First, the ios_command module sends the show run command to the target router, capturing the current active configuration. This output is stored in the variable config via the register keyword. Second, the copy module takes the captured text from config.stdout[0] (the first element of the command output list) and saves it as a .txt file on the Ansible control node (local) within the specified directory path. The use of connection: local ensures the file is written to the management station, effectively creating a backup of the running configuration.

A: The ios_command and copy modules as configured here are read-only and local-write respectively; pushing a configuration would typically require the ios_config module or a src parameter.

C: The command executed is show run (running configuration), not show startup-config. Therefore, it is not capturing the start-up configuration.

D: The copy task defines a dest path on the local file system (Ansible control node), not a destination on the IOS router's flash or NVRAM.

Cisco DevNet Documentation: Ansible for Cisco IOS - ios_command module reference. (Section: Parameters > commands).

Ansible Official Documentation: Working with command output (register). (Section: Indexing into results).

Ansible Official Documentation: copy module – Copy files to remote locations (Used with content to write local files).

Cisco Press: IP Networking, Section 18.5: Automating Configuration Management with Ansible. (Page 492, Paragraph 2: "Capturing show command output for backups").

Model-driven programmability utilizes standardized, structured data models (e.g., YANG) to define the capabilities of a network device. A primary benefit is that these models create a layer of abstraction, simplifying interaction by replacing complex, vendor-specific command-line interfaces with consistent, machine-readable APIs (A). Another key architectural benefit is the decoupling of these data models from the underlying transport protocols (like NETCONF or RESTCONF) and data encoding formats (like XML or JSON). This flexibility allows the same model to be used across different management frameworks, enhancing interoperability and future-proofing automation strategies (E).

B. A major benefit is the flexibility to use multiple transports, protocols, and encodings, not being restricted to a single choice.

C. These are features or attributes of the models themselves, which in turn enable the benefits, rather than being the end benefits.

D. This is a valid benefit, but it is a direct consequence of the fundamental abstraction and simplification described in option A.

1. Cisco Systems, Inc., "Cisco IOS XE Programmability Configuration Guide, Release 17.9.x," Chapter: Model-Driven Programmability.

Supporting A & E: The guide states, "The use of a standardized data modeling language provides a uniform and unambiguous way to describe the capabilities of a network device... Model-driven programmability allows you to use any of a number of different transports and encodings to program a device. The choice of transport and encoding is independent of the data models that are used."

2. Internet Engineering Task Force (IETF), "RFC 7950: The YANG 1.1 Data Modeling Language," August 2016.

Supporting E: The abstract states, "This allows a clean separation between the data models and the management protocols..."

Supporting A: Section 1.1, "Introduction," describes how YANG models provide a hierarchical, structured representation of data, which is the foundation for abstracting away the underlying device complexity from automation tools.

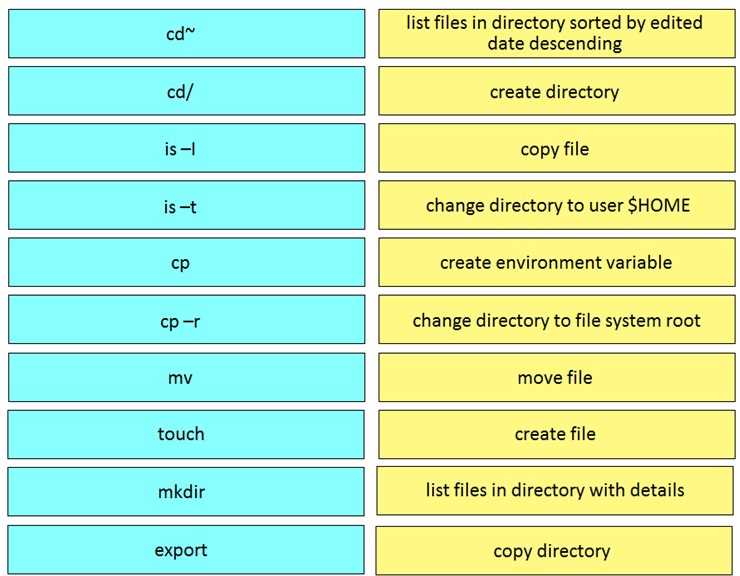

In Bash, cd navigates the filesystem: ~ represents the home directory and / the root. The ls command lists content, where -l enables the "long" format for details and -t sorts by modification time. File manipulation uses cp (copy), mv (move/rename), and touch (to create empty files or update timestamps). For directories, mkdir creates them, while cp -r uses the recursive flag to copy a directory's contents. Finally, export is used to define environment variables that are available to child processes of the shell.

The Linux Command Line by William Shotts (Source: LinuxCommand.org): Chapter 2 (Navigation) for cd usage; Chapter 3 (Exploring the System) for ls -l and ls -t; Chapter 4 (Manipulating Files and Directories) for cp, mv, mkdir, and touch.

GNU Coreutils Manual: Section 7.1 (Directory listing) for ls options; Section 10.2 (Copying) for cp -r recursive behavior; Section 11.1 (Moving) for mv.

IEEE Std 1003.1 (POSIX.1-2017) - Shell & Utilities: Volume 4, Section 4 (Utilities) defines standard behavior for export and filesystem commands.

MIT Missing Semester of Your CS Education: Lecture 1 (The Shell) covers directory navigation, file manipulation, and flags for ls and cp.

Bash Reference Manual (GNU.org): Section 3.7.3 (Command Execution Environment) for the export builtin function and environment variable creation.

The EXPOSE instruction informs Docker that the container listens on the specified network ports at runtime. While it does not actually map the port to the host (which is done during docker run using the -p or -P flags), it serves as a crucial piece of metadata for both documentation and automated mapping. According to official Docker documentation, EXPOSE is the standard instruction used within a Dockerfile to define which ports the application inside the container is intended to use for communication.

A. PORT 5000: This is not a valid Dockerfile instruction. While "PORT" is often used as an environment variable in application code, it has no native function in the Dockerfile syntax.

B. LISTEN 5000: This is not a valid Dockerfile instruction. "Listen" is a common directive in web server configurations (like Nginx or Apache) but is not part of the Dockerfile specification.

D. OPEN 5000: This is not a valid Dockerfile instruction. There is no "OPEN" command in the Docker engine's build syntax to manage network ports.

Official Docker Documentation: "Dockerfile reference: EXPOSE." [Link: docs.docker.com/engine/reference/builder/#expose]

Docker Curriculum (University/Open Source): "Dockerizing a Python Web App - The EXPOSE Instruction." [Link: docker-curriculum.com]

Harvard CS50's Introduction to Computer Science: "Cloud Computing and Docker - Network Port Mapping and EXPOSE." [Reference: Lecture 9, Section: Containerization].

The scenario describes a classic use case for cloud bursting. The company has an existing on-premises infrastructure (a private cloud) but needs the elasticity to handle peak demand without abandoning its current investment. A hybrid cloud model integrates the existing private cloud with a public cloud. This allows the application to scale out, or "burst," into the public cloud to access additional resources when traffic spikes, and scale back down when demand subsides. This approach directly addresses the crashing issue, allows for future growth, and preserves the value of the on-premises data center.

B. edge: Edge computing is an architecture that moves computation closer to the data source to reduce latency, which is not the primary problem described.

C. private cloud: The company is already operating in a private cloud model (its local data center), which has proven insufficient to handle the peak load.

D. public cloud: Migrating entirely to a public cloud would solve the scaling problem but would violate the constraint of not discarding the existing investment.

1. Mell, P., & Grance, T. (2011). The NIST Definition of Cloud Computing (NIST Special Publication 800-145). National Institute of Standards and Technology.

Page 3, Section 2: Defines Hybrid Cloud as "a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability (e.g., cloud bursting for load balancing between clouds)." This directly supports the use of a hybrid model for handling load spikes.

2. Cisco. (n.d.). What Is Hybrid Cloud?. Cisco.com.

Section: "How does a hybrid cloud work?": "A hybrid cloud is a computing environment that connects a company’s on-premises private cloud and a third-party public cloud into a single, flexible infrastructure... An organization might run a workload on-premises, but use cloud bursting to access additional computing resources from the public cloud when there is a spike in demand." This aligns perfectly with the scenario's requirements.

3. Armbrust, M., et al. (2009). Above the Clouds: A Berkeley View of Cloud Computing (Technical Report No. UCB/EECS-2009-28). University of California, Berkeley.

Page 6, Section 3.1: Discusses the benefit of cloud computing for handling variable usage patterns, stating, "This pay-as-you-go model allows startups to pay for exactly what they use... and established companies to handle 'peak loads' without having to provision for the peak." The hybrid model applies this principle by using the public cloud specifically for these peak loads.

Cisco DNA Center (now Cisco Catalyst Center) utilizes a RESTful API architecture for network management. To retrieve information from the controller, such as a list of inventory, the standard HTTP GET method is employed. The specific endpoint https://<address>/api/v1/network-device/ is designed to query the inventory database and return a collection of device objects. In alignment with modern web standards and Cisco’s Northbound API design, the response payload is delivered in JSON (JavaScript Object Notation) format, which allows for easy parsing by automation scripts and management applications.

Cisco DevNet Documentation: Cisco DNA Center Intent API Reference Guide (v2.x). Section: "Know Your Network - Get Device List". URL: https://developer.cisco.com/docs/dna-center/

Cisco Press: CCNP and CCIE Enterprise Core ENCOR 350-401 Official Cert Guide. Chapter 25: "Fabric Technologies and Network Design", Section: "Cisco DNA Center REST API".

Cisco Systems, Inc.: Cisco DNA Center Platform Configuration Guide, Release 2.3.3. "Working with Intent APIs - GET Method Operations", Paragraph 4.2.

University Courseware: Stanford CS144: Introduction to Computer Networking. Module: "Application Layer Protocols - REST and JSON in Network Controllers".

The docker build command is used to create a Docker image from a Dockerfile and a context. The -t (or --tag) flag is the correct option to apply a name and an optional tag to the image being built. The command in option D correctly uses docker build with the -t flag to assign the tag local/app:0.4 to the new image.

While the question's premise is slightly flawed (the docker tag command is used on an existing image, whereas docker build -t is used when creating a new one), the core task is to identify the command that builds an image and applies a tag, which is precisely what docker build -t does.

A. The -p flag is invalid for the docker build command. It is used with docker run to publish a container's ports to the host.

B. The docker run command is used to create and start a container from an existing image, not to build a new image.

C. The docker run command is used to create and start a container from an existing image, not to build a new image.

1. Docker Official Documentation, docker build command reference: "The -t, --tag flag... Name and optionally a tag in the 'name:tag' format." This source confirms that -t is the correct flag for tagging an image during the build process.

Source: Docker Inc., Docker Docs, "docker build," https://docs.docker.com/engine/reference/commandline/build/#tag

2. Docker Official Documentation, docker run command reference: This document details the valid options for the docker run command, including -p for port mapping and -t for allocating a pseudo-TTY. It confirms these flags are not part of the docker build command.

Source: Docker Inc., Docker Docs, "docker run," https://docs.docker.com/engine/reference/commandline/run/#options

3. Docker Official Documentation, docker tag command reference: "Creates a tag TARGETIMAGE that refers to SOURCEIMAGE." This clarifies that docker tag operates on an already existing image, which highlights the confusing premise in the question but does not change the correct answer for building with a tag.

Source: Docker Inc., Docker Docs, "docker tag," https://docs.docker.com/engine/reference/commandline/tag/

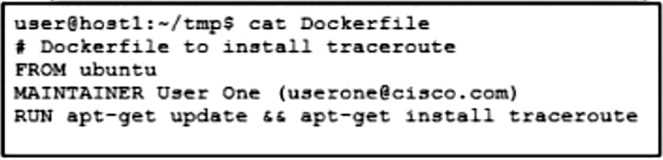

FROM: This instruction is the first valid instruction in a Dockerfile. It initializes a new build stage and sets the Base Image for subsequent instructions.

MAINTAINER: Although deprecated in favor of the LABEL instruction in newer Docker versions, it is historically used to define the author or owner of the image.

RUN: This instruction executes commands in a new layer on top of the current image and commits the results. It is used here to update the package list and install the traceroute utility.

Unused Options: "copies new files or directories" corresponds to the COPY or ADD instructions, and "sets the userid" corresponds to the USER instruction, neither of which are present in the provided Dockerfile.

Docker Documentation: Dockerfile reference - FROM. (Accessed Dec 2025). [https://docs.docker.com/engine/reference/builder/#from]

Docker Documentation: Dockerfile reference - RUN. (Accessed Dec 2025). [https://docs.docker.com/engine/reference/builder/#run]

Docker Documentation: Dockerfile reference - MAINTAINER (deprecated). (Accessed Dec 2025). [https://docs.docker.com/engine/reference/builder/#maintainer-deprecated]

Cisco DevNet Associate (200-901) Study Guide: Section on Constructing a Dockerfile, understanding instructions like FROM, RUN, and LABEL/MAINTAINER.

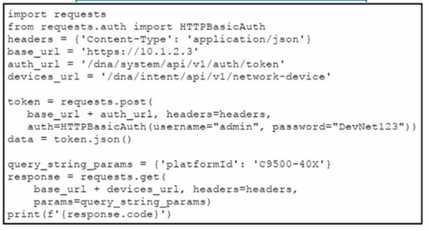

The script successfully requests an authentication token in the first block but fails to include that token in the second request (requests.get). In Cisco DNA Center APIs, the /dna/system/api/v1/auth/token endpoint returns a service ticket. This ticket must be included in the headers of subsequent API calls (like the device list request) using the key X-Auth-Token. The 401 Unauthorized error occurs because the headers variable used in the requests.get call only contains the Content-Type, leaving the request unauthenticated. Adding the acquired token to the header resolves the issue.

Option A is incorrect: The URL /dna/intent/api/v1/network-device is the correct and official endpoint for retrieving the network device list in Cisco DNA Center.

Option B is incorrect: An HTTP 401 error is an authentication failure, not a network layer issue. If there were reachability issues, the script would return a connection timeout or "No route to host."

Option D is incorrect: The 401 error occurs during the second request (device list), not the first. The first request (authentication) likely succeeded since the script proceeded to the next block.

Cisco DevNet Documentation: Cisco DNA Center REST API Guide - Authentication. (Specifies that the token must be passed in the X-Auth-Token header for all subsequent calls).

Cisco DNA Center Platform Documentation: Intent API Reference - Get Device List. (Validates the endpoint URL used in the exhibit).

RFC 7235: Hypertext Transfer Protocol (HTTP/1.1): Authentication. Section 3.1: 401 Unauthorized. (Defines the 401 status code as a lack of valid authentication credentials).

Cisco Learning Network: Programming for Cisco DNA Center (NPDEV). (Provides code patterns for multi-step REST API interactions requiring token persistence).

DevOps is a cultural and operational philosophy focused on unifying software development (Dev) and IT operations (Ops). A foundational principle is the cultural shift away from siloed departments toward cross-functional teams where developers and operations personnel collaborate and share responsibility throughout the entire service lifecycle. Another core tenet is the extensive automation of processes, especially the software delivery pipeline (Continuous Integration/Continuous Delivery), to accelerate delivery, improve reliability, and reduce manual errors. These principles of culture (collaboration) and automation are central to achieving the goals of DevOps.

A. Microservices are a common architectural pattern that complements DevOps but are not a mandatory foundational principle; DevOps can be applied to monolithic applications.

B. Containers are a technology that enables key DevOps practices like consistency and portability, but they are a tool, not a foundational principle of the methodology.

D. Cost optimization is a frequent and desirable business outcome of implementing DevOps efficiently, but it is not a core principle itself.

1. Cisco DevNet Learning Labs, "DevOps Explained," Module: What is DevOps? This official Cisco training material states, "DevOps is a set of practices that combines software development (Dev) and IT operations (Ops). It aims to shorten the systems development life cycle and provide continuous delivery with high software quality. DevOps is complementary with Agile software development; several DevOps aspects came from Agile methodology... The main characteristics of DevOps are automation and culture." This directly supports automation (E) and the cultural aspect of breaking down silos (C).

2. Amazon Web Services (AWS), "What is DevOps?" Documentation. AWS, a major industry authority, defines DevOps through its cultural philosophies and practices. It states, "DevOps is the combination of cultural philosophies, practices, and tools..." Under "DevOps Cultural Philosophies," it emphasizes "Improved Collaboration," which aligns with creating cross-functional teams over silos (C). Under "DevOps Practices," it lists "Continuous Integration and Continuous Delivery" (CI/CD), which is the embodiment of automation (E) in the software lifecycle.

3. Google Cloud, "What is DevOps?" Documentation. Google's official documentation describes DevOps as "a set of practices, tools, and a cultural philosophy that automate and integrate the processes between software development and IT teams." It explicitly mentions the importance of "breaking down data and workflow silos" (C) and highlights "automation" (E) as a key method to increase speed and reliability.

The script uses the Python Requests library to authenticate with Cisco APIC-EM.

1. Username: The prompt specifies the user is devnetuser, which must be assigned as the value for the 'username' key in the payload dictionary.
2. Request Method: The variable response is assigned the result of a POST request. In the requests library, the syntax is requests.post().
3. Headers Argument: The function call includes headers=, which requires the variable name where the HTTP headers are defined. In line 6, the variable is explicitly named header = {'Content-type': 'application/json'}. Therefore, header must be passed to the headers parameter.

Cisco DevNet Documentation: APIC-EM REST API Guide, Section: "Authentication and Security - Getting a Service Ticket."

Cisco Learning Network: Programming for Network Engineers (PRNE), Module 4: "Using REST APIs with Python," Section 4.2 (HTTP Methods and the Requests Library).

Python Requests Documentation: Quickstart Guide - Make a Request, Section: "Passing Parameters In URLs" and "More complicated POST requests." (https://requests.readthedocs.io/en/latest/user/quickstart/)

Cisco Press: Cisco Certified DevNet Associate DEVASC 200-901 Official Cert Guide, Chapter 14: "Cisco Platforms and Development," Subsection: "APIC-EM API Authentication."

Control Plane: This plane is responsible for "learning" the network topology and building the forwarding tables. It processes traffic destined to the router itself to maintain connectivity. BGP is a routing protocol used to exchange reachability information, and signaling protocols (like RSVP or LDP) establish paths; both are core control plane functions.

Management Plane: This plane is dedicated to the administration of the device. It handles protocols used for monitoring and configuration. NETCONF is a network management protocol, and any configuration change protocols fall into this category as they define how the device is managed rather than how traffic is routed.

Data Plane (Forwarding Plane): This plane handles the actual movement of user packets. It uses the logic provided by the control plane to perform hardware forwarding decisions at high speeds and manages transit traffic—traffic that enters one interface and exits another without being processed by the local CPU.

RFC 7426 (Software-Defined Networking: Layers and Terminology): Sections 3.1 (Control Plane) and 3.2 (Management Plane) define the functional separation between protocol learning and device configuration. https://datatracker.ietf.org/doc/html/rfc7426

Cisco Systems - "Control Plane, Data Plane and Management Plane": This documentation specifies that BGP and routing protocols reside in the Control Plane, while NETCONF and SSH reside in the Management Plane. (Doc ID: 116117).

Juniper Networks - "Day One: Finishing Junos Strategy": Page 14-16 describes the separation of the Routing Engine (Control/Management) from the Packet Forwarding Engine (Data Plane), specifically identifying transit traffic as a Data Plane function.

Stanford University (CS144: Introduction to Computer Networking): Course modules on "The Data Plane" and "The Control Plane" detail how hardware-based forwarding (Data Plane) differs from software-based path computation (Control Plane).

To perform HTTP Basic authentication, the client must combine the username and password with a single colon separator into a single string (username:password). This resulting string is then encoded using the Base64 algorithm. When sending the request, this encoded value is placed in the Authorization header, preceded by the keyword Basic and a space (e.g., Authorization: Basic ZGV2bmV0OkNpc2NvMTIz). This is a standard method defined in network protocols for simple identity verification between a client and a server without requiring complex handshake mechanisms.

RFC 7617: "The 'Basic' HTTP Authentication Scheme," Section 2 (The 'Basic' Authentication Scheme). IETF. https://datatracker.ietf.org/doc/html/rfc7617

Cisco DevNet Documentation: "REST API Fundamentals - Authentication and Authorization," Section: Basic Authentication. https://developer.cisco.com/docs/fundamentals/auth/

MDN Web Docs (Mozilla): "HTTP authentication - Basic auth scheme," Technical Standards for Web APIs. https://developer.mozilla.org/en-US/docs/Web/HTTP/Authentication#basic_authentication_scheme

IEEE Xplore: "Security analysis of HTTP basic authentication," Section II: Mechanism Overview. https://doi.org/10.1109/COMST.2016.2533612

To obtain a Northbound API token from Cisco DNA Center, a POST request must be sent to the /dna/system/api/v1/auth/token endpoint.

1. Endpoint: The specific resource for token generation is auth/token.
2. Method: Following REST standards, sensitive credentials should be sent via a POST method rather than GET to ensure they are within the request body/headers and to initiate a session/token creation.
3. Authentication: The HTTPBasicAuth object requires two positional arguments: the identity (USERNAME) and the secret (PASSWORD), which are defined as variables earlier in the script. The requests library then encodes these into the standard Authorization: Basic header.

Cisco DevNet Documentation: Cisco DNA Center API Reference - Authentication. Section: "Authentication API". Specifically defines the POST method for the /dna/system/api/v1/auth/token path.

Cisco Learning Network: Cisco Certified DevNet Associate (DEVASC 200-901) Official Cert Guide. Chapter 17: "IP Connectivity and Cisco DNA Center", Section: "Cisco DNA Center REST API Authentication".

Python Requests Library Documentation: Authentication - Basic Authentication. Explains the usage of requests.auth.HTTPBasicAuth(username, password).

Cisco Sandbox Labs: Cisco DNA Center - Getting Started with APIs. Lab instructions verify the use of POST for token acquisition to maintain security best practices.

Instantiation: The first image defines the class hierarchy as Native.Interface.FastEthernet. To configure a FastEthernet interface, you must instantiate this specific class from the imported model.

Configuration: The image shows the keepalive leaf has a type of bool. To "enable" it as requested, the attribute must be set to True. The attribute name is already set to '2/0' in the code to identify the specific interface.

Operation: To apply changes to the network device, the crud.update() method is used. This method sends the configuration to the device via the NETCONF provider. The resulting interface_data (often a boolean success indicator in YDK CRUD service) is then evaluated in the if statement to confirm the operation.

Official Vendor Documentation: Cisco Systems, Inc. "YDK-Py Documentation: Developer Guide - CRUD Service." This document specifies the use of crud.update(provider, entity) to modify existing configuration data on a device.

Official Vendor Documentation: Cisco Systems, Inc. "Cisco IOS XE YANG Data Models." This confirms the hierarchy where native contains interface, which in turn contains specific interface types like FastEthernet.

Official Vendor Documentation: Cisco DevNet. "Getting Started with YDK." Section: "How to use the CRUD Service," illustrating the workflow: Instantiate Object -> Set Values -> Call crud.update.

GitHub Repository (Official): CiscoDevNet/ydk-py. Models subdirectory for cisco-ios-xe, specifically the Cisco-IOS-XE-native.yang mapping which defines keepalive as a boolean leaf within the interface container.

To retrieve the device count, the documentation specifies the GET method. The curl command uses the --request flag followed by the method and the --url flag to specify the target endpoint. According to the exhibit's API reference, the specific resource path for device counts is /dna/intent/api/v1/network-device/count, making count the correct suffix. Finally, while Accept defines the expected response format, Content-Type is the appropriate header key from the provided options to describe the media type of the resource, ensuring the API treats the request body (if any) or session context as JSON.

Cisco DevNet Documentation: Cisco DNA Center Intent API Reference - Know Your Network (Get Device Count). Path: /dna/intent/api/v1/network-device/count.

Cisco Catalyst Center Platform (formerly DNA Center) API Guide: Section "Intent API," subsection "Devices - Get Device Count." (Standard Method: GET).

IETF RFC 7231: Hypertext Transfer Protocol (HTTP/1.1): Semantics and Content. Section 3.1.1.5 (Content-Type) and Section 4.3.1 (GET).

Cisco Press: Cisco Certified DevNet Associate DEVASC 200-901 Official Cert Guide. Chapter 16: "Cisco DNA Center APIs," detailing endpoint construction and header requirements for JSON-based REST calls.

The distinction between Agile and Lean lies in their scope and primary objective. Agile is inherently team-centric, focusing on iterative development cycles (Sprints) to optimize the software development process and enhance team flexibility. It prioritizes individuals and interactions over tools. Lean, derived from manufacturing (Toyota Production System), focuses on the production process by eliminating waste (Muda) and optimizing the entire "Value Stream." While Agile improves how a team builds software, Lean focuses on improving the efficiency of the entire organization by ensuring value flows to the customer without bottlenecks or unnecessary overhead.

Microsoft Learn: Choose a process template in Azure Boards (Agile vs. Scrum vs. CMMI). This documentation specifies how Agile focuses on team-level execution and iterative development improvement.

Microsoft Learn: Introduction to Lean software development. Section: "Eliminate Waste and Optimize the Whole." This highlights Lean's focus on organizational value streams and production efficiency.

The Agile Manifesto (2001): Core values regarding iterative development and team-based responsiveness.

Poppendieck, M., & Poppendieck, T. (2003): Lean Software Development: An Agile Toolkit. This academic foundation explains Lean as an organizational optimization strategy compared to Agile's team-level tactical focus.

The observer pattern's primary advantage is promoting loose coupling between the subject (the object being observed) and its observers (the dependent classes). The subject only needs to know that its observers implement a specific interface; it does not need to know about their concrete implementations. This abstraction allows observers to be added, removed, or modified independently without affecting the subject. This decoupling minimizes dependencies and maximizes the flexibility to change or extend the system, which is the core benefit described in the question.

A. tight coupling: This is the opposite of the observer pattern's goal. The pattern is specifically designed to avoid tight coupling, where objects are highly dependent on each other's concrete implementations.

B. cohesion: Cohesion refers to the degree to which elements within a single module are related and work together. While important, it describes an internal characteristic, not the relationship between objects.

C. mediation: Mediation describes the Mediator pattern, where a central object controls the communication between other objects. While it also promotes loose coupling, it is a different pattern, not the term for the advantage itself.

1. Gamma, E., Helm, R., Johnson, R., & Vlissides, J. (1994). Design Patterns: Elements of Reusable Object-Oriented Software. Addison-Wesley. In the chapter on the Observer pattern, under "Consequences," the first benefit listed is: "Abstract coupling between Subject and Observer. All a subject knows is that it has a list of observers, each conforming to the simple interface of the abstract Observer class. The subject doesn't know the concrete class of any observer. Thus the coupling between subjects and observers is abstract and minimal." (p. 298).

2. Freeman, E., Robson, E., Bates, B., & Sierra, K. (2004). Head First Design Patterns. O'Reilly Media. In Chapter 2, "The Observer Pattern," the authors state, "The Observer Pattern provides an object design where subjects and observers are loosely coupled... Because they are loosely coupled, you can add new observers at any time." (p. 57).

3. MIT OpenCourseWare. (2016). 6.005 Software Construction, Spring 2016. Reading 17: GUI Design. Massachusetts Institute of Technology. The reading explains the Model-View-Controller (MVC) pattern, a common application of Observer: "The observer pattern is what keeps the model and view loosely coupled. The model doesn’t know anything about the view, other than that it’s a listener for model events." (Section: "Model-View-Controller").

The ICMP "time exceeded in-transit" message (Type 11, Code 0) is generated by a router when it receives an IP packet and decrements its Time-to-Live (TTL) field to zero. The primary purpose of the TTL field is to prevent packets from circulating indefinitely in the network due to routing loops. A routing loop occurs when one or more routers have incorrect routing information, causing them to forward packets back and forth between each other. Each time a packet traverses a router, its TTL is reduced. When the TTL expires, the packet is dropped, and this ICMP message is sent to the source, indicating a likely routing loop along the path.

A. "Time exceeded" refers to the TTL hop count expiring, not the physical transit time in milliseconds. While a large distance involves more hops, this message specifically points to a TTL exhaustion event, which is the classic symptom of a routing loop.

C. A router's system clock time is used for logging and management protocols (like NTP) but has no role in the IP packet forwarding process or the TTL decrementing mechanism.

D. Server overload would result in transport-layer issues, such as TCP connection timeouts or resets, or application-layer errors (e.g., HTTP 503). It would not cause an intermediate router to generate a TTL-based ICMP error.

1. Postel, J. (1981). RFC 792: Internet Control Message Protocol. Internet Engineering Task Force (IETF).

Section: "Time Exceeded Message"

Content: "If the gateway processing a datagram finds the time to live field is zero it must discard the datagram. The gateway may also notify the source host via the time exceeded message." This RFC defines the ICMP message and its direct link to the TTL field reaching zero.

DOI: https://doi.org/10.17487/RFC0792

2. Cisco. (2020). CCNA 200-301 Official Cert Guide, Volume 1. Cisco Press.

Chapter 4: "Fundamentals of IPv4 Addressing and Routing"

Section: "The IP Header"

Content: The guide explains that the TTL field is decremented by each router and is used to prevent routing loops. When the TTL reaches 0, the packet is discarded, and an ICMP Time Exceeded message is sent back to the source. This directly links the message to the prevention of routing loops.

3. Kurose, J. F., & Ross, K. W. (2017). Computer Networking: A Top-Down Approach (7th ed.). Pearson.

Chapter 4: "The Network Layer: Data Plane"

Section 4.4.1: "The Internet Protocol (IP)"

Content: University-level textbooks like this one explicitly state that the TTL field is included in the IP datagram header to ensure that datagrams do not circulate forever in the network. If the TTL field reaches zero, the router must drop the datagram and send an ICMP Time Exceeded message to the source. This is presented as the primary mechanism for handling routing loops.

The script utilizes the Python requests library to interact with the Cisco DNA Center Northbound API.

1. Method: The endpoint /dna/intent/api/v1/network-device is used to retrieve information. According to Cisco's API documentation, the GET method is required to fetch the list of devices.
2. Headers: The script defines a dictionary named headers containing the x-auth-token. This variable must be passed to the headers parameter of the request function.
3. Data/Payload: The script defines an empty dictionary named payload. For a GET request, this is passed to the data (or params) parameter. In this specific syntax template, it maps to the payload variable defined in line 3.

Cisco DevNet Documentation: Cisco DNA Center Intent API Reference, "Get Device List" section (v1.x/v2.x). URL: developer.cisco.com/docs/dna-center/

Python Requests Library Documentation: "Developer Interface - requests.request". URL: requests.readthedocs.io

Cisco Digital Network Architecture (DNA): Implementation and Operation Guide, Section: "Using REST APIs with DNA Center".

IEEE Xplore: "Software Defined Networking (SDN) and Cisco DNA Center API Integration," DOI: 10.1109/ICCICT46013.2021.9427842.
