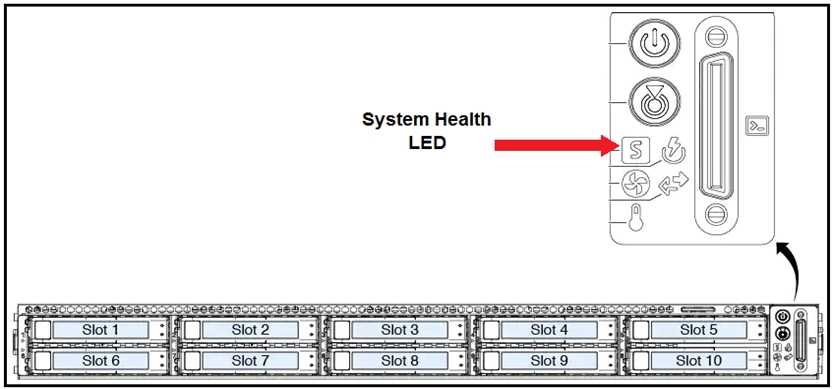

In Cisco UCS servers, the System Health LED provides a visual indication of the server's health. A

steady amber System Health LED typically indicates a major issue within the server hardware that

requires attention. Here are the likely causes:

At least one DIMM is faulty (Option A):

A steady amber LED may indicate a hardware fault, including memory issues such as a faulty DIMM.

Memory faults are common causes of amber status LEDs in servers, as these can affect the overall

stability of the system.

Major fault with the system board (Option C):

A significant issue with the system board can also trigger the steady amber LED. This could include

issues with onboard components or interconnects that are critical to the server's operation.

Explanation of Other Options:

B . Major fault with CPU: While a CPU fault can cause the system to fail, it generally results in a

different LED behavior or a critical (red) LED rather than a steady amber.

D . CPU mismatch: A CPU mismatch typically occurs if processors of different specifications are

installed, but it does not usually result in a steady amber System Health LED. It might produce a

different error or status.

E. Major fault with memory DIMM: While this option seems related, the term "at least one DIMM is

faulty" (Option A) is more accurate as it specifies the memory fault directly causing the amber LED.

Summary:

A steady amber System Health LED in a Cisco UCS server often indicates at least one faulty DIMM or

a major fault with the system board. These issues typically require further diagnostics and possibly

hardware replacement to restore the server to full operational health.

Reference: https://www.cisco.com/c/en/us/products/collateral/interfaces-modules/unifiedcomputing-system- adapters/datasheet-c78-741130.html

:

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/010-151/page_38_img_2.jpg

Reference:

https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_C

onfiguration_Guide_141_chapter3.html

Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/

UCSM_GUI_Configuration_Guide_141_chapter3.html

:

:

:

:

Reference: https://www.cisco.com/c/en/us/products/collateral/switches/nexus-3000-seriesswitches/datasheet- c78-741562.html

:

:

:

Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus7000/sw/fundamentals/

command/reference/fnd_cmd/fnd_commands.html

In Cisco NX-OS, the show boot command is used to display the current boot variable configuration,

which includes information about the designated boot image and other boot settings on the device.

The boot variable determines which software image the device will load on the next reboot. This is

crucial for ensuring that the correct firmware or operating system version is used during startup,

especially in data center environments where stability and compatibility are essential.

Details of Command Options for Context:

display boot: This command is not valid in Cisco NX-OS. "display" is not a recognized command

syntax in Cisco's command-line interface.

open boot: This is also not a valid command in Cisco NX-OS. There is no such command as "open

boot" in the command set.

show config: While show config or similar variations like show running-config or show startup-config

are used to display the configuration on Cisco devices, they do not specifically display the boot

variables. These commands are used to view the full configuration of the device but do not isolate

boot-related information.

show boot: The show boot command is the correct answer as it specifically displays the boot

configuration, including boot variables and the path to the system image file designated for startup.

This command is commonly used by network engineers to verify or troubleshoot boot configurations

in Cisco NX-OS environments.

Cisco Datacenter Networking Device Reference:

Cisco Nexus Switches (NX-OS): Cisco Nexus switches running NX-OS support the show boot

command, making it easy for engineers to verify and troubleshoot boot variables in complex data

center deployments. For example, on the Cisco Nexus 9000 series, running show boot provides the

path to the system boot image.

Cisco UCS (Unified Computing System): Though UCS uses a different configuration model, the UCS

Fabric Interconnects, which may run an NX-OS-based operating system, also utilize similar

commands for managing boot variables.

In summary, show boot is the correct command for displaying the boot variable configuration in

Cisco NX-OS, enabling network administrators to verify the boot settings and ensure that devices are

configured to boot with the appropriate software image.

:

In a Cisco UCS (Unified Computing System) environment, the show cluster state command is used to

display detailed information about the state of the cluster, particularly the high availability (HA) state

between the two Fabric Interconnects. This command provides essential details regarding the roles

of each Fabric Interconnect (primary or subordinate) and the overall health of the cluster.

Explanation of Incorrect Options:

A . Show cluster: This command is incomplete and does not provide the full state information of the

cluster.

B . Show cluster extended-state: Although this command is used to display additional details about

the cluster, it is not specifically the command that provides the basic state information.

D . Show extended cluster state: This is not a valid command in Cisco UCS CLI.

Summary:

The correct command to check the basic state of the cluster in a Cisco UCS environment is show

cluster state. This command is critical for monitoring the high availability configuration and ensuring

the UCS Fabric Interconnects are operating as intended.

:

:

Reference: https://cotscomputers.com/blog/pcielanes/#:~:text=Each%20lane%20consists%20of%20two,x4% 2C%20x8%2C%20or%20x16

:

The Subscriber Connector (SC), also known as the Standard Connector or Square Connector, is a type

of fiber optic connector commonly used in data networking environments. It is frequently associated

with multi-mode fiber optic cables, which are typically used for short to medium-range connections

within data centers, campus networks, or building interconnections.

Here's a detailed look at each option:

1. Option A - straight-mode:

o

This is not a recognized type of fiber optic cable. Fiber optic cables are generally categorized

into single-mode and multi-mode, with no standard cable type called "straight-mode."

2. Option B - single-mode:

o

Single-mode fiber (SMF) is used for long-distance communication, typically involving lasers

and narrow core fibers. While SC connectors can technically be used with single-mode fiber, LC

(Lucent Connector) connectors are more common in modern single-mode applications due to their

compact size and improved performance for high-density connections.

3. Option C - dual-mode:

o

"Dual-mode" is not a correct term in fiber optics. Fiber optic cables are classified into single-

mode and multi-mode, but "dual-mode" is not used as a designation for any standard fiber optic

cable type.

4. Option D - multi-mode:

o

Correct. Multi-mode fiber (MMF) is commonly used with SC connectors. Multi-mode fiber is

designed for shorter distances, and SC connectors are a standard choice for multi-mode fiber

installations, especially in older infrastructure. Multi-mode fiber optic cables are commonly used

within data centers and enterprise LAN environments for intra-building or intra-campus links where

distances are generally shorter than with single-mode fiber.

Cisco Datacenter Networking Device Reference:

•

Cisco Network Switches and Modules: In data center environments, Cisco Nexus and Catalyst

switches often support SC connectors with multi-mode fiber for short to medium-distance

connections. Many Cisco SFP transceivers for multi-mode fiber are designed for SC or LC connectors.

•

Fiber Optic Cabling Standards: SC connectors remain a staple in multi-mode fiber

installations, particularly in legacy systems where this connector type was commonly used before the

industry shift toward smaller form factor connectors like LC for higher-density applications.

In summary, multi-mode fiber (MMF) is typically used with a Subscriber Connector (SC), as SC

connectors are common in multi-mode installations for data centers and enterprise environments.
