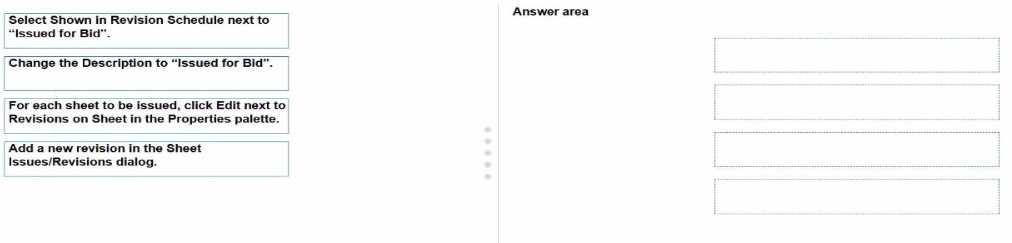

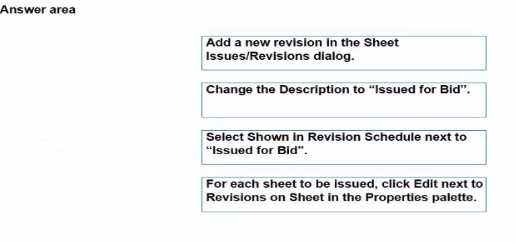

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_51_img_2.jpg In Autodesk Revit Electrical Design, revisions are managed using the Sheet Issues/Revisions dialog to track changes and document issuance phases, such as “Issued for Bid” or “Issued for Construction.” The revision schedule on the title block automatically reflects this data when configured correctly. According to the Revit MEP User’s Guide (Chapter 48 “Construction Documentation – Managing Sheets and Revisions”): “Revisions define a record of changes issued with sheets. To display a revision in the title block, it must first be created in the Sheet Issues/Revisions dialog, assigned a description, and set to be shown in the revision schedule.” Here’s how the process works step-by-step: 1️⃣ Add a new revision in the Sheet Issues/Revisions dialog. Navigate to View tab → Sheet Composition panel → Revisions. Add a new revision line entry (this creates a new revision record). 2️⃣ Change the Description to “Issued for Bid”. In the same dialog, edit the Description field to reflect the issuance purpose. 3️⃣ Select Shown in Revision Schedule next to “Issued for Bid”. Check “Show” in the Revision Schedule column so it will appear in the title block’s revision schedule table. 4️⃣ For each sheet to be issued, click Edit next to Revisions on Sheet in the Properties palette. In the Properties palette, under Identity Data, click Revisions on Sheet → Edit and assign the “Issued for Bid” revision only to the sheets being released. This ensures only the selected sheets display the “Issued for Bid” entry, maintaining proper control over which drawings are issued while others remain unaffected. As described in the Smithsonian Facilities Revit Template User’s Guide: “Revision schedules are dynamically linked to sheet issue data. Designers can show or hide revisions on a per-sheet basis by editing ‘Revisions on Sheet’ from the Properties palette.”

The "Instance of link needs Coordination Review" message is a specific notification generated by Revit's Copy/Monitor feature. This message indicates that an element in the linked architectural model, which is being actively monitored by the host electrical model, has been moved, modified, or deleted. The Coordination Review tool allows the designer to see the change and decide on an appropriate action, such as updating the corresponding element in the host model, to maintain coordination between the disciplines.

A. Interference detection is a separate process performed using the "Interference Check" tool, which generates a different type of report.

B. The message is generated in the host (electrical) model about the link; it is not a message originating from within the architectural model itself.

C. While a host change could be the cause, this message is specifically tied to elements being monitored via Copy/Monitor, making option D more precise.

1. Autodesk Revit Help. (2023). Coordination Review Dialog. "The Coordination Review dialog opens when you open a project or reload a linked model, and Revit detects changes to monitored elements in the linked model."

2. Autodesk Revit Help. (2023). About Copy/Monitor. "Use the Copy/Monitor tool to monitor changes to important elements of a design... When a monitored element is changed in the linked model, you are notified of the change so you can reconcile the changes."

3. Autodesk University. (2020). AU 2020 Class: CES463539 - Revit Coordination Features. "When a change is made to a monitored element in the linked file, Revit will alert the user upon opening the host file or reloading the link. This triggers the Coordination Review process." (Section: Copy/Monitor Workflow)

The System Browser in Revit provides a hierarchical view of the electrical distribution system. In the provided exhibit, "Panel P4" is shown as a child element nested directly under "Panel P 3". This parent-child relationship visually represents the electrical connection, indicating that Panel P4 is fed by a circuit originating from Panel P3. The other panels (P1, P2, P5) are shown at different levels or as siblings, not as the direct supplier to P4.

A. Panel P1 is shown at the same hierarchical level as P3 in the distribution tree, not as the parent panel for P4.

B. Panel P2 is also shown at the same level as P3, indicating it is not the source for Panel P4.

C. Panel P5 is shown as a sibling to Panel P4, meaning both are supplied by the same parent panel (P3).

1. Autodesk, Inc. "Use the System Browser". Autodesk Knowledge Network, Revit 2023 Help. Accessed October 2023. The documentation states, "The System Browser displays a hierarchical list of all the components for each discipline... For electrical systems, it shows the distribution system, from the power source to the individual devices." This confirms the hierarchical representation of circuits.

Ceiling-hosted families in Revit are built using templates that contain a host element, which is represented by a reference plane. When an instance of a ceiling-hosted light fixture is placed in a project, it must be associated with, or hosted by, a ceiling element. The family's internal geometry is constrained relative to the reference plane that represents the face of the ceiling host. This hosting relationship is the fundamental condition that allows the fixture to be placed and to move with the ceiling if the ceiling's position or elevation changes.

A. Snapping to nodes or grid lines on a ceiling is a placement aid for alignment but is not the fundamental requirement for hosting.

C. A light fixture can be placed anywhere on a ceiling surface, not just on points defined by the ceiling's grid pattern.

D. In a typical multi-disciplinary workflow, the ceiling exists in a linked architectural model, while the light fixture is placed in the host electrical model.

1. Autodesk, Inc. (2023). Revit 2024 Help. "About Placing Elements on a Host Component". This document explains that host-based elements, like ceiling-hosted fixtures, require a host element (a ceiling) for placement.

2. Autodesk, Inc. (2023). Revit 2024 Help. "Create a Loadable Family". The documentation notes that family templates (e.g., Ceiling-based.rft) include a host element represented by reference planes to which the family geometry is constrained.

When elements in a linked model do not display correctly due to phase differences, the phases must be mapped between the host and linked models. This is accomplished through the Type Properties of the Revit link. By selecting the linked model instance, clicking "Edit Type," and then accessing the "Phase Mapping" dialog, the designer can associate each phase in the linked model (e.g., the architect's "Demolition" phase) with a corresponding phase in the host model, ensuring correct graphical representation.

A. The "Manage Links" dialog is for loading, unloading, and positioning links, but it does not contain a "Manage Phases" function for mapping.

C. "Graphic Overrides" for phases controls the visual style (color, line weight) of elements in different phase statuses, not the logical mapping between linked files.

D. Visibility/Graphics settings for Revit Links are view-specific overrides and do not establish the fundamental phase relationship for the entire linked model type.

1. Autodesk, Inc. "About Phase Mapping for Linked Models". Autodesk Knowledge Network, Revit 2023 Help. Accessed October 2023. The guide specifies the procedure: "To map phases between the host model and a linked model, select the linked model... Click Modify | RVT Links tab -> Properties panel -> (Type Properties). In the Type Properties dialog, for Phase Mapping, click Edit."
