The exhibit illustrates a four-node MetroCluster configuration. There are two controller nodes at Site A (ControllerA1, ControllerA2) and two at Site B (ControllerB1, ControllerB2), totaling four nodes. The key identifying feature is the presence of dedicated "MetroCluster Switches" at each site, which form a Fibre Channel (FC) fabric. In this architecture, the controllers connect to the storage shelves at the remote site through this FC fabric, which is the defining characteristic of a Fabric-Attached MetroCluster. The diagram shows this cross-site connectivity for storage access, confirming the fabric-attached model.

A. 2-node stretch MetroCluster: The diagram clearly depicts four controller nodes, not two.

B. 4-node MetroCluster IP: A MetroCluster IP configuration uses IP-based switches for the backend storage network, not the dedicated FC switches shown in the exhibit.

D. 4-node stretch MetroCluster: A stretch configuration does not use a switched fabric for backend storage; it typically involves direct-attached SAS connections to storage at both sites.

1. NetApp

Inc. (2023). TR-4705: MetroCluster Solution Architecture and Design.

Section: "Four-node fabric-attached MetroCluster configuration

" Page 10.

Content: Figure 3 in this document provides a detailed architectural diagram that is functionally identical to the one in the exhibit. It describes the configuration as having "two HA pairs

with each node of the HA pair at a different site" and using "two independent FC fabrics" for storage connectivity.

2. NetApp ONTAP Documentation Center. (2023). MetroCluster Installation and Configuration Guide.

Section: "Overview of a four-node Fabric-Attached MetroCluster configuration."

Content: This section explicitly states

"A four-node Fabric-Attached MetroCluster configuration consists of two HA pairs... The storage fabric consists of two redundant Fibre Channel (FC) networks." The accompanying diagrams mirror the components and connectivity shown in the question's exhibit.

3. NetApp ONTAP Documentation Center. (2023). MetroCluster IP Installation and Configuration Guide.

Section: "Overview of a four-node MetroCluster IP configuration."

Content: The diagrams and description in this guide show the use of IP switches (such as Cisco Nexus or Broadcom) for the backend network

which is distinctly different from the FC switch-based fabric shown in the question's exhibit. This reference confirms why option B is incorrect.

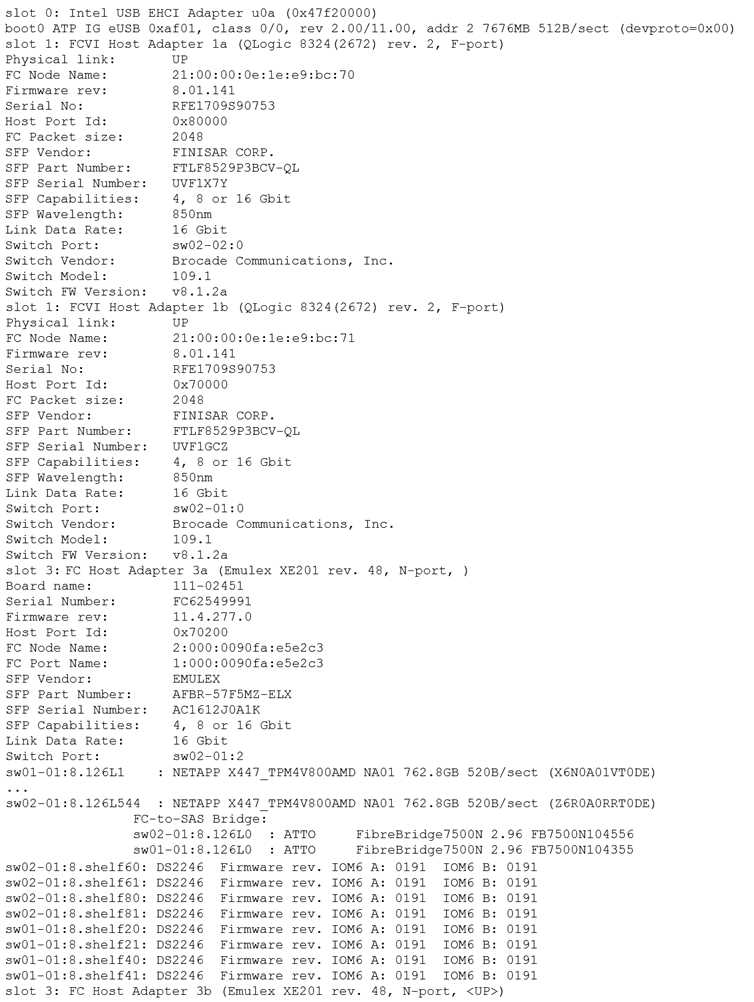

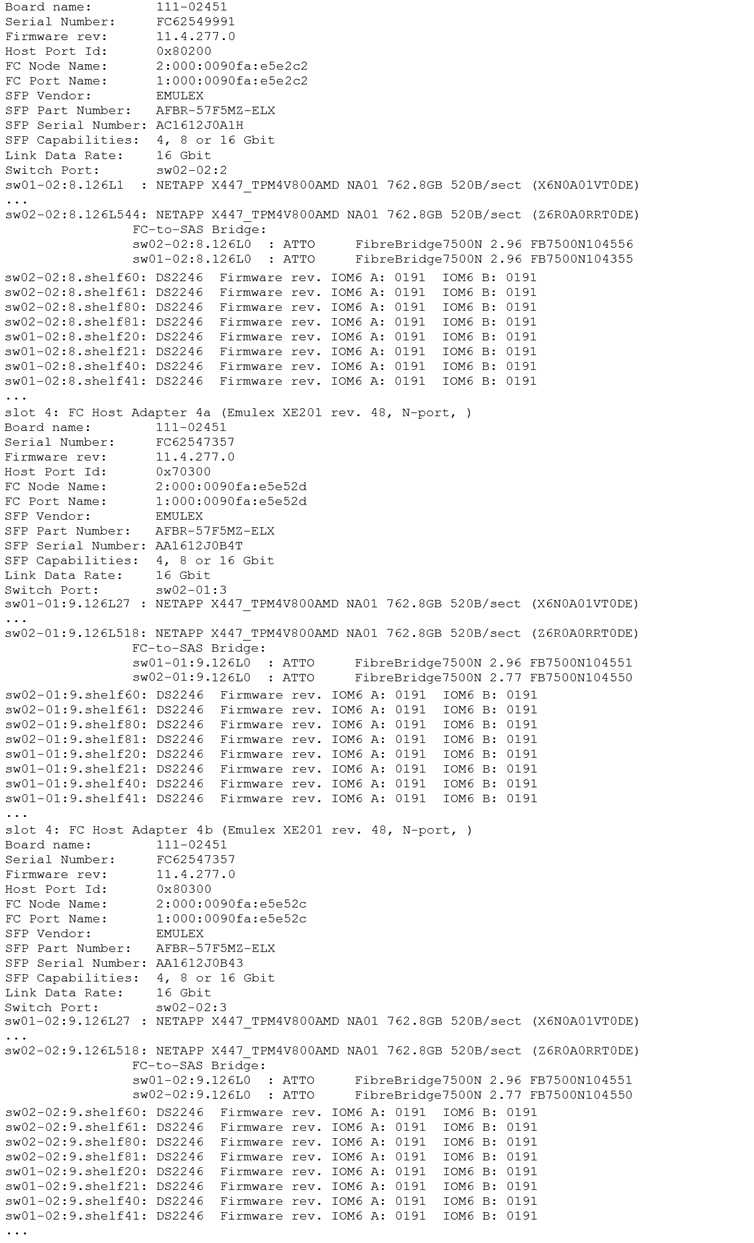

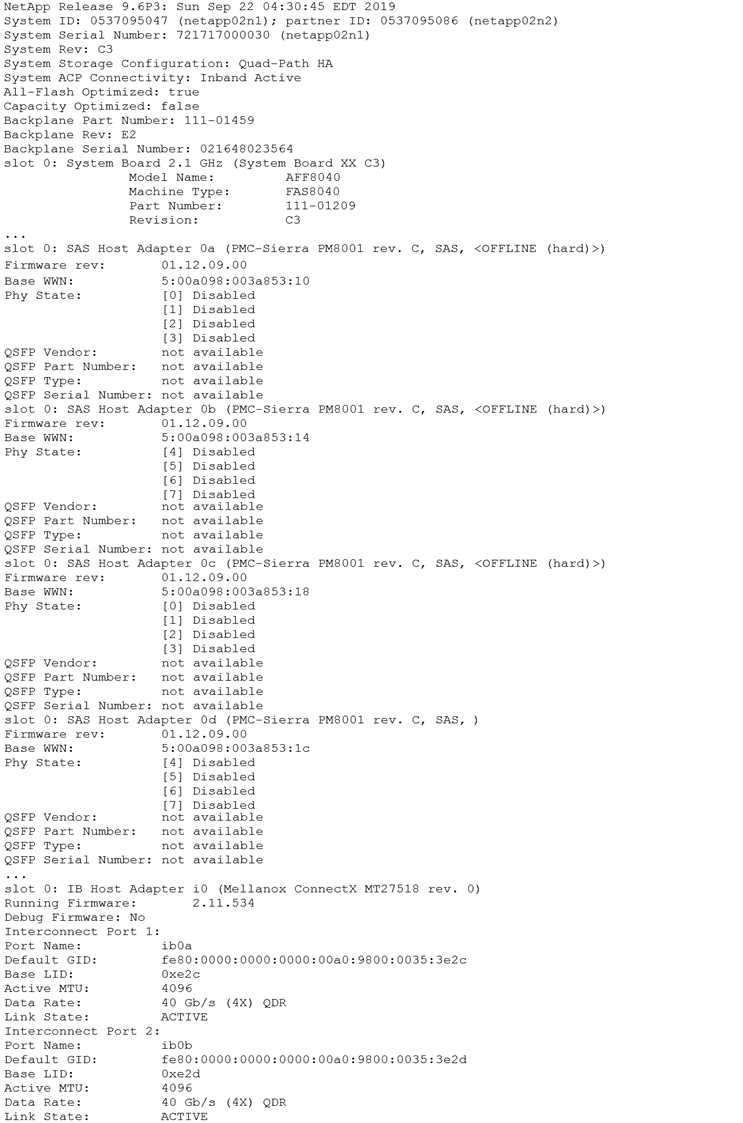

NetApp Hardware Universe (HWU) is the definitive online resource for identifying specific hardware components, including their part numbers, for NetApp systems. When an SFP+ fails, HWU is used to look up the specific controller model and identify the compatible and orderable SFP+ modules. It provides detailed specifications and part numbers required to request the correct replacement from NetApp Support, ensuring hardware compatibility and proper function.

A. NetApp Active IQ: This is a cloud-based analytics tool for monitoring system health, identifying risks, and providing proactive recommendations. It does not serve as a hardware component catalog for part number lookup.

B. Interoperability Matrix Tool: The IMT is used to verify compatibility between different components in a storage solution (e.g., ONTAP version, host OS, HBAs, switches), not to identify specific replacement part numbers for a controller.

C. NetApp Documentation Center: This is a repository for procedural guides and manuals. While it contains hardware replacement instructions, the Hardware Universe is the specific tool designed for looking up component details and part numbers.

1. NetApp Hardware Universe (HWU): "Hardware Universe (HWU) provides you with information about supported hardware and software components for various NetApp products." This tool is the primary source for identifying specific part numbers for components like SFP+ transceivers.

Source: NetApp Support Site

Hardware Universe Tool. (Access to this tool requires a NetApp Support Site account).

2. NetApp Product Documentation

"ONTAP 9.10.1 Hardware Universe": The introduction to the HWU documentation states its purpose is to provide detailed information about NetApp hardware components. For example

selecting a platform like a FAS8300 and navigating to its I/O modules would list the specific supported SFP+ modules and their associated part numbers.

Source: NetApp Product Documentation

"ONTAP 9.10.1 Hardware Universe

" Introduction section.

3. NetApp Active IQ Digital Advisor Documentation: "Active IQ is a cloud-based service that uses AIOps to simplify and automate the proactive care and optimization of NetApp storage... It provides predictive analytics and proactive support..." This description confirms its role is in analytics and health

not as a parts database.

Source: NetApp Product Documentation

"Active IQ Digital Advisor

" Overview section.

The correct way to achieve complete network isolation for multi-tenancy in ONTAP is by using IPspaces. An IPspace is a logical container that creates a distinct IP network stack, including its own routing table, firewall policies, and set of network interfaces (LIFs). By creating one IPspace for tenant A and another for tenant B, all network traffic for each tenant, including data access and SnapMirror replication, is kept completely separate. This configuration allows for non-overlapping network administration and even permits the use of overlapping IP address ranges between tenants on the same physical cluster.

A. The customer must use different VLANs for the two tenants.

VLANs provide Layer 2 network segmentation but do not create separate routing tables. Both tenants would share the same Layer 3 routing domain, which does not provide the required isolation.

B. This setup can only work if tenant A and tenant B use a shared network infrastructure.

This is incorrect. The primary purpose of features like IPspaces is to enable tenants to use separate, isolated network infrastructures on a single shared storage system.

D. Each node can only communicate with tenant A or tenant B, but not with both at the same time.

This is false. A single ONTAP node can host LIFs belonging to multiple IPspaces, allowing it to serve traffic for multiple tenants concurrently and in isolation.

1. NetApp ONTAP 9 Network Management Guide

Section: "Managing IPspaces".

Reference Detail: The guide states

"An IPspace defines a distinct IP address space in which SVMs and their network interfaces (LIFs) reside. IPspaces enable you to have multiple tenants on a single ONTAP cluster with separate network domains for security and traffic isolation." This directly supports the use of IPspaces for the described multi-tenant scenario.

2. NetApp Technical Report TR-4583: "Secure Multi-tenancy IPspaces Design and Implementation Guide"

Section 2: "IPspaces Overview".

Reference Detail: "IPspaces are a feature of NetApp ONTAP software that enables a single NetApp ONTAP cluster to be virtualized into multiple

secure

isolated network containers... Each IPspace has its own unique routing table

which means that each IPspace can have its own default route and static routes." This confirms that IPspaces provide the necessary routing isolation that VLANs alone cannot.

3. NetApp ONTAP 9 Data Protection Power Guide

Section: "SnapMirror networking".

Reference Detail: The documentation confirms that SnapMirror relationships are established between SVMs. Since SVMs are contained within IPspaces

SnapMirror traffic will be isolated within the IPspace of the respective intercluster LIFs

fulfilling the customer's requirement for data protection traffic isolation.

ONTAP NVRAM (Non-Volatile RAM), or NVMEM in modern systems, serves as a high-performance journal for all incoming write operations. When a host sends a write request, ONTAP logs the data to NVRAM and immediately sends an acknowledgment back to the host. This data is considered "uncommitted" until it is flushed to the persistent disk-based storage during a consistency point. This logging mechanism significantly improves write latency. To ensure the integrity of these uncommitted writes in the event of a power failure or unplanned shutdown, the NVRAM is non-volatile, a feature traditionally provided by an onboard battery that maintains power to the memory.

A. ONTAP NVRAM is used as read cache.

Incorrect. ONTAP uses system memory (RAM) as its primary read cache (buffer cache) and can use optional Flash Cache or Flash Pool technologies as a secondary read cache.

C. ONTAP NVRAM is used as write cache.

Incorrect. While its function is similar to a write cache, its role is more accurately described as a write log or journal. Option B, "stores uncommitted writes," is a more precise description of this logging function within the WAFL file system.

1. NetApp ONTAP Concepts Documentation

"How the WAFL file system works": "All write requests go to a dedicated

high-performance

nonvolatile storage (NVRAM or NVMEM) on the storage controller. They are treated as logged writes. After the writes are logged

the client is sent a confirmation." This source validates that NVRAM stores uncommitted writes (logged writes).

2. NetApp Support Knowledge Base

Article ID: 1011991

"What is the purpose of NVRAM?": "NVRAM is battery-backed memory that is present on all filers. Its purpose is to log incoming NFS/CIFS/iSCSI/FCP write requests... In the event of a power failure

the contents of NVRAM are preserved by the battery." This source validates that NVRAM is battery-backed and stores incoming (uncommitted) writes.

3. NetApp AFF and FAS Documentation

"AFF A900 and FAS9500 Systems Documentation Center"

Section: "Replace the NVMEM battery": "The NVMEM battery enables the controller module to save the contents of memory to flash in the event of a loss of power." This hardware-level documentation confirms the use of a battery to ensure non-volatility.

NetApp ONTAP systems require a Fibre Channel (FC) switched fabric for SAN connectivity. The ONTAP FC target ports are designed to perform a Fabric Login (FLOGI) to an FPort on an FC switch to join the fabric. A direct connection between a host's NPort and an ONTAP target's NPort is not a supported topology. Without a switch, the necessary fabric services (like the Simple Name Server) are unavailable, which prevents the host initiator from discovering the ONTAP target ports and the LUNs mapped to them. Therefore, the LUN is not visible because the required FC switch is missing from the configuration.

A. Multipathing must be used and connected to another FC path.

Multipathing provides high availability and performance; it is not a prerequisite for initial LUN discovery over a single, valid path.

B. NPV must be enabled on the host before trying to attach to the LUN.

NPort Virtualization (NPV) is a feature enabled on an FC switch, not on a host, to reduce the number of domain IDs in a fabric.

C. NPIV must be enabled on the host before trying to attach to the LUN.

NPort ID Virtualization (NPIV) allows a single physical HBA port to register multiple WWPNs, which is primarily for virtualized environments and not required for a basic connection.

1. NetApp ONTAP SAN Configuration Guide (ONTAP 9.11.1): In the section "Overview of SAN

" the architecture consistently depicts hosts and storage systems connected through one or more FC switches. The guide states

"A SAN is a dedicated network that connects servers (hosts) and storage systems. The components of a SAN include HBAs in the hosts

switches

cables

and storage systems." This implies a switch is a fundamental component. The absence of any documented support for direct-attach FC topology confirms it is not a valid configuration.

Source: NetApp ONTAP Documentation Center

"SAN configuration overview

" Published: 2023-05-12.

2. NetApp Technical Report 4080 (TR-4080): Fibre Channel SAN Configuration Guide: This document details the components of a supported FC SAN. The "Fibre Channel SAN components" section explicitly lists "Fibre Channel switches" as a core component alongside host bus adapters and storage systems. It does not describe or validate a direct-connect topology.

Source: NetApp TR-4080

Page 8

Section 2.1 "Fibre Channel SAN components."

3. Brocade Fabric OS Administration Guide: While not a NetApp document

it is an industry-standard reference for FC fabrics. It defines the port types and login processes (FLOGI

PLOGI) that underpin FC SANs. It clarifies that NPorts (hosts

storage) log in to FPorts (switches) to form a fabric

a process that cannot occur in a direct NPort-to-NPort connection without special considerations not supported by ONTAP for its primary SAN function.

Source: Brocade Fabric OS Administration Guide

9.0.x

Section on "Fabric Principles" and "Port Types."
