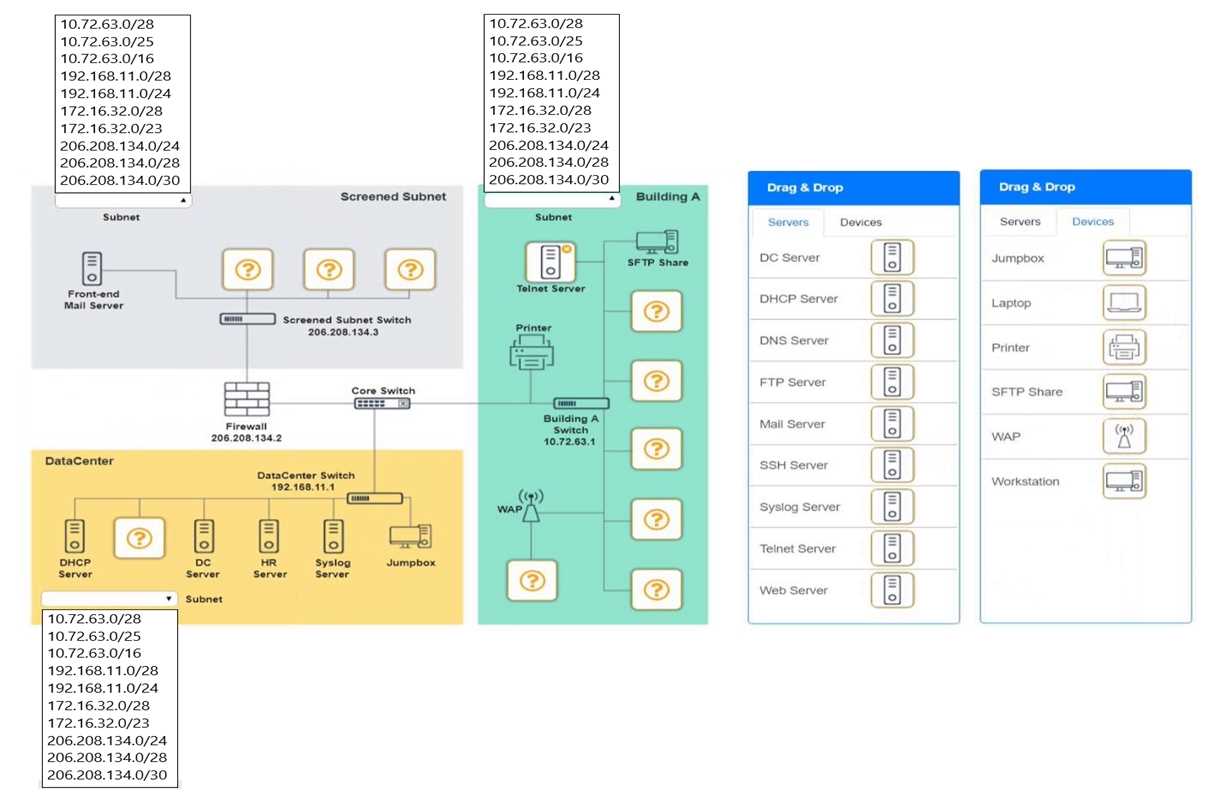

SIMULATION You are tasked with verifying the following requirements are met in order to ensure network security. Requirements: Datacenter Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage Provide a dedicated server to resolve IP addresses and hostnames correctly and handle port 53 traffic Building A Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage Provide devices to support 5 additional different office users Add an additional mobile user Replace the Telnet server with a more secure solution Screened subnet Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage Provide a server to handle external 80/443 traffic Provide a server to handle port 20/21 traffic INSTRUCTIONS Drag and drop objects onto the appropriate locations. Objects can be used multiple times and not all placeholders need to be filled. Available objects are located in both the Servers and Devices tabs of the Drag & Drop menu. If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Q: 20
Your Answer
Discussion
That feels right, but careful on the screened subnet! The question only gives you one subnet big enough for all those servers (the /24), not the /30. Also for Building A, don't forget to put a laptop, not another workstation, or you'll miss the mobile user requirement. Pretty sure that's all the nitpicky bits.
SSH server instead of Telnet, and don't forget the DNS server in the datacenter. Five workstations plus a laptop for Building A should cover the users, I think. Screened subnet needs both web and FTP servers. Not 100% sure on subnets but that's how I'd fill it out.
