SLA (Service Level Agreement) tiers are created and managed within the API Manager component of the Anypoint Platform. API Manager is used to govern and secure APIs that are deployed and running. It allows administrators to apply policies, such as rate limiting or throttling, by defining different SLA tiers (e.g., Gold, Silver, Bronze). These tiers can then be requested by and granted to client applications, enforcing consumption limits at runtime.

A. Exchange is a repository for discovering, sharing, and reusing API specifications and other assets, not for managing runtime policies like SLAs.

C. Anypoint Studio is the IDE for designing and developing Mule applications. Runtime governance and policy management are performed in API Manager.

D. RAML is a specification language used to design an API's contract. It does not define or enforce runtime operational policies like SLA tiers.

MuleSoft Documentation, "API Manager". Describes its function: "Use API Manager to manage, govern, and secure your APIs... Apply predefined or custom policies to your APIs to control access and traffic." (docs.mulesoft.com/api-manager/2.x/)

MuleSoft Documentation, "SLA-Based Policies". Explains, "You can apply the Rate Limiting and Throttling policies to specific API methods and resources, and you can also configure the policies to enforce different service-level agreements (SLAs) for each of the API’s clients." This configuration is done in API Manager. (docs.mulesoft.com/api-manager/2.x/sla-based-policies)

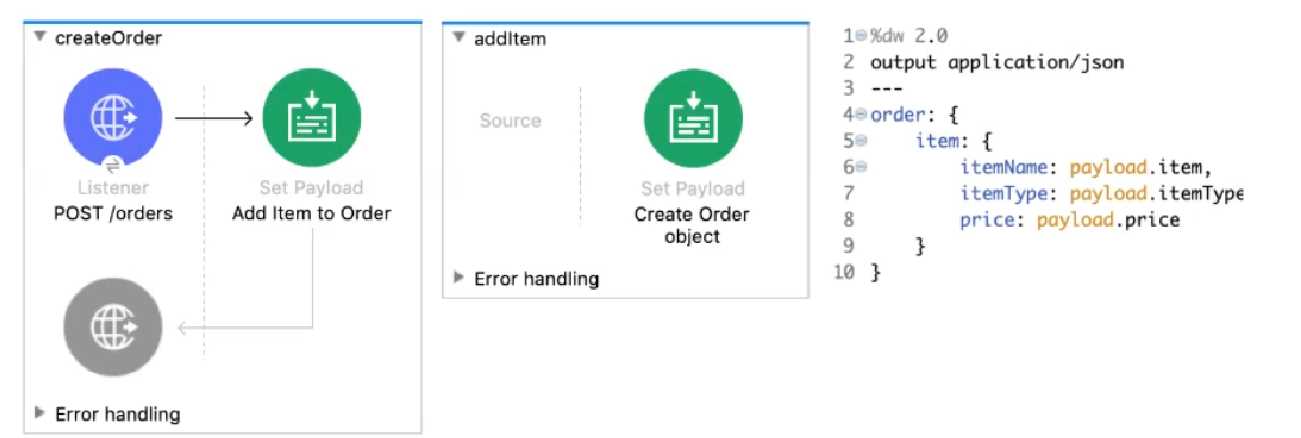

The DataWeave lookup function is used to invoke another flow and pass data to it. The function's second argument is an object that defines the input for the target flow. To set the payload for the target flow (addItem), the data must be provided as the value for the key payload. The addItem flow's Set Payload transformer expects to access payload.item and payload.price. Option C correctly structures the second argument as { payload: { ... } }, which sets the payload in the addItem flow to the nested object, allowing the expressions to resolve correctly.

A. This syntax would set price, item, and itemType as variables in the target flow, not as the payload. The addItem flow would fail as payload.item would be undefined.

B. addItem(...) is the syntax for calling a DataWeave function, not for looking up and invoking a Mule flow. This would result in a compilation error.

D. addItem(...) is the syntax for calling a DataWeave function, not for looking up and invoking a Mule flow. This would result in a compilation error.

1. MuleSoft Documentation, "DataWeave lookup Function". The documentation states, "The second argument is an object that provides the payload, variables, and attributes to the flow. The keys of the object can be payload, attributes, or the names of variables." The examples show the use of the payload key to set the target flow's payload.

:

The DataWeave expression must transform an array of XML user elements into a CSV format. The expression payload.users.user uses the multi-value selector (user) to correctly select all elements under and treat them as an array. The map function then iterates over this array. For each user element, it creates a new object with name and lastName keys, mapping the corresponding values from the XML. When the output is application/csv, DataWeave automatically converts this array of objects into a CSV string with a header row derived from the object keys.

B. Option B: This uses the single-value selector (payload.users.user), which would only process the first element, resulting in an incomplete CSV file with only one data row.

C. Option C: This script is functionally identical to option A and also correct. However, in a single-choice context, both are valid, but option A uses explicit naming for clarity.

D. Option D: This attempts to map over payload.users, which is the parent object, not the array of user records. This would not iterate over the individual users correctly.

- MuleSoft Documentation, "DataWeave Selectors". (Documents the use of the multi-value selector to select all instances of a repeating element in XML).

- MuleSoft Documentation, "Map Operator". (Explains how to use map to iterate over an array and transform each item).

- MuleSoft Documentation, "CSV Format". (Describes how DataWeave transforms an array of objects into CSV format).

In DataWeave 2.x a user-defined function is declared with the fun keyword, typed parameters enclosed in parentheses, and the = operator before the body. Option B follows that exact grammar and concatenates the literal "PC-", the productCategory string and the itemID converted to String with ++. The return type is inferred automatically, so no explicit type annotation is required.

A. Uses { } and the -> arrow; this is not valid DataWeave function syntax.

C. Uses keyword function, which DataWeave 2.x does not recognise for declarations (must be fun).

D. Declares a var (variable), not a function, and employs ->, so it cannot be invoked as a function.

1. MuleSoft Documentation – DataWeave Reference “Defining Functions”, Example: fun add(a: Number, b: Number) = a + b (v.4.6, docs.mulesoft.com).

2. MuleSoft “DataWeave Language Guide”, Functions section, p.8 (PDF download from Anypoint docs site).

The flow execution begins in the Try scope. The File Write operation fails, throwing a FILE:CONNECTIVITY error. This error is caught by the On Error Propagate handler. Inside the handler, the Choice router evaluates the error type. The condition error.errorType.identifier == 'FILE:CONNECTIVITY' evaluates to true. Consequently, the payload is set to the string "ORDER:NOTCREATED". Because the error handler is an On Error Propagate, it sends an error response to the HTTP Listener, which then returns the current payload ("ORDER:NOTCREATED") with a 500-level status code to the web client.

A. This is the error type's identifier, not the message configured in the flow to be returned to the client upon this specific error.

C. This message is in the default block of the error handler's Choice router and would only be returned for errors other than FILE:CONNECTIVITY.

D. This message is set only upon the successful completion of the Try scope. The File Write operation failed, so this part of the flow is never reached.

1. MuleSoft Documentation, "Mule Error Handlers". This document explains the behavior of On Error Propagate, which catches an error, executes its components, and then re-throws the error.

2. MuleSoft Documentation, "Error Object". This page details the structure of the error object, including error.errorType.identifier, which is used to identify the specific type of error.

The basePath attribute in an HTTP Listener configuration element defines a common path prefix for all HTTP Listener operations that use that configuration. The individual listener's path is appended to this basePath. For the endpoints /apis/orders and /apis/customers, the shared prefix is /apis/. By setting basePath="/apis/", the two listeners can then be configured with path="orders" and path="customers" respectively, achieving the desired routing.

A. /apis/?: The question mark (?) is not a valid character for a base path; it is used to denote the beginning of a query string in a URI.

C. /apis/orders|customers: The pipe character (|) is not a standard syntax for defining a base path; it represents a logical OR and is not used for path matching here.

D. /apis/: Wildcards like are used in the path attribute of an individual HTTP Listener operation to match URI segments, not in the shared basePath of the configuration.

1. MuleSoft Documentation, "HTTP Listener Connector". Section: "HTTP Listener Config". The documentation for the basePath parameter states: "The base path for all listeners that reference this configuration. This value is prepended to all paths defined in the listeners."

2. MuleSoft Documentation, "Configure an HTTP Listener". This guide shows examples where a literal string like /api is used as the basePath, and specific resource paths like /products are set on the listener operation.

To dynamically construct a string in a Mule 4 component, you can use a DataWeave expression. The expression must be wrapped in #[...]. Inside the expression, the payload keyword accesses the current message payload. The ++ operator is used in DataWeave for string concatenation. The expression #[ "The year is " ++ payload.year ] correctly concatenates the literal string "The year is " with the value of the year field from the payload object, producing the desired output.

A. '#[The year is $(payload.year)]': The outer single quotes make this a literal string. The #[] and $() syntax for interpolation would not be evaluated.

B. The year is #[payload.year]: While this expression template syntax works, option D is a more explicit and complete DataWeave expression, demonstrating knowledge of the canonical string concatenation operator (++).

C. '#[The year is " + payload.year]': The outer single quotes make this a literal string. Also, + is primarily for numeric addition in DataWeave, not string concatenation.

1. MuleSoft Documentation, "DataWeave Language Guide 2.4". Section: "Operators - Infix Operators". The documentation lists ++ as the operator for concatenating two strings.

2. MuleSoft Documentation, "Expressions". Section: "Using Expressions". This page explains how to embed DataWeave expressions in component attributes using the #[...] syntax.

3. MuleSoft Documentation, "Logger Component". Examples for the message attribute show the use of #[] to embed expressions that can access the payload and other event data.

The batch‐aggregator groups records into a list of three.

Input ["A","B","C","D","E"] → “B” is removed by the filter, so the aggregator emits two result lists:

1) ["A","C","D"] (size 3 reached)

2) ["E"] (remainder on completion).

The batch scope returns the aggregated payload, therefore the last Logger prints [[ "A", "C", "D" ], ["E"]].

A Shows the first aggregated list only; missing second list.

B Outputs single string, not both aggregated groups.

C Flat list; the aggregator produces nested lists, not a single array.

1. MuleSoft Documentation, “Batch Aggregator,” Mule 4 User Guide, step-results section (https://docs.mulesoft.com/mule-runtime/4.4/batch-processing#batch-aggregator).

2. MuleSoft Documentation, “What a logger after a batch scope receives,” Mule 4 User Guide, “Batch Processing” > “Result Structure”.

3. MuleSoft Anypoint Studio 7 Tutorials, “Filtering records inside a batch step,” p.6-7.

The Scatter-Gather flow control component processes its routes concurrently, not sequentially. The overall execution time for the Scatter-Gather component is determined by the time it takes for the longest-running route to complete. In this scenario, with one route taking 10 seconds and the other taking 40 seconds, the Scatter-Gather will wait for both to finish. Therefore, the total time will be dictated by the slower route, which is 40 seconds.

A. 10: This is the execution time of the fastest route. The Scatter-Gather must wait for all routes to complete.

B. 50: This would be the total time if the routes were executed sequentially, but Scatter-Gather executes them in parallel.

D. 20: This value is arbitrary and does not correspond to the execution logic of the Scatter-Gather component.

1. MuleSoft Documentation, "Scatter-Gather". In the "Behavior" section, it states: "The Scatter-Gather component executes each route in parallel... After all routes execute, the Scatter-Gather component creates a new Mule event that combines the Mule events returned by each route." This parallel execution model implies the total time is governed by the longest route.

2. MuleSoft Documentation, "Flow Control". This document describes Scatter-Gather as a component that "sends the same message to multiple targets concurrently." The term "concurrently" is key to understanding that the total processing time is not cumulative.
