Ceramic tile is an inert material, manufactured by firing clay at extremely high temperatures, a process that eliminates any volatile organic compounds (VOCs). Therefore, the tile itself has zero VOC emissions. While the installation requires setting materials like mortar and grout, which can be a source of VOCs, low-VOC and zero-VOC formulations are widely available and commonly specified for green building projects. In contrast, epoxy paints and the adhesives required for vinyl wallcoverings are significant sources of VOCs due to their chemical composition and the off-gassing that occurs during the curing and drying processes.

A. epoxy paint: Traditional epoxy paints are solvent-based coatings that release high levels of VOCs during application and the chemical curing process.

C. vinyl wallcovering: The installation requires adhesives that are a primary source of VOCs. The vinyl material itself can also off-gas plasticizers and other chemicals over time.

1. Ballast

D. K. (2018). Interior Design Reference Manual (6th ed.). PPI

a Kaplan Company.

Page 14-6

Section "Sources of Indoor Air Pollutants": This section lists paints

coatings

adhesives

and sealants as major sources of VOCs. It also identifies hard-surface flooring like tile as a good choice for improving indoor air quality due to its non-emitting nature.

2. U.S. Green Building Council. (2020). LEED v4.1 Building Design and Construction.

EQ Credit: Low-Emitting Materials

"Inherently nonemitting sources": This credit explicitly states that materials such as ceramic tile are considered compliant with VOC emission requirements without any testing because they are inherently non-emitting. In contrast

paints

coatings

and adhesives must meet stringent VOC content and emissions evaluation requirements.

3. U.S. Environmental Protection Agency. (n.d.). "Volatile Organic Compounds' Impact on Indoor Air Quality."

"Sources of VOCs" section: The EPA identifies "paints

paint strippers and other solvents" and "adhesives" as key sources of VOCs found in indoor environments. This directly implicates options A and C as significant emitters.

The most efficient and logical construction sequence is to install the large wood wall panels first. This establishes the primary grid, alignment, and spacing on the wall. Once the panels are secured, the smaller, and often more delicate, aluminum reveals are installed into the predetermined gaps between them. This method allows for precise fitting of the reveals to the as-built conditions of the panels, minimizes the risk of damaging the reveals during the installation of the heavier panels, and ensures a clean, tight finish. This "large-to-small" or "field-to-trim" approach is a standard principle in construction sequencing for finish work.

B. This sequence is incomplete. While installing the base before wall panels is common, this option fails to address the installation of the aluminum reveals, a key component of the question.

C. This sequence is illogical. Inner wall blocking is a support element installed before any finish materials, but this option omits the primary finish—the wood panels—altogether.

D. This sequence is incorrect and impossible. Inner wall blocking provides the necessary structural support for the panels and must be installed before any finish elements like reveals can be attached.

1. Architectural Woodwork Institute (AWI). Architectural Woodwork Standards

Edition 2. (2014). Section 8: Wall/Ceiling Surfacing. The installation guidelines within this section detail the process of securing paneling to substrates (which are supported by blocking) and then applying trim

molding

or reveals as the final step to complete the assembly. This confirms the sequence of blocking

then panels

then reveals.

2. Ballast

David Kent. Interior Construction & Detailing for Designers & Architects

6th Edition. (2016). John Wiley & Sons. Chapter 11: Finishes. This text outlines standard construction sequencing

emphasizing that major finish surfaces (like wall panels) are installed before finer

detailed trim elements (like reveals). This general-to-specific sequence prevents damage to smaller components and allows for precise final fitting.

3. Simmons

H. Leslie. Olin's Construction: Principles

Materials

and Methods

9th Edition. (2011). John Wiley & Sons. Chapter 25: Interior Walls and Partitions. The chapter discusses the erection of wall systems

where the installation of blocking and substrates is followed by the application of the primary finish material. Decorative trim and reveals are detailed as one of the final steps in the finishing process.

Impact noise is structure-borne sound generated by an object striking a building assembly, such as footsteps on a floor. The most effective method to mitigate this type of noise is to isolate the impact at its source. A resilient underlayment, installed between the finished hard flooring and the subfloor, acts as a shock absorber. This decouples the flooring surface from the main structure, dissipating the impact energy before it can travel through the floor joists and radiate as sound into the space below. This method directly addresses the cause of the problem, making it superior to treatments that only manage airborne sound.

A. Higher NRC in the ceiling material addresses airborne sound absorption within a room (reverberation), not the transmission of structure-borne impact noise from the floor above.

B. A framed-in upholstered wall panel system is a treatment for walls and primarily controls airborne sound; it has no effect on impact noise from the floor/ceiling assembly.

D. Blanket insulation is effective at absorbing airborne sound within the floor/ceiling cavity but is significantly less effective at mitigating direct impact noise than a resilient layer at the source.

1. Ballast

David Kent. Interior Design Reference Manual

6th ed.

Professional Publications

Inc.

2012. Chapter 10: Acoustics

"Impact Noise

" pp. 10-8 to 10-9. (This section explains that impact noise is controlled by methods that cushion the impact

specifically mentioning carpet

padded underlayment

and resilient underlayments to improve the Impact Insulation Class (IIC) rating).

2. Ramsey

Charles George

and Harold Reeve Sleeper. Architectural Graphic Standards

12th ed.

edited by The American Institute of Architects

John Wiley & Sons

2016. Chapter 8: General Construction

"Acoustical Design

" Subsection "Control of Structure-Borne Sound

" p. 698. (This source illustrates that structure-borne sound is controlled by isolating and damping the vibrating source

for which resilient materials in a floor assembly are a primary method).

3. Quirt

J.D. Guide to Sound Insulation in Wood-Frame Construction. National Research Council Canada

Institute for Research in Construction

1985 (revised). IRC-IR-693. Section 3.2 "Impact Sound Insulation of Floors

" pp. 16-18. (This guide states

"The most effective way to improve the impact insulation of a floor is to use a soft floor finish... A resilient underlay under a hard floor finish can also be very effective.").

According to the 2010 ADA Standards for Accessible Design, the minimum clear width for an accessible route, which includes aisles in retail spaces, is 36 inches (914 mm). This dimension is the standard minimum required to allow passage for a person using a wheelchair. While other dimensions are specified for different conditions (e.g., doorways, turns, passing spaces), the fundamental minimum width for a continuous walking surface or circulation path is 36 inches. This ensures a basic level of maneuverability and access throughout the public areas of a facility.

A. 32" [813 mm]: This is the minimum clear width required for a doorway opening, not the continuous width of an accessible route or aisle.

C. 42" [1067 mm]: This width is required for specific conditions, such as making a 180-degree turn around an obstruction, but it is not the general minimum aisle width.

D. 48" [1219 mm]: This dimension is related to specific clearances, such as the width required for two wheelchairs to pass or the approach to a turn, not the absolute minimum for a single-direction aisle.

1. U.S. Department of Justice. (2010). 2010 ADA Standards for Accessible Design. Section 403.5.1 Clear Width. "Except as provided in 403.5.2 and 403.5.3

the clear width of walking surfaces shall be 36 inches (915 mm) minimum."

2. International Code Council. (2017). ICC A117.1-2017 Accessible and Usable Buildings and Facilities. Section 403.5.1 Clear Width. This standard

which is harmonized with the ADA

also specifies: "the clear width of walking surfaces shall be 36 inches (914 mm) minimum."

3. Steinfeld

E.

& Maisel

J. L. (2012). Universal Design: Creating Inclusive Environments. John Wiley & Sons. Chapter 10: Circulation. The text discusses accessible circulation paths

referencing the ADA standard of 36 inches as the minimum clear width for routes. (Specific reference to ADA guidelines within the chapter).

Upon observing non-conforming work in progress, the designer's primary responsibility is to act immediately to prevent further incorrect installation, thereby mitigating potential costs and schedule delays. The most appropriate and effective course of action is to first alert the individuals performing the work (the subcontractor) to pause and then immediately inform the general contractor, who holds the contractual responsibility for all work on site. The general contractor is the only party with the authority to direct the subcontractor to stop and correct the work. This two-part action ensures the issue is addressed with the required urgency and through the proper channels.

A. Report the discrepancy in a memo to the contractor and client: This method of communication is too slow for an issue happening in real-time and would allow more non-conforming work to be installed.

B. Reach out to the glazing supplier to find out which finish was ordered: This bypasses the general contractor, who is responsible for procurement and managing suppliers. The designer's communication must be with the contractor.

C. Explain the issue at the next owner, architect, contractor (OAC) meeting: Waiting for a future meeting is inappropriate as it would permit the entire incorrect installation to be completed, leading to significant and costly rework.

---

1. Piotrowski

C. M. (2017). Professional Practice for Interior Designers (6th ed.). John Wiley & Sons. In Chapter 19

"Contract Administration: Construction and Order Installation

" the text emphasizes that during site visits

the designer's role is to determine if work conforms to the contract documents. If discrepancies are found

the designer must promptly notify the contractor. Immediate notification is crucial to avoid costly tear-out and replacement. (pp. 488-490).

2. American Institute of Architects. (2017). AIA Document A201–2017

General Conditions of the Contract for Construction. Section 4.2.6 states

"The Architect has authority to reject Work that does not conform to the Contract Documents." This authority necessitates prompt action when non-conforming work is observed. While Section 4.2.4 establishes that communication with subcontractors is through the contractor

the immediacy of the situation requires alerting the subcontractor to pause while simultaneously engaging the contractor to formally direct the work.

3. Ballast

D. K. (2021). The Interior Design Reference & Specification Book (Updated & Revised). Rockport Publishers. The section on Contract Administration outlines the designer's responsibilities

which include site observation to protect the owner against defects and deficiencies in the work. It reinforces that all communication regarding the work must be directed to the general contractor for action. (pp. 280-281).

Dynamic loads are forces applied to a structure that change rapidly over time in magnitude, direction, or point of application. Earthquakes (seismic loads) and wind loads are quintessential examples. Seismic loads induce inertial forces due to ground acceleration, while wind loads create fluctuating pressures and suctions on a building's envelope. Unlike static loads, which are applied slowly and remain constant, the time-varying nature of dynamic loads can cause significant vibration and stress amplification within the structure, requiring specialized analysis and design considerations to ensure building safety and stability.

A. Live loads are movable but generally treated as quasi-static for design purposes (e.g., people, furniture), lacking the rapid, fluctuating nature of seismic or wind events.

B. Dead loads are permanent, static forces resulting from the self-weight of the structure and its fixed components, which do not change over time.

C. Static loads are forces that are applied slowly and remain constant. Wind and seismic loads are fundamentally non-static due to their rapid and variable application.

1. Ballast

D. K. (2017). Interior construction & detailing for designers & architects (6th ed.). John Wiley & Sons. In Chapter 10

"Structural Systems

" Section "Loads on Buildings

" it is stated: "Dynamic loads are applied suddenly or change rapidly. Examples are...wind and earthquake loads." (p. 298).

2. Mehta

M.

Scarborough

W.

& Armpriest

D. (2018). Building construction: Principles

materials

and systems (3rd ed.). Pearson. In Chapter 2

"Loads on Buildings

" Section 2.2.3

"Dynamic Loads

" the text specifies: "The two most common dynamic loads on a building are wind load and earthquake load." (p. 31).

3. Ching

F. D. K. (2014). Building construction illustrated (5th ed.). John Wiley & Sons. In Chapter 2

"The Building

" under the section "Structural Loads

" dynamic loads are defined and illustrated with wind and seismic forces as primary examples. (p. 2.09).

4. Connor

J. J. (2007). Introduction to structural motion control. MIT OpenCourseWare

Department of Civil and Environmental Engineering. In Lecture 1

"Introduction

" the course framework is established by identifying wind and earthquakes as the principal sources of dynamic loading that necessitate motion control strategies in structural design.

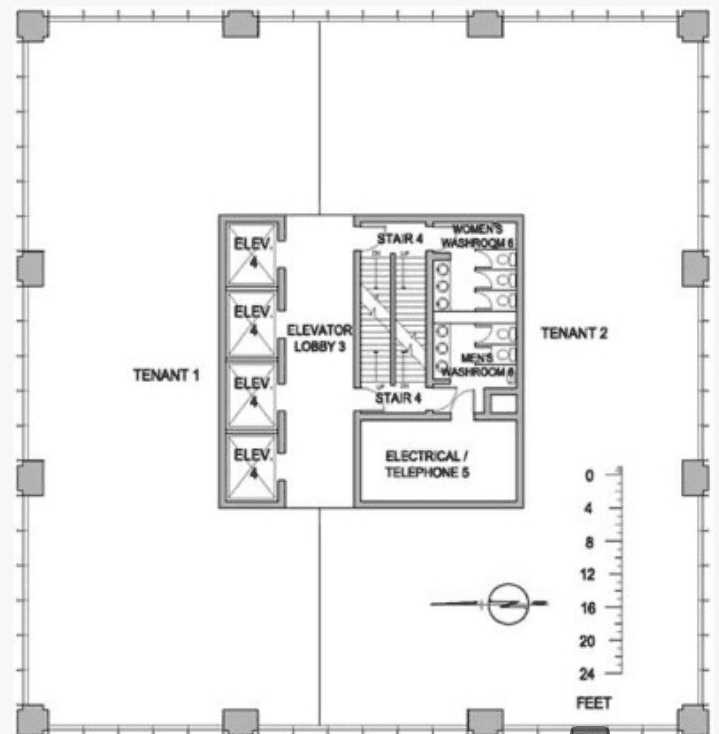

According to the Building Owners and Managers Association (BOMA) standard ANSI/BOMA Z65.1, Usable Area on a multi-tenant floor is the actual space occupied by and for the exclusive use of a tenant. It is measured to the office-side of common corridor walls and to the inside finished surface of the exterior walls. In the provided floor plan, the spaces labeled "Tenant 1" and "Tenant 2" are the only areas designated for exclusive tenant use. The elevator lobby, restrooms, and electrical/telephone closets are considered Building Common Areas, which are shared by tenants and are used to calculate the Rentable Area, not the Usable Area.

B. Incorrectly includes the Elevator Lobby, which is a Building Common Area used by all tenants on the floor, not part of the exclusive Usable Area.

C. Incorrectly includes the Electrical/Telephone room, which is a Building Service Area (a type of Building Common Area) and not part of the tenant's Usable Area.

D. Incorrectly includes both the Elevator Lobby and the Electrical/Telephone room, which are both classified as Building Common Areas under BOMA standards.

1. BOMA International. (2017). BOMA 2017 for Office Buildings: Standard Methods of Measurement (ANSI/BOMA Z65.1-2017).

Section 2.2

Usable Area: Defines Usable Area as the space measured for the exclusive use of an occupant.

Section 2.3.4

Building Common Area: Defines areas such as lobbies

corridors

restrooms

and mechanical/electrical rooms as common areas that are not part of the Usable Area.

2. University of Washington

College of Built Environments. (Course Material for RE 513 - Real Estate Development). Lecture on BOMA Standards.

The courseware explains the hierarchy of space measurement

clearly distinguishing Usable Area (the tenant's exclusive space) from Floor and Building Common Areas (lobbies

janitor closets

restrooms)

which are factored into the Rentable Area through a load factor.

3. Grimley

C.

& Love

M. (2018). The Interior Design Reference & Specification Book: Everything Interior Designers Need to Know Every Day. Rockport Publishers.

Chapter 1

"Fundamentals

" Section on "Calculating Square Footage" (pp. 30-31): This text

commonly used in university interior design programs

explains that BOMA defines usable square footage as the area the tenant actually occupies

explicitly excluding shared common areas like lobbies

corridors

and service closets on multi-tenant floors.

In the earliest planning phase the interior designer must lock-in decisions that 1) have the greatest effect on interior energy demand yet 2) are fully under the designer’s control. Two of the highest-impact variables for an interiors project are selection of high-efficacy lighting (LED) and specifying materials that are locally sourced to reduce transportation energy and embodied carbon. LEED v4.1 ID+C and university sustainability studios identify these two items as “front-loaded” decisions that must be set before detailed design and purchasing begin. By contrast, onsite wind generation or composting toilets require owner-level, civil and structural coordination that is usually outside the scope of an interior fit-out and therefore are not the most critical issues for the ID team to develop first.

B. Wind power demands site, structural and utility studies beyond an interior scope; recycled-content material choices can be finalized later in design.

C. Composting toilets alter base-building plumbing and code compliance; renewable power sources are owner/architect decisions, not primary early tasks for interior designers.

1. USGBC

LEED v4.1 ID+C Reference Guide

Integrative Process

“Energy & Lighting Analysis

” pp. 27-29.

2. USGBC

LEED v4.1 ID+C Reference Guide

Materials & Resources Overview

p. 215 (“local sourcing decisions should be confirmed in pre-design”).

3. MIT OpenCourseWare

4.222J Sustainable Design and Technology

Lecture 3 slides “Early Interior Strategies

” slide 12-18 (high-efficacy lighting and regional materials as first-phase tasks).

4. University of Minnesota

Interior Design 4464 “Sustainable Systems for Interiors

” Week 2 notes

sect. “Front-loaded decisions

” ¶2-3.

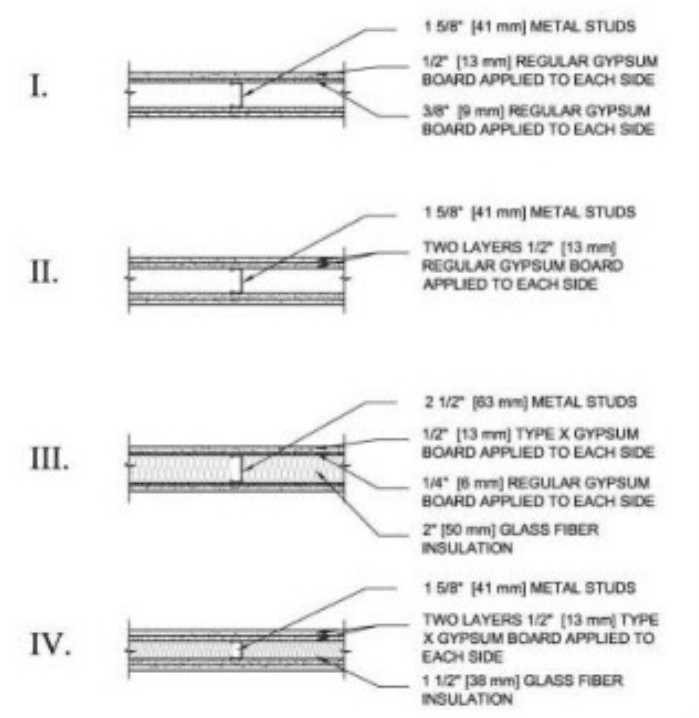

A two-hour fire-resistance rating for a non-load-bearing partition is commonly achieved using a specific assembly of materials tested according to standards like ASTM E119. The assembly described in option D—metal studs with two layers of 1/2" Type X gypsum board applied to each side—is a standard, certified two-hour rated wall. The "Type X" gypsum board is critical; it has a specially formulated core with glass fibers that resist heat and prevent disintegration for a longer period than regular gypsum board. The two layers on each side provide the necessary mass and insulation to meet the two-hour requirement. The glass fiber insulation primarily improves acoustic performance but is also part of the tested assembly.

A: This assembly uses "regular" gypsum board, which lacks the fire-resistive additives of Type X and is insufficient for a two-hour rating.

B: A single layer of "regular" gypsum board on each side typically provides only a 30-minute fire-resistance rating.

C: This non-standard combination of one layer of Type X and one layer of regular board does not meet the requirements for a two-hour rated assembly.

1. Gypsum Association. (2021). Fire Resistance Design Manual (GA-600-2021). Hyattsville

MD. Design No. WP 1071 specifies a 2-hour fire-rated

non-load-bearing wall assembly consisting of 1-5/8" steel studs with two layers of 1/2" Type X gypsum wallboard on each side.

2. Ching

F. D. K. (2020). Building Construction Illustrated (6th ed.). John Wiley & Sons. In Chapter 7

"Wall Systems

" the section on Gypsum Board Partitions illustrates that a 2-hour fire rating is achieved with steel or wood studs faced on each side with two layers of 5/8" Type X gypsum board (p. 261). Two layers of 1/2" Type X is also a common tested assembly for this rating.

3. Mehta

M.

Scarborough

W.

& Armpriest

D. (2018). Building Construction: Principles

Materials

and Systems (3rd ed.). Pearson. Chapter 15

"Interior Walls and Partitions

" details fire-rated gypsum board partitions

indicating that a 2-hour rating requires two layers of Type X gypsum board on each side of the framing (Section 15.3.2).

Prior to a formal project kickoff, the design team must perform essential due diligence to establish a feasible project framework. Evaluating site availability is a critical initial step because it directly dictates when physical work, site surveys, and other essential on-site activities can begin. This information is fundamental to developing a realistic preliminary project schedule. Presenting this schedule at the kickoff meeting is crucial for aligning the client and all stakeholders on the project timeline, milestones, and overall expectations from the very beginning.

A. Cost analysis and value engineering are typically performed after initial programming and schematic design phases, once a design direction has been established.

C. System performance is evaluated during the design development phase, and subcontractor availability is a concern for the general contractor during the later procurement/bidding stage.

1. Ballast

D. K. (2012). Interior Design Reference Manual: Everything You Need to Know to Pass the NCIDQ Exam (6th ed.). Professional Publications

Inc. In Chapter 9

"Project Management

" the section on "Project Planning" emphasizes that developing the schedule is one of the first and most critical tasks for a project manager

which inherently requires knowledge of site access and constraints (pp. 9-2 to 9-4).

2. Piotrowski

C. M. (2017). Professional Practice for Interior Designers (6th ed.). Wiley. Chapter 11

"Project Management

" details the project initiation and planning phases. It clarifies that establishing the project schedule is a primary task after the contract is signed and before design work commences

with constraints like site availability being a key input (pp. 288-290).

3. Cornell University

College of Human Ecology. (n.d.). DEA 4500 - Professional Practices and Ethics Course Description. The course outline for professional practice in design covers the sequence of a project

emphasizing that project initiation involves defining scope

schedule

and budget as foundational elements before proceeding to design phases. This confirms that scheduling is an upfront activity.
