The TCP/IP protocol suite operates in layers. Web services (like HTTP and HTTPS) use the Transmission Control Protocol (TCP) at the Transport Layer for reliable data transfer. The Internet Protocol (IP) at the Network Layer encapsulates the TCP segment. The IPv4 header contains an 8-bit "Protocol" field that identifies the transport layer protocol being carried in its payload. The Internet Assigned Numbers Authority (IANA) officially assigns the decimal value of 6 to TCP. Therefore, any IP packet carrying web traffic will have the value 6 in this field.

This is a True/False question. The statement is factually correct based on the official standards of the TCP/IP suite. For instance, if the service used UDP, the value would be 17.

1. Postel, J. (1981). RFC 791: Internet Protocol. The Internet Society. Section 3.1, "Header Format". This foundational RFC specifies the IPv4 header format, including the "Protocol" field. (Available at https://datatracker.ietf.org/doc/html/rfc791)

2. Internet Assigned Numbers Authority (IANA). Protocol Numbers. This official registry lists the value 6 for "Transmission Control Protocol (TCP)". (Available at https://www.iana.org/assignments/protocol-numbers/protocol-numbers.xhtml)

3. Kurose, J. F., & Ross, K. W. (2017). Computer Networking: A Top-Down Approach (7th ed.). Pearson. Chapter 4, "The Network Layer: Data Plane", discusses the IPv4 datagram format, including the protocol field's function.

The statement is false. The IEEE 802.1Q standard specifies the valid range for VLAN identifiers (VLAN IDs) as 12 bits, which allows for 4096 values (0-4095). However, VLAN ID 0 is used for priority-tagged frames, and VLAN ID 4095 is reserved for protocol use. Therefore, the configurable range for user VLANs is from 1 to 4094. VLAN 4096 is outside this valid range and cannot be configured or used on a trunk interface.

The option "True" is incorrect because VLAN 4096 is an invalid VLAN ID according to the IEEE 802.1Q standard. Network devices, including Huawei switches, adhere to this standard and do not support VLAN IDs outside the 1-4094 range for configuration.

1. Huawei, "HCIA-Datacom V1.0 Training Material," Document Version V1.0, Chapter: "VLAN Principles", Section: "VLAN Overview", Page 107. The document states, "A VLAN ID ranges from 1 to 4094."

2. IEEE Std 802.1Q-2018, "IEEE Standard for Local and metropolitan area networks—Bridges and Bridged Networks," Section 9.6 "VLAN tag format and parameters". This standard defines the 12-bit VLAN Identifier (VID) field, specifying that VID 0x000 and 0xFFF (4095) are reserved, making the usable range 0x001 to 0xFFE (1 to 4094).

The statement is correct. On Huawei switches running the Versatile Routing Platform (VRP), certain VLAN IDs are reserved or have special properties. VLAN 1 is the default VLAN; all ports belong to it by default, and it is used for some control plane protocols. For system stability and default operation, it cannot be deleted. VLAN ID 4095 is reserved by the IEEE 802.1Q standard for implementation use and is used by Huawei's system for internal purposes, making it unavailable for user configuration.

This is a "True or False" question. The statement accurately describes the behavior of VLAN 1 and VLAN 4095 on Huawei devices, so the "False" option is incorrect.

1. Huawei HCIA-Datacom V1.0 Training Material. (2020). Section 2.2.1 VLAN Overview - VLAN ID Range. This section details the VLAN ID range from 0 to 4095, noting that VLAN 1 is the default VLAN and that VLANs 0 and 4095 are reserved by the protocol.

2. Huawei VRP V800R021C00 Configuration Guide - VLAN. VLAN Configuration - VLAN Overview - VLAN ID. The guide specifies: "A VLAN ID ranges from 1 to 4094. VLAN 1 is the default VLAN. VLANs 0 and 4095 are reserved for system use." This confirms both parts of the question's statement.

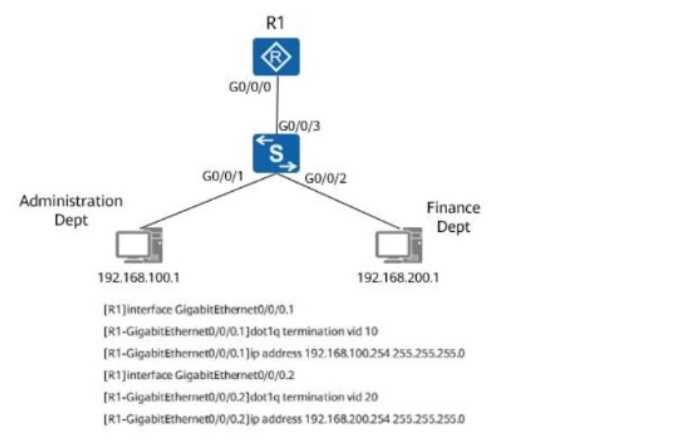

The configuration depicts a standard "router-on-a-stick" model for inter-VLAN routing. Both PCs are correctly configured to use the router's respective sub-interface as their default gateway. When a PC in one VLAN needs to communicate with a PC in another, it sends the traffic to its gateway (the router). The router then performs a routing lookup and forwards the packet to the correct destination VLAN via the appropriate sub-interface. This process relies on standard IP routing and ARP resolution within each VLAN, not Proxy ARP. Proxy ARP is not necessary when end devices have a properly configured default gateway for off-subnet communication.

B. False: The statement is true. Standard inter-VLAN routing does not depend on Proxy ARP, so disabling it will not prevent communication in this correctly configured scenario.

1. Huawei, "HCIA-Datacom V1.0 Training Material," document version C01, Chapter: "VLAN Principles and Configuration," Section: "Inter-VLAN Routing," pp. 28-30. This section details the configuration and data forwarding process for one-armed routing, which does not involve Proxy ARP.

2. Huawei, "HedEx V200R005C00, AR1200 Series Enterprise Routers Configuration Guide - IP Unicast Routing," Section: "ARP Configuration," Subsection: "Configuring Proxy ARP." The documentation explains that Proxy ARP is used to enable communication between hosts on the same network segment but with different network IDs, a scenario different from the one presented.

The provided ACL configuration rule 5 permit source 172.16.105.2 0 uses a basic ACL (number 2000) to explicitly permit traffic originating from the single host IP address 172.16.105.2. The wildcard mask 0 is equivalent to a host mask of 0.0.0.0, ensuring an exact match for only that source IP. Crucially, all Huawei ACLs have an implicit deny any rule at the end. When this ACL is applied to filter incoming traffic on the Telnet (VTY) interface, it will permit connection attempts from 172.16.105.2 and, due to the implicit deny, block connection attempts from all other source IP addresses.

The option 'False' is incorrect. It might be chosen by someone forgetting the implicit deny any rule that is appended to every ACL. Without this implicit rule, the ACL would only permit the specified host but would not explicitly block others, which is not how ACLs function. The combination of the explicit permit and the implicit deny creates a "whitelist" policy.

1. Huawei HCIA-Datacom V1.0 Training Material, "Configuring a Basic ACL", Section: Applying an ACL to a VTY Interface to Control Login Users. (This section provides examples of using basic ACLs to restrict Telnet/SSH access).

2. Huawei VRP V800R012C10 Configuration Guide - Security, "ACL Configuration", Section: Default ACL Rule. (This document explicitly states that "By default, an implicit deny rule exists at the end of each ACL to deny all packets that do not match any rule in the ACL.").

3. Huawei HedEx Documentation for NE40E Routers, "ACL Configuration", Section: Configuring a Basic ACL. (This documentation confirms that a wildcard mask of 0 matches a specific host).

In Spanning Tree Protocol (STP) and its variants (RSTP, MSTP), the Bridge ID is used to elect the root bridge. The Bridge ID consists of a configurable Bridge Priority and the device's MAC address. The default Bridge Priority value for Huawei switches, as with most other vendors following the IEEE 802.1D standard, is 32768. This standardized default ensures predictable behavior and interoperability in multi-vendor network environments. A lower priority value is considered more preferential in the root bridge election process.

This is a True/False question. The statement is true, making option A the correct choice.

1. Huawei HCIA-Datacom V1.0 Training Material. (2020). Chapter: "Spanning Tree Protocol", Section: "STP Basic Concepts". This section explicitly states that the default bridge priority of a device running STP is 32768.

2. Huawei VRP V800R012C00 Command Reference. (2018). Document for S Series Switches, Command: stp priority. The command description confirms that the default priority value is 32768.

The statement is correct. In a Layer 2 switched network, a loop in the topology without a loop-prevention mechanism like Spanning Tree Protocol (STP) will cause broadcast, unknown unicast, and multicast frames to be forwarded endlessly between switches. This continuous circulation of frames rapidly consumes available bandwidth and switch CPU resources, leading to a network outage known as a broadcast storm.

This question is a "TRUE OR FALSE" type. The provided statement is factually correct according to fundamental networking principles, so the "False" option would be incorrect.

1. Huawei, "HCIA-Datacom V1.0 Training Material," Document Version V1.0, Chapter: "Spanning Tree Protocol," Section: "Background of STP." This section explicitly describes how Layer 2 loops lead to broadcast storms, MAC address table instability, and duplicate frame transmission.

2. Kurose, J. F., & Ross, K. W. (2017). Computer Networking: A Top-Down Approach (7th ed.). Pearson. Chapter 6, "The Link Layer and LANs," discusses the function of link-layer switches and the problem of forwarding loops, which necessitate protocols like STP.

The statement is incorrect. The "Protocol" field in the IPv4 header identifies the next-level protocol encapsulated within the IP datagram. According to the Internet Assigned Numbers Authority (IANA), the assigned protocol number for the User Datagram Protocol (UDP) is 17. The protocol number 6 is reserved for the Transmission Control Protocol (TCP). Therefore, if the transport-layer protocol is UDP, the value in the network layer's "Protocol" field must be 17, not 6.

This is a True/False question. The statement is factually incorrect as the protocol number for UDP is 17. The number 6 corresponds to TCP.

1. Postel, J. (1981). RFC 791: Internet Protocol. Internet Engineering Task Force. Section 3.1, "Header Format". This document defines the Protocol field in the IPv4 header.

2. Postel, J. (1980). RFC 768: User Datagram Protocol. Internet Engineering Task Force. This document defines UDP.

3. Internet Assigned Numbers Authority (IANA), "Protocol Numbers". The official registry lists UDP as protocol number 17 and TCP as protocol number 6.

SNMPv3 was specifically designed to address the significant security weaknesses of SNMPv1 and SNMPv2c. Its architecture is built around a modular framework that introduces robust security and enhanced administration capabilities.

Security: SNMPv3's User-based Security Model (USM) provides message integrity (preventing tampering), authentication (verifying the source), and encryption (ensuring privacy of the data). This is a major enhancement over the clear-text community strings used in earlier versions.

Administration: SNMPv3 provides a more flexible administrative framework, including the View-based Access Control Model (VACM), which allows for granular control over which users can access which parts of the Management Information Base (MIB). The concepts of notification originators and proxy forwarders are also integral parts of this advanced administrative structure.

A. SNMPv2c: This version still relies on the insecure community-string-based security model from SNMPv1. It does not offer authentication or encryption.

B. SNMPv1: This is the original version and has the most basic security, using only a clear-text community string for access, which provides no real security.

D. SNMPv2: This refers to the collection of standards that includes SNMPv2c. Like SNMPv2c, it lacks the security features described in the question.

1. Huawei. (2020). HCIA-Datacom V1.0 Training Material (H12-811). Section: Network Management and O&M, Subsection: SNMP Versions. "SNMPv3 provides encryption and authentication functions based on the User-based Security Model (USM) and access control functions based on the View-based Access Control Model (VACM). It is the most secure version."

2. Blumenthal, U., & Wijnen, B. (Eds.). (2002). RFC 3411: An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks. IETF. This document provides an overview of the SNMPv3 architecture, explicitly detailing its focus on security and administration.

3. Wijnen, B., Presuhn, R., & McCloghrie, K. (Eds.). (2002). RFC 3414: User-Based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3). IETF. This RFC specifies the security model for SNMPv3, detailing the mechanisms for authentication and privacy (encryption).

802.3ad link aggregation combines several physical Ethernet links into a single logical channel. Aggregation distributes frames across member links (load-balancing), sums the bandwidth of the links (higher throughput), and keeps traffic flowing when a member fails (reliability/ redundancy). It does not add any intrinsic security features; the security posture is unchanged.

D. Improves neither encryption nor authentication; aggregation only groups links.

1. Huawei S-Series Switches Configuration Guide – Ethernet Link Aggregation, 7.0, §1.1 “Advantages” (bandwidth, load balancing, reliability).

2. IEEE 802.3ad-2000, Clause 43 “Objectives of aggregation”.
