The purpose of Microsoft VSS (Volume Shadow Copy Service) integration with XtremIO is to allow

third-party management of volume operations.

VSS provides a framework that enables applications to create consistent snapshots, backups, and

restores of data without disrupting operations.

This integration is essential for ensuring data integrity and consistency during backup and restore

operations.

Reference:

Dell XtremIO VSS Integration Guide

Microsoft VSS Documentation

Minimum 4 Datastores: Based on best practices for VMware Horizon environments, with 1000 linked

clones, it is recommended to have a minimum of 4 datastores connected to XtremIO.

This configuration helps distribute the load and ensures optimal performance and manageability.

Reference:

Dell XtremIO Best Practices for VDI

VMware Horizon Deployment Guide

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Dell_D-XTR-OE-A-24/page_7_img_2.jpg

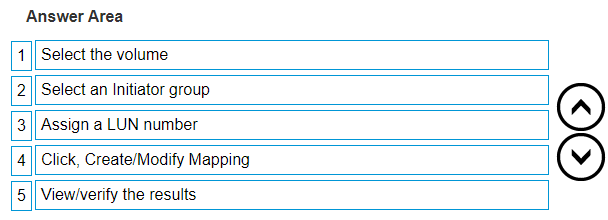

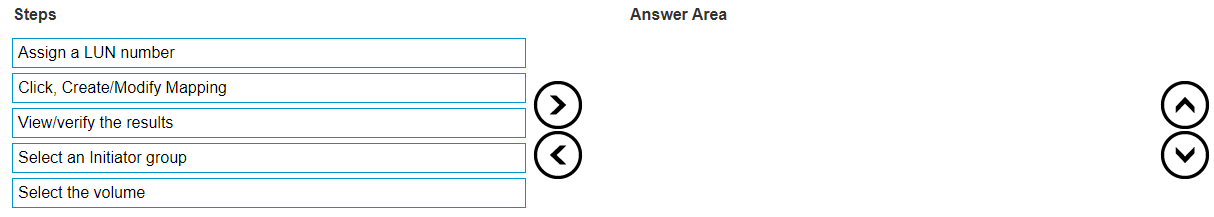

The correct sequence of steps to map a volume to a host using the XtremIO WebUI is:

Select the volume.

Select an initiator group.

Assign a LUN number.

Click ‘Create/Modify Mapping’.

View/verify the results.

To map a volume to a host in the XtremIO WebUI, you would follow these steps:

Select the volume: Navigate to the volume you wish to map and select it. This is the first step

because you need to specify which volume you’re working with.

Select an initiator group: Choose the initiator group that corresponds to the host to which you want

to map the volume. An initiator group contains one or more initiators that uniquely identify the host

in the storage environment.

Assign a LUN number: Specify a Logical Unit Number (LUN) for the volume in this mapping. The LUN

is an identifier for the volume in the context of the host to which it’s being mapped.

Click ‘Create/Modify Mapping’: After selecting the volume, initiator group, and assigning a LUN,

you’ll execute the command to create the mapping by clicking this button.

View/verify the results: Finally, check the mapping to ensure that it has been successfully created

and is functioning as expected.

This sequence of steps ensures that the volume is properly configured and connected to the host,

allowing for efficient data management and access within the Dell XtremIO storage system.

7 Days: Given that 500 production volumes must be backed up four times a day using XtremIO’s

Protection Copies feature, the system can store the read-only volumes for approximately 7 days

before the oldest backups are deleted.

This calculation ensures that the array’s capacity is used efficiently while adhering to the backup

policy requirements.

Reference:

Dell XtremIO Protection Copies Feature Guide

XtremIO Backup and Recovery Best Practices

This ensures that the XMS can effectively communicate with and manage each cluster, regardless of

their individual configurations or the specific features they are using.

Compatibility is crucial for the XMS to perform its functions across all clusters, which includes tasks

such as monitoring, reporting, and executing management operations. If the XMS code version is not

compatible with a particular cluster, it may not be able to manage it properly, leading to potential

issues with performance, reliability, and data integrity1.

Therefore, before adding a new XtremIO cluster to an existing XMS setup, the systems administrator

must verify that the XMS code version is compatible with the firmware version running on the new

cluster, as well as the versions on all other clusters currently being managed. This step is a

fundamental requirement to ensure seamless management and operation of the XtremIO storage

environment1.
