The image provided shows the back of an XtremIO X1 storage system with numeric labels next to the communication cable ports. To ensure the correct communication cables are connected: Locate the ports on the back of the X-Bricks corresponding to the numeric labels. Match each communication cable to its respective port based on the numeric label: The right-side Battery Backup Unit (BBU) communication cable for X-Brick 5 (X5-BBU-COM-R) connects to port labeled 3. The left-side BBU communication cable for X-Brick 5 (X5-BBU-COM-L) connects to port labeled 1. The right-side BBU communication cable for X-Brick 6 (X6-BBU-COM-R) connects to port labeled 4. The left-side BBU communication cable for X-Brick 6 (X6-BBU-COM-L) connects to port labeled 2. After connecting the cables as per the matching, verify the connections according to the Official Dell XtremIO Deploy Achievement document to ensure they are correct and secure1. For the most accurate and up-to-date information, please refer to the latest Official Dell XtremIO Deploy Achievement documents or consult with Dell support.

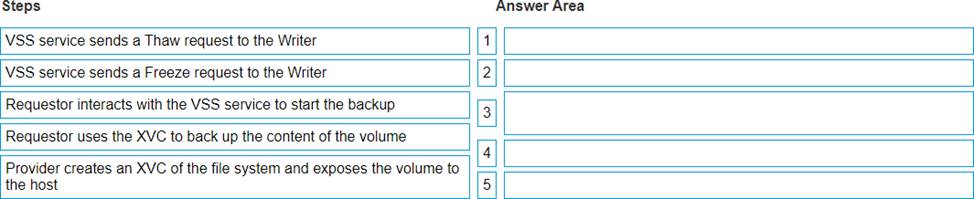

The correct sequence of steps to create a Windows volume backup using the Microsoft VSS Framework with an XtremIO cluster is as follows: Requestor interacts with the VSS service to start the backup. VSS service sends a Freeze request to the Writer. Provider creates an XVC of the file system and exposes the volume to the host. VSS service sends a Thaw request to the Writer. Requestor uses the XVC to back up the content of the volume. The Requestor, typically a backup application, initiates the process by interacting with Microsoft’s Volume Shadow Copy Service (VSS) to commence a snapshot backup. The VSS service then issues a Freeze request to its Writers, which are responsible for ensuring data consistency for applications during backups. An XtremIO Provider, which interfaces between the XtremIO storage and VSS, creates an XtremIO Virtual Copy (XVC) of the file system. This copy is then made accessible to the host system for backup purposes. After the XVC is created, the VSS sends a Thaw request to the Writers, allowing them to resume normal operations while maintaining data integrity. Finally, the Requestor uses the XVC to back up the content of the volume, ensuring a consistent and recoverable backup is made. Please note that this sequence is based on the standard operation of Microsoft VSS with storage systems like XtremIO and should be verified against the most current Dell XtremIO Deploy Achievement documentation for any updates or specific instructions related to your environment.

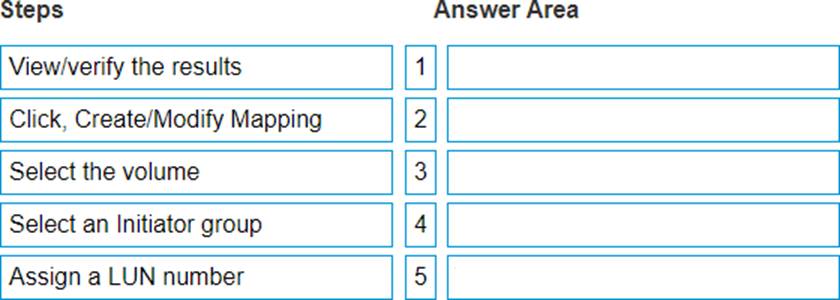

The correct sequence of steps to map a volume to a host using the XtremIO WebUI is as follows: Select the volume. Select an Initiator group. Click, Create/Modify Mapping. Assign a LUN number. View/verify the results. To map a volume to a host in the XtremIO WebUI, one must follow these specific steps in order: Select the volume: This step involves choosing the particular storage volume that needs to be mapped to a host. Select an Initiator group: An initiator group contains one or more initiators (hosts) that are allowed access to the storage volumes; selecting this groups which host will have access. Click, Create/Modify Mapping: This action will open up options for mapping which include creating new mappings or modifying existing ones. Assign a LUN number: A Logical Unit Number (LUN) is assigned so that the host can identify and communicate with this particular volume. View/verify the results: After mapping, it’s crucial to verify if the process was successful and if the correct mappings are in place. This sequence ensures proper configuration and communication between storage volumes and hosts within an XtremIO system1.

The documented sequence of steps to deploy an XMS OVF template includes: Select the source file of the OVA image. Verify the template details for space requirements. Name the VM or keep the default name. Select the disk format “Thin” and then, select Finish. Select the Source File: Begin by selecting the source file of the OVA image, which is the package containing all files for the VM1. Verify Template Details: Check the template details to ensure there is enough space on the datastore for the VM1. Name the VM: Assign a unique name to the VM or retain the default name provided in the OVA template1. Select Disk Format: Choose the “Thin” disk format to save storage space, as it allocates space as needed rather than upfront1. Complete the Deployment: Finalize the deployment process by selecting ‘Finish’, which will deploy the VM to your environment1.

The iostat command is used for monitoring the performance of system input/output devices on

Linux/UNIX systems. It provides statistics about disk input/output operations and CPU utilization,

which are essential for assessing the performance of these devices. The iostat command generates

reports that can be used to change system configuration to better balance the input/output load

between physical disks1. This command is particularly useful for system administrators who need to

monitor and optimize disk performance and throughput2.
