The command isi_hwmon -s is used on Dell PowerScale systems to display the status of various

hardware sensors within a node. This command helps engineers monitor and test the operational

status of different sensors that report on hardware conditions such as temperature, voltage, fan

speeds, and other critical environmental parameters.

Purpose of isi_hwmon Command:

The isi_hwmon utility is a hardware monitoring tool specific to Dell PowerScale (formerly Isilon)

systems.

It provides real-time data and status of hardware components via sensors.

Understanding the -s Option:

The -s flag with isi_hwmon stands for "sensors."

Running isi_hwmon -s lists the current readings and status of all hardware sensors in the node.

This includes temperature sensors, voltage sensors, fan speed sensors, and more.

Use Cases:

Monitoring System Health:

Engineers use this command to ensure that all hardware components are operating within normal

parameters.

Troubleshooting:

Helps in diagnosing issues related to overheating, power supply fluctuations, or fan failures.

Preventive Maintenance:

Regular checks can prevent hardware failures by identifying abnormal readings early.

Sample Output:

The command outputs a list of sensors along with their current readings and status indicators (e.g.,

OK, Warning, Critical).

Why Other Options Are Incorrect:

A. DIMM:

While isi_hwmon can display information about memory modules, the -s option specifically targets

sensors, not DIMMs directly.

C. CPU:

CPU status may be part of sensor readings (like temperature), but the command focuses on sensors

rather than the CPU as a standalone component.

D. Battery:

Battery status can be monitored, but again, it falls under the umbrella of sensor data.

E. System:

The term "System" is too broad; isi_hwmon -s specifically targets sensor data.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Command-Line Reference Guide:

Provides detailed information on the isi_hwmon command and its options.

Dell EMC PowerScale OneFS Administration Guide:

Discusses hardware monitoring and the importance of sensor data in maintaining system health.

Knowledge Base Articles:

Articles detailing how to interpret sensor data and troubleshoot hardware issues using isi_hwmon.

On a Dell PowerScale F600 node, the rNDC slot (redundant Network Daughter Card slot) provides

management functionality. The rNDC slot hosts the network interface used for node management

tasks, including cluster administration and monitoring.

Understanding the F600 Node Architecture:

All-Flash Storage:

The F600 is an all-flash node designed for high performance.

Network Connectivity:

Equipped with various network interface options for data and management traffic.

Role of the rNDC Slot:

Management Port Location:

The rNDC slot houses the management network interfaces.

Dedicated Management Functionality:

Separates management traffic from data traffic to enhance security and performance.

Redundancy Features:

Provides failover capabilities to ensure continuous management access.

Why PCIe Slots Are Less Suitable:

PCIe Slot 1, 2, and 3:

Typically used for data network interfaces or additional hardware components.

Not designated for primary management interfaces.

Management Interface Specificity:

Management ports are specifically assigned to the rNDC slot to standardize configurations across

nodes.

Benefits of Using the rNDC Slot for Management:

Simplified Network Design:

Clear separation of management and data networks.

Enhanced Security:

Management interfaces can be placed on a secure network segment.

Consistency Across Clusters:

Facilitates easier administration and support.

Physical Identification:

Location on the Node:

The rNDC slot is located on the back of the F600 node and is typically labeled for easy identification.

Port Types:

May include Ethernet ports designated for management tasks.

Dell PowerScale Reference:

Dell EMC PowerScale F600 Hardware Overview:

Details the node's hardware components, including the rNDC slot.

Dell EMC PowerScale Networking Guide:

Discusses network configurations and the role of management interfaces.

Hardware Installation Manuals:

Provide diagrams and instructions that identify the rNDC slot as the management port location.

The Pre-Engagement Questionnaire (PEQ) is a tool used by Dell EMC to gather essential information

about a customer's environment before deployment.

PEQ Replaces Site Preparation and Planning Guide:

Purpose of PEQ:

Collects detailed information on site readiness, network configuration, and customer requirements.

Ensures that all necessary preparations are made for a smooth implementation.

Why It Replaced the Site Preparation and Planning Guide:

Streamlines the process by consolidating information gathering into a single document.

Provides a more interactive and customer-focused approach.

Why Other Options Are Incorrect:

Web Administration Guide (Option B):

Provides instructions on administering the system via the web interface.

Supportability and Compatibility Guide (Option C):

Details supported hardware and software configurations.

Configuration Guide (Option D):

Offers guidance on configuring the system post-installation.

Dell PowerScale Reference:

Dell EMC PowerScale Implementation Resources:

PEQ Documentation:

Describes the purpose and usage of the PEQ.

Highlights how it replaces the previous Site Preparation and Planning Guide.

Best Practices:

Complete the PEQ thoroughly and accurately.

Use the PEQ to facilitate communication between the implementation team and the customer.

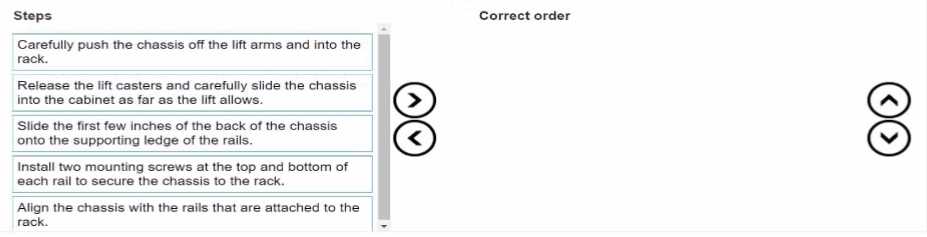

The correct order of steps to install a PowerScale Gen6 in a rack is as follows:

Align the chassis with the rails that are attached to the rack.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.

Carefully push the chassis off the lift arms and into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.

Comprehensive Detailed Step by Step Explanation with Reference

To install a PowerScale Gen6 in a rack, you need to follow a systematic process that ensures both

safety and correct placement:

Align the chassis with the rails that are attached to the rack.

The chassis must be properly aligned with the rails in the rack, which will support the chassis during

the installation process.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.

Once aligned, slide the back of the chassis onto the supporting ledge of the rails, ensuring the chassis

is seated securely.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.

After the chassis is aligned and placed onto the rails, release the lift casters and push the chassis into

the rack with controlled force, using the lift mechanism.

Carefully push the chassis off the lift arms and into the rack.

Once the chassis is positioned on the rails, remove the support from the lift arms, and push the

chassis fully into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.

Finally, use screws to secure the chassis at the top and bottom points on both sides, ensuring it is

tightly fastened to the rack.

This order ensures a smooth, safe installation and proper alignment in the rack. Following these

steps is crucial for the stability of the PowerScale Gen6 system during operation​.

The correct sequence is:

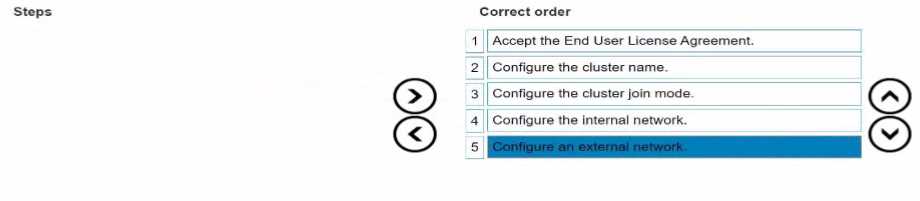

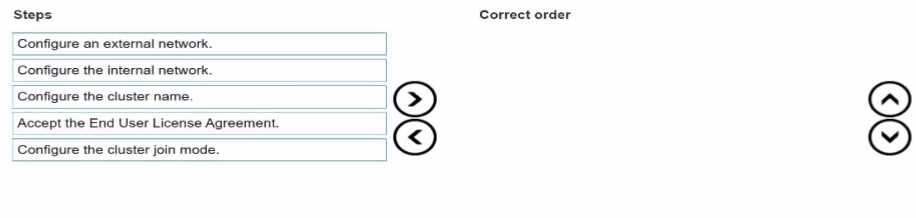

Accept End User License Agreement

Configure cluster name

Configure cluster join mode

Configure internal network

Configure external network

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Dell_D-PSC-MN-01/page_5_img_2.jpg

When creating a new Dell PowerScale cluster using the Configuration Wizard, the steps must be

performed in a specific sequence to ensure proper setup and functionality. Below is the detailed

order of the steps with explanations and

to Dell PowerScale documentation.

1. Accept End User License Agreement

Purpose:

Before any configuration can begin, you must accept the End User License Agreement (EULA) to

comply with legal requirements and proceed with the cluster setup.

Action:

Review the EULA presented in the Configuration Wizard.

Select the option to accept the terms and conditions.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide

Chapter: Initial Configuration

The Configuration Wizard begins by displaying the EULA, which must be accepted to continue.

Best Practices:

Carefully read the EULA to understand your rights and obligations.

2. Configure Cluster Name

Purpose:

Assigning a cluster name is essential for identification and management purposes within your

network environment.

Action:

Enter a unique and descriptive name for the cluster when prompted.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide

Section: Configuring Cluster Settings

After accepting the EULA, the wizard prompts for cluster-specific settings, starting with the cluster

name.

Best Practices:

Use a naming convention that aligns with your organization's standards.

Ensure the cluster name is DNS-resolvable if necessary.

3. Configure Cluster Join Mode

Purpose:

Determine whether to create a new cluster or join an existing one.

Since you are creating a new cluster, you need to select the appropriate join mode.

Action:

Choose "Create a new cluster" from the available options.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Installation Guide

Section: Cluster Creation Options

The wizard asks whether to create a new cluster or join an existing one.

Best Practices:

Verify that all nodes intended for the cluster are correctly cabled and powered on.

4. Configure Internal Network

Purpose:

Set up the internal networking (back-end network) that enables communication between nodes

within the cluster.

Critical for cluster operations, data replication, and management traffic.

Action:

Configure settings for internal interfaces int-a and int-b.

Assign IP address ranges and netmasks as required.

Dell PowerScale Reference:

Dell EMC PowerScale Networking Configuration Guide

Chapter: Configuring Internal Networks

Details on setting up the internal network interfaces during cluster creation.

Best Practices:

Use separate subnets for int-a and int-b to enhance redundancy.

Ensure that the internal network is isolated from external networks for security.

5. Configure External Network

Purpose:

Establish the external networking (front-end network) that allows clients and services to access the

cluster.

Action:

Configure settings for external network interfaces.

Assign IP addresses, netmasks, gateways, and DNS information.

Dell PowerScale Reference:

Dell EMC PowerScale Networking Configuration Guide

Chapter: Configuring External Networks

Provides guidance on setting up external interfaces after internal networking is configured.

Best Practices:

Plan IP addressing to avoid conflicts within your network.

Configure SmartConnect zones if required for load balancing and failover.

Additional Notes:

Sequence Importance:

Following this sequence ensures that foundational settings are established before dependent

configurations.

For example, internal networking must be configured before external networking to ensure proper

node communication.

Validation and Testing:

After completing the Configuration Wizard, validate the cluster setup by checking node status and

network connectivity.

Use the OneFS web administration interface or CLI commands to verify configurations.

Reference to Dell PowerScale Documentation:

Dell EMC PowerScale OneFS Installation Guide

Provides step-by-step instructions for initial cluster setup.

Dell EMC PowerScale Networking Configuration Guide

Offers detailed information on networking configurations and best practices.

Dell EMC PowerScale OneFS Administration Guide

Useful for advanced configurations and cluster management post-installation.

Conclusion:

By following the sequence outlined above, the platform engineer can successfully create a new Dell

PowerScale cluster using the Configuration Wizard. Each step builds upon the previous one, ensuring

a robust and properly configured cluster ready for operation.

In the output of the isi devices drive list command shown in the exhibit, the drive in location C1 is

marked as "USED," with the serial number VRKL242P. This indicates that the drive has been replaced

but has not yet been initialized or formatted for use within the PowerScale cluster.

To make the drive usable, it must be formatted. The correct procedure to follow is to use the isi

devices drive format command, specifying the drive location (C1 in this case). This will prepare the

drive for use in the cluster, ensuring that it is recognized and available for OneFS to start writing data

to it.

Steps to format the drive:

Log in to the OneFS cluster using an SSH session with an account that has the necessary privileges.

Run the following command to format the new drive:

bash

Copy code

isi devices drive format C1

This command will format the drive located at C1, making it available for use in the cluster.

After the format is complete, verify that the drive is now in a HEALTHY state by running:

isi devices drive list

This should display the new status of the drive as HEALTHY, indicating that it has been successfully

formatted and is ready for data operations.

This process is outlined in Dell’s PowerScale Administration Guide and ensures the correct

initialization of new or replaced drives​.

For Dell EMC PowerScale systems, when installing nodes such as the F200, a common 1:4 breakout

cable ratio is used. This means that a single 40GbE port on a switch is broken out into four 10GbE

connections, which are used for connecting nodes like the F200.

For example, in environments where multiple F200 nodes need to be connected to a switch using

high-speed Ethernet, a 40GbE port on the switch can be split into four 10GbE connections, which is

commonly used in PowerScale installations to maximize the available network connections while

minimizing the number of switch ports required.

After replacing a failed node in a PowerScale H500 cluster, it is crucial to run a diagnostic test on the

replacement node to ensure it is functioning correctly and can integrate seamlessly into the cluster.

Importance of Diagnostics:

Verify Hardware Functionality:

Ensures all components of the replacement node are working properly.

Identify Potential Issues:

Detects any hardware faults or configuration problems before the node joins the cluster.

Diagnostic Procedures:

Boot Diagnostics:

During startup, the node performs POST (Power-On Self-Test).

OneFS Healthcheck:

Use the isi diagnostics commands to run health checks on the node.

Cluster Integration Tests:

Verify network connectivity, storage availability, and cluster communication.

Steps to Run Diagnostics:

Physical Inspection:

Ensure all cables and components are properly connected.

Power On the Node:

Observe for any error lights or beep codes.

Execute Diagnostic Commands:

Run isi_hw_status to check hardware status.

Use isi_diag tools for comprehensive testing.

Review Logs:

Check system logs for any error messages.

Why Other Options Are Less Crucial:

B. Confirm that the replacement node inherits the old serial number from the cluster:

Serial numbers are hardware-specific and cannot be inherited.

Nodes have unique serial numbers; cluster identity is managed logically.

C. Verify the size of the storage capacity of the replacement node:

While important, it's generally assumed that the replacement node matches the failed node's

specifications.

Not as crucial as ensuring the node functions correctly.

D. Power on the replacement node and ensure it connects to the network without any problems:

Necessary, but this is part of the diagnostic process.

Running diagnostics encompasses powering on and verifying network connectivity.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Administration Guide:

Provides information on monitoring and diagnostics commands.

Node Replacement Procedures in SolVe Online:

Outline the steps for replacing nodes and the importance of running diagnostics.

Best Practices for Cluster Maintenance:

Emphasize verifying node health before adding it to the cluster.

To access the Dell EMC PowerScale cluster through the Web Administration interface, you need to

use a web browser to connect to the cluster's management port using HTTPS on the appropriate

port.

Correct URL Format:

https://:8080

Protocol: HTTPS (Secure HTTP)

Cluster Name/IP: Replace with the cluster's hostname or IP address.

Port Number: 8080, which is the default port for the PowerScale Web Administration interface.

Why Option A is Correct:

HTTPS Protocol:

Ensures secure communication with the cluster's web interface.

Port 8080:

Default port for accessing the Web Administration interface on PowerScale clusters.

Combining Both:

Using https://:8080 directs the browser to the correct interface.

Why Other Options Are Incorrect:

Option B (http://:80):

Uses HTTP on port 80, which is not the default for the administration interface.

Option C (http://:8082):

Incorrect protocol and port.

Option D (https://:8081):

Port 8081 is not the default for the web interface.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Web Administration Guide:

Accessing the Web Interface:

Specifies that the Web Administration interface is accessible via HTTPS on port 8080.

Provides the URL format for connecting to the cluster.

Example:

If your cluster's hostname is powerscale-cluster, you would enter:

arduino

Copy code

https://powerscale-cluster:8080

Security Note:

Certificate Warnings:

Browsers may display a security warning due to self-signed certificates.

You can proceed by adding an exception or install a valid SSL certificate.

Best Practices:

DNS Configuration:

Ensure that the cluster's hostname is resolvable via DNS.

Alternatively, use the cluster's IP address in the URL.

Browser Compatibility:

Use a modern browser that supports the necessary encryption protocols.

Firewall Settings:

Verify that network firewalls allow traffic on port 8080.

In Dell EMC PowerScale clusters, upgrades can be performed using different methods, each with its

own impact on cluster availability and performance.

Simultaneous Upgrade:

Definition:

A simultaneous upgrade involves rebooting all nodes in the cluster at the same time.

Characteristics:

The entire cluster is taken offline during the upgrade process.

Downtime is required, making it suitable for non-production environments or maintenance windows.

Why Other Options Are Incorrect:

Rolling Upgrade (Option B):

Nodes are upgraded one at a time, allowing the cluster to remain online.

Side-by-Side Upgrade (Option C):

Involves building a new cluster and migrating data; nodes are not rebooted simultaneously.

In-Place Upgrade (Option D):

Refers to upgrading software on the existing hardware but does not imply simultaneous reboots.

Dell PowerScale Reference:

Dell EMC PowerScale OneFS Upgrade Guide:

Chapter on Upgrade Methods:

Describes simultaneous upgrades and their impact on cluster availability.

Provides guidelines on when to choose this method.

Best Practices:

Schedule simultaneous upgrades during planned downtime.

Notify users of the expected service interruption.
