A specific diagnostic LED pattern, such as blinking amber for two seconds and then off for one second, is designed to indicate a precise fault condition, distinguishing it from other hardware failures. This particular pattern on a Dell PowerEdge PSU indicates a problem with the input power, specifically that the input voltage is out of the supported range or there is a voltage mismatch. While any blinking amber light signifies a fault, the defined timing allows an administrator to diagnose the issue as related to the external power source rather than an internal PSU component failure, enabling faster and more accurate troubleshooting.

A. Faulted state: This answer is too general. The specific blink pattern provides more granular information than simply indicating a generic fault, pointing to a particular type of problem.

B. Firmware update: A firmware update in progress on a Dell PowerEdge PSU is consistently indicated by a blinking green LED, not an amber one.

1. Dell PowerEdge R750 Owner's Manual (Page 21

"PSU status indicator" table): This document confirms that a blinking green LED indicates a firmware update

and a blinking amber LED indicates a problem (a fault) with the PSU. This directly refutes option B and supports the general premise of option A

which is superseded by the more specific correct answer

C.

2. Dell PowerEdge 2950 Systems Hardware Owner's Manual (Page 42

"Power Supply Indicators"): This manual for an earlier server generation establishes the principle that Dell uses different amber blink rates to signify different types of PSU faults. It specifies a slow blink (1/4 Hz) for warnings like "over-voltage" and a faster blink (1 Hz) for critical faults. This supports the logic that the specific "2 seconds on

1 second off" pattern corresponds to a specific condition like a voltage mismatch.

3. Dell EMC PowerEdge Servers Troubleshooting Guide (Section: "Power Supply Unit"): General troubleshooting guides note that PSU faults can stem from various causes

including "incorrectly connected power cable" or issues with the "power source

" which aligns with a voltage mismatch being a primary fault condition that would warrant a specific diagnostic code.

When using the iDRAC Direct feature via the front USB port, the iDRAC is assigned a static IP address of 169.254.0.4. The administrator's laptop or client device, when connected, is automatically assigned the IP address 169.254.0.3 by the DHCP server running on the iDRAC. To access the iDRAC web interface or use RACADM commands, the administrator must connect to the iDRAC's IP address, which is 169.254.0.4. This link-local addressing scheme facilitates a direct, point-to-point management connection without needing to reconfigure the client's network settings.

A. 169.254.0.3: This is the IP address automatically assigned to the administrator's client device (e.g., laptop), not the IP address of the iDRAC itself.

C. 192.168.1.20: This is a standard private IP address and is not used for the iDRAC Direct USB link-local connection.

D. 192.168.0.20: This is a standard private IP address, often used for default iDRAC dedicated network ports, but not for the iDRAC Direct USB feature.

1. Dell iDRAC9 Version 7.00.00.00 User's Guide: In the section "Setting up iDRAC Direct

" it states

"The iDRAC Direct is accessible at IP address 169.254.0.4. The laptop connected to the USB port is assigned the IP address 169.254.0.3." (Page 29)

2. Dell PowerEdge: iDRAC9 Overview (White Paper): Under the "iDRAC Direct" section

the document details the connection process: "The iDRAC is accessible at its default IP address of 169.254.0.4

while the connected laptop is assigned an IP address of 169.254.0.3." (Page 11)

3. Dell OpenManage Systems Management - iDRAC Service Module Version 5.1.0.0 User's Guide: In the "iDRAC access via Host OS" feature description

it mentions the IP addresses used for the USB to NIC connection: "The iDRAC is accessible at 169.254.0.1 and the host is accessible at 169.254.0.2." While these IPs are for the OS-to-iDRAC passthrough

the document later clarifies the front port iDRAC Direct IPs

confirming 169.254.0.4 for the iDRAC. (Page 14)

Software RAID, by definition, utilizes the host system's main processor (CPU) and system memory (RAM) to perform all RAID calculations and manage the virtual disk. This implementation integrates the RAID logic into the operating system's kernel or a driver. Unlike hardware RAID, it does not rely on a dedicated, specialized processor or cache on an adapter card. Dell's S-series controllers (e.g., S160) are examples of software RAID solutions that leverage the server's embedded processing and memory resources.

A. Software RAID is not restricted to write-through mode; it can support write-back caching, though this poses a data integrity risk without system-level power protection.

C. NVRAM is a component typically found on hardware RAID controllers to protect write cache data during a power failure; the RAID logic does not execute on it.

D. A PERC H965 is a high-performance hardware RAID controller featuring a dedicated RAID-on-Chip (ROC) processor and cache, which offloads RAID tasks from the host system.

1. Dell PowerEdge S160 User's Guide

Page 5

Section: "Introduction". The document states

"The S160 controller is a software RAID solution... The S160 controller uses the resources of the host CPU and memory." This directly supports the correct answer (B).

2. Dell PowerEdge RAID Controller 12 User's Guide

Page 6

Section: "PERC 12 family of controllers". This guide describes the PERC H965i as a "high-performance RAID controller with RAID-on-Chip (ROC) and 16 GB of DDR4 Non-Volatile cache memory." This confirms it is a hardware RAID solution

directly refuting option (D) and clarifying the role of NVRAM/NVCache (refuting C).

A solid amber LED on a Dell PowerEdge hard drive carrier indicates a critical fault or that the drive has failed. The PowerEdge RAID Controller (PERC) is responsible for managing the drives and their status indicators. When a drive loses communication with the PERC, the controller marks the drive as failed or offline. This state change triggers the system to illuminate the drive's LED as solid amber to alert an administrator to the fault condition, signifying that the drive is no longer an active and healthy member of the storage configuration.

A. A hard drive that has been removed, or a bay that is empty, will have its LED indicator turned off.

B. Normal operating conditions, including normal temperature, are indicated by a solid or blinking green LED. Amber always signifies a warning or fault.

D. A predictive failure alert (PFA) status is indicated by a blinking amber LED, not a solid one, to warn of an impending failure.

1. Dell PowerEdge R750 Installation and Service Manual: In the section "Drive status indicator codes

" the manual specifies that a "Solid amber" light indicates a "Drive fault." A loss of connectivity is a type of drive fault. (See Page 26

Table 8. Drive status indicator codes).

2. Dell PowerEdge RAID Controller (PERC) 10 and 11 User's Guide (H740P

H745P

H840): In the "Troubleshooting" chapter

under "Physical Disk States

" a drive is marked as "Offline" if it "is part of a virtual disk but has been removed or is not responding." A non-responding drive has lost connectivity

which is a fault state indicated by an amber LED. (See Page 68

"Physical Disk States").

3. Dell Knowledge Base Article 000130428

"Dell PowerEdge: How to physically replace a hard drive (Hot Swap procedure)": Under "Step 2: Identify the failed hard drive

" the article states

"Normally

a failed disk is indicated by an amber light on the carrier." It further distinguishes this from predictive failure

which involves a blinking light.

The primary reason for the error is the incompatibility between server generations within a single iDRAC Group. The Dell PowerEdge R750 is a 15th generation (15G) server, while the R760 is a 16th generation (16G) server. The iDRAC Group Manager feature explicitly requires all member servers within a group to be of the same generation. Therefore, attempting to add 15G servers to a group established with 16G servers is not a supported configuration and will result in errors.

A. R750 iDRACs firmware is out of date.

While outdated firmware can cause various issues, the fundamental restriction on mixing server generations is the definitive cause of this specific error.

B. R750 iDRACs are not running the same version of firmware.

Inconsistent firmware versions among servers of the same generation might cause operational inconsistencies but would not prevent them from being added to the group.

D. The feature requires iDRAC Enterprise.

The customer already has an existing R760 iDRAC Group, which confirms they possess the necessary iDRAC Enterprise or Datacenter license for this feature.

1. Dell iDRAC9 Version 7.00.00.00 User's Guide.

Reference: Page 280

Section: "Group Manager"

Subsection: "Prerequisites".

Quote: "All the servers in a group must be of the same generation. For example

you cannot have 15th generation and 16th generation of PowerEdge servers in the same group."

2. Dell Technologies White Paper: "iDRAC Group Manager".

Reference: Page 5

Section: "Prerequisites".

Quote: "All servers in a group must be of the same generation. For example

you cannot have 14th generation and 15th generation of PowerEdge servers in the same group." (This principle applies across all adjacent generations

including 15G and 16G).

for Step

by Step solution.

Explanation:

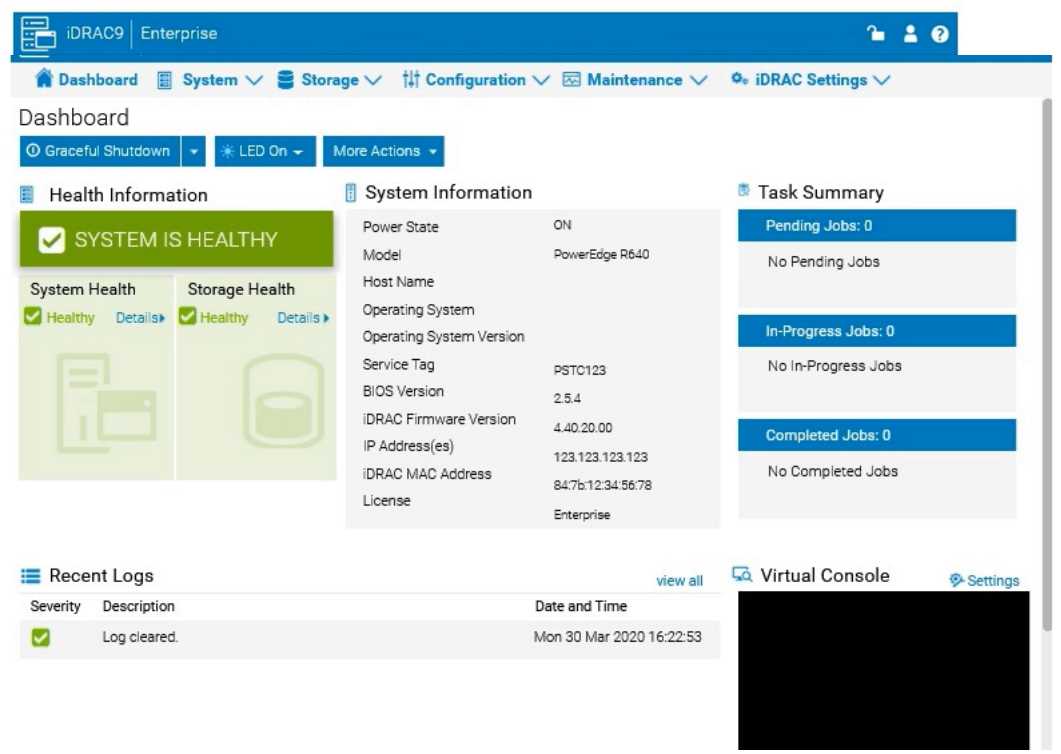

To configure an iDRAC shared management port with LOM2 and set up a failover network using

LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration.

Change the NIC Selection to Shared. This will enable the use of a LAN on Motherboard (LOM) port for

iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared, additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port. This configures iDRAC to use LOM2 for its primary

network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to

switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to

confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have

been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and

that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the

shared management port and set up a failover network with LOM3. Make sure to save your changes

to apply the configuration.

System Lockdown is a security feature within iDRAC designed to prevent configuration changes to the server. When enabled, it blocks any modifications to hardware, firmware, or BIOS settings from any management interface, including the iDRAC GUI, RACADM, and Redfish. This feature effectively freezes the server's configuration, protecting it from unauthorized or accidental changes, which directly fulfills the administrator's requirement to secure the system against mistakes by junior staff. The lock is comprehensive and overrides individual user permissions, ensuring a consistent and secure server state.

1. Dell. (2023). iDRAC9 Version 7.00.00.00 User's Guide. "System Lockdown" section

p. 118. "System Lockdown mode

when enabled

prevents any configuration changes that affect the BIOS

firmware

or hardware settings."

2. Dell. (2023). Dell PowerEdge Server Security Configuration Guide. "Lockdown Mode" section

p. 12. "Lockdown mode can be used to prevent configuration drift or malicious configuration changes to a server."

3. Dell. (2020). Cyber Resilient Security in Dell PowerEdge Servers [White Paper]. "Detect" section

p. 10. "System Lockdown... helps prevent unintended changes to server configuration and firmware."

for Step

by Step solution.

Explanation:

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow

these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can

manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture.

Enable Verbose Mode or Capture Full POST Sequence. This setting ensures that the entire POST

process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs, enable it to ensure detailed

logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save.

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot.

Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful

Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST

sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can

then be reviewed to identify any hardware or configuration issues preventing the server from

booting successfully.

Thank you for your visit.

for Step

by Step solution.

Explanation:

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the

iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power

Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both

power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will

become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy

policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source

with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without

automatic failover to another power supply.

for Step

by Step solution.

Explanation:

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow

these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as

needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or

accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new

network segment, allowing remote management of the Dell PowerEdge server at the edge location.
