Distortion is the most accurate and comprehensive term for any alteration of an original audio signal's waveform as it passes through a system. When an audio device can no longer accurately reproduce the signal, it is, by definition, introducing distortion. This can manifest in various forms, such as clipping (when an amplifier is overdriven), harmonic distortion, or intermodulation distortion. The core of the issue is the failure to maintain the original signal's integrity, which is the definition of distortion. CertEmpire.com

1. AVIXA Inc. (2020). CTS Certified Technology Specialist Exam Guide, Third Edition. McGraw

Hill. p. 161.

The guide defines distortion as "the alteration of the original shape (or other characteristic) of a

waveform." This directly aligns with the scenario of a device failing to accurately reproduce a

signal.

2. Audio Engineering Society (AES). (n.d.). AES Pro Audio Reference.

The AES defines distortion as "any undesired change in the waveform of a signal." This

authoritative definition confirms that any inaccurate reproduction is a form of distortion. (URL:

https://www.aes.org/par/d/)

3. Oppenheim, A. V., & Willsky, A. S. (1997). Signals and Systems. Prentice Hall. (Referenced in

MIT OCW 6.003).

In signal processing theory, a system that alters the input signal in a nonlinear way introduces

distortion. An audio device that cannot accurately reproduce the signal is behaving as a nonlinear

system, thus creating distortion.

To integrate third-party systems like lighting and shades with an AV control system, the fundamental requirement is to establish communication between them. The "communications protocol" (e.g., IP, RS-232, IR, DALI) defines the rules, syntax, and methods for this data exchange. Determining the protocols used by the lighting and shade systems is the most critical piece of information, as it dictates the necessary hardware interfaces, cabling, and software programming (drivers) required for the control system to send commands and receive feedback. CertEmpire.com

1. AVIXA International. (2020). CTS-D Certified Technology Specialist-Design Exam Guide, Third

Edition. McGraw-Hill.

Chapter 6, "Control Systems," explains that a key task in control system design is to identify the

communication requirements for all devices to be integrated. It states, "The designer must

determine how each device in the system will be controlled... Common communication methods

include Ethernet, serial (RS-232), infrared (IR), and contact closure." This highlights that

understanding the communication protocol is the primary step.

2. AVIXA. (2017). ANSI/INFOCOMM 2M-2010, Standard Guide for Audiovisual Systems Design

and Coordination Process.

Section 4.4, "Design Phase," details the need to develop engineering details, including control

systems. This process inherently requires identifying the communication protocols of all

subsystems (lighting, shades, AV) to ensure interoperability and create a functional, integrated

solution. The protocol is the foundation for this interoperability.

In an acoustically untreated space, such as the described council chamber, sound will reflect off

hard surfaces, creating high reverberation that degrades speech intelligibility. The primary

strategy to overcome this is to maximize the direct sound reaching the listeners while minimizing

the sound energy that excites the reverberant field. A narrow beam loudspeaker achieves this by

focusing sound precisely onto the audience area and away from reflective walls and ceilings. This

improves the direct-to-reverberant sound ratio, which is a critical factor for achieving optimal

speech intelligibility in challenging acoustic environments.

CertEmpire.com

1. AVIXA International. (2020). CTS-D Certified Technology Specialist-Design Exam Guide, Third

Edition. McGraw-Hill. In Chapter 5, "Creating AV Solutions," the guide explains that in highly

reverberant spaces, a loudspeaker with a narrow coverage pattern is used to keep sound energy

off reflective surfaces to improve intelligibility.

2. Long, M. (2014). Architectural Acoustics (2nd ed.). Academic Press (Elsevier). Chapter 14,

"Sound Systems," discusses how high-directivity (i.e., narrow beam) loudspeakers increase the

direct-to-reverberant sound ratio, which is essential for maintaining speech intelligibility in

reverberant rooms (pp. 665-668).

3. Davis, D., & Patronis, A. (2013). Sound System Engineering (4th ed.). Focal Press. Chapter

15, "Speech Intelligibility," details how loudspeaker directivity (Q) is a fundamental parameter

used to control the acoustic environment and improve the direct-to-reverberant ratio for better

clarity.

The contrast control on a display adjusts the luminance range of the image. Specifically, it modifies the difference between the brightest possible white and the darkest possible black. Increasing the contrast makes the whites brighter and the blacks darker, thereby expanding the dynamic range of the image. This control directly affects the perceived "punch" or vividness of the picture by manipulating the scale of light and dark values.

CertEmpire.com

1. AVIXA. (2020). CTS Certified Technology Specialist Exam Guide, Third Edition. McGraw-Hill.

Chapter 5, "Creating AV Solutions," defines contrast as "The range of light and dark values in a

picture."

2. Poynton, C. (2012). Digital Video and HD: Algorithms and Interfaces (2nd ed.). Morgan

Kaufmann (an imprint of Elsevier, an academic publisher). Chapter 7, "Gamma," discusses how

contrast controls alter the tone scale, which is the relationship between the darkest and lightest

areas.

3. Georgia State University, Department of Physics & Astronomy. (n.d.). HyperPhysics: Contrast.

Retrieved from http://hyperphysics.phy-astr.gsu.edu/hbase/vision/contrast.html. This resource

defines contrast in terms of the relative difference in luminance or color that makes an object

distinguishable.

Laser projectors use a solid-state light source (laser diodes) instead of a traditional lamp, which

eliminates the need for frequent lamp replacements. However, they are not entirely

maintenance-free. The optical path, including the primary lens, and any air filters are still

susceptible to dust and airborne contaminants. This buildup can degrade image quality

(brightness, contrast, sharpness) and impede airflow, causing overheating. Therefore, a

scheduled maintenance plan that includes regular cleaning of the optics and filters, along with

focus checks to correct any drift, is essential for maintaining optimal performance and longevity.

CertEmpire.com

1. AVIXA International. (2020). CTS Certified Technology Specialist Exam Guide, Third Edition.

McGraw-Hill. Chapter 10, "Conducting AV Management Activities," emphasizes the need for

preventive maintenance. It states, "Even with longer-life components, preventive maintenance is

still required for other components, such as filters and fans" (p. 388), directly contradicting the

"maintenance-free" claim.

2. Panasonic. (2021). Operating Instructions: PT-RZ990 Series LCD Projector. "Maintenance"

section, pp. 88-91. This official vendor manual for a laser projector specifies required

maintenance tasks, including "Cleaning the air filter unit" and "Cleaning the lens," and

recommends a regular inspection and cleaning schedule. (URL:

https://na.panasonic.com/us/support/pt-rz990-series - specific manual download required).

3. Christie Digital Systems. (2022). Christie Griffyn 4K35-RGB User Manual. "Maintenance"

chapter. This manual for a professional RGB pure laser projector explicitly states, "To maintain

optimal performance of the projector, perform regular maintenance... Clean the lens." This

confirms that physical cleaning is a standard requirement. (URL:

https://www.christiedigital.com/help-center/ - search for product manual).

The cloud symbol is the universally accepted icon used in audiovisual, IT, and

telecommunications diagrams to represent a network. It serves as an abstraction for a complex

network infrastructure, such as the Internet, a Wide Area Network (WAN), or a Local Area

Network (LAN), whose internal details are not relevant to the diagram. This convention is

formalized in standards governing architectural and system drawings for AV and related

technologies.

CertEmpire.com

1. AVIXA, CEA, CEDIA (2015). J-STD-710: Audio, Video and Control Architectural Drawing

Symbols Standard. This standard, co-published by AVIXA, explicitly defines the cloud shape as

the symbol for a "Network." (Note: Access to the full standard requires purchase, but its purpose

and contents are publicly documented by AVIXA).

2. Kurose, J. F., & Ross, K. W. (2021). Computer Networking: A Top-Down Approach (8th ed.).

Pearson. Chapter 1, "Computer Networks and the Internet," consistently uses the cloud symbol to

represent the network core and the broader internet in its architectural diagrams (e.g., Figure 1.2).

3. MIT OpenCourseWare. (2014). 6.02 Introduction to EECS II: Digital Communication Systems,

Fall 2012. Lecture slides and notes frequently use the cloud symbol to abstractly represent a

network or a communication channel between two endpoints. View on MIT OCW (See slide 11).

The question specifies that the devices are "Ethernet controllable," meaning they are controlled via commands sent over an IP network. For the control system to send commands and the devices to receive them, both the controller and the controlled devices must be connected to the same logical network. This network connectivity is the fundamental requirement for operation, regardless of the system's physical location. The physical placement in a rack or specific room is an implementation detail, not a prerequisite for functionality. CertEmpire.com

1. AVIXA International. (2020). CTS Certified Technology Specialist Exam Guide, Third Edition.

McGraw-Hill.

Chapter 5: Creating AV Solutions, "Control Systems" section: This chapter details how modern

control systems operate, emphasizing the shift to IP-based (Ethernet) control. It explains that for

IP control, the control processor sends commands over the network to the IP address of the

device being controlled, establishing that network connectivity is essential.

2. Kurose, J. F., & Ross, K. W. (2021). Computer Networking: A Top-Down Approach (8th ed.).

Pearson.

Chapter 1: Computer Networks and the Internet: This foundational text establishes that for any

two hosts (e.g., a control system and a projector) to communicate over the internet or a local IP

network, they must both be connected to that network. This is a core principle of all network

communication.

3. AVIXA. (2017). ANSI/INFOCOMM 2M-2010, Standard Guide for Audiovisual Systems Design

and Coordination Process.

This standard outlines the design process for AV systems. While it discusses equipment location

in racks and rooms for logistical and environmental reasons, it implicitly separates these physical

considerations from the logical network topology required for device communication and control.

The logical connection (network) must exist before the physical location is finalized.

The primary purpose of a needs analysis is to understand the end-user's goals and functional

requirements for the AV system. A foundational step in this process is to identify all

stakeholders—the individuals or groups who will use, benefit from, or be impacted by the system.

Their input is critical for defining the project's scope, objectives, and success criteria. The

information gathered from stakeholders directly informs all subsequent project phases, including

budgeting, scheduling, and task planning.

CertEmpire.com

1. AVIXA International. (2020). CTS Certified Technology Specialist Exam Guide, Third Edition.

McGraw-Hill. Chapter 3, "Conducting a Needs Analysis," pp. 55-57. This chapter explicitly states

that identifying the end users and other stakeholders is a fundamental part of the needs analysis

process to determine their specific requirements and expectations for the AV system.

2. AVIXA International. (2017). AVIXA A102.01:2017: Audiovisual Systems Design and

Coordination Components. Section 3.1, "Programming Phase." This standard defines the

Programming Phase (equivalent to needs analysis) as the process of gathering information about

the client's needs. This inherently requires identifying and engaging with the client and other

stakeholders to gather that information.

�T�h�e� �u�n�i�t� �f�o�r� �e�l�e�c�t�r�i�c�a�l� �r�e�s�i�s�t�a�n�c�e� �i�s� �t�h�e� �O�h�m� �(�©�)�,� �r�e�p�r�e�s�e�n�t�e�d� �b�y� formulas. The provided chart is an Ohm's Law and Power Wheel, which organizes formulas based on the quantity being calculated. The bottom-right quadrant is explicitly labeled 'R' and contains the three standard formulas for calculating resistance when other values (Voltage 'E', Current 'I', or Power 'P') are known: R = E / I R = E² / P R = P / I² Therefore, this is the correct section for calculating values expressed in Ohms.

1. University Courseware: Massachusetts Institute of Technology (MIT) OpenCourseWare,

8.02SC Physics II: Electricity and Magnetism, Fall 2010, Problem Set 4, Solution. This resource

demonstrates the application of the formula R = V/I (where V is equivalent to E) to calculate

resistance in Ohms.

URL: https://ocw.mit.edu/courses/8-02sc-physics-ii-electricity-and-magnetism-fall-2010/resources/

mit802scpset4sol/ (Page 2, Problem 2b)

2. Peer-Reviewed Academic Publication: Horowitz, P., & Hill, W. (2015). The Art of Electronics

(3rd ed.). Cambridge University Press. Chapter 1, Section 1.2.2, "Ohm's Law," defines resistance

R as the ratio of voltage E to current I (R = E/I).

URL: https://artofelectronics.net/wp-content/uploads/2016/02/AoE3chapter1.pdf (Page 5)

3. Official AVIXA Standard: AVIXA. (2017). Audiovisual Systems Performance Verification Guide

(AVIXA A102.01:2017). Section 4.1.1, "AC Power," discusses the fundamental relationship

between voltage, current, and resistance as defined by Ohm's Law, which is the basis for the

calculations in the specified quadrant.

URL: https://www.avixa.org/standards/approved-standards-infocomm/avixa-a102.01-2017

(Specific formulas are foundational knowledge assumed by the standard).

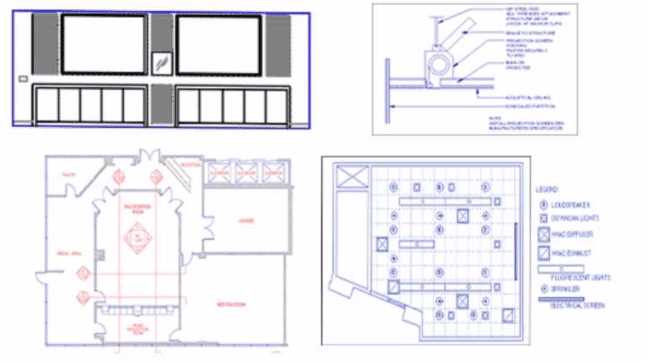

A reflected ceiling plan is a plan-view drawing that “reflects” everything mounted on or in the ceiling—lighting fixtures, HVAC diffusers, loudspeakers, projectors, mounting points— displayed on a grid corresponding to the ceiling surface (AVIXA CTS-D Exam Guide, ch. 6; Ching, “Architectural Graphics”, 6th ed., pp. 150-151). The upper-right image is the only drawing that depicts this ceiling-grid with device symbols, therefore it is the RCP.

1. AVIXA. CTS-D Certified Technology Specialist-Design Exam Guide. McGraw-Hill, 2013,

Chapter 6 “Construction Documents – Reflected Ceiling Plans”.

2. Francis D. K. Ching. Architectural Graphics, 6th ed. Wiley, 2015, pp. 150-151 (“Reflected

Ceiling Plans – content and symbols”).
