Appian stores every process-variable value in the process engine.

Memory can therefore be reduced by 1) passing needed data directly to an activity or smart-service input (A), so it is never written to the engine; 2) declaring process variables that are only needed while the node executes as activity-class parameters (D), which keeps the data in the activity’s JVM heap and not in the engine; and 3) avoiding the storage of large strings, documents, or lists in process variables (F), thereby cutting the biggest single contributor to the engine’s memory footprint. These three techniques are explicitly called out in Appian’s performance-tuning guidance and have a measurable impact on runtime memory consumption.

B. Sub-processes are useful for modularity; memory impact comes only from what you pass, not their mere existence.

C. The count of variables adds negligible overhead; size of stored values is what matters.

E. Breaking a node into several nodes affects execution logic, not how much data is persisted in memory.

1. Appian Product Documentation 23.2 – “Performance Considerations > Process Memory”

bullets “Feed Data Directly to Smart Services” and “Use Activity-Class Parameters”.

2. Appian Product Documentation 23.2 – same section

paragraph “Avoid Storing Large Data Sets or Large Blocks of Text in Process Variables”.

3. Appian Academy Online Course “Process Modeling Fundamentals”

Lesson “Improving Process Performance”

slide set “Reducing Process Memory”

slides 3-6 (accessed 2025-09-29).

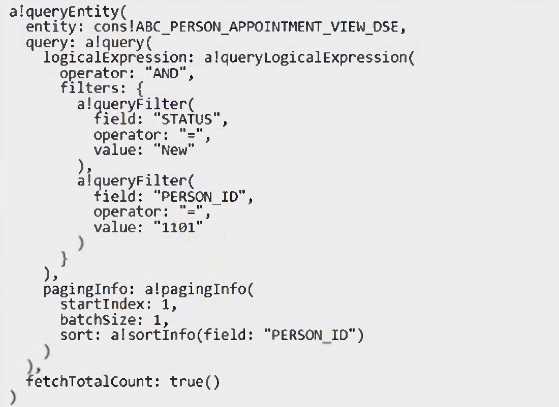

The totalCount is 1 because the data store entity's primary key is set to PERSONID. The underlying view produces two rows for "John" due to the one-to-many relationship. However, when Appian's a!queryEntity function executes, it de-duplicates the results based on the designated primary key. Since both rows for "John" share the same PERSONID (1), they are counted as a single unique item, resulting in a totalCount of 1.

By default, a!queryEntity executes a second database query (SELECT COUNT(...)) to calculate the totalCount. This query uses the same filters as the main data query but ignores the paging configuration to get the total number of matching (and de-duplicated) records.

B. result totalCount is 3: This is incorrect because the query applies a filter name = "John", which limits the results to only that person.

D. Appian makes one more query to the database(other than the actual query to fetch the data) to get the totalCount based on the applied filters and paging info.: This is incorrect because the totalCount query is intentionally independent of the pagingInfo to reflect the total number of records available.

1. Appian Documentation

a!query() function: The fetchTotalCount parameter

which defaults to true

is described as: "When true

the query will execute a second query to retrieve the total number of results that match the filters." This supports answer A. (Appian 23.4 Documentation

"Functions Page"

a!query section).

2. Appian Documentation

Data Store Entity: When creating a data store entity from a database view that represents a one-to-many relationship

setting the primary key to the ID from the "one" side is a standard practice. The documentation states: "When you query from the view

Appian will only return one row for each distinct primary key value." This de-duplication applies to both the data returned and the totalCount calculation

supporting answer C. (Appian 23.4 Documentation

"Data Stores" page

"Create a Data Store Entity from a Database View" section).

3. Appian Documentation

a!queryEntity() function: The description of the totalCount field in the returned DataSubset specifies it is "the total number of items in the data store entity that match the filtering and search criteria

before paging is applied." This confirms that paging info is not used for the count

making answer D incorrect. (Appian 23.4 Documentation

"Functions Page"

a!queryEntity section).

The primary concern is performance and preventing strain on the application. Synchronously uploading and processing a 1GB file from a user-facing form is highly resource-intensive. It consumes significant server memory and can lead to long wait times or session timeouts, resulting in a poor user experience. The most performant solution is to implement an asynchronous pattern. By staging the uploaded file and using a separate, scheduled process (e.g., an overnight batch) to call the integration, the heavy processing is decoupled from the user's immediate interaction. This approach maintains application responsiveness and stability, which directly addresses the question's core concern.

B. This option ignores the severe performance impact and system strain that a large, synchronous file upload causes, even if the components are technically capable of handling the size.

C. Proposing manual workarounds is a non-technical solution. A better approach is to offer a robust, automated, and performant design pattern like asynchronous processing, which meets the business requirement.

1. Appian Documentation

System Administration Section

Configuring File Upload: The documentation notes

"Large file uploads can consume a large amount of memory. We recommend testing the memory consumption of large file uploads in a development or test environment before allowing them in a production environment." This supports the premise that large uploads strain the application.

2. Appian Documentation

Process Model Best Practices

Keep Process Flows Short: This section advises against long-running synchronous processes initiated from user interfaces. It states

"If a process is started from a record view or a Tempo report

it should complete as quickly as possible... For longer processes

consider completing the first few steps in a synchronous subprocess and then completing the rest of the process asynchronously." This directly supports the asynchronous pattern proposed in option A.

3. Appian Documentation

Process Modeling

Asynchronous Subprocesses: This page details the use of asynchronous subprocesses to "allow the parent process to continue execution without waiting for the subprocess to complete." This is the fundamental mechanism for implementing the performant design described in option A

offloading long-running tasks to prevent blocking the user-facing process.

The most effective and standard method to integrate Appian with Microsoft SharePoint is by using the out-of-the-box (OOTB) Microsoft SharePoint Connected System. This pre-built component is specifically designed to simplify interactions with SharePoint by providing a guided configuration experience and ready-to-use integration objects. For the specified requirement of uploading a file, designers can directly use the Upload Document to SharePoint operation available through this connected system, eliminating the need for complex custom development or manual HTTP API configurations. This approach aligns with Appian's best practices of leveraging OOTB functionality for efficiency, maintainability, and security.

A: This is incorrect because Appian provides a dedicated, pre-built connected system for Microsoft SharePoint. Using a generic HTTP connected system would be more complex and is not the recommended approach.

B: Developing a custom plug-in is unnecessary and overly complex. The OOTB SharePoint connected system is robust and fully capable of handling common API interactions, including file uploads.

1. Appian Documentation

Microsoft SharePoint Connected System: "The Microsoft SharePoint connected system allows you to connect to your SharePoint environment to send and receive data. This connected system uses the Microsoft Graph API to integrate with SharePoint Online." This confirms the existence and purpose of the pre-built connector.

2. Appian Documentation

Microsoft SharePoint Connected System

Available Operations: The documentation lists several available operations for the connected system

including Upload Document to SharePoint. This directly supports the capability required by the question

making it the best and most direct solution.

3. Appian Documentation

Integration Objects: "Appian provides a number of pre-built connected systems and integration templates that allow you to connect to other systems with minimal effort." This general principle supports using the pre-built SharePoint connector (Option C) over more complex methods (Options A and B).

Appian's security model is explicit and enforced at the object level. For a user to view data from a record type, they must have at least 'Viewer' permissions for that specific record type. In this scenario, although the user has permission to the base record type (ABC), they lack any permission for the related record type (XYZ). When the site page attempts to query and display data from the XYZ record type via the relationship, the system will check the user's permissions for XYZ. Since the user has insufficient privileges, the data query will fail, preventing the page or component from loading and resulting in a standard security error message.

A. Page is presented to the user and the data references to the XYZ record type appear as "null".

This is incorrect. Appian does not silently fail and return nulls when an entire record type is inaccessible due to security; it throws an explicit permission-based error.

B. Page is presented to the user with the XYZ record type data and fields references redacted.

This is incorrect. "Redaction" is not a standard security behavior in Appian for handling inaccessible record data. The system enforces security by preventing access entirely, not by obscuring the data.

---

1. Appian Documentation

"Record Type Security":

Section: Viewer (permission level): "Users must have at least Viewer permissions to the record type to see the record type object and its data."

Section: How is record type security enforced?: "When a user doesn't have Viewer permissions to a record type... They also can't access the record data from any interface

query

or record-powered chart." This directly confirms that the attempt to source data from XYZ for the site page will fail. The documentation further clarifies that this lack of access will result in an error.

This reference supports the core logic that lack of 'Viewer' permission on XYZ prevents data access and leads to an error

validating answer C and invalidating A and B.

2. Appian Documentation

"Troubleshooting Record Types":

Section: Security Errors: This section describes common security-related issues. It details that if a user attempts to access a record or record type without proper permissions

they will receive an error message similar to the one described in option C: "...you do not have sufficient privileges to access it."

This reference confirms that the specific error message in option C is the expected outcome for this security scenario.

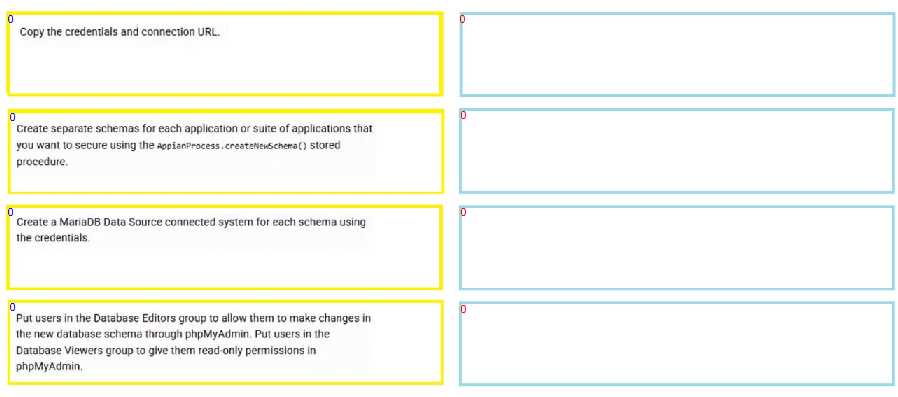

The process follows the standard workflow for provisioning new schemas in the Appian Cloud database. First, the schema must be generated using the AppianProcess.createNewSchema() stored procedure executed within phpMyAdmin (Step 1). This procedure automatically generates a dedicated user and password, which must be copied immediately (Step 2). These credentials are then used to configure a MariaDB Data Source connected system object, allowing Appian to interface with the new schema (Step 3). Finally, users are assigned to the Database Editors or Viewers groups to grant them specific access rights to manage or view the newly created schema via the phpMyAdmin interface (Step 4).

Appian Documentation - Appian Cloud Database Administration:

Section: "To create a new schema"

Relevance: This section explicitly lists the steps in the exact order: 1) Create separate schemas using the stored procedure, 2) Copy credentials, 3) Create the MariaDB Data Source connected system, and 4) Configure user groups (Database Editors/Viewers) for access.

Link: https://docs.appian.com/suite/help/25.3/appian-cloud-database-administration.html

Appian Community - Data Migration to New Schema:

Section: "Recommended Steps" -> "Create new schema and the Data Source Connected System"

Relevance: Confirms the order of calling the stored procedure first, noting down credentials, and then creating the Connected System object.

Link: https://community.appian.com/success/w/guide/3224/data-migration-to-new-schema

Rank 1 (Script Task): Using a!forEach() allows for bulk processing in memory. This is the most performant method as it avoids the massive overhead of spawning multiple process instances, resulting in the fastest execution time and lowest memory footprint. Rank 2 (Subprocess MNI): The native Subprocess node is optimized for internal process orchestration. configuring it for Parallel MNI ("start at same time") significantly reduces execution time compared to serial methods, though it still consumes memory for $N$ instances. Rank 3 (Start Process MNI): While also parallel, the Start Process Smart Service typically incurs higher initiation overhead per instance compared to the native Subprocess node. It is generally less efficient for tight data processing loops than the Subprocess node. Rank 4 (Flow Loop): "Looping over" a node implies a manual flow loop (Gateway Loop). This is the worst option because it executes sequentially (slowest time) and causes the parent process history to bloat indefinitely (highest memory risk), leading to severe performance degradation.

Appian Documentation - Process Model Performance:

Section: Processing Large Data Sets

"Use the a!forEach() function... to process data in bulk. This is significantly faster than processing items one by one in a process model."

"Avoid using Multi-Node Instances (MNI) for large data sets if a bulk operation is possible."

Appian Documentation - Sub-Process Activity:

Comparison with Smart Services: The documentation notes that while Start Process handles load balancing, the Subprocess node is the native method for parent-child orchestration and generally offers tighter integration/performance for data flows.

Appian Playbook - Looping:

Identifies Manual Looping (Flow Loops) as a pattern to avoid for large lists due to "Process History Bloat" and recommends replacing them with MNI or Bulk Processing (a!forEach).

The troubleshooting workflow follows a logical process of elimination, moving from external factors to internal application analysis:

1. Environment Sanity (Isolation): First, ensure the resource spike isn't caused by external interference (e.g., antivirus scans, background backups, or rogue users). If the environment isn't isolated, further analysis is moot.
2. Test Validity (The Input): Next, verify the test script itself. An incorrect script (e.g., zero "think time" or infinite loops) can artificially saturate resources. This rules out "self-inflicted" issues.
3. Functional Health (The Errors): Check for "cascading errors." System failures (like infinite retry loops on failed connections) often manifest as high CPU/Memory usage. This identifies if the load is a symptom of a functional bug.
4. Deep Analysis (The Bottleneck): Once external factors, scripts, and obvious errors are ruled out, analyze specific logs and counters to identify inefficient code or processes consuming the resources.
5. Capacity Planning (The Resolution): Finally, if the application is functioning correctly and efficiently but still hits limits, conduct a sizing exercise to determine if hardware scaling (adding resources) is the necessary solution.

Microsoft Patterns & Practices, Performance Testing Guidance for Web Applications, "Chapter 17: Analyzing Performance Testing Data." This guide outlines the hierarchy of isolating bottlenecks, prioritizing environment validation and test integrity before code analysis.

ISTQB, Advanced Level Syllabus - Performance Testing, Section 4.2 "Performance Test Analysis," which mandates validating the test environment and data integrity prior to drawing conclusions about system performance.

Meier, J.D., et al., Performance Testing Guidance for Web Applications, Microsoft Corporation, 2007. (Specifically regarding the methodology of "Detecting Bottlenecks" and determining if issues are infrastructure or application-related).

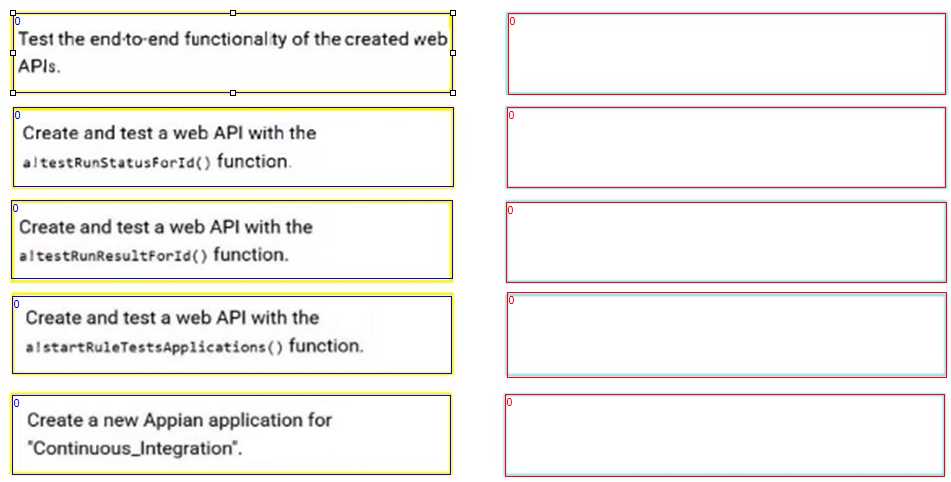

To set up automated testing with Jenkins, you must expose Appian's testing services to the external CI system via Web APIs. The process follows a logical dependency chain:

1. Container: First, create a dedicated application (e.g., "Continuous_Integration") to house the CI/CD artifacts.
2. Initiation: Create the Web API that triggers the test run using a!startRuleTestsApplications(), which returns a testRunId.
3. Monitoring: Create the Web API to poll the status of the run using a!testRunStatusForId() (requires the ID from the previous step).
4. Retrieval: Create the Web API to fetch the final results using a!testRunResultForId() once the status is complete.
5. Validation: Finally, verify the entire sequence by testing the end-to-end functionality before configuring the Jenkins pipeline.

Appian Documentation - Running Automated Tests on Expression Rules with Jenkins

Section: "Integrating with an external system" and "Overview".

Ref: Describes the requirement to create three specific Web APIs in sequence: one to start execution, one to query status, and one to fetch results.

URL: https://docs.appian.com/suite/help/25.3/Running_Automated_Tests_on_Expression_Rules_with_Jenkins.html

Appian Documentation - Expression Rule Testing Functions

Section: "Integrating with an external system".

Ref: "Running expression rule tests from an external system can be accomplished by creating web APIs... The first web API should start the test execution... The second web API should query the status... Finally, the third web API should fetch the results."

URL: https://docs.appian.com/suite/help/25.3/Expression_Rule_Testing_Functions.html

Appian Documentation - Start Rule Tests (Applications) Smart Service

Section: "Overview".

Ref: Explains that this function initiates the test and provides the testRunId used by the subsequent status and result functions.

URL: https://docs.appian.com/suite/help/25.3/Start_Rule_Tests_Applications_Smart_Service.html
