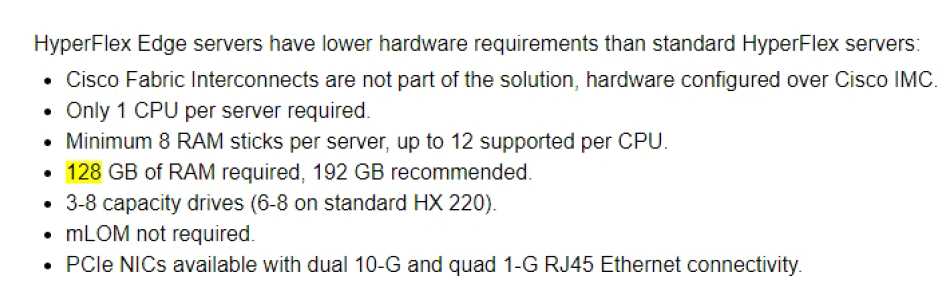

Question 1 Q: 1 What is the minimum amount of memory required for an HX node? Options A: 192 GB B: 64 GB C: 32 GB D: 128 GB Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: D Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_17_img_1.jpg

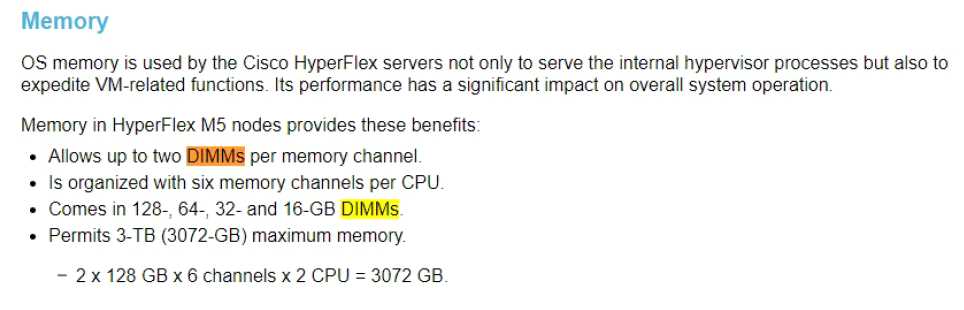

Question 2 Q: 2 How many DIMMs are supported per memory channel in the Cisco UCS M5 server? Options A: 2 B: 1 C: 8 D: 4 Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: A Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_12_img_2.jpg

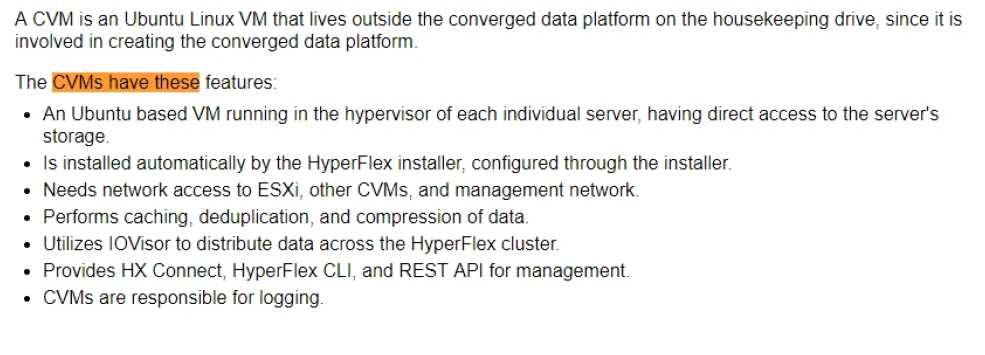

Question 3 Q: 3 A Controller Virtual Machine (CVM) is an Ubuntu Linux VM that lives outside the converged data platform on the housekeeping drive since it is involved in creating the convergence data platform Which two features tor CVMs are valid? (Choose two.) Options A: creates hooks tor services related to third-party abstraction applications B: does not perform caching, deduplication: and compression of data C: an Ubuntu based VM running in the control space of each individual server, having linear access to the server's VMs and networking controls D: needs network access to ESXi. other CVMs, and management network E: is installed automatically by the HyperFlex installer, configured through the installer Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: D, E Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_5_img_1.jpg

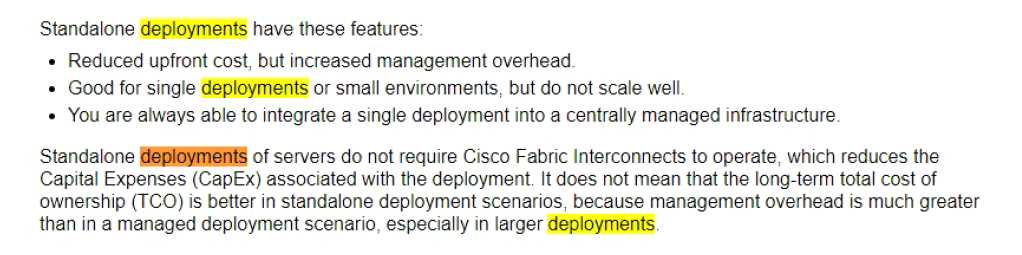

Question 4 Q: 4 Which statement about Standalone Cisco UCS Server Deployments is valid? Options A: They require Cisco Fabric Interconnects to operate, which reduces the Operating Expenses (OpEx) associated with the deployment B: They do not require Cisco Fabric Interconnects to operate, which reduces the Operating Expenses (OpEx) associated with the deployment C: They do not require Cisco Fabric Interconnects to operate, which reduces the Capital Expenses (CapEx) associated with the deployment D: They require Cisco Fabric Interconnects to operate, which reduces the Capital Expenses (CapEx) associated with the deployment Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: C Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_6_img_1.jpg
Question 5 Q: 5 Which two features enable RAID cards striping as well as mirroring and parity? (Choose two.) Options A: Integration with Cisco Intersight for a cloud-based storage management solution. B: No load on the system resources, drives seem as one drive to the operating system C: On RAID card failure, the RAID onboard concurrent cache assists rebuild cache. D: Hot replacement of drives available, depending on configuration E: Distributed drives across disparate systems can be in RAID together. Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: BD Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_4_img_2.jpg

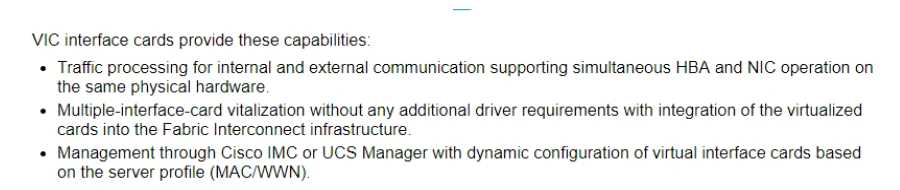

Question 6 Q: 6 Which three capabilities are provided by Virtual Interface Cards'? (Choose three.) Options A: Virtualizing object storage environments by pushing meta data directly to the management server B: The virtual interfaces created by a VIC do not accommodate hypervisor communication like VMkernel interfaces on vSphere. C: Management through Cisco IMC or UCS Manager with dynamic configuration of virtual interface cards based on the server profile (MAC/WWN). D: Traffic processing for internal and external communication supporting simultaneous HBA and NIC operation on the same physical hardware. E: Multiple-interface-card virtualization without any additional driver requirements with integration of the virtualized cards into the Fabric Interconnect infrastructure. F: A virtual environment, such as VMware vSphere, provides VM connectivity via a virtual switch to individual virtual machines bypassing local hardware requests. Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: CDE Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_23_img_1.jpg
Question 7 Q: 7 When building a HyperFlex cluster which two recommendations should be followed? (Choose two.) Options A: Use HX 220s for compute nodes and HX 240s for converged nodes B: Use B-Series servers to improve converged node scale. C: Use the same CPU model but memory configuration can be different. D: Use the same server configuration for the cluster. E: Use the same server model for the cluster. Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: D, E

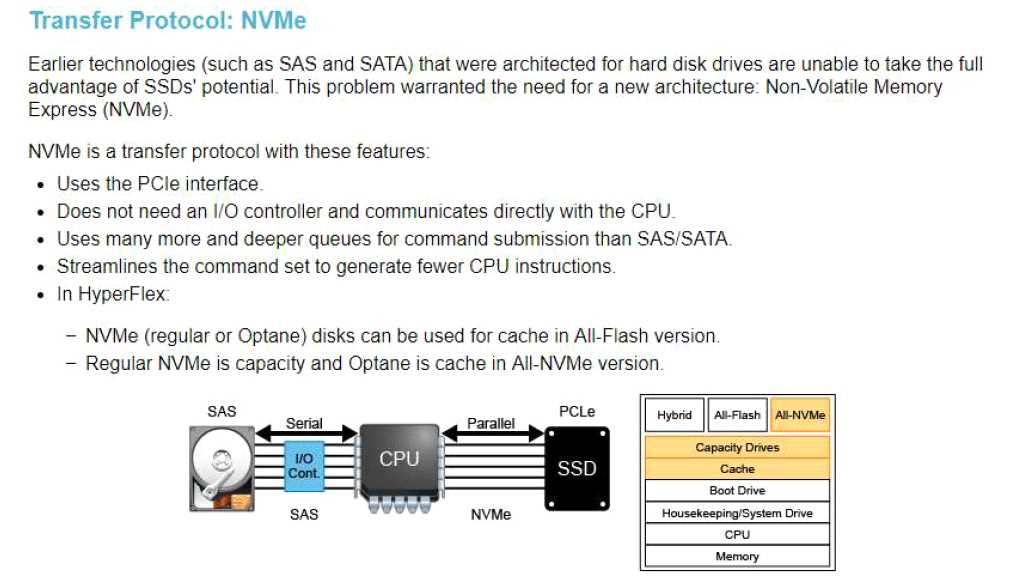

Question 8 Q: 8 Which three features for NVMe transfer protocol are valid? (Choose three.) Options A: Uses PCIe interface B: Streamlined commands for fewer CPU instructions C: More and deeper queues D: Requires 10 controller E: Increases memory speed for more lOPs F: Improves SAS and SATA speed Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: A, B, C Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_7_img_2.jpg

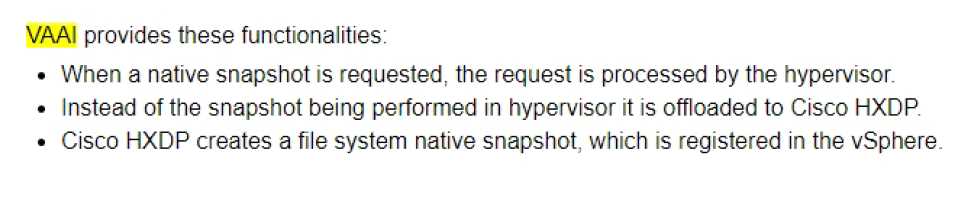

Question 9 Q: 9 Which three functionalities are provided by VAAI? (Choose three.) Options A: When a native snapshot is requested, the request is processed by the hypervisor. B: Missing pieces of data are re-created from the remaining nodes in service C: Cisco HXDP creates a file system native snapshot which is registered in the vSphere. D: VAAI performs caching, deduplication: and compression of data. E: Instead of the snapshot being performed in hypervisor it is offloaded to Cisco HXDP. F: VAAI uses RAID to consolidate disks into a shared data platform. Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: AEC Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_16_img_1.jpg
Question 10 Q: 10 How many vCPUs does the HXDP controller VM require? Options A: 8 B: 6 C: 2 D: 4 Save Question Show Answer Discussion 0 Clear Discussion Most voted Newest No comments yet. Be the first to comment. Post Be respectful. No spam. Correct Answer: A Explanation https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/700-905/page_24_img_1.jpg
