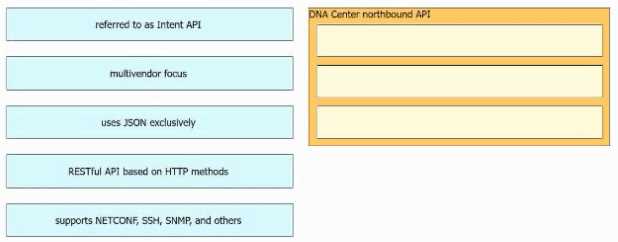

The Cisco DNA Center (now Catalyst Center) Northbound API allows external applications and orchestrators to interact with the controller. Its key characteristics include:

1. Referred to as Intent API: Cisco officially designates its northbound interface as the "Intent API" because it allows high-level business intent to be translated into network configurations.
2. RESTful API based on HTTP methods: It follows standard REST architecture, utilizing standard HTTP verbs like GET, POST, PUT, and DELETE to perform operations.
3. Uses JSON exclusively: The API typically mandates Content-Type: application/json for requests and returns data in JSON format, distinguishing it from XML-based APIs.

Why others are incorrect:

• Supports NETCONF, SSH, SNMP: These are Southbound protocols used by the controller to communicate with network devices, not Northbound APIs used by applications to talk to the controller.
• Multivendor focus: While limited third-party support exists via SDKs, the primary focus of DNA Center and its specific Northbound API is the management of Cisco Catalyst, Nexus, and Aironet infrastructure, not a generic multivendor focus.

Cisco DevNet. "Cisco DNA Center Intent API - Overview." Cisco Developer Network. The documentation explicitly states: "The Cisco DNA Center Intent API is a northbound REST API... The API allows you to use HTTPS verbs (GET, POST, PUT, DELETE) and JSON structures to discover and control your network."

Cisco Systems. "Cisco DNA Center Platform User Guide, Release 2.3.3." Chapter: Cisco DNA Center Platform Overview. Mentions the exposure of the platform via the Intent API for external integration.

Cisco Systems. "Cisco Digital Network Architecture Center (DNA Center) Data Sheet." Describes the platform's programmability via "Intent-based APIs."

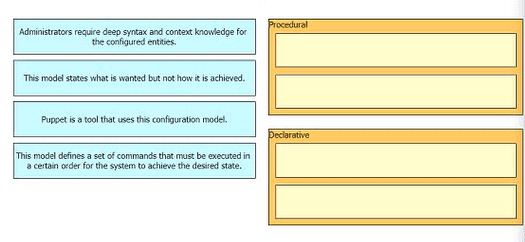

Procedural (Imperative) configuration focuses on the "how." It relies on a specific sequence of commands (scripts) executed in order to reach a state. Because the administrator is writing the explicit steps (e.g., CLI commands), they must possess deep knowledge of the specific syntax for that device and the current context (state) of the system to avoid errors.

Declarative configuration focuses on the "what" (the desired state) without defining the specific steps to get there. The system or tool abstracts the underlying complexity. Puppet is a prime example of a tool that uses a declarative domain-specific language (DSL) where administrators define the end state (e.g., "ensure Apache is installed"), and the tool determines the necessary actions to achieve it.

Cisco Systems. Cisco DevNet Associate DEVASC 200-901 Official Cert Guide. Chapter 14: Infrastructure as Code. Section: "Imperative vs. Declarative." (Defines imperative as sequence-based and declarative as intent-based).

Puppet. Puppet Documentation: Introduction to Puppet. "Understanding the Puppet language." Available at: https://www.puppet.com/docs/puppet/7/puppet_language.html (States: "Puppet uses a declarative language to describe system configuration... You describe the state you want your system to be in, not the steps to get there.").

Microsoft. Azure Architecture Center: Infrastructure as Code. "Imperative vs. declarative code." Available at: https://learn.microsoft.com/en-us/azure/architecture/guide/devops/infrastructure-as-code (Confirming declarative defines "what" and imperative defines "how").

Red Hat. What is infrastructure as code (IaC)? "Declarative vs. imperative." Available at: https://www.redhat.com/en/topics/automation/what-is-infrastructure-as-code-iac (Reinforces that declarative tools like Puppet focus on the desired state).

PIM Sparse Mode (PIM-SM) is designed for networks where multicast group members are sparsely distributed. It operates on a pull model, meaning multicast traffic is not flooded; instead, routers must explicitly send Join messages to receive traffic.

To facilitate this, PIM-SM requires a Rendezvous Point (RP), which acts as a meeting place for sources and receivers. Traffic initially flows down a shared distribution tree (rooted at the RP) to reach the receivers. In contrast, PIM Dense Mode uses a "push" (flood and prune) model and builds source-based trees by default.

Cisco Systems, IP Multicast: PIM Configuration Guide, "Protocol Independent Multicast (PIM)," Section: "PIM Sparse Mode".

Quote: "PIM-SM uses a pull model to deliver multicast traffic. Only network segments with active receivers that have explicitly requested the data will receive the traffic."

IETF RFC 7761, Protocol Independent Multicast - Sparse Mode (PIM-SM): Protocol Specification (Revised), Section 3.1.

Summary: Defines the role of the Rendezvous Point (RP) and the creation of shared trees (*,G) for traffic distribution.

Juniper Networks, Multicast Protocols Guide, "Understanding PIM Sparse Mode".

Quote: "PIM sparse mode (PIM-SM) ... relies on a rendezvous point (RP) to forward multicast traffic ... builds a shared tree."

The Northbound API in Cisco Catalyst Center is also known as the Intent API. It is designed to abstract the complexity of the underlying network infrastructure. This API allows external applications, IT systems, and network administrators to declare a desired business outcome or "intent" (e.g., "prioritize video traffic for executive users") without specifying the low-level, step-by-step configuration commands. Cisco Catalyst Center then interprets this intent and automatically translates it into the necessary configurations, which are pushed to the network devices via its southbound interfaces. This approach focuses on the "what" (the outcome) rather than the "how" (the individual steps).

A. Southbound APIs are used by the controller to communicate with and configure network devices. They are concerned with the "how" (the steps), not the "what" (the intent).

B. Westbound APIs facilitate communication between different controller instances or domains (controller-to-controller), not for receiving high-level intent from external applications.

D. Eastbound APIs are also for controller-to-controller communication. "Events and Notifications" describes a function, not the primary API type for defining network outcomes.

1. Cisco DevNet Documentation: Cisco Catalyst Center Platform Overview. In the section "Northbound APIs (Intent APIs)

" it states

"The Northbound APIs

also known as Intent APIs

allow you to programmatically control the network as a single fabric... They allow you to focus on a business or IT outcome (the 'intent') and to express that intent to the network

which then takes care of the details."

Reference: Cisco Developer

"Cisco Catalyst Center Platform Overview

" Section: Northbound APIs (Intent APIs).

2. Cisco White Paper: Cisco DNA Intent-Based Networking: The Assurance Journey. This paper describes the architecture

stating

"Northbound APIs allow for integration with third-party applications and business systems... These APIs are intent-based

meaning they are declarative and describe the 'what' rather than the 'how'."

Reference: Cisco White Paper

"Cisco DNA Intent-Based Networking: The Assurance Journey

" (2019)

Page 4

Section: "Cisco DNA Center architecture".

3. Official Vendor Documentation: Cisco DNA Center Platform User Guide. The architectural diagrams and descriptions in the guide consistently show Northbound APIs interfacing with "Business/IT Applications" to receive intent

while Southbound APIs interface with "Network Devices" to execute configuration.

Reference: Cisco DNA Center Platform User Guide

Release 2.3.5

Chapter: "Cisco DNA Center Platform Overview

" Section: "Cisco DNA Center Platform Architecture".

Cisco Umbrella operates at the DNS layer, providing the first line of defense by blocking requests to malicious domains. AMP4E (Cisco Advanced Malware Protection for Endpoints, now Cisco Secure Endpoint) is specifically designed to provide continuous monitoring and malware protection directly on endpoint devices. FTD (Firepower Threat Defense) is the unified software image for Cisco NG-Firewalls, integrating core firewall functions with Next-Generation IPS (intrusion prevention systems). StealthWatch (now Cisco Secure Network Analytics) utilizes NetFlow and other telemetry to perform security analytics and detect anomalies across the network. ESA (Email Security Appliance, now Cisco Secure Email) is a gateway solution designed to filter SMTP traffic and protect organizations against email-based threats like phishing and spam.

Cisco Systems. Cisco Umbrella: Cloud Security Essentials. Cisco.com. Retrieved from "What is Cisco Umbrella?" product overview.

Cisco Systems. Cisco Secure Endpoint (formerly AMP for Endpoints) Data Sheet. Referencing section "Continuous monitoring and recording" and "Advanced malware protection".

Cisco Systems. Cisco Firepower Threat Defense Configuration Guide for Firepower Device Manager. Chapter: "Intrusion Prevention".

Cisco Systems. Cisco Secure Network Analytics (formerly Stealthwatch) At-a-Glance. Referencing "Network Visibility and Security Analytics" and reliance on "network telemetry".

Cisco Systems. Cisco Secure Email Gateway Data Sheet. Referencing "comprehensive protection against email threats".

DHCP Option 43 for Cisco lightweight access points (APs) uses a vendor-specific format to provide the IP addresses of one or more Wireless LAN Controllers (WLCs). This information is encoded using a Type-Length-Value (TLV) structure. The entire TLV string, which includes the type (sub-option 0xf1), length (number of WLC IPs x 4), and value (the WLC IP addresses), must be formatted as a single hexadecimal string. The AP's firmware is designed to parse this specific hexadecimal value to discover and join its controller.

A. ASCII: The AP's CAPWAP discovery process does not parse human-readable ASCII strings for Option 43; it expects a specific binary structure represented in hex.

C. Base64: This is a binary-to-text encoding scheme, but it is not the format required by Cisco APs for DHCP Option 43.

D. MD5: This is a cryptographic hash function used for verifying data integrity, not for encoding configuration data like an IP address in a DHCP option.

1. Cisco Catalyst 9800 Series Wireless Controller Configuration Guide

Cisco IOS XE Bengaluru 17.6.x: In the chapter "System Management

" under the section "Configuring DHCP

" it states: "The format of the TLV block is: Type + Length + Value. Type is always the sub-option code 0xf1. Length is the number of controller IP addresses times 4 in hex. Value is the IP addresses of the controller listed sequentially in hex."

2. Lightweight AP (LAP) Registration to a Wireless LAN Controller (WLC) - Cisco Technical Note: In the section "Configure DHCP Option 43

" the document provides examples for various DHCP servers. For a Cisco IOS DHCP server

the configuration command is option 43 hex f104.c0a8.0a05

explicitly using the hex keyword and a hexadecimal value.

3. Cisco Wireless LAN Controller (WLC) Configuration Best Practices: In the "DHCP" section

this guide explains

"For Cisco APs

the value of this option is the IP address of the WLC management interface

which is entered in hexadecimal format." It provides the example f104c0a8640a for WLC at 192.168.100.10.

Blank 1 (event syslog pattern): The string "SYS-5-CONFIG_I" is a standard Cisco IOS system logging (syslog) message generated when a configuration change is made (specifically, "Configured from console..."). To trigger an EEM applet based on a specific log message, the event syslog pattern detector is required.

Blank 2 ("enable"): action 1.0 is used to prepare the CLI session. The command "enable" places the EEM applet into privileged EXEC mode. This is a standard best practice in EEM scripts to ensure subsequent commands (like writing to flash) have the necessary permissions to execute.

Blank 3 (| append flash): action 2.0 executes show clock to generate a timestamp. The goal is to add this entry to a file. The pipe character | followed by append is the IOS syntax to direct output to a file without overwriting existing data. The destination file system is flash, creating the valid path flash:ConfSave.txt.

Cisco Systems. Embedded Event Manager Configuration Guide, Cisco IOS Release 15M&T: "Embedded Event Manager Event Detectors." (Refer to the section on "Syslog Event Detector" which utilizes the syntax event syslog pattern regular-expression).

Cisco Systems. Cisco IOS Network Management Configuration Guide: "Writing EEM Policies using CLI." (See examples involving action cli command where enable is used to enter privileged mode).

Cisco Systems. Cisco IOS Configuration Fundamentals Command Reference: "CLI parsing" and "File System Commands." (Documents the usage of the pipe character | with the append keyword for redirecting command output to file systems like flash:).

The question requires a WLAN configuration that supports two specific features: 802.11r and the use of a passphrase for authentication. The IEEE 802.11r standard is also known as Fast BSS Transition (FT), or simply "Fast Transition." A "passphrase" is characteristic of Pre-Shared Key (PSK) authentication, commonly used in WPA2/WPA3-Personal security policies. To meet both requirements, the engineer must enable the Fast Transition feature on the WLAN and configure the security policy to use the specific Authentication and Key Management (AKM) suite known as FT-PSK. This combination allows for fast roaming between access points while using a shared key for authentication.

A. 802.1X and SUITEB-1X: 802.1X is an authentication framework that uses individual user credentials (e.g., username/password or certificates), not a shared passphrase.

C. 802.1X and Fast Transition: This option is incorrect because 802.1X authentication does not use a passphrase, which is a specific requirement of the question.

D. FT PSK and SUITEB-1X: SUITEB-1X is a high-security cryptographic suite designed for use with 802.1X authentication, not with PSK-based methods.

1. Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide

IOS XE Amsterdam 17.3.x - Security Configuration Guide

Chapter: Configuring Security. This guide details the WLAN security policy configuration. In the section for configuring WPA2

it specifies the options for Authentication Key Management (AKM)

which include "FT-PSK" for Fast Transition with a Pre-Shared Key. It states

"For WPA2 Policy

you can enable... Fast Transition (802.11r)... For AKM

you can choose PSK... When Fast Transition is enabled with PSK

this is FT-PSK."

2. IEEE Std 802.11™-2020

IEEE Standard for Information Technology—Telecommunications and information exchange between systems Local and metropolitan area networks—Specific requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications. - Section 12.4.2.3

"AKM suite selector definitions". Table 12-6 defines the AKM suite selectors. The suite "FT authentication and key management with PSK" is explicitly defined with the selector value 00-0F-AC:3

confirming that FT-PSK is a standardized method.

3. Cisco Wireless Controller Configuration Guide

Release 8.5 - Chapter: Configuring Security Solutions

Section: Configuring Fast Transition. This document explains

"Fast Transition can be configured for WPA2-Enterprise (802.1X) or WPA2-Personal (PSK) security policies." This directly confirms that Fast Transition (802.11r) can be combined with PSK (passphrase).

The event none command is used within an Embedded Event Manager (EEM) applet configuration to register the policy without associating it with a specific system event trigger. This configuration makes the applet available to be executed "on demand" or manually. The applet can then be invoked from the command-line interface (CLI) using the event manager run command or called by another EEM policy. This method is ideal for creating reusable scripts or for tasks that require manual initiation by a network administrator.

A. event register is not a valid EEM event detector command. While some event detectors use the keyword register as an option, it is not used to define a manual trigger.

B. event manual is not a valid EEM event detector command. The term "manual" describes how the applet is run, but it is not the keyword used in the configuration to define the trigger.

D. This configuration is syntactically invalid as it completely omits the mandatory event command. An EEM applet must contain at least one event command to define its triggering condition.

1. Cisco IOS XE Embedded Event Manager (EEM) Configuration Guide

Cisco IOS XE Gibraltar 16.12.x

Section: "Configuring an EEM Applet to Run On Demand or Manually"

Content: "The event none command registers an EEM applet without an event so that it can be run on demand. The applet can be run manually from the CLI using the event manager run applet-name command..." This section explicitly details the use and purpose of the event none command for creating on-demand applets.

2. Cisco IOS Embedded Event Manager Command Reference

Command: event none

Usage Guidelines: "To configure an Embedded Event Manager (EEM) applet to run on demand or manually

use the event none command in applet configuration mode... This command registers an EEM applet but does not associate an event with it." This reference directly confirms the function of the event none command.

3. Cisco IOS XE Programmability Configuration Guide

Cisco IOS XE 17

Section: "Embedded Event Manager Overview"

Content: This guide describes the fundamental structure of an EEM applet

stating that it consists of an event statement and an action statement. This confirms that an applet without an event statement (as in option D) is invalid.

The principle of Complete Mediation requires that every access to every object must be checked for authority. This principle explicitly argues against relying on cached permissions, as the state of authorization can change between the time of the initial check and a subsequent access. The scenario describes a system that must validate access rights for all resources and not use a cached matrix precisely because a revoked permission might not be reflected, leading to a security violation. This is the textbook definition of enforcing Complete Mediation.

A. economy of mechanism: This principle advocates for keeping the design as simple and small as possible to facilitate verification, not for how often access checks are performed.

C. separation of privilege: This principle requires that access be granted based on more than one condition or credential, not that every access attempt must be re-validated.

D. least common mechanism: This principle advises minimizing shared resources between users to prevent unintended information paths, which is unrelated to validating every access request.

1. Saltzer

J. H.

& Schroeder

M. D. (1975). The Protection of Information in Computer Systems. Communications of the ACM

18(7)

38-49. In Section I.A.3.b

"Principle of Complete Mediation

" it states

"Every access to every object must be checked for authority... If a mechanism remembers the result of an authority check

it is acting as a cache... If the rights can change

the cache may be incorrect." This directly supports the answer.

2. National Institute of Standards and Technology (NIST). (2018). Systems Security Engineering: Considerations for a Multidisciplinary Approach in the Engineering of Trustworthy Secure Systems (NIST Special Publication 800-160

Vol. 1). In Appendix F.3

"Complete Mediation

" the principle is defined as: "every access to every object must be checked for authority... The checking mechanism should not rely on a previous check."

3. Parno

B.

& Perrig

A. (2014). 6.858 Computer Systems Security

Fall 2014 Lecture Notes. Massachusetts Institute of Technology: MIT OpenCourseWare. In Lecture 2

Section 4

"Secure design principles (Saltzer & Schroeder)

" Complete Mediation is summarized as: "Check every access. Don't cache results of a check."
