https://kb.vmware.com/s/article/80949

Tanzu Kubernetes Grid (TKG) provides a command line tool called tkg-support-bundler which can be

used to collect the necessary information and logs for troubleshooting and support cases. The

command can be run on the TKG CLI and it will gather all the necessary information and logs from

the TKG control plane and worker nodes, and package them into a single compressed bundle file.

This bundle file can then be provided to VMware support for further analysis.

An extended network segment is required for a cloud administrator to create a virtual machine that

requires layer 2 connectivity to an on-premises workload. Extended networks allow for the virtual

machines to communicate directly with the on-premises workload while remaining isolated from the

public cloud. This allows for the virtual machines to access the same services and workloads as the

on-premises workloads while still remaining secure.

To connect the workload network segment to their on-premises data center and multiple company

Amazon VPCs running in US-East-2, the customer can use VMware Transit Connect. VMware Transit

Connect is a service that provides secure connectivity between AWS and on-premises data centers or

other clouds. It allows customers to connect and extend their networks to the AWS cloud with

minimal effort and cost.

VMware Transit Connect provides high-speed, resilient connectivity and is integrated with the AWS

Transit Gateway. With VMware Transit Connect, customers can connect their software-defined data

center (SDDC) network, Amazon Virtual Private Clouds (VPCs), and on-premises data centers. This

allows them to have a seamless networking connectivity between their VMware Cloud on AWS SDDC

and their native AWS environment. So, for the given scenario where the customer wants to connect

to both their on-premises data center and multiple VPCs in the same AWS region, VMware Transit

Connect would be the most appropriate choice.

https://blogs.vmware.com/networkvirtualization/2020/09/vmware-transit-connect-simplifyingnetworking-for-vmc.html/

VMware NSX is a network virtualization and security platform that provides a range of features for

creating and managing virtual networks, including the ability to create secure connections over the

Internet between on-premises data centers and VMware Cloud software-defined data centers

(SDDCs). NSX allows you to create logical networks that are isolated from the underlying physical

infrastructure, providing enhanced security and flexibility. With NSX, you can create secure,

encrypted connections between your on-premises data center and your VMware Cloud SDDC,

allowing you to easily and securely connect your workloads and applications running in the cloud to

your on-premises resources.

The two steps that the cloud administrator should complete on I/O-intensive workloads to ensure

the best performance possible are to configure the VMware Paravirtual SCSI (PVSCSI) adapter and to

ensure that the VMware hardware version is 7 or later. The PVSCSI adapter provides improved

performance and scalability compared to the LSI Logic Parallel SCSI controller. Additionally, the

hardware version should be 7 or later to ensure that the virtual machine is able to take advantage of

the latest features and enhancements. Enabling the memory hot-add feature and configuring a

maximum of two CPU cores per socket will not improve the performance of I/O-intensive workloads.

https://communities.vmware.com/t5/VMware-Education-Services/Why-does-VMware-refuse-toeducate-their-customers/td-p/2005973

Why does VMware refuse to educate their customers ... - VMware ...

https://communities.vmware.com/t5/VMware-Education-Services/Why-does-VMware-refuse-toeducate-their-customers/td-p/2005973

https://www.vmware.com/pdf/techsupportguide.pdf

VMware Technical Support Guide

https://www.vmware.com/pdf/techsupportguide.pdf

https://vcdx.vmware.com/content/dam/digitalmarketing/vmware/ru/pdf/techpaper/vmwarehorizon-7-application-publishing.pdf

Publishing Applications with VMware Horizon 7

https://vcdx.vmware.com/content/dam/digitalmarketing/vmware/ru/pdf/techpaper/vmwarehorizon-7-application-publishing.pdf

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/VMware_2V0-33.22/page_15_img_1.jpg

https://docs.vmware.com/en/VMware-Cloud-on-AWS/services/vmc-aws-performance.pdf

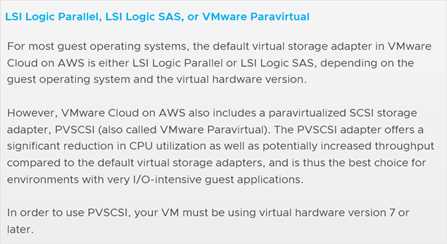

VMware Cloud on AWS also includes a paravirtualized SCSI storage adapter, PVSCSI (also called

VMware Paravirtual). The PVSCSI adapter offers a significant reduction in CPU utilization as well as

potentially increased throughput compared to the default virtual storage adapters, and is thus the

best choice for environments with very I/O-intensive guest applications. In order to use PVSCSI,

virtual machine must be using virtual hardware version 7 .or later

https://docs.vmware.com/en/VMware-Cloud-on-AWS/services/vmc-aws-performance.pdf

The prerequisite step to adding additional users to a Google Cloud VMware Engine's vCenter (GCVE)

is to add a user in Google Cloud Platform Identity and Access Management. This will allow for the

user to be added to the vCenter and properly authenticated.

To add additional users to a GCVE vCenter, a prerequisite step is to add a user in Google Cloud

Platform Identity and Access Management (IAM)1. This is because GCVE uses Google Cloud IAM to

manage access to the private cloud2. The user must have the appropriate IAM role, such as VMware

Engine Admin or VMware Engine Viewer, to access the GCVE portal and vCenter2. The user must also

have a Google account or a Cloud Identity account2. After adding a user in Google Cloud IAM, the

user can sign in to the GCVE portal and launch the vCenter web console2. The user can then perform

operations based on the assigned vCenter role and group3. Reference: 1: Adding users to Google

Cloud VMware Engine, 2: Managing access to Google Cloud VMware Engine, 3: Private cloud vSphere

permission model

Managing Costs:

With its capacity and cost management features, vRealize Operations Cloud can predict future

demand and provide actionable recommendations to help in managing costs.

Reclamation of Existing Resources:

Assess workload status and resource contention in data centers across your environment:

Determine the time remaining until CPU, memory, or storage resources run out.

Realize cost savings when underutilized VMs are identified and reclaimed to be deployed more

effectively.

Future Infrastructure Requirements

Run what-if scenarios:

Identify how much capacity remains after you add or remove VMs or hosts.

Add hyperconverged infrastructure (HCI) nodes.

Get a recommendation based on the cost relative to workload placement on different hosts, clusters,

data centers, and even different clouds.

Cloud Migration Planning:

Migration planning shows you the capacity and cost information after the migration to a cloud-based

infrastructure.

Cost Overview

vRealize Operations Cloud supports costing for private clouds, public clouds, and VMware Cloud

infrastructure.

You can track expenses for a single virtual machine, and identify how these expenses attribute to the

overall cost associated with your private cloud accounts and VMware Cloud infrastructure accounts.

On the Cost Overview home page in vRealize Operations Cloud, you can find details about the costs

associated with your VMware Cloud infrastructure accounts, public cloud accounts, and your private

cloud accounts.

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/VMware_2V0-33.22/page_66_img_1.jpg

You can view the Total Cost of Ownership, Potential Savings, and Realized Savings for your VMware

Cloud infrastructure cloud accounts and vSphere private cloud accounts, and Total Cost of Ownership

for your private cloud accounts.

Reference:

https://docs.vmware.com/en/vRealize-Business/7.6/vRBforCloud.user.doc/GUID-AA3C209A-2DFA433F-BD57-67E66A598E5D.html

To deploy an instance of Azure VMware Solutions, an administrator must take the following two

steps:

Create a support request with Microsoft Azure Support to create a host quota. This is required

because Azure VMware Solution hosts are dedicated bare-metal servers that are not shared with

other customers1. The host quota determines the number and size of hosts that can be provisioned

in a subscription1. The host quota can be requested for an eligible Azure plan, such as Microsoft

Enterprise Agreement or Cloud Solution Provider2.

Deploy and configure Microsoft Azure ExpressRoute. This is required because Azure VMware Solution

uses ExpressRoute to connect the private cloud to the Azure virtual network and the on-premises

network3. ExpressRoute provides a secure, high-bandwidth, and low-latency connection that

enables seamless workload migration and hybrid cloud scenarios3. The administrator must deploy

and configure an ExpressRoute circuit, a virtual network gateway, and a virtual

network3. Reference: 1: Deploy and configure Azure VMware Solution, 2: Plan the Azure VMware

Solution deployment, 3: Tutorial: Deploy an Azure VMware Solution private cloud

https://docs.vmware.com/en/VMware-Cloud-Disaster-Recovery/services/vmware-cloud-dr-securitybest-practices/GUID-BCC03463-437B-4DBE-BE21-0D43D5BA5776.html

A cloud administrator requires an external secure connection into their data center to use Border

Gateway Protocol (BGP). The best connection type to use for this purpose is a Route-based virtual

private network (VPN). This type of VPN is secure, as it uses encryption and authentication to protect

the data transmitted over the connection. Additionally, it allows for the configuration of BGP to

ensure that the data traffic is routed to the desired destination.

https://www.vmware.com/content/dam/digitalmarketing/vmware/en/pdf/products/vmcaws/preparing-for-vmware-cloud-on-aws.pdf

PREPARING FOR VMWARE CLOUD ON AWS

https://www.vmware.com/content/dam/digitalmarketing/vmware/en/pdf/products/vmcaws/preparing-for-vmware-cloud-on-aws.pdf

https://vcdx.vmware.com/content/dam/digitalmarketing/vmware/ru/pdf/techpaper/vmwarehorizon-7-application-publishing.pdf

Publishing Applications with VMware Horizon 7

https://vcdx.vmware.com/content/dam/digitalmarketing/vmware/ru/pdf/techpaper/vmwarehorizon-7-application-publishing.pdf

https://www.vmware.com/topics/glossary/content/network-virtualization.html

What is Network Virtualization? | VMware Glossary

https://www.vmware.com/topics/glossary/content/network-virtualization.html

https://aws.amazon.com/es/blogs/apn/connectivity-options-for-vmware-cloud-on-aws-softwaredefined-data-centers/

This customer scenario describes a use case of extending the capacity of an existing data center with

a public cloud provider, such as VMware Cloud. This allows the customer to extend their capacity to

handle seasonal spikes in demand, without having to invest in additional physical infrastructure or

make significant changes to their existing setup.

According to VMware's official website, "VMware Cloud enables customers to extend their data

centers to the public cloud and dynamically scale capacity up or down with the same tools,

processes, and policies they use today in their private cloud or data center environments." [1]

[1] https://www.vmware.com/products/vmware-cloud.html
